ZZE121R-GEMNKP (2002)

Toyota Corolla/Altis Sed/Wg

Production Feb 2002 - Jul 2005
Engine 3ZZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0008- )

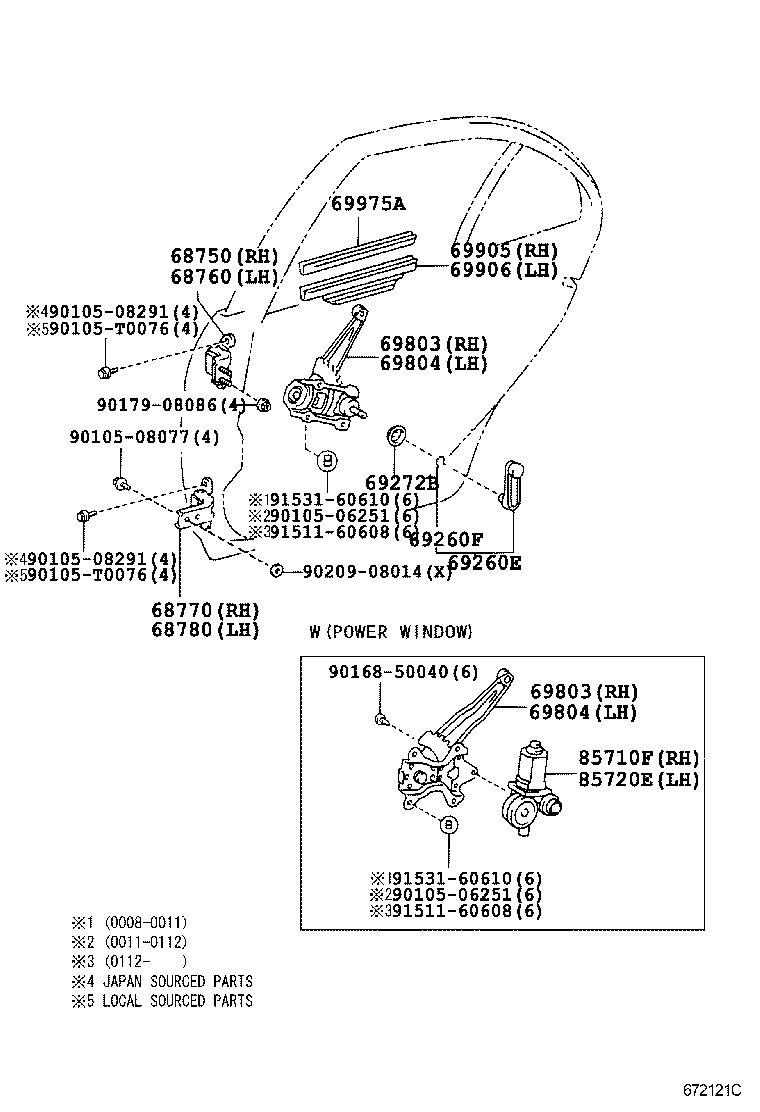

Click highlighted areas on diagram

diagram 68750 68760 68770 68780 69260E 69260F 69272B 69803 69803 69804 69804 69905 69906 69975A 85710F 85720E 9010506251 9010506251 9010508077 9010508291 9010508291 90105T0076 90105T0076 9016850040 9017908086 9020908014 9151160608 9151160608 9153160610 9153160610
Part # Description Qty Price
68750 - HINGE ASSY, REAR DOOR, UPPER RH
68750-52011

CE120,NZE12#,ZZE12#

 1
68760 - HINGE ASSY, REAR DOOR, UPPER LH
68760-52011

CE120,NZE12#,ZZE12#

 1
68770 - HINGE ASSY, REAR DOOR, LOWER RH
68770-52030

CE120,NZE12#,ZZE12#

 1
68780 - HINGE ASSY, REAR DOOR, LOWER LH
68780-52030

CE120,NZE12#,ZZE12#

 1
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69803-12140

NZE120..GCC,GEN;NZE120..GLI..PKN;CE120,NZE121,ZZE12#..20DSA,GLI,LX,SESAL,ULT,XLI

W(POWER WINDOW)

 1
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69803-12140

NZE120..GCC,GEN;NZE120..GLI..PKN;CE120,NZE121,ZZE12#..20DSA,GLI,LX,SESAL,ULT,XLI

W(POWER WINDOW)

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69804-12140

NZE120..GCC,GEN;NZE120..GLI..PKN;CE120,NZE121,ZZE12#..20DSA,GLI,LX,SESAL,ULT,XLI

W(POWER WINDOW)

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69804-12140

NZE120..GCC,GEN;NZE120..GLI..PKN;CE120,NZE121,ZZE12#..20DSA,GLI,LX,SESAL,ULT,XLI

W(POWER WINDOW)

 1
69905 - BRACKET SUB-ASSY, REAR DOOR GLASS, RH
69905-52020

CE120,NZE12#,ZZE12#

 1
69906 - BRACKET SUB-ASSY, REAR DOOR GLASS, LH
69906-52010

CE120,NZE12#,ZZE12#

 1
69975A - FILLER, REAR DOOR GLASS CHANNEL
69975-52010

CE120,NZE12#,ZZE12#

 2
85710F - MOTOR ASSY, POWER WINDOW REGULATOR, RH
85720-12300

NZE120..GCC,GEN;NZE120..GLI..PKN;CE120,NZE121,ZZE12#..20DSA,GLI,LX,SESAL,ULT,XLI

 1
85720E - MOTOR ASSY, POWER WINDOW REGULATOR, LH
85710-12310

NZE120..GCC,GEN;NZE120..GLI..PKN;CE120,NZE121,ZZE12#..20DSA,GLI,LX,SESAL,ULT,XLI

 1
Common parts
90105-06251
90105-08077
90105-08291
90105-T0076
90168-50040
90179-08086
90209-08014
91511-60608
91531-60610
