ZZE121R-GEMNKP (2002)

Toyota Corolla/Altis Sed/Wg

Production Feb 2002 - Jul 2005
Engine 3ZZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0008- )

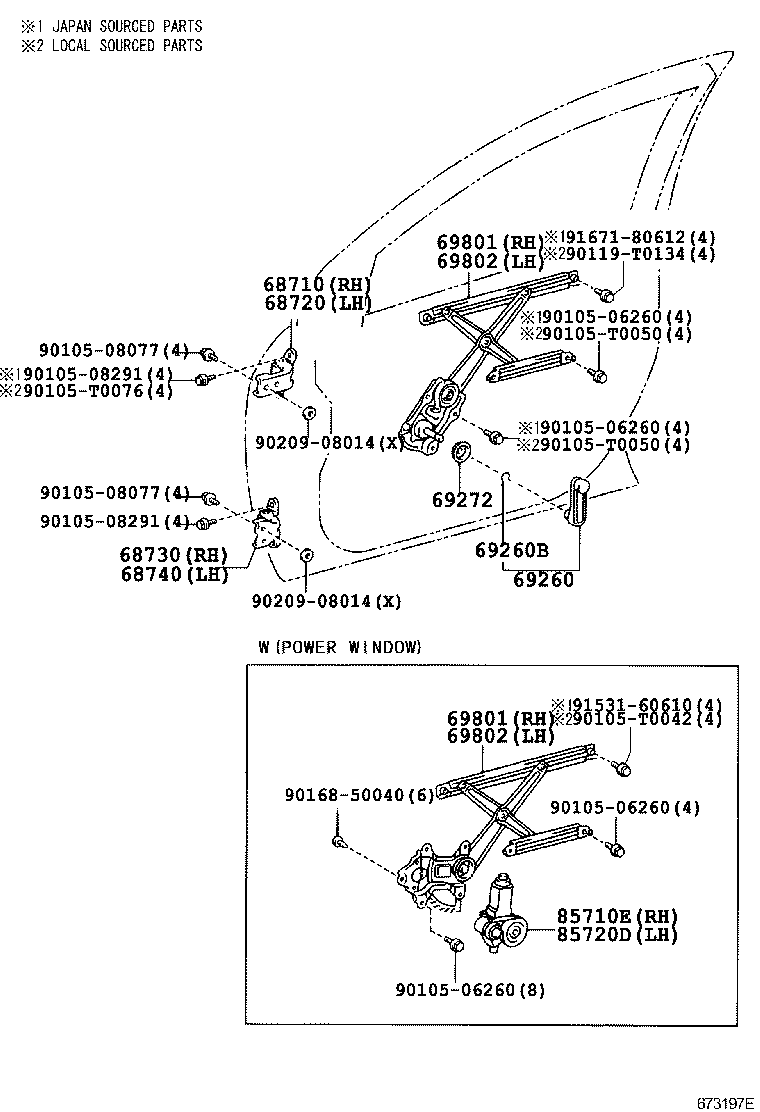

Click highlighted areas on diagram

diagram 68710 68720 68730 68740 69260 69260B 69272 69801 69801 69802 69802 85710E 85720D 9010506260 9010506260 9010506260 9010506260 9010508077 9010508077 9010508291 9010508291 90105T0042 90105T0050 90105T0050 90105T0076 90119T0134 9016850040 9020908014 9020908014 9153160610 9167180612
Part # Description Qty Price
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-0D030

CE120,NZE12#,ZZE12#

PLANT NO.=Z35,Z44

 1
68710-12150

CE120,NZE12#,ZZE12#

 1
68710-12150

CE120,NZE12#,ZZE12#

*227

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-12150

CE120,NZE12#,ZZE12#

 1
68720-12150

CE120,NZE12#,ZZE12#

*227

 1
68720-0D030

CE120,NZE12#,ZZE12#

PLANT NO.=Z35,Z44

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-52010

CE120,NZE12#,ZZE12#

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68740-52010

CE120,NZE12#,ZZE12#

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-12190

NZE120..GCC,GEN;NZE120..GLI..PKN;CE120,NZE121,ZZE12#..20DSA,CONQ,GLI,LX,SESAL,ULT,XLI

W(POWER WINDOW)

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-12190

NZE120..GCC,GEN;NZE120..GLI..PKN;CE120,NZE121,ZZE12#..20DSA,CONQ,GLI,LX,SESAL,ULT,XLI

W(POWER WINDOW)

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-12190

NZE120..GCC,GEN;NZE120..GLI..PKN;CE120,NZE121,ZZE12#..20DSA,CONQ,GLI,LX,SESAL,ULT,XLI

W(POWER WINDOW)

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-12190

NZE120..GCC,GEN;NZE120..GLI..PKN;CE120,NZE121,ZZE12#..20DSA,CONQ,GLI,LX,SESAL,ULT,XLI

W(POWER WINDOW)

 1
85710E - MOTOR ASSY, POWER WINDOW REGULATOR, RH
85710-12190

NZE120..RHD..GEN;NZE120..GLI..PKN;CE120,NZE121,ZZE12#..RHD..(20DSA,CONQ,GLI,LX,SESAL,ULT,XLI)

 1
85710-12320

CE120,NZE120,ZZE12#..(20DSA,CONQ,GLI,SESAL,ULT)..(ARL,PKN)

 1
85720D - MOTOR ASSY, POWER WINDOW REGULATOR, LH
85720-12210

NZE120..RHD..GEN;NZE120..GLI..PKN;CE120,NZE121,ZZE12#..RHD..(20DSA,CONQ,GLI,LX,SESAL,ULT,XLI)

 1
Common parts
90105-06260
90105-08077
90105-08291
90105-T0042
90105-T0050
90105-T0076
90119-T0134
90168-50040
90209-08014
91531-60610
91671-80612
