ZZE121R-GEMNKP (2002)

Toyota Corolla/Altis Sed/Wg

Production Feb 2002 - Jul 2005
Engine 3ZZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

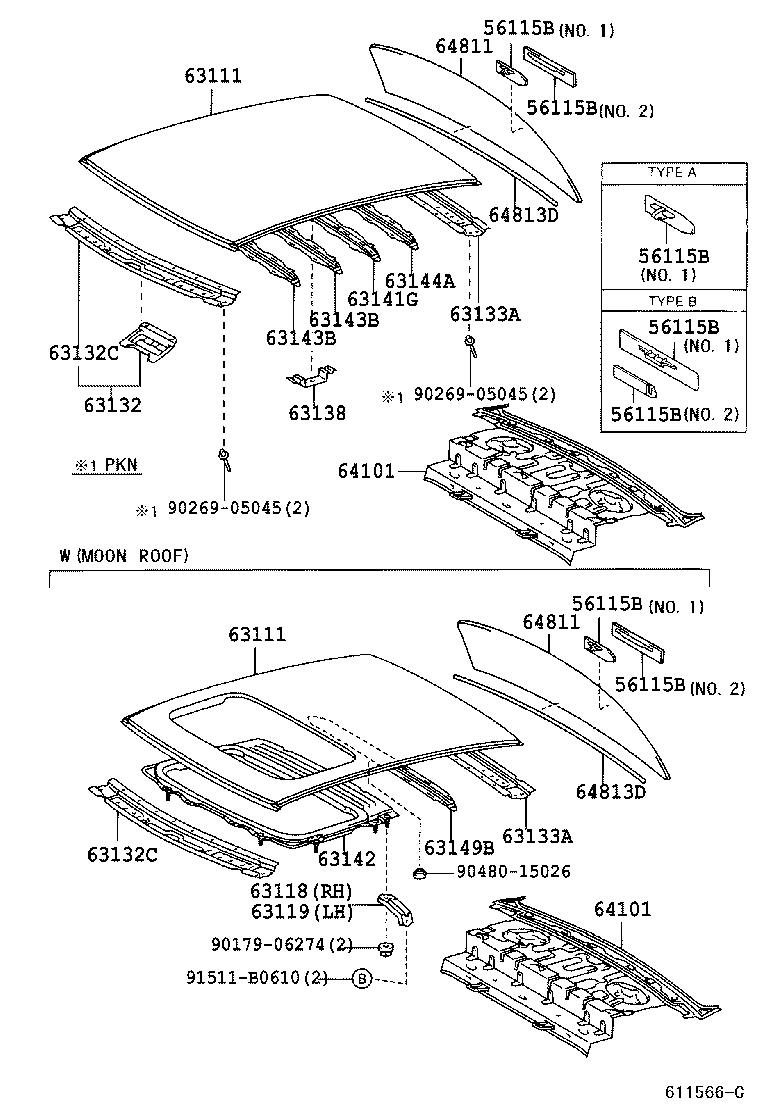

ILLUST NO. 1 OF 2(0008- )SED

Click highlighted areas on diagram

ROOF PANEL

diagram 56115B 56115B 56115B 56115B 56115B 56115B 56115B 63111 63111 63118 63119 63132 63132C 63132C 63133A 63133A 63138 63141G 63142 63143B 63143B 63144A 63149B 64101 64101 64811 64811 64813D 64813D 9017906274 9026905045 9026905045 9048015026 91511B0610
Part # Description Qty Price
56115B - STOPPER, BACK WINDOW GLASS, NO.1
56116-02020

CE120,NZE120,ZZE121..PKN

NO.2

 2
56115-02020

CE120,NZE120,ZZE121..PKN

NO.1

 2
56115B - STOPPER, BACK WINDOW GLASS, NO.1
56116-02020

CE120,NZE120,ZZE121..PKN

NO.2

 2
56115-02020

CE120,NZE120,ZZE121..PKN

NO.1

 2
56115B - STOPPER, BACK WINDOW GLASS, NO.1
56116-02020

CE120,NZE120,ZZE121..PKN

NO.2

 2
56115-02020

CE120,NZE120,ZZE121..PKN

NO.1

 2
56115B - STOPPER, BACK WINDOW GLASS, NO.1
56116-02020

CE120,NZE120,ZZE121..PKN

NO.2

 2
56115-02020

CE120,NZE120,ZZE121..PKN

NO.1

 2
56115B - STOPPER, BACK WINDOW GLASS, NO.1
56116-02020

CE120,NZE120,ZZE121..PKN

NO.2

 2
56115-02020

CE120,NZE120,ZZE121..PKN

NO.1

 2
56115B - STOPPER, BACK WINDOW GLASS, NO.1
56116-02020

CE120,NZE120,ZZE121..PKN

NO.2

 2
56115-02020

CE120,NZE120,ZZE121..PKN

NO.1

 2
56115B - STOPPER, BACK WINDOW GLASS, NO.1
56116-02020

CE120,NZE120,ZZE121..PKN

NO.2

 2
56115-02020

CE120,NZE120,ZZE121..PKN

NO.1

 2
63111 - PANEL, ROOF
63111-12760

CE120,NZE12#,ZZE12#..SED

 1
63111 - PANEL, ROOF
63111-12760

CE120,NZE12#,ZZE12#..SED

 1
63132 - PANEL, WINDSHIELD HEADER, INNER
63102-12190

CE120,ZZE121..20DSA,SESAL

 1
63133A - FRAME, BACK WINDOW, UPPER
63133-12260

CE120,NZE12#,ZZE12#..SED

 1
63133A - FRAME, BACK WINDOW, UPPER
63133-12260

CE120,NZE12#,ZZE12#..SED

 1
63138 - BRACKET, DOME LAMP, NO.2
63138-12010

NZE12#,ZZE12#..SED

 2
63141G - REINFORCEMENT, ROOF PANEL, NO.1
63141-12260

CE120,NZE12#,ZZE12#..SED

 1
63143B - REINFORCEMENT, ROOF PANEL, NO.3
63143-12100

CE120,NZE12#,ZZE12#..SED

 2
63143B - REINFORCEMENT, ROOF PANEL, NO.3
63143-12100

CE120,NZE12#,ZZE12#..SED

 2
63144A - REINFORCEMENT, ROOF PANEL, NO.4
63144-12080

CE120,NZE12#,ZZE12#..SED

 1
64101 - PANEL SUB-ASSY, UPPER BACK
64101-12700

ZZE12#..SED;NZE12#..(GLI,XLI)..GEN

W(SPLIT TYPE REAR SEAT)

 1
64101-12760

CE120,NZE120,ZZE121..PKN

 1
64101 - PANEL SUB-ASSY, UPPER BACK
64101-12700

ZZE12#..SED;NZE12#..(GLI,XLI)..GEN

W(SPLIT TYPE REAR SEAT)

 1
64101-12760

CE120,NZE120,ZZE121..PKN

 1
64811 - GLASS, BACK WINDOW
64811-02150

CE120,NZE120,ZZE121..PKN

*EHTT,T=3.1,GREEN

 1
64811 - GLASS, BACK WINDOW
64811-02150

CE120,NZE120,ZZE121..PKN

*EHTT,T=3.1,GREEN

 1
64813D - DAM, BACK WINDOW GLASS ADHESIVE
56117-47010

CE120,NZE120,ZZE121..PKN

 1
64813D - DAM, BACK WINDOW GLASS ADHESIVE
56117-47010

CE120,NZE120,ZZE121..PKN

 1
Common parts
90179-06274
90269-05045
90480-15026
91511-B0610

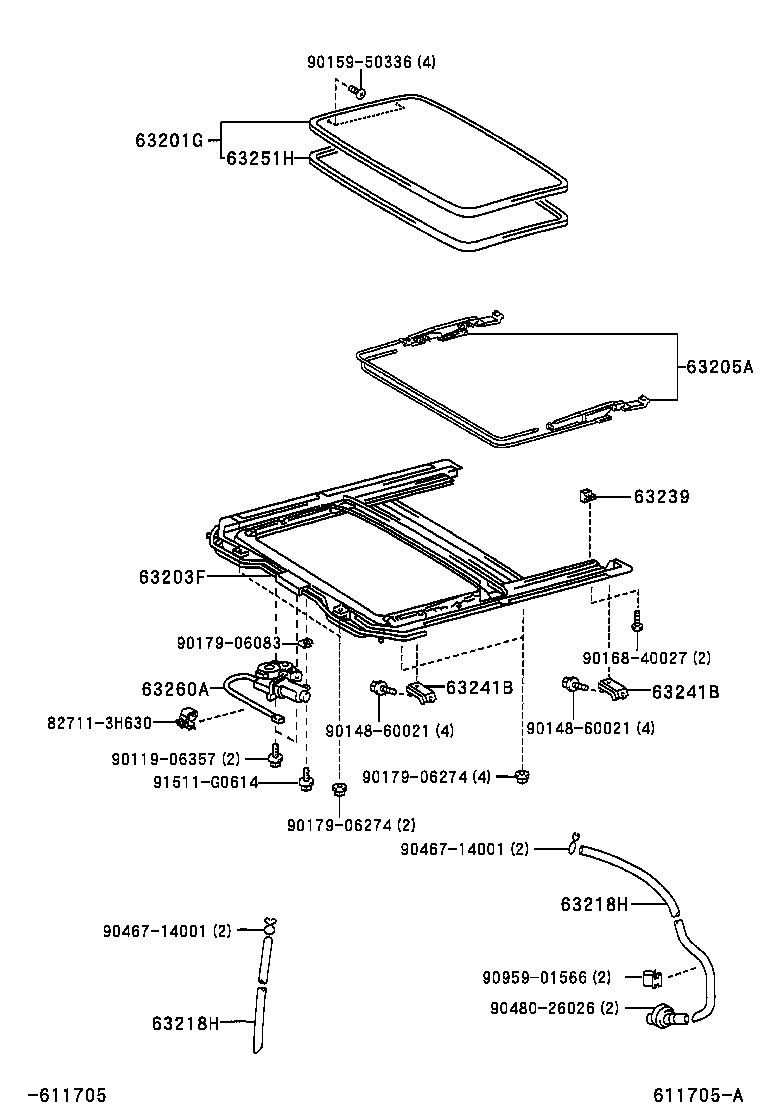

ILLUST NO. 2 OF 2(0008- )SED

Click highlighted areas on diagram

MOON ROOF

diagram 63201G 63203F 63205A 63218H 63218H 63239 63241B 63241B 63251H 63260A 827113H630 9011906357 9014860021 9014860021 9015950336 9016840027 9017906083 9017906274 9017906274 9046714001 9046714001 9048026026 9095901566 91511G0614
Part # Description Qty Price
Common parts
82711-3H630
90119-06357
90148-60021
90159-50336
90168-40027
90179-06083
90179-06274
90467-14001
90480-26026
90959-01566
91511-G0614
