ZZE121R-GEMNKP (2002)

Toyota Corolla/Altis Sed/Wg

Production Feb 2002 - Jul 2005
Engine 3ZZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0202- )PKN

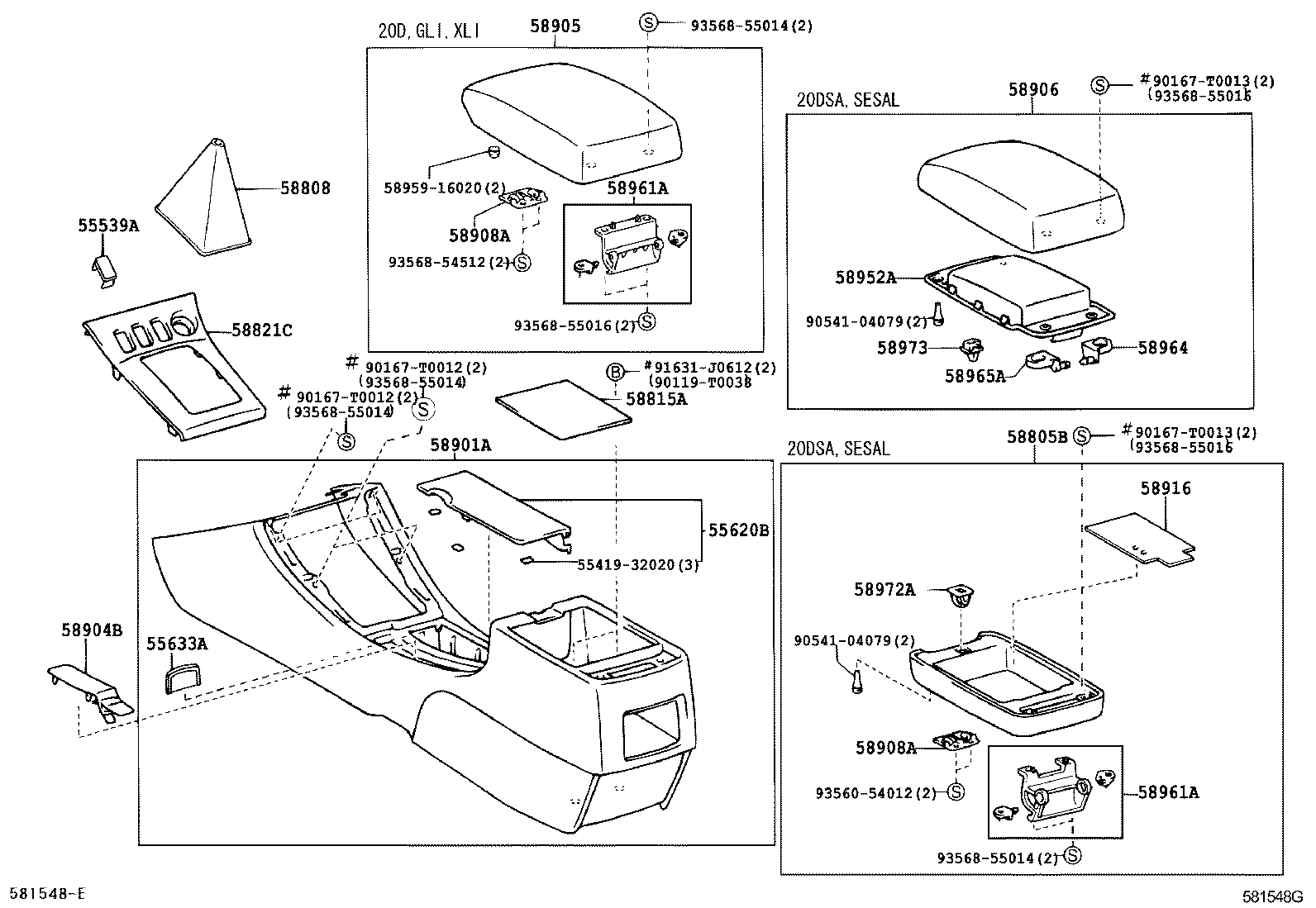

Click highlighted areas on diagram

diagram 5541932020 55539A 55620B 55633A 58805B 58808 58815A 58821C 58901A 58904B 58905 58906 58908A 58908A 58916 58952A 5895916020 58961A 58961A 58964 58965A 58972A 58973 90119T0038 90167T0012 90167T0012 90167T0013 90167T0013 9054104079 9054104079 91631J0612 9356054012 9356854512 9356855014 9356855014 9356855014 9356855014 9356855016 9356855016 9356855016
Part # Description Qty Price
55620B - HOLDER, INSTRUMENT PANEL CUP
55620-12090A0

CE120,NZE12#,ZZE12#..RHD..(GEN,PKN)

IVORY,TRIM0#

 1
55633A - SUPPORT, INSTRUMENT PANEL CUP HOLDER, NO.1
55633-12090A0

CE120,NZE120,ZZE121..PKN

IVORY,TRIM0#

 3
55633-02050A0

CE120,NZE120,ZZE121..PKN

IVORY,TRIM0#

 3
58805B - PANEL SUB-ASSY, CONSOLE, LOWER
58805-02010A0

CE120,ZZE121..20DSA,SESAL

IVORY,TRIM0#

 1
58808 - COVER SUB-ASSY, SHIFTING HOLE
58808-02100E0

CE120,NZE120,ZZE121..MTM..PKN

SANDAL WOOD,TRIM0#

 1
58815A - CARPET, CONSOLE BOX
58815-02040

CE120,NZE120,ZZE121..PKN

 1
58901A - BOX SUB-ASSY, CONSOLE, REAR
58901-12440B0

NZE12#,ZZE121..RHD

STONE,TRIM1#

 1
58901-12440A0

NZE12#,ZZE121..RHD

IVORY,TRIM0#

 1
58901-02070A0

CE120,NZE120,ZZE121..PKN

IVORY,TRIM0#

 1
58904B - COVER SUB-ASSY, PARKING BRAKE HOLE
58904-12050A0

CE120,NZE12#,ZZE12#..RHD..(GEN,PKN)

IVORY,TRIM0#

 1
58906 - DOOR SUB-ASSY, UPPER CONSOLE
58906-02020A5

CE120,ZZE121..20DSA,SESAL

IVORY,TRIM03

 1
58906-02020A5

CE120,ZZE121..20DSA,SESAL

IVORY,TRIM0#

 1
58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908-33030

NZE120..RHD;NZE120..GCC;NZE120..LHD..GLI;ZZE122..GLI..GCC;ZZE121..SESAL,XLI;CE120,NZE121,ZZE122..20D,20DSA,CONQ,LX,ULT,XLI

 1
58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908-33030

NZE120..RHD;NZE120..GCC;NZE120..LHD..GLI;ZZE122..GLI..GCC;ZZE121..SESAL,XLI;CE120,NZE121,ZZE122..20D,20DSA,CONQ,LX,ULT,XLI

 1
58916 - MAT, BOX BOTTOM
58916-02030

CE120,ZZE121..20DSA,SESAL

 1
58952A - DOOR, CONSOLE COMPARTMENT, INNER
58952-02010A4

CE120,ZZE121..20DSA,SESAL

IVORY,TRIM0#

 1
58961A - HINGE, CONSOLE COMPARTMENT DOOR MALE
58907-02010

CE120,ZZE121..20DSA,SESAL

 1
58961A - HINGE, CONSOLE COMPARTMENT DOOR MALE
58907-02010

CE120,ZZE121..20DSA,SESAL

 1
58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1
58964-20040

CE120,ZZE12#..(20DSA,GLI,SESAL,ULT)..(ARL,GCC,PKN)

 1
58965A - STOPPER, CONSOLE COMPARTMENT DOOR, NO.2
58965-20050

CE120,ZZE12#..(20DSA,GLI,SESAL,ULT)..(ARL,GCC,PKN)

 1
58972A - BASE, CONSOLE COMPARTMENT DOOR LOCK
58972-34010

CE120,ZZE12#..(20DSA,GLI,SESAL,ULT)..(ARL,GCC,PKN)

 1
58973 - PIN, CONSOLE COMPARTMENT DOOR LOCK
58973-34010

CE120,ZZE12#..(20DSA,GLI,SESAL,ULT)..(ARL,GCC,PKN)

 1
Common parts
55419-32020
58959-16020
90119-T0038
90167-T0012
90167-T0013
90541-04079
91631-J0612
93560-54012
93568-54512
93568-55014
93568-55016
