ZZE121R-GEMNKP (2002)

Toyota Corolla/Altis Sed/Wg

Production Feb 2002 - Jul 2005
Engine 3ZZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0202- )PKN

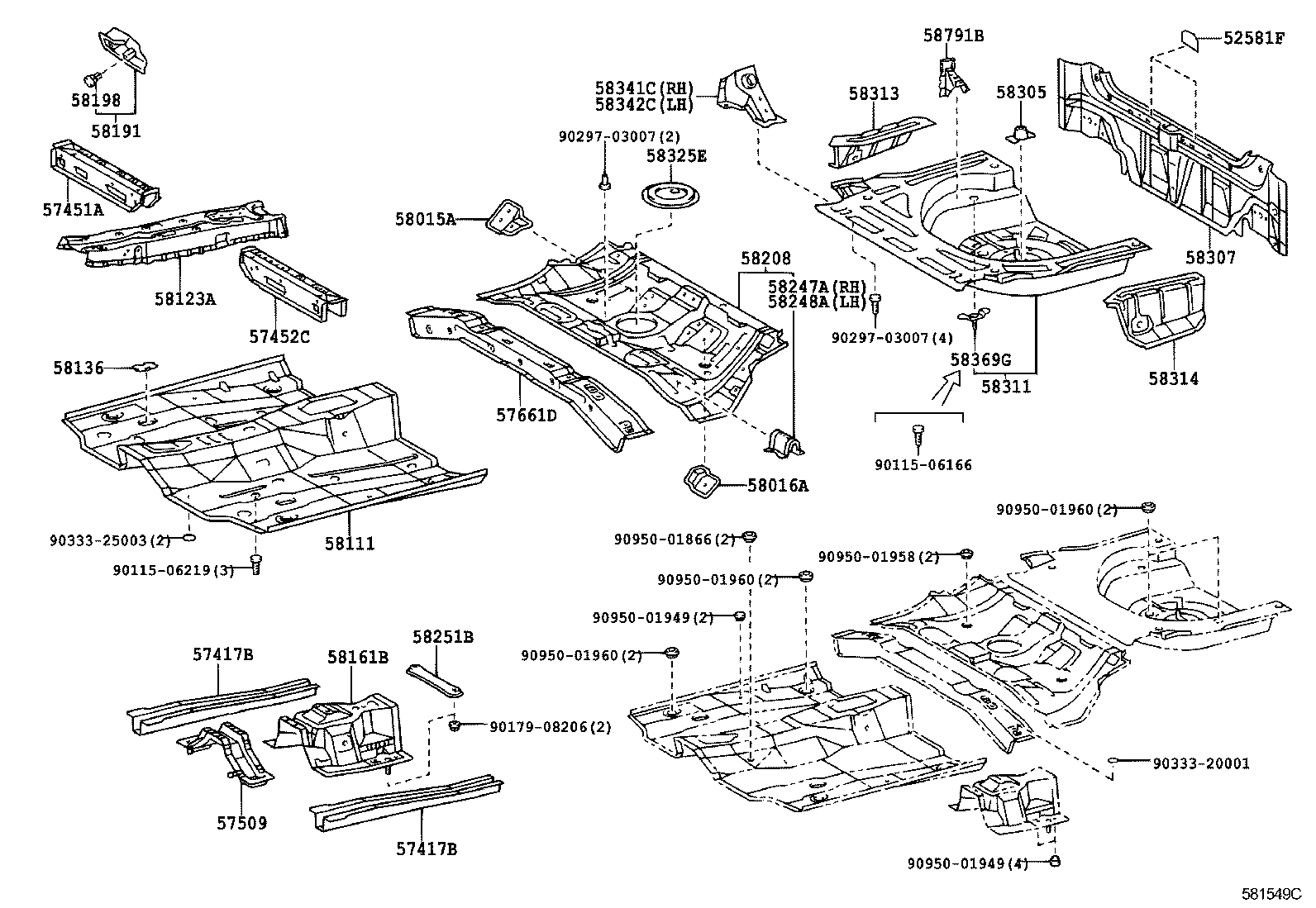

Click highlighted areas on diagram

diagram 52581F 57417B 57417B 57451A 57452C 57509 57661D 58015A 58016A 58111 58123A 58136 58161B 58191 58198 58208 58247A 58248A 58251B 58305 58307 58311 58313 58314 58325E 58341C 58342C 58369G 58791B 9011506166 9011506219 9017908206 9029703007 9029703007 9033320001 9033325003 9095001866 9095001949 9095001949 9095001958 9095001960 9095001960 9095001960
Part # Description Qty Price
52581F - PROTECTOR, REAR BUMPER
52581-02010

CE120,NZE120,ZZE121..PKN

 2
57417B - REINFORCEMENT, FRONT FLOOR UNDER
57505-12070

CE120,NZE120,ZZE121..PKN

 2
57505-12070

NZE12#,ZZE12#

 2
57417B - REINFORCEMENT, FRONT FLOOR UNDER
57505-12070

CE120,NZE120,ZZE121..PKN

 2
57505-12070

NZE12#,ZZE12#

 2
57451A - MEMBER, FRONT FLOOR CROSS, RH
57451-12190

NZE12#,ZZE12#

 1
57451-12220

CE120,NZE120,ZZE121..PKN

 1
57452C - MEMBER, FRONT FLOOR CROSS, LH
57452-12020

NZE12#,ZZE12#

 1
57452-12040

CE120,ZZE121..20DSA,SESAL

 1
57452-12060

CE120,ZZE121..20DSA,SESAL

 1
57509 - REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER
57509-12040

CE120,NZE120,ZZE121..PKN

 1
57661D - MEMBER, REAR FLOOR CROSS, FRONT
57661-12010

CE120,NZE12#,ZZE12#..SED

 1
58015A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH
58015-12060

CE120,NZE120,ZZE121..PKN

 1
58016A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH
58016-32050

CE120,NZE12#,ZZE12#..SED

 1
58111 - PAN, FRONT FLOOR
58111-12900

NZE12#,ZZE12#

 1
58111-12350

CE120,NZE120,ZZE121..PKN

 1
58123A - SUPPORT, SHIFT & SELECT LEVER
58013-12040

CE120,NZE120,ZZE121..PKN

 1
58136 - COVER, FRONT FLOOR HOLE
58136-33010

CE120,NZE120,ZZE12#..GCC,PKN;NZE120,ZZE122..LHD..SED..XLI..GEN

 2
58161B - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN
57805-12070

CE120,NZE120,ZZE121..PKN

 1
58191 - FOOTREST, FRONT FLOOR
58191-12120

CE120,NZE120,ZZE121..PKN

 1
58191-02060

CE120,NZE120,ZZE121..PKN

 1
58198 - CLIP, FOOTREST
58198-20210

CE120,NZE12#,ZZE12#

 2
58208 - PAN, CENTER FLOOR
58211-12918

NZE121..LX;ZZE122..SED..GEN;ZZE122..SED..XLI..GCC;CE120,NZE120,ZZE121..SED

W(FIXED TYPE REAR SEAT )

 1
58247A - REINFORCEMENT, REAR SEAT CUSHION HINGE, RH
58247-12070

CE120,NZE12#,ZZE12#

 1
58248A - REINFORCEMENT, REAR SEAT CUSHION HINGE, LH
58247-12070

CE120,NZE120,ZZE121..PKN

 1
58251B - BRACE, FLOOR PANEL, FRONT
58251-12030

CE120,NZE12#,ZZE12#

 1
58305 - BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58351-33010

ZZE122..ARL,GEN;ZZE122..SED..GCC;CE120,NZE12#,ZZE121..SED

 1
58307 - PANEL SUB-ASSY, BODY LOWER BACK
58307-1A590

ZZE12#..SED;NZE12#..(GLI,XLI)..GEN

W(SPLIT TYPE REAR SEAT)

 1
58307-1A560

CE120,NZE120,ZZE121..PKN

 1
58311 - PAN, REAR FLOOR
58311-12250

CE120,NZE120,ZZE121..PKN

 1
58311-12260

ZZE12#..SED;NZE12#..(GLI,XLI)..GEN

W(SPLIT TYPE REAR SEAT)

 1
58313 - PANEL, REAR FLOOR SIDE, RH
58313-12300

CE120,NZE120,ZZE121..PKN

 1
58314 - PANEL, REAR FLOOR SIDE, LH
58314-12300

CE120,NZE120,ZZE121..PKN

 1
58325E - COVER, REAR FLOOR SERVICE HOLE
58325-12110

CE120,NZE12#,ZZE12#

 1
58341C - BRACKET, REAR ABSORBER MOUNTING, NO.1 RH
58341-12020

CE120,NZE12#,ZZE12#..SED

 1
58342C - BRACKET, REAR ABSORBER MOUNTING, NO.1 LH
58342-12020

CE120,NZE12#,ZZE12#..SED

 1
58369G - BRACKET, FUEL TUBE, NO.3
58369-12020

CE120,NZE120,ZZE121..PKN

 1
58791B - CARRIER, JACK
58791-12200

CE120,NZE12#,ZZE12#

 1
Common parts
90115-06166
90115-06219
90179-08206
90297-03007
90333-20001
90333-25003
90950-01866
90950-01949
90950-01958
90950-01960
