ZZE121R-GEMNKP (2002)

Toyota Corolla/Altis Sed/Wg

Production Feb 2002 - Jul 2005
Engine 3ZZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0008-0209) ; (0209-0404)ARL,PKN ; (0404- )PKN

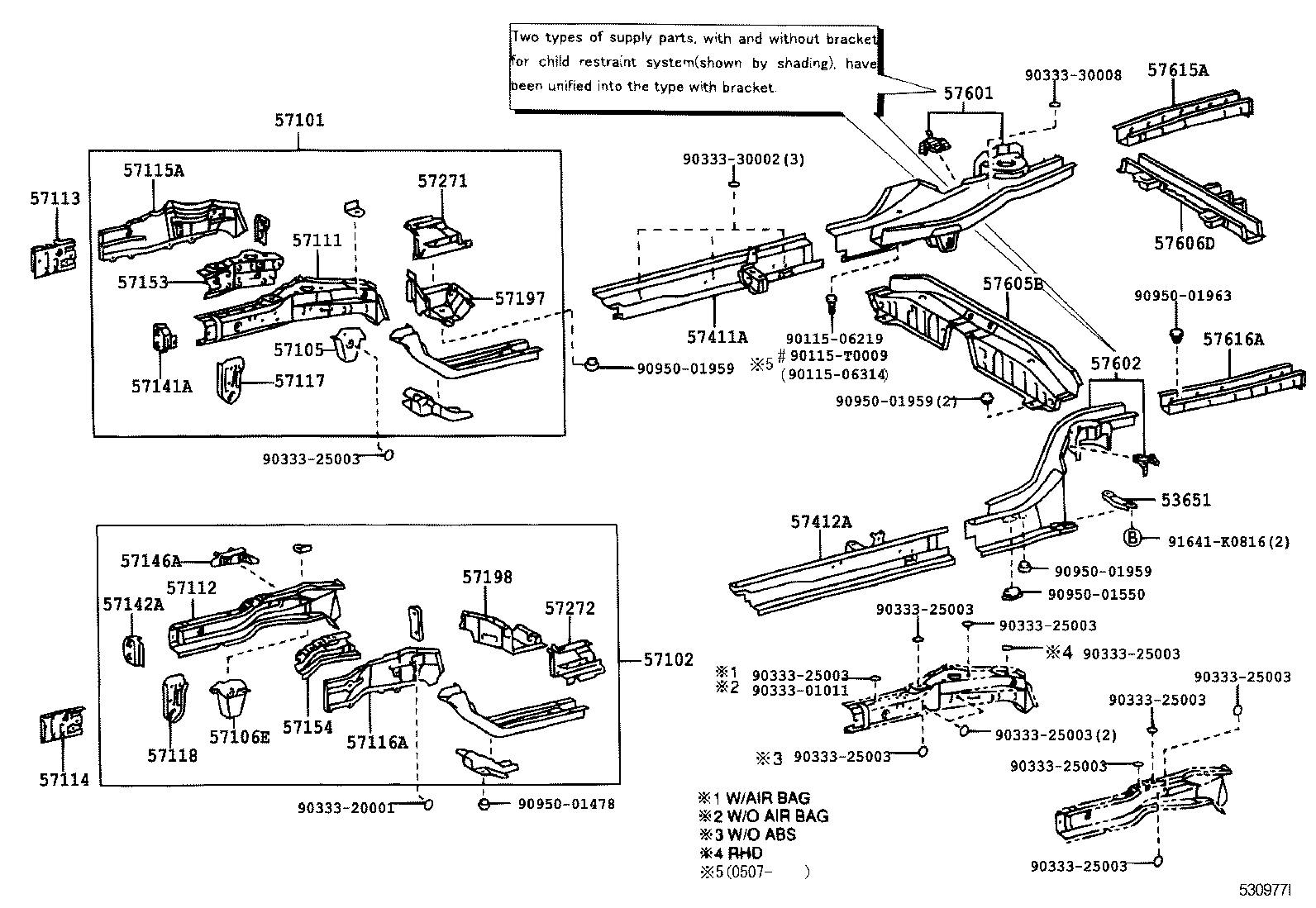

Click highlighted areas on diagram

diagram 53651 57101 57102 57105 57106E 57111 57112 57113 57114 57115A 57116A 57117 57118 57141A 57142A 57146A 57153 57154 57197 57198 57271 57272 57411A 57412A 57601 57602 57605B 57606D 57615A 57616A 9011506219 9011506314 90115T0009 9033301011 9033320001 9033325003 9033325003 9033325003 9033325003 9033325003 9033325003 9033325003 9033325003 9033325003 9033325003 9033325003 9033330002 9033330008 9095001478 9095001550 9095001959 9095001959 9095001959 9095001963 91641K0816
Part # Description Qty Price
53651 - BRACE, REAR FLOOR SIDE MEMBER
53651-32010

CE120,NZE12#,ZZE12#

 2
57101 - MEMBER SUB-ASSY, FRONT SIDE, RH
57101-12890

NZE120,ZZE121..PKN

 1
57101-12890

NZE12#,ZZE12#

 1
57102 - MEMBER SUB-ASSY, FRONT SIDE, LH
57102-12810

NZE12#,ZZE12#

 1
57102-12810

NZE120,ZZE121..PKN

 1
57105 - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRO
57105-12140

NZE12#,ZZE12#

 1
57105-12140

NZE120,ZZE121..PKN

 1
57106E - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRO
57106-12130

NZE120,ZZE121..PKN

 1
57106-12130

NZE12#,ZZE12#

 1
57111 - MEMBER, FRONT SIDE, RH
57111-12210

NZE12#,ZZE12#

 1
57111-12210

CE120,NZE120,ZZE121..PKN

 1
57113 - EXTENSION, FRONT SIDE MEMBER, RH
57113-12190

CE120,NZE12#,ZZE12#

 1
57114 - EXTENSION, FRONT SIDE MEMBER, LH
57114-12160

CE120,NZE120,ZZE121..PKN

 1
57116A - PLATE, FRONT SIDE MEMBER, OUTER LH
57116-12080

CE120,NZE120,ZZE121..PKN

 1
57117 - PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT RH
57117-12130

NZE120,ZZE121..PKN

 1
57118 - PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT LH
57118-12130

CE120,NZE120,ZZE121..PKN

 1
57141A - SUPPORT, FRONT BUMPER ARM, RH
57141-12050

CE120,NZE120,ZZE121..PKN

 1
57142A - SUPPORT, FRONT BUMPER ARM, LH
57142-12060

CE120,NZE120,ZZE121..PKN

 1
57146A - REINFORCEMENT, FRONT SIDE MEMBER, REAR LH
57146-12020

CE120,NZE120,ZZE121..PKN

 1
57153 - REINFORCEMENT, FRONT SIDE MEMBER, NO.2 RH
57016-12080

NZE120,ZZE121..PKN

 1
57154 - REINFORCEMENT, FRONT SIDE MEMBER, NO.2 LH
57017-12060

NZE12#,ZZE12#

 1
57197 - BOX, TORQUE, FRONT RH
57197-12030

NZE120,ZZE121..PKN

 1
57198 - BOX, TORQUE, FRONT LH
57198-12030

CE120,NZE120,ZZE121..PKN

 1
57271 - EXTENSION, STEERING GEAR BOX SUPPORT MEMBER, RH
57271-12090

NZE120,ZZE121..PKN

 1
57272 - EXTENSION, STEERING GEAR BOX SUPORT MEMBER, LH
57272-12090

CE120,NZE120,ZZE121..PKN

 1
57411A - MEMBER, FLOOR SIDE, INNER RH
57401-12570

CE120,NZE12#,ZZE12#

 1
57412A - MEMBER, FLOOR SIDE, INNER LH
57402-12570

NZE120..RHD..XLI;NZE120..GLI..PKN;NZE120,ZZE122..GCC;CE120,NZE121,ZZE121..RHD..(20D,20DSA,GLI,LX,SESAL)

 1
57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57601-02908

CE120,NZE120,ZZE121..PKN

CKD SPEC

 1
57601-13916

CE120,NZE120,ZZE121..PKN

 1
57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57602-12964

CE120,NZE120,ZZE121..PKN

 1
57602-02907

CE120,NZE120,ZZE121..PKN

 1
57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57605-12180

CE120,NZE120,ZZE121..PKN

 1
57606D - MEMBER SUB-ASSY, REAR ABSORBER MOUNTING
57606-12130

NZE12#,ZZE12#..SED

 1
57606-12130

CE120,NZE120,ZZE121..PKN

 1
57615A - MEMBER, REAR FLOOR SIDE, REAR RH
57615-02906

CE120,NZE120,ZZE121..PKN

 1
57616A - MEMBER, REAR FLOOR SIDE, REAR LH
57616-02905

CE120,NZE120,ZZE121..PKN

 1
Common parts
90115-06219
90115-06314
90115-T0009
90333-01011
90333-20001
90333-25003
90333-30002
90333-30008
90950-01478
90950-01550
90950-01959
90950-01963
91641-K0816
