ZZE121R-GEMNKP (2002)
Toyota Corolla/Altis Sed/Wg
(0008- )RHD

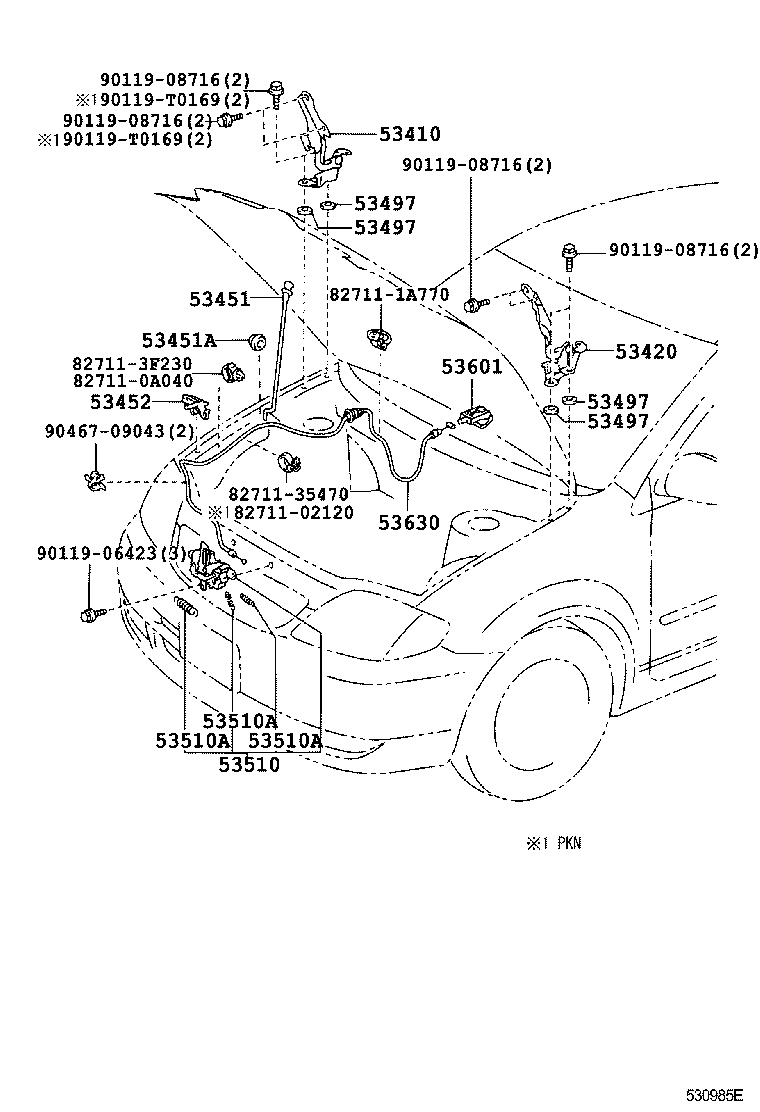

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53410 - HINGE ASSY, HOOD, RH | ||||
| 53410-12410 |
CE120,NZE12#,ZZE12# |
1 | ||
| 53420 - HINGE ASSY, HOOD, LH | ||||
| 53420-12330 |
CE120,NZE12#,ZZE12# |
1 | ||
| 53451 - ROD, HOOD SUPPORT | ||||
| 53440-12010 |
ZZE121;NZE120,ZZE122..GCC;CE120,NZE12#,ZZE122..RHD..(GEN,PKN) |
1 | ||
| 53451A - GROMMET(FOR HOOD SUPPORT ROD) | ||||
| 90480-15034 |
CE120,NZE12#,ZZE12# |
1 | ||
| 53452 - HOLDER, HOOD STAY | ||||
| 53452-02060 |
CE120,NZE120,ZZE121..PKN |
1 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-20070 |
CE120,NZE12#,ZZE12# T=2.0 |
4 | ||
| 53497-42010 |
CE120,NZE12#,ZZE12# T=0.5 |
4 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-20070 |
CE120,NZE12#,ZZE12# T=2.0 |
4 | ||
| 53497-42010 |
CE120,NZE12#,ZZE12# T=0.5 |
4 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-20070 |
CE120,NZE12#,ZZE12# T=2.0 |
4 | ||
| 53497-42010 |
CE120,NZE12#,ZZE12# T=0.5 |
4 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-20070 |
CE120,NZE12#,ZZE12# T=2.0 |
4 | ||
| 53497-42010 |
CE120,NZE12#,ZZE12# T=0.5 |
4 | ||
| 53510 - LOCK ASSY, HOOD | ||||
| 53510-02100 |
CE120,NZE120,ZZE121..PKN |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-09052 |
CE120,NZE12#,ZZE12#..RHD..(GEN,PKN) WD=0.9,CW=20.75 |
1 | ||
| 90506-12063 |
CE120,NZE120,ZZE121..PKN WD=1.2,CW=8.5 |
1 | ||
| 90506-18067 |
CE120,NZE120,ZZE121..PKN WD=1.8,CW=13 |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-09052 |
CE120,NZE12#,ZZE12#..RHD..(GEN,PKN) WD=0.9,CW=20.75 |
1 | ||
| 90506-12063 |
CE120,NZE120,ZZE121..PKN WD=1.2,CW=8.5 |
1 | ||
| 90506-18067 |
CE120,NZE120,ZZE121..PKN WD=1.8,CW=13 |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-09052 |
CE120,NZE12#,ZZE12#..RHD..(GEN,PKN) WD=0.9,CW=20.75 |
1 | ||
| 90506-12063 |
CE120,NZE120,ZZE121..PKN WD=1.2,CW=8.5 |
1 | ||
| 90506-18067 |
CE120,NZE120,ZZE121..PKN WD=1.8,CW=13 |
1 | ||
| 53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL | ||||
| 53601-02030A0 |
CE120,NZE120,ZZE121..PKN IVORY,TRIM0# |
1 | ||
| 53630 - CABLE ASSY, HOOD LOCK CONTROL | ||||
| 53630-02040 |
CE120,NZE120,ZZE121..PKN |
1 | ||
| Common parts | ||||
| 82711-02120 | ||||
| 82711-0A040 | ||||
| 82711-1A770 | ||||
| 82711-35470 | ||||
| 82711-3F230 | ||||
| 90119-06423 | ||||
| 90119-08716 | ||||
| 90119-T0169 | ||||
| 90467-09043 | ||||
