ZZE121R-GEMNKP (2002)

Toyota Corolla/Altis Sed/Wg

Production Feb 2002 - Jul 2005
Engine 3ZZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

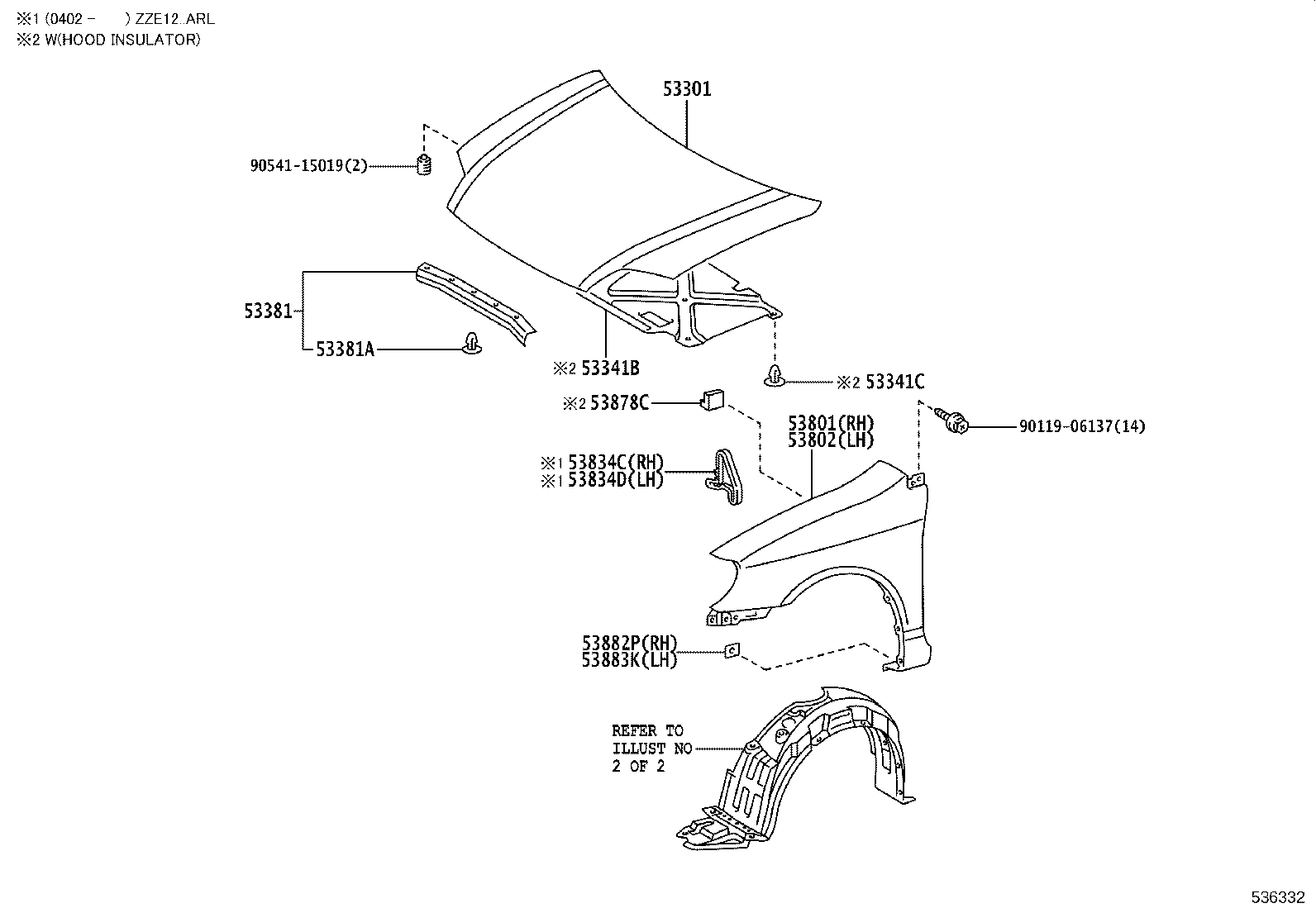

ILLUST NO. 1 OF 2(0008-0209) ; (0209-0404)ZZE121..LHD ; (0209-)ARL,PKN

Click highlighted areas on diagram

diagram 53301 53341B 53341C 53381 53381A 53801 53802 53834C 53834D 53878C 53882P 53883K 9011906137 9054115019
Part # Description Qty Price
53301 - HOOD SUB-ASSY
53301-12880

CE120,NZE120,ZZE121..PKN

 1
53381 - SEAL, HOOD TO RADIATOR SUPPORT
53381-02040

CE120,NZE120,ZZE121..PKN

 1
53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
90467-08011

CE120,NZE120,ZZE121..PKN

 4
53801 - FENDER SUB-ASSY, FRONT RH
53811-1H170

CE120,ZZE121..20DSA,SESAL

 1
53802 - FENDER SUB-ASSY, FRONT LH
53812-1H050

CE120,ZZE121..20DSA,SESAL

 1
53882P - SEAL, FRONT FENDER, RH
53882-16030

NZE120..XLI;ZZE122..GCC;NZE120..GLI..PKN;ZZE122..LHD..SED..XLI..GEN;CE120,NZE121,ZZE121..RHD..(20D,20DSA,GLI,LX,SESAL)

 1
53883K - SEAL, FRONT FENDER, LH
53882-16030

NZE120..XLI;ZZE122..GCC;NZE120..GLI..PKN;ZZE122..LHD..SED..XLI..GEN;CE120,NZE121,ZZE121..RHD..(20D,20DSA,GLI,LX,SESAL)

 1
Common parts
90119-06137
90541-15019

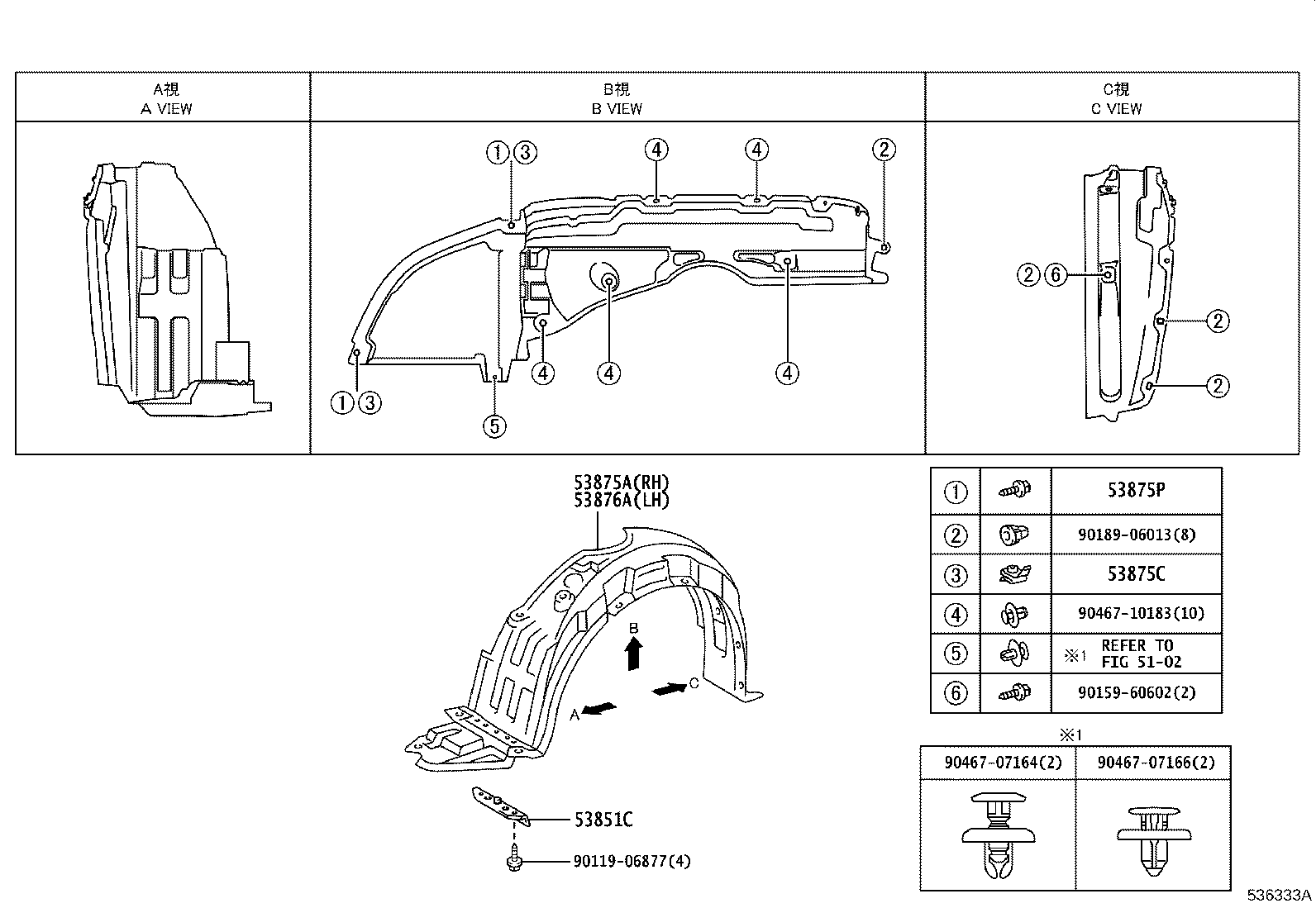

ILLUST NO. 2 OF 2(0008-0209) ; (0209-0404)ZZE121..LHD ; (0209-)ARL,PKN

Click highlighted areas on diagram

FENDER LINER

diagram 5102 53851C 53875A 53875C 53875P 53876A 9011906877 9015960602 9018906013 9046707164 9046707166 9046710183
Part # Description Qty Price
53875A - LINER, FRONT FENDER, RH
53875-12290

CE120,NZE120,ZZE121..PKN

 1
53875C - CLIP, FRONT FENDER LINER
90467-05138

CE120,NZE12#,ZZE12#

 4
53875P - SCREW, NO.1
90159-60488

CE120,NZE12#,ZZE12#

 4
53876A - LINER, FRONT FENDER, LH
53876-12280

CE120,NZE120,ZZE121..PKN

 1
Common parts
90119-06877
90159-60602
90189-06013
90467-07164
90467-07166
90467-10183
Linked diagrams
5102
