ZZE121R-GEMNKP (2002)

Toyota Corolla/Altis Sed/Wg

Production Feb 2002 - Jul 2005
Engine 3ZZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0202- )PKN

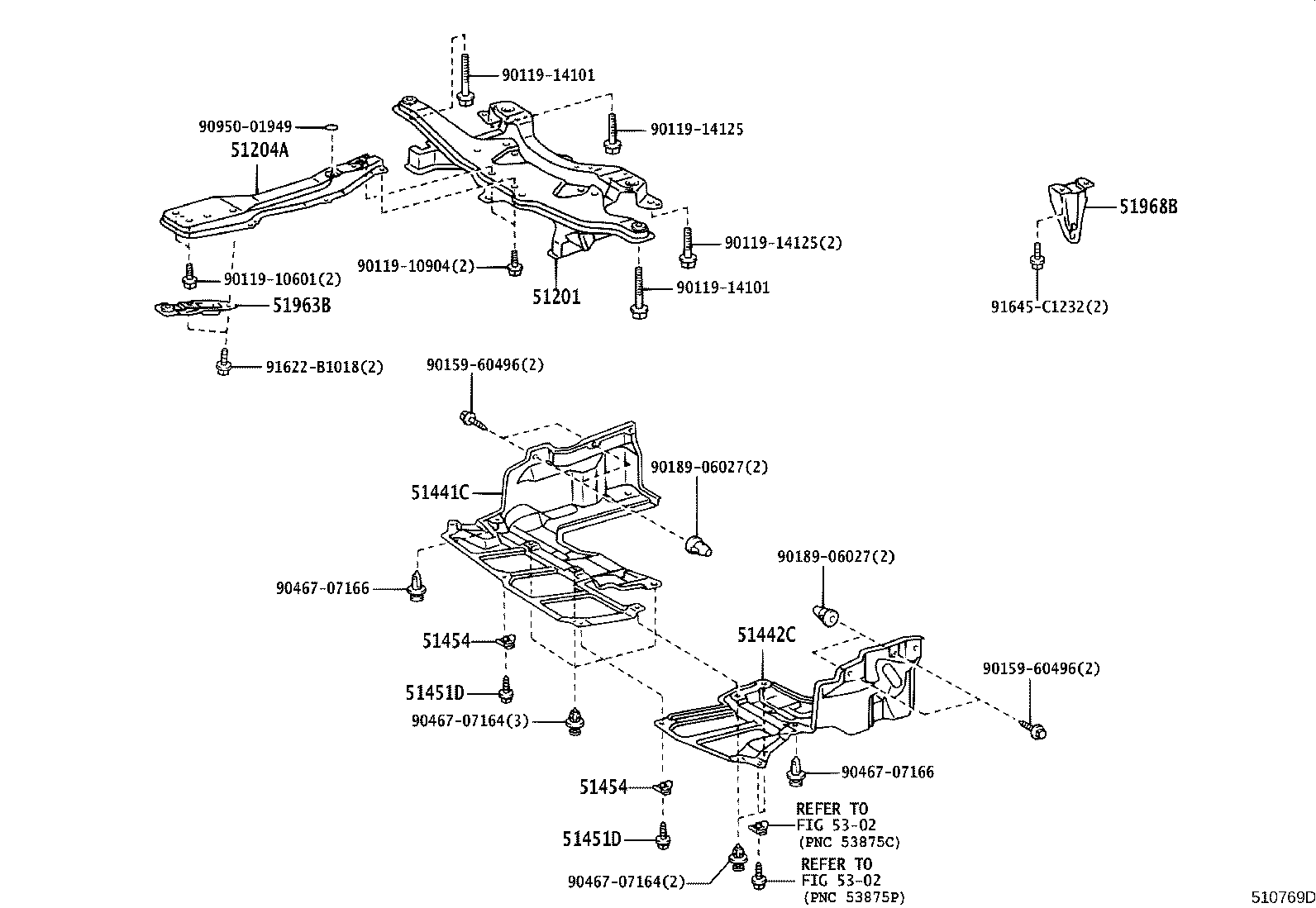

Click highlighted areas on diagram

diagram 51201 51204A 51441C 51442C 51451D 51451D 51454 51454 51963B 51968B 5302 5302 9011910601 9011910904 9011914101 9011914101 9011914125 9011914125 9015960496 9015960496 9018906027 9018906027 9046707164 9046707164 9046707166 9046707166 9095001949 91622B1018 91645C1232
Part # Description Qty Price
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-12431

CE120,NZE120,ZZE12#..ARL,PKN;CE120,NZE120,ZZE122..LHD..GEN

 1
51201-20350

CE120,NZE12#,ZZE12#

 1
51204A - MEMBER SUB-ASSY, ENGINE MOUNTING, CENTER
51204-12130

CE120,NZE12#,ZZE121

 1
51441C - COVER, ENGINE UNDER, RH
51441-02061

CE120,NZE120,ZZE121..PKN

 1
51442C - COVER, ENGINE UNDER, LH
51442-02091

CE120,NZE120,ZZE121..MTM..PKN

 1
51963B - HOOK, TRANSPORT, FRONT RH
51963-12240

CE120,NZE120,ZZE121..PKN

 1
51963-02070

CE120,NZE120,ZZE121..PKN

 1
51968B - HOOK, TRANSPORT, REAR LH
51968-12170

CE120,NZE12#,ZZE12#

 1
Common parts
90119-10601
90119-10904
90119-14101
90119-14125
90159-60496
90189-06027
90467-07164
90467-07166
90950-01949
91622-B1018
91645-C1232
Linked diagrams
5302
