ZZE121R-GEMNKP (2002)

Toyota Corolla/Altis Sed/Wg

Production Feb 2002 - Jul 2005
Engine 3ZZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

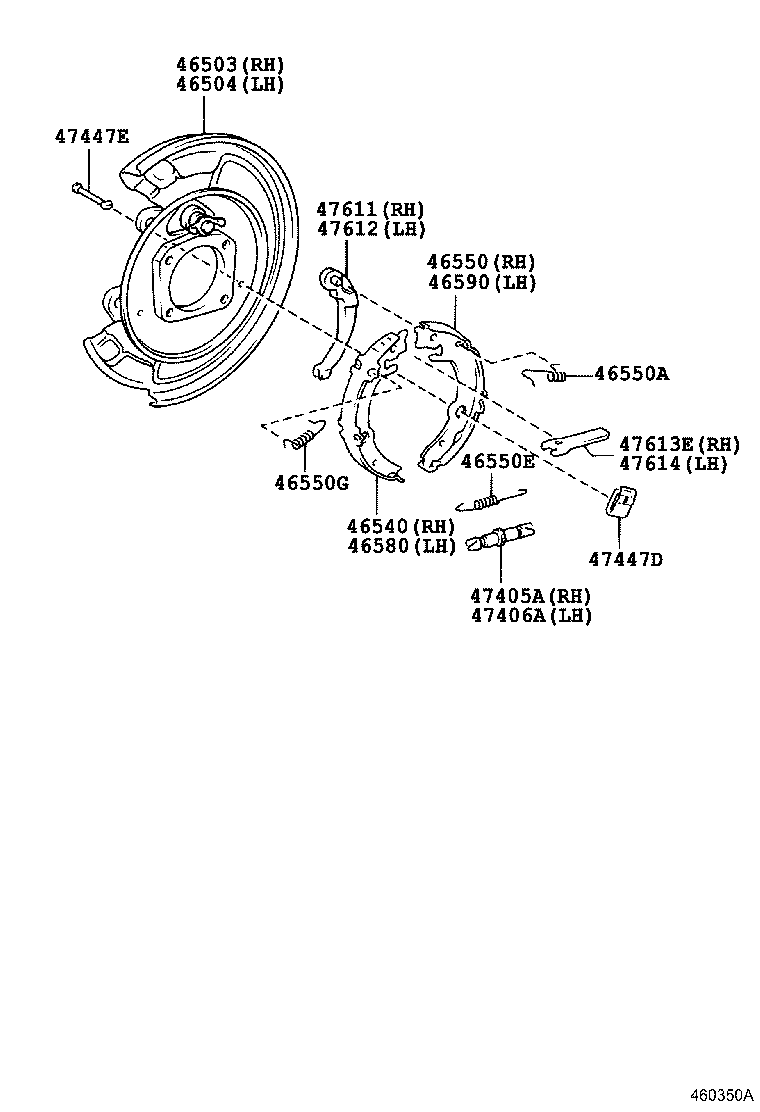

ILLUST NO. 2 OF 2(0008- )CE120,NZE121,ZZE12# ; (0202- )NZE120..PKN

Click highlighted areas on diagram

diagram 46503 46504 46540 46550 46550A 46550E 46550G 46580 46590 47405A 47406A 47447D 47447E 47611 47612 47613E 47614
Part # Description Qty Price
46503 - PLATE SUB-ASSY, PARKING BRAKE, RH
46503-20070

CE120,NZE120,ZZE121..PKN

 1
46504 - PLATE SUB-ASSY, PARKING BRAKE, LH
46504-20070

CE120,NZE120,ZZE121..PKN

 1
46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1
46540-20080

CE120,NZE120,ZZE121..PKN

 1
46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2
46540-20080

CE120,NZE120,ZZE121..PKN

 1
46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN)
90905-06045

CE120,NZE120,ZZE121..PKN

RH

 1
90905-06044

CE120,NZE120,ZZE121..PKN

LH

 1
90506-18086

CE120,NZE120,ZZE121..PKN

RH

 1
90506-18085

CE120,NZE120,ZZE121..PKN

LH

 1
46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN)
90905-06046

CE120,NZE120,ZZE121..PKN

 2
46550G - SPRING, TENSION, NO.3(FOR PARKING BRAKE SHOE RETURN)
90905-06043

CE120,NZE120,ZZE121..PKN

 2
46580 - SHOE ASSY, PARKING BRAKE, LH NO.1
46540-20080

CE120,NZE120,ZZE121..PKN

 1
46590 - SHOE ASSY, PARKING BRAKE, LH NO.2
46540-20080

CE120,NZE120,ZZE121..PKN

 1
47405A - SCREW SET, SHOE ADJUSTING, RH(FOR PARKING BRAKE)
47405-32010

CE120,NZE120,ZZE121..PKN

 1
47406A - SCREW SET, SHOE ADJUSTING, LH(FOR PARKING BRAKE)
47406-32010

CE120,NZE120,ZZE121..PKN

 1
47447D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE HOLD DOWN)
47446-32010

CE120,NZE120,ZZE121..PKN

 4
47447E - PIN, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE)
47447-11010

CE120,NZE120,ZZE121..PKN

 4
47611 - LEVER, PARKING BRAKE SHOE, RH
47601-32030

CE120,NZE120,ZZE121..PKN

 1
47612 - LEVER, PARKING BRAKE SHOE, LH
47602-32030

CE120,NZE120,ZZE121..PKN

 1
47613E - STRUT, PARKING BRAKE SHOE, RH
47613-32030

CE120,NZE120,ZZE121..PKN

 1
47614 - STRUT, PARKING BRAKE SHOE, LH
47613-32030

CE120,NZE120,ZZE121..PKN

 1

ILLUST NO. 1 OF 2(0008- )

Click highlighted areas on diagram

diagram 46201E 46341 46410 46420 46430 46441 46441A 46458 46458 8401 8401 9011908146 90119T0006 90119T0006 90119T0006 90119T0006 90119T0006 90119T0006 90119T0006 90119T0006 91611G0612 91611G0612 9162160614 9162160614 9162160614 9162160614 9162160614 9162160614 9162160614 9162160614 9162160614 9162160614 9162160614 9162160614 9162160614 9162160614 9162160614 9162160614
Part # Description Qty Price
46201E - LEVER SUB-ASSY, PARKING BRAKE
46201-02070E0

CE120,NZE120,ZZE121..PKN

SANDAL WOOD,TRIM0#

 1
46341 - EQUALIZER, PARKING BRAKE
46341-20070

CE120,NZE120,ZZE121..PKN

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-02060

CE120,NZE120,ZZE121..PKN

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-12490

CE120,NZE120,ZZE121..PKN

 1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-12400

CE120,NZE120,ZZE121..PKN

 1
46441 - NUT, WIRE ADJUSTING, NO.1
90179-06299

CE120,NZE120,ZZE121..PKN

 1
46441A - NUT, WIRE ADJUSTING, NO.2
90179-06171

NZE12#,ZZE12#

 1
90179-06171

CE120,NZE120,ZZE121..PKN

 1
46458 - RETAINER, CABLE
46458-02030

CE120,NZE120,ZZE121..PKN

 2
46458 - RETAINER, CABLE
46458-02030

CE120,NZE120,ZZE121..PKN

 2
Common parts
90119-08146
90119-T0006
91611-G0612
91621-60614
Linked diagrams
8401
