ZZE121R-GEMNKP (2002)
Toyota Corolla/Altis Sed/Wg

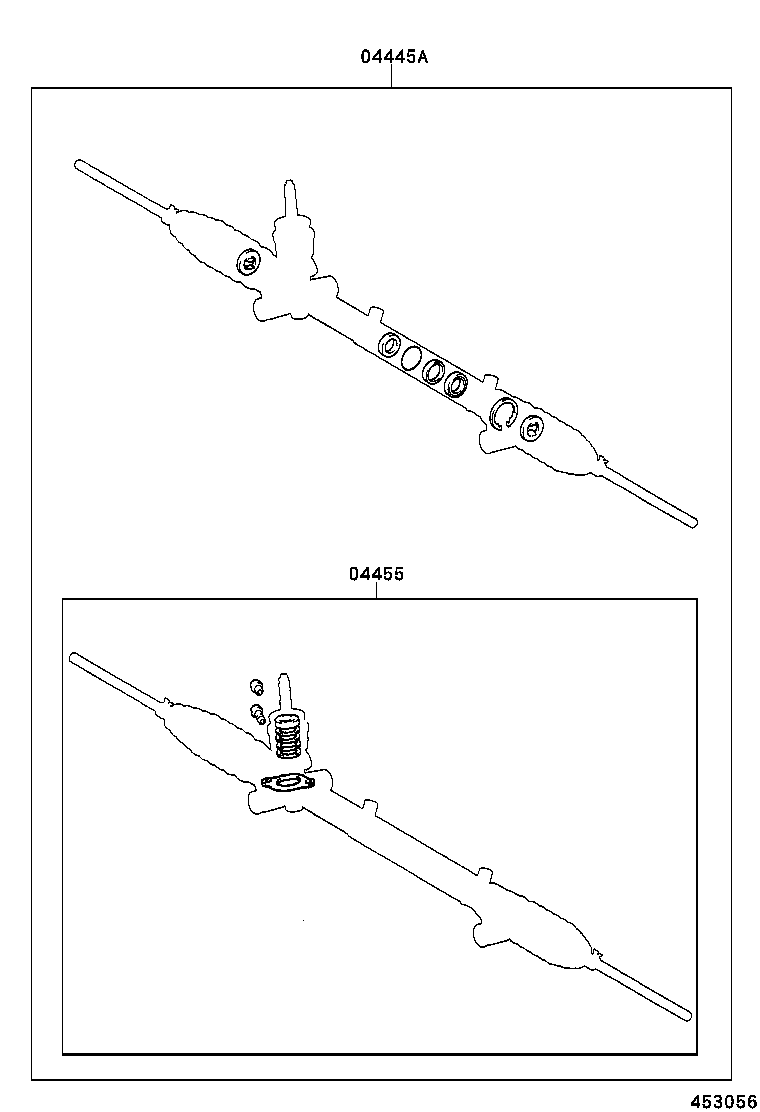

ILLUST NO. 2 OF 2(0202- )ZZE121..PKN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-13010 |
ZZE121..PKN |
1 | ||
| 04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE | ||||
| 04455-12220 |
CE120,NZE120,ZZE12# |
1 | ||
| 04455-44010 |
ZZE121..PKN |
1 | ||

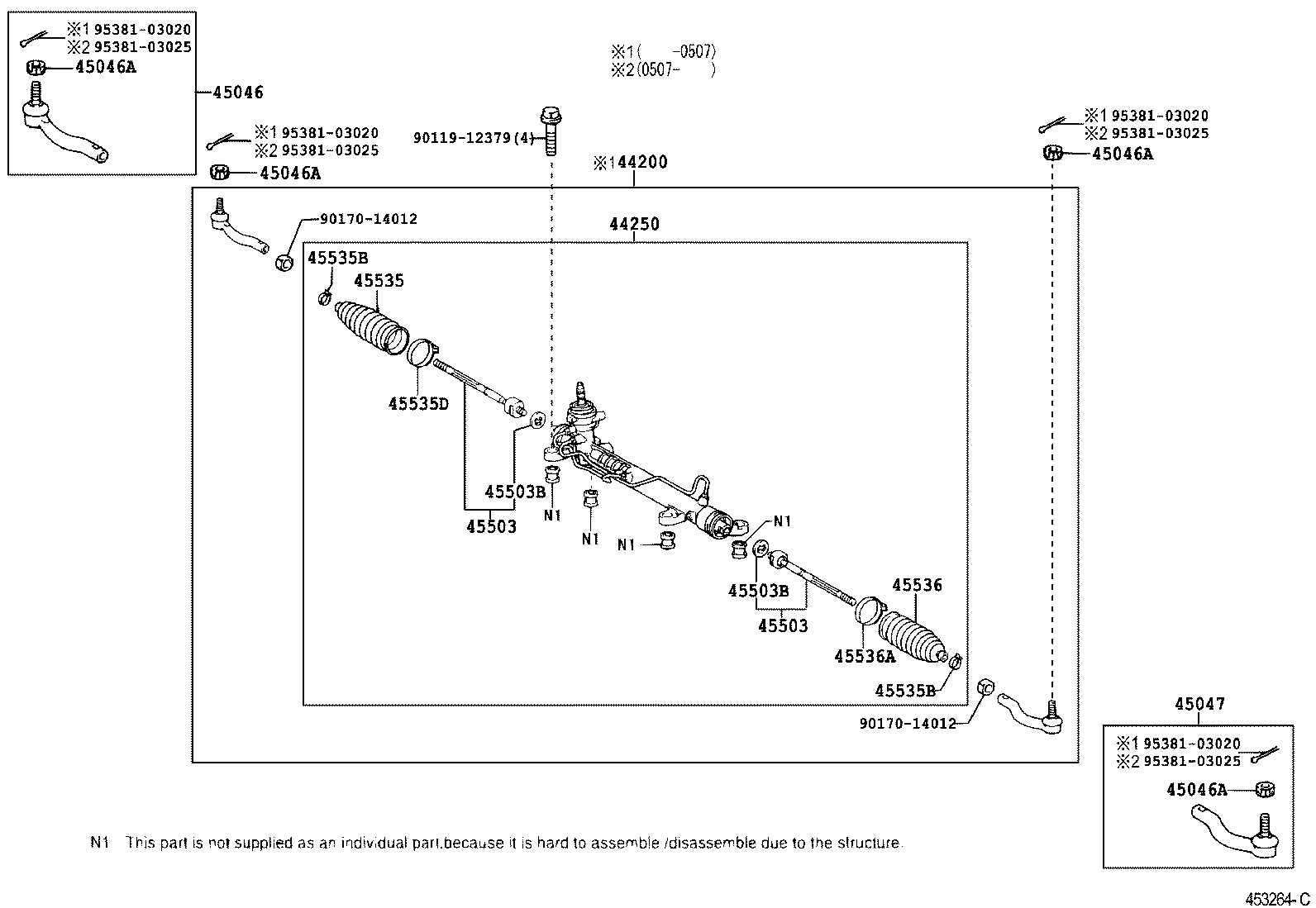

ILLUST NO. 1 OF 2(0202- )ZZE12#..PKN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44200 - LINK ASSY, POWER STEERING | ||||
| 44200-13021 |
ZZE121..PKN |
1 | ||
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44250-02170 |
ZZE121..PKN |
1 | ||
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-09160 |
ZZE121..PKN (L) |
1 | ||
| 45046-49115 |
CE120,NZE120,ZZE121..PKN (J) |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
CE120,NZE120,ZZE121..PKN |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
CE120,NZE120,ZZE121..PKN |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
CE120,NZE120,ZZE121..PKN |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
CE120,NZE120,ZZE121..PKN |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45047-09050 |
ZZE121..PKN (L) |
1 | ||
| 45047-49045 |
CE120,NZE120,ZZE121..PKN (J) |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-09220 |
ZZE121..PKN |
2 | ||
| 45503-09220 |
ZZE121..PKN (L) |
2 | ||
| 45503-19255 |
ZZE121..PKN W(POWER STEERING),(J) |
2 | ||
| 45503-19255 |
CE120,NZE120,ZZE121..PKN W(POWER STEERING) |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-09220 |
ZZE121..PKN |
2 | ||
| 45503-09220 |
ZZE121..PKN (L) |
2 | ||
| 45503-19255 |
ZZE121..PKN W(POWER STEERING),(J) |
2 | ||
| 45503-19255 |
CE120,NZE120,ZZE121..PKN W(POWER STEERING) |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90080-21019 |
ZZE121..PKN OD=35.2,(L) |
2 | ||
| 90214-14009 |
CE120,NZE120,ZZE121..PKN OD=35.2,(J) |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90080-21019 |
ZZE121..PKN OD=35.2,(L) |
2 | ||
| 90214-14009 |
CE120,NZE120,ZZE121..PKN OD=35.2,(J) |
2 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-02030 |
ZZE121..PKN WIRE TYPE CLAMP |
1 | ||
| 45535-13010 |
ZZE121..PKN BAND TYPE CLAMP |
1 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-19019 |
NZE120..GCC,PKN;ZZE121..LHD..LX;NZE120..GLI..GEN;NZE120..LHD..XLI..GEN;CE120,ZZE12#..20D,20DSA,CONQ,GLI,SESAL,ULT,XLI |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-19019 |
NZE120..GCC,PKN;ZZE121..LHD..LX;NZE120..GLI..GEN;NZE120..LHD..XLI..GEN;CE120,ZZE12#..20D,20DSA,CONQ,GLI,SESAL,ULT,XLI |
2 | ||
| 45535D - CLAMP(FOR STEERING RACK BOOT NO.1) | ||||
| 90460-55016 |
ZZE121..PKN BAND TYPE CLAMP |
2 | ||
| 90080-58059 |
ZZE121..PKN WIRE TYPE CLAMP |
1 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45535-13010 |
ZZE121..PKN BAND TYPE CLAMP |
1 | ||
| 45535-02030 |
ZZE121..PKN WIRE TYPE CLAMP |
1 | ||
| 45536A - CLAMP(FOR STEERING RACK BOOT NO.2) | ||||
| 90080-58059 |
ZZE121..PKN WIRE TYPE CLAMP |
1 | ||
| 90460-55016 |
ZZE121..PKN BAND TYPE CLAMP |
2 | ||
| Common parts | ||||
| 90119-12379 | ||||
| 90170-14012 | ||||
| 95381-03020 | ||||
| 95381-03025 | ||||
