ZZE121R-GEMNKP (2002)
Toyota Corolla/Altis Sed/Wg
(0008- )
4-SPOKE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

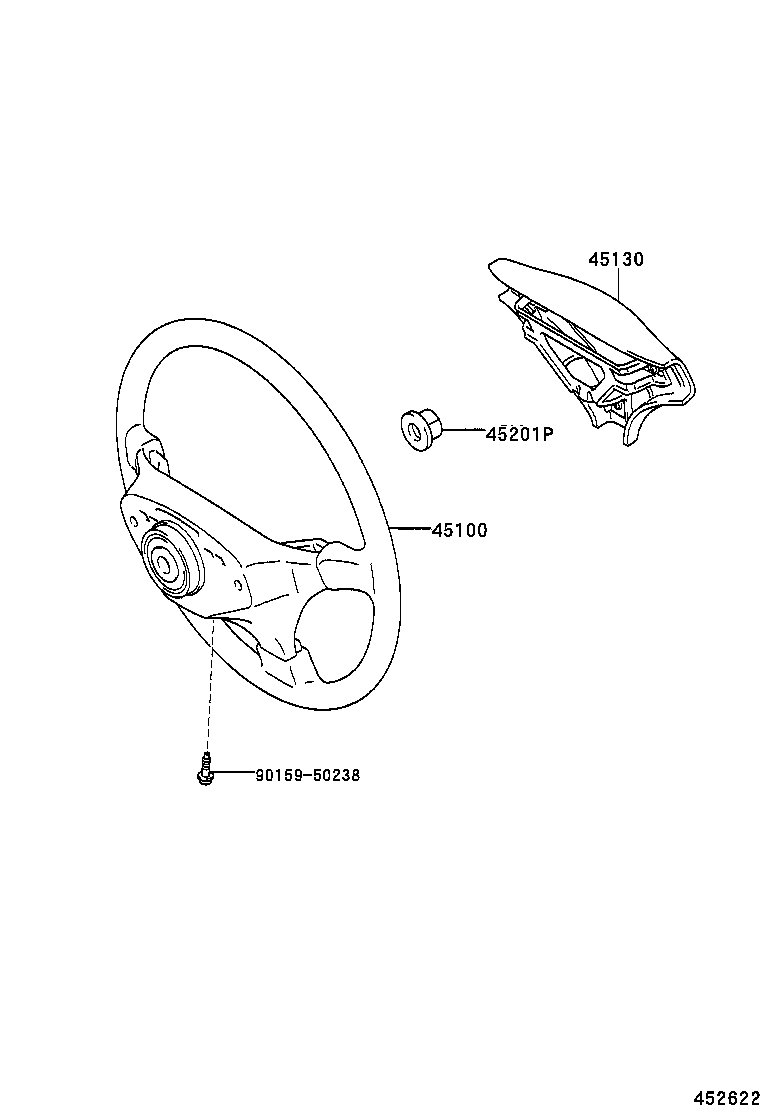

| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-02170E0 |
CE120,ZZE121..20DSA,SESAL 4-SPOKE,LEATHER,SANDAL WOOD,TRIM0# |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-1A210E0 |
ZZE121;NZE121,ZZE122..GLI TYPE B:REFER TO ILLUSTRATION,SANDAL WOOD,TRIM0# |
1 | ||
| 45130-1A200E0 |
NZE12#,ZZE12# TYPE A:REFER TO ILLUSTRATION & W(4-SPOKE STEERING WHEEL),SANDAL WOOD,TRIM0# |
1 | ||
| 45130-02150E0 |
CE120,ZZE121..20DSA,SESAL TYPE E:REFER TO ILLUSTRATION,SANDAL WOOD,TRIM0# |
1 | ||
| 45130-1A210B0 |
ZZE121;NZE121,ZZE122..GLI TYPE B:REFER TO ILLUSTRATION,DK.GRAY,TRIM1# |
1 | ||
| 45130-1A200B0 |
NZE12#,ZZE12#..SED TYPE A:REFER TO ILLUSTRATION & W(4-SPOKE STEERING WHEEL),DK.GRAY,TRIM1# |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-1A210E0 |
ZZE121;NZE121,ZZE122..GLI TYPE B:REFER TO ILLUSTRATION,SANDAL WOOD,TRIM0# |
1 | ||
| 45130-1A200E0 |
NZE12#,ZZE12# TYPE A:REFER TO ILLUSTRATION & W(4-SPOKE STEERING WHEEL),SANDAL WOOD,TRIM0# |
1 | ||
| 45130-02150E0 |
CE120,ZZE121..20DSA,SESAL TYPE E:REFER TO ILLUSTRATION,SANDAL WOOD,TRIM0# |
1 | ||
| 45130-1A210B0 |
ZZE121;NZE121,ZZE122..GLI TYPE B:REFER TO ILLUSTRATION,DK.GRAY,TRIM1# |
1 | ||
| 45130-1A200B0 |
NZE12#,ZZE12#..SED TYPE A:REFER TO ILLUSTRATION & W(4-SPOKE STEERING WHEEL),DK.GRAY,TRIM1# |
1 | ||
| 45184 - COVER, STEERING WHEEL BOSS, LOWER | ||||
| 45184-02060E0 |
CE120,ZZE121..20DSA,SESAL SANDAL WOOD,TRIM0# |
1 | ||
| 45188 - SCREW, STEERING WHEEL PAD ATTACHING | ||||
| 45188-60010 |
CE120,ZZE121..20DSA,SESAL L=18 |
2 | ||
| 45188 - SCREW, STEERING WHEEL PAD ATTACHING | ||||
| 45188-60010 |
CE120,ZZE121..20DSA,SESAL L=18 |
2 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12071 |
CE120,NZE120,ZZE121..PKN |
1 | ||
| Common parts | ||||
| 90168-40113 | ||||
(0202- )PKN
3-SPOKE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-02170E0 |
CE120,ZZE121..20DSA,SESAL 4-SPOKE,LEATHER,SANDAL WOOD,TRIM0# |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-1A210E0 |
ZZE121;NZE121,ZZE122..GLI TYPE B:REFER TO ILLUSTRATION,SANDAL WOOD,TRIM0# |
1 | ||
| 45130-1A200E0 |
NZE12#,ZZE12# TYPE A:REFER TO ILLUSTRATION & W(4-SPOKE STEERING WHEEL),SANDAL WOOD,TRIM0# |
1 | ||
| 45130-02150E0 |
CE120,ZZE121..20DSA,SESAL TYPE E:REFER TO ILLUSTRATION,SANDAL WOOD,TRIM0# |
1 | ||
| 45130-1A210B0 |
ZZE121;NZE121,ZZE122..GLI TYPE B:REFER TO ILLUSTRATION,DK.GRAY,TRIM1# |
1 | ||
| 45130-1A200B0 |
NZE12#,ZZE12#..SED TYPE A:REFER TO ILLUSTRATION & W(4-SPOKE STEERING WHEEL),DK.GRAY,TRIM1# |
1 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12071 |
CE120,NZE120,ZZE121..PKN |
1 | ||
| Common parts | ||||
| 90159-50238 | ||||
