ZZE121R-GEMNKP (2002)
Toyota Corolla/Altis Sed/Wg
(0008-0404)CE120,ZZE12# ; (0404-0507)CE120,ZZE121..PKN

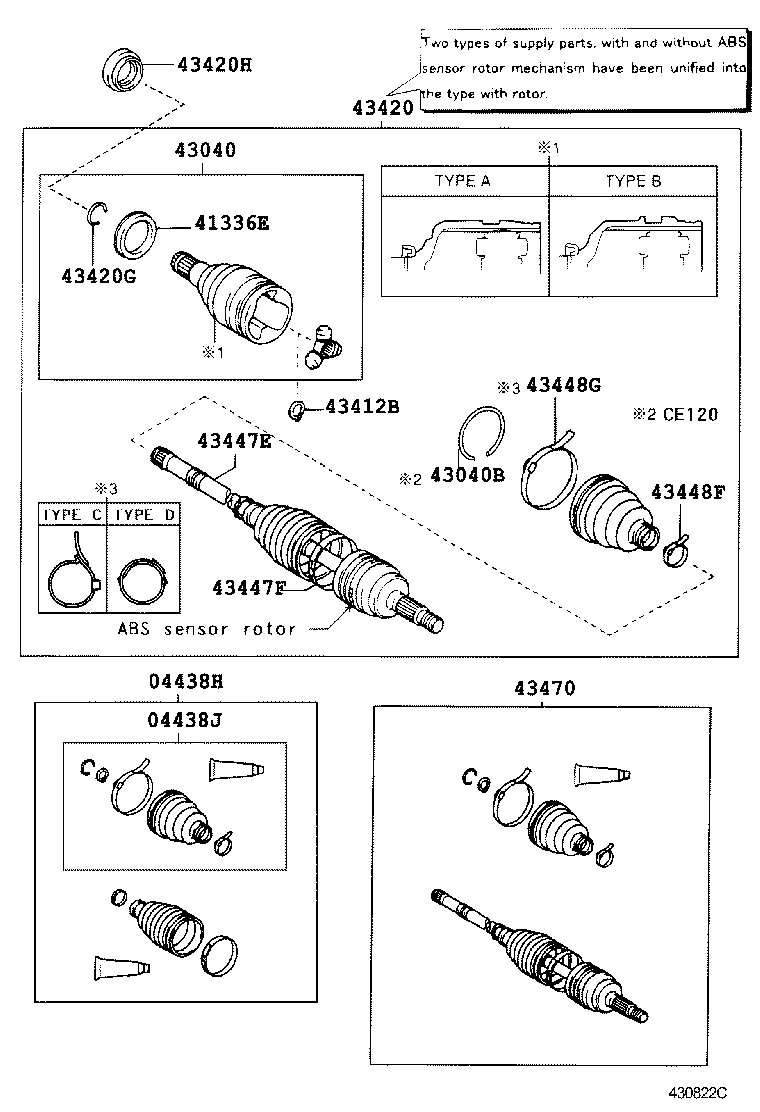

LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH | ||||
| 04438-12590 |
ZZE12# PNC 43420=TYPE B |
1 | ||
| 04438-12610 |
ZZE121;ZZE122..ATM;ZZE122..MTM..(GCC,GEN) PNC 43420=TYPE A |
1 | ||
| 04438-12610 |
ZZE121..PKN;ZZE121..MTM..XLI;ZZE122..ATM..ARL;ZZE122..LHD..GEN TYPE B:REFER ILLUST. |
1 | ||
| 04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH | ||||
| 04438-12450 |
NZE12#,ZZE12# PNC 43420=TYPE B |
1 | ||
| 04438-52230 |
ZZE121..PKN;ZZE121..MTM..XLI;ZZE122..ATM..ARL;ZZE122..LHD..GEN TYPE B:REFER ILLUST. |
1 | ||
| 41336E - COVER, FRONT DRIVE SHAFT DUST, LH | ||||
| 41336-12010 |
ZZE122..ATM;NZE12#,ZZE121;ZZE122..MTM..(GCC,GEN) W(ABS) |
1 | ||
| 43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH | ||||
| 43403-12040 |
ZZE121;ZZE122..ATM;ZZE122..MTM..(GCC,GEN) (J) |
1 | ||
| 43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH) | ||||
| 90520-22005 |
ZZE12# TYPE B OR TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 43420 - SHAFT ASSY, FRONT DRIVE, LH | ||||
| 43420-02200 |
ZZE121;ZZE122..ATM;ZZE122..MTM..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION,(L) & W(ABS) |
1 | ||
| 43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH) | ||||
| 90521-26004 |
ZZE122..ATM;NZE12#,ZZE121;ZZE122..MTM..(GCC,GEN) |
1 | ||
| 43420H - OIL SEAL, FRONT DRIVE SHAFT, LH | ||||
| 90311-34017 |
NZE12#,ZZE121..MTM |
1 | ||
| 43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 42345-20040 |
ZZE12# |
1 | ||
| 43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 42345-28020 |
ZZE12# |
1 | ||
| 43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 90949-01078 |
ZZE12# |
1 | ||
| 43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 42345-12160 |
ZZE121..PKN TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH | ||||
| 43470-09670 |
ZZE121..PKN W(ABS),(L),PNC 43420=TYPE B |
1 | ||
| 43470-09670 |
ZZE121..PKN;ZZE121..MTM..XLI;ZZE122..LHD..GEN;ZZE122..ATM..CONQ PNC 43420=TYPE B |
1 | ||
| 43470-80017 |
NZE120,ZZE121..PKN (J),PNC 43420=TYPE B |
1 | ||
| 43470-80017 |
ZZE121..PKN;ZZE121..MTM..XLI;ZZE122..LHD..GEN;ZZE122..ATM..CONQ PNC 43420=TYPE A |
1 | ||
(0008- )
| Part # | Description | Qty | Price |
|---|
(0008-0404)CE120,ZZE12# ; (0404-0507)CE120,ZZE121..PKN

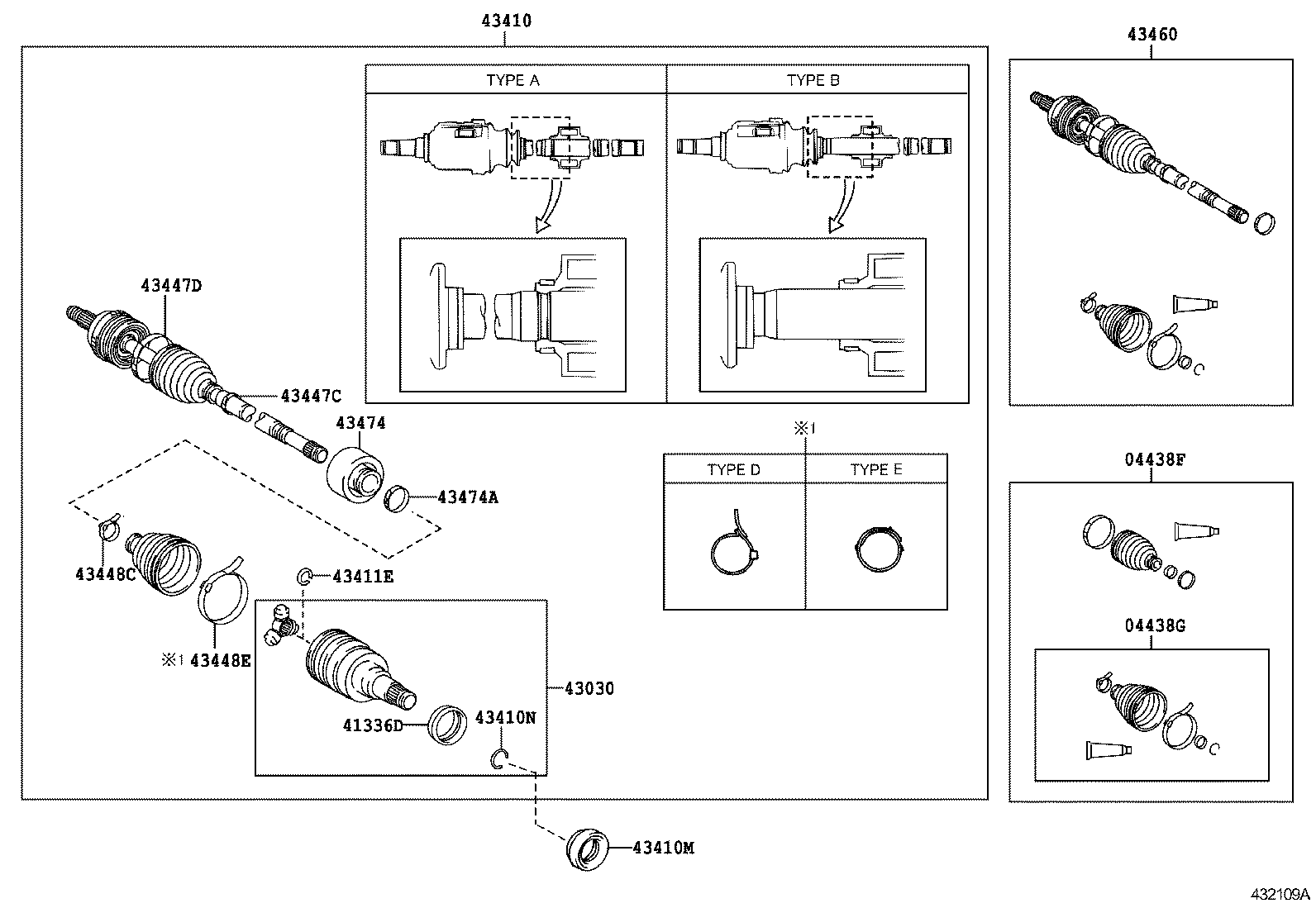

RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH | ||||
| 04438-12590 |
ZZE12# W(ABS),PNC 43410=TYPE A |
1 | ||
| 04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH | ||||
| 04438-12450 |
ZZE12# PNC 43410=TYPE B |
1 | ||
| 04438-52230 |
ZZE121..PKN;ZZE121..MTM..XLI;ZZE122..ATM..ARL;ZZE122..LHD..GEN TYPE B:REFER ILLUST. |
1 | ||
| 04438-32231 |
ZZE121..PKN |
1 | ||
| 41336D - COVER, FRONT DRIVE SHAFT DUST, RH | ||||
| 41336-12010 |
ZZE121;ZZE122..ATM;ZZE122..MTM..(GCC,GEN) W(ABS) |
1 | ||
| 43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH | ||||
| 43403-12040 |
ZZE121;ZZE122..ATM;ZZE122..MTM..(GCC,GEN) (J) |
1 | ||
| 43410 - SHAFT ASSY, FRONT DRIVE, RH | ||||
| 43410-02180 |
ZZE121;ZZE122..ATM;ZZE122..MTM..(GCC,GEN) W(ABS),TYPE A:REFER ILLUST. |
1 | ||
| 43410M - OIL SEAL, FRONT DRIVE SHAFT, RH | ||||
| 90311-34023 |
NZE121;NZE120..MTM;ZZE121..LHD..LX;ZZE121..SESAL,XLI |
1 | ||
| 43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH) | ||||
| 90520-22005 |
ZZE121..LHD..LX;ZZE12#..CONQ,GLI,SESAL,ULT,XLI |
1 | ||
| 43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 90949-01078 |
ZZE12# |
1 | ||
| 43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 42345-12160 |
ZZE121..LHD..LX;ZZE122..MTM..ULT;ZZE12#..CONQ,GLI,SESAL,XLI TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 42345-12160 |
ZZE121..RHD;ZZE122..ATM..ULT TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH | ||||
| 43460-09440 |
ZZE121;ZZE122..ATM;ZZE122..MTM..(GCC,GEN) PNC 43410=TYPE A |
1 | ||
| 43460-19895 |
ZZE121..PKN |
1 | ||
| 43474 - DAMPER, DRIVE SHAFT | ||||
| 43474-12040 |
ZZE12# PNC 43410=TYPE A |
1 | ||
| 43474-12130 |
ZZE12# PNC 43410=TYPE A |
1 | ||
| 43474A - CLAMP (FOR DRIVE SHAFT DAMPER SETTING) | ||||
| 42345-14010 |
ZZE12# |
1 | ||
| 42345-14010 |
ZZE122..RHD..ATM;ZZE122..LHD..WG..GEN;ZZE122..RHD..MTM..GEN;ZZE12#..LHD..(GLI,LX)..GEN;CE120,ZZE121..20D,20DSA,SESAL,XLI |
1 | ||
