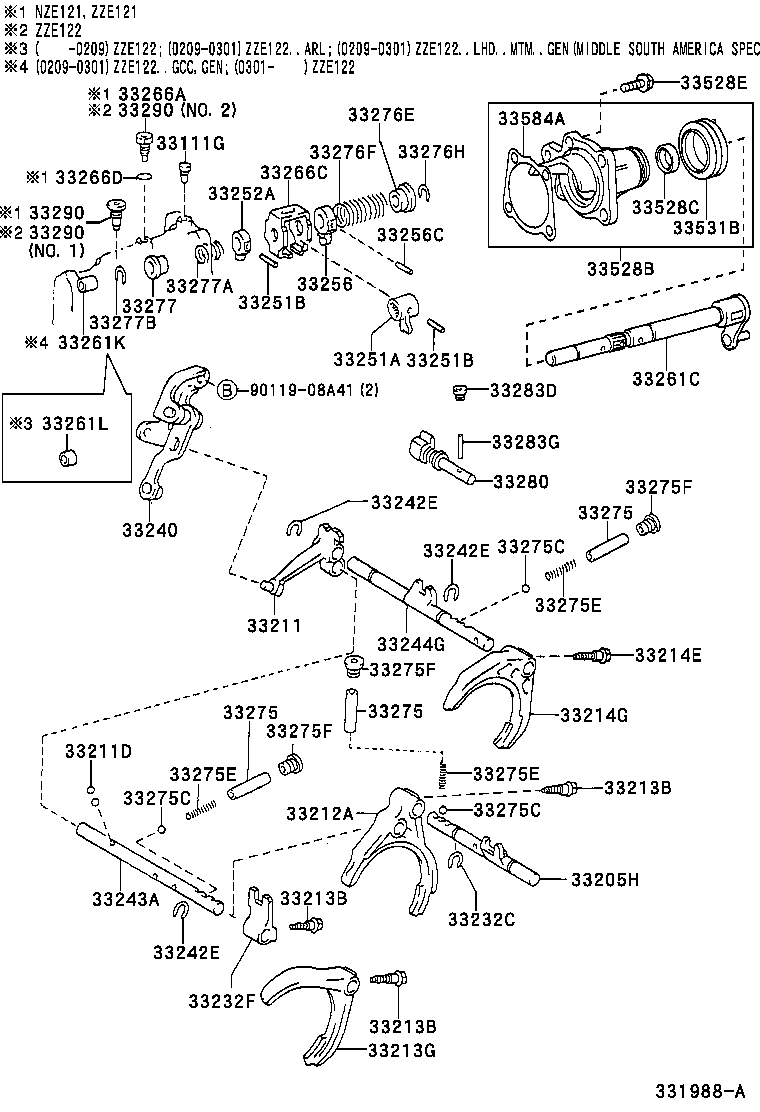

ZZE121R-GEMNKP (2002)
Toyota Corolla/Altis Sed/Wg
(0008- )NZE121,ZZE12#..MTM
C50,C51,C52
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33111G - PLUG, BREATHER(FOR MANUAL TRANSMISSION) | ||||
| 90930-03133 |
NZE120,ZZE121..MTM..PKN |
1 | ||
| 33205H - SHAFT SUB-ASSY, GEAR SHIFT FORK, NO.1 | ||||
| 33205-20030 |
ZZE122..LHD..MTM..GEN;ZZE12#..MTM..(ARL,PKN) |
1 | ||
| 33205-20040 |
ZZE121..MTM..PKN |
1 | ||
| 33205-52010 |
ZZE121..MTM..PKN |
1 | ||
| 33211 - FORK, REVERSE SHIFT | ||||
| 33211-12021 |
NZE120,ZZE121..MTM..PKN |
1 | ||
| 33211D - BALL(FOR REVERSE SHIFT FORK) | ||||
| 90360-06004 |
NZE120,ZZE121..MTM..PKN OD=6.35 |
2 | ||
| 33212A - FORK, GEAR SHIFT, NO.1 | ||||
| 33212-10013 |
NZE120,ZZE121..MTM..PKN |
1 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-06115 |
NZE120,ZZE121..MTM..PKN |
3 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-06115 |
NZE120,ZZE121..MTM..PKN |
3 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-06115 |
NZE120,ZZE121..MTM..PKN |
3 | ||
| 33213G - FORK, GEAR SHIFT, NO.2 | ||||
| 33213-20050 |
NZE120,ZZE121..MTM..PKN |
1 | ||
| 33214E - BOLT(FOR GEAR SHIFT FORK LOCK) | ||||
| 90105-06115 |
NZE120,ZZE121..MTM..PKN |
1 | ||
| 33214G - FORK, GEAR SHIFT, NO.3 | ||||
| 33214-20050 |
NZE120,ZZE121..MTM..PKN |
1 | ||
| 33232C - RING, SNAP (FOR 1ST & 2ND SHIFT HEAD) | ||||
| 90520-12003 |
NZE120,ZZE121..MTM..PKN |
1 | ||
| 33232F - HEAD, GEAR SHIFT, NO.1 | ||||
| 33232-12012 |
ZZE122..LHD..MTM..GEN;ZZE12#..MTM..(ARL,PKN) |
1 | ||
| 33232-20030 |
ZZE121..MTM..PKN |
1 | ||
| 33240 - BRACKET ASSY, REVERSE SHIFT ARM | ||||
| 33240-16020 |
NZE120,ZZE121..MTM..PKN |
1 | ||
| 33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-12003 |
NZE120,ZZE121..MTM..PKN |
3 | ||
| 33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-12003 |
NZE120,ZZE121..MTM..PKN |
3 | ||
| 33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-12003 |
NZE120,ZZE121..MTM..PKN |
3 | ||
| 33243A - SHAFT, GEAR SHIFT FORK, NO.2 | ||||
| 33243-20070 |
ZZE121..MTM..PKN |
1 | ||
| 33244G - SHAFT, GEAR SHIFT FORK, NO.3 | ||||
| 33244-20060 |
ZZE122..LHD..MTM..GEN;ZZE12#..MTM..(ARL,PKN) |
1 | ||
| 33244-20070 |
ZZE121..MTM..PKN |
1 | ||
| 33244-52030 |
ZZE121..MTM..PKN |
1 | ||
| 33251A - LEVER, SHIFT, INNER NO.1 | ||||
| 33251-12080 |
NZE120,ZZE121..MTM..PKN |
1 | ||
| 33251B - PIN, SLOTTED SPRING (FOR SHIFT INNER LEVER) | ||||
| 90254-05016 |
NZE120..RHD..GEN;NZE120..MTM..GCC;NZE121,ZZE122..MTM;ZZE121..LHD..MTM..LX;ZZE121..MTM..(SESAL,XLI) L=25.5 |
2 | ||
| 33251B - PIN, SLOTTED SPRING (FOR SHIFT INNER LEVER) | ||||
| 90254-05016 |
NZE120..RHD..GEN;NZE120..MTM..GCC;NZE121,ZZE122..MTM;ZZE121..LHD..MTM..LX;ZZE121..MTM..(SESAL,XLI) L=25.5 |
2 | ||
| 33252A - LEVER, SHIFT, INNER NO.2 | ||||
| 33252-12011 |
NZE120,ZZE121..MTM..PKN |
1 | ||
| 33256 - LEVER, SELECT INNER | ||||
| 33256-12022 |
NZE120,ZZE121..MTM..PKN |
1 | ||
| 33256C - PIN, SLOTTED SPRING (FOR SELECT INNER LEVER) | ||||
| 90254-05016 |
NZE120..RHD..GEN;NZE120..MTM..GCC;NZE121,ZZE122..MTM;ZZE121..LHD..MTM..LX;ZZE121..MTM..(SESAL,XLI) |
1 | ||
| 33266A - BOLT (FOR SHIFT INTER LOCK PLATE) | ||||
| 90109-18005 |
NZE120,ZZE121..MTM..PKN |
1 | ||
| 33266C - PLATE, SHIFT INTER LOCK | ||||
| 33266-12021 |
ZZE121..MTM..PKN |
1 | ||
| 33266D - GASKET (FOR SHIFT INTER LOCK PLATE) | ||||
| 90430-18008 |
NZE120,ZZE121..MTM..PKN |
1 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 33275-12041 |
NZE120,ZZE121..MTM..PKN OD=10.7 |
3 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 33275-12041 |
NZE120,ZZE121..MTM..PKN OD=10.7 |
3 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 33275-12041 |
NZE120,ZZE121..MTM..PKN OD=10.7 |
3 | ||
| 33275C - BALL (FOR SHIFT DETENT) | ||||
| 90360-10003 |
NZE120,ZZE121..MTM..PKN |
3 | ||
| 33275C - BALL (FOR SHIFT DETENT) | ||||
| 90360-10003 |
NZE120,ZZE121..MTM..PKN |
3 | ||
| 33275C - BALL (FOR SHIFT DETENT) | ||||
| 90360-10003 |
NZE120,ZZE121..MTM..PKN |
3 | ||
| 33275E - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90501-12168 |
NZE120,ZZE121..MTM..PKN |
3 | ||
| 33275E - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90501-12168 |
NZE120,ZZE121..MTM..PKN |
3 | ||
| 33275E - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90501-12168 |
NZE120,ZZE121..MTM..PKN |
3 | ||
| 33275F - PLUG (FOR SHIFT DETENT BALL) | ||||
| 90341-12004 |
NZE12#,ZZE12#..MTM |
3 | ||
| 33275F - PLUG (FOR SHIFT DETENT BALL) | ||||
| 90341-12004 |
NZE12#,ZZE12#..MTM |
3 | ||
| 33275F - PLUG (FOR SHIFT DETENT BALL) | ||||
| 90341-12004 |
NZE12#,ZZE12#..MTM |
3 | ||
| 33276E - SEAT, SELECT SPRING, NO.1 | ||||
| 33276-12022 |
NZE120,ZZE121..MTM..PKN |
1 | ||
| 33276F - SPRING, COMPRESSION, NO.1 (FOR SELECT RETURN) | ||||
| 90501-16142 |
ZZE12#..MTM |
1 | ||
| 33276H - RING, SHAFT SNAP (FOR SELECT SPRING NO.1 SEAT) | ||||
| 90520-15003 |
NZE120,ZZE121..MTM..PKN |
1 | ||
| 33277 - SEAT, SELECT SPRING, NO.2 | ||||
| 33277-12011 |
NZE120,ZZE121..MTM..PKN |
1 | ||
| 33277A - SPRING, COMPRESSION, NO.2 (FOR SELECT RETURN) | ||||
| 90501-16136 |
NZE120,ZZE121..MTM..PKN |
1 | ||
| 33277B - RING, E (FOR SELECT SPRING NO.2 SEAT) | ||||
| 90523-12003 |
NZE120,ZZE121..MTM..PKN |
1 | ||
| 33280 - PIN ASSY, REVERSE RESTRICT | ||||
| 33280-12061 |
ZZE121..MTM..PKN |
1 | ||
| 33283D - PLUG (FOR REVERSE RESTRICT PIN) | ||||
| 90341-10065 |
CE120,NZE12#,ZZE12#..MTM |
1 | ||
| 33283G - PIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN) | ||||
| 90254-05003 |
CE120,NZE120,ZZE121..MTM..PKN |
1 | ||
| 33290 - BALL ASSY, LOCK, NO.1 | ||||
| 33290-12011 |
NZE120,ZZE121..MTM..PKN |
1 | ||
| 33290 - BALL ASSY, LOCK, NO.1 | ||||
| 33290-12011 |
NZE120,ZZE121..MTM..PKN |
1 | ||
| 33290 - BALL ASSY, LOCK, NO.1 | ||||
| 33290-12011 |
NZE120,ZZE121..MTM..PKN |
1 | ||
| 33528C - SEAL, OIL (FOR CONTROL SHAFT COVER) | ||||
| 90311-18013 |
NZE120..MTM..GCC;ZZE121..LHD..MTM..LX;NZE12#..RHD..MTM..GEN;ZZE12#..MTM..(GLI,SESAL,XLI) |
1 | ||
| 33528E - BOLT (FOR CONTROL SHAFT COVER) | ||||
| 91612-61025 |
NZE120,ZZE121..MTM..PKN *10-1.25PX25-25 |
2 | ||
| 90119-10288 |
NZE120,ZZE121..MTM..PKN *10-1.25PX25-19.8 |
2 | ||
| 33584A - GASKET, CONTROL SHIFT LEVER RETAINER | ||||
| 33584-12050 |
NZE120,ZZE121..MTM..PKN |
1 | ||
| Common parts | ||||
| 90119-08A41 | ||||
