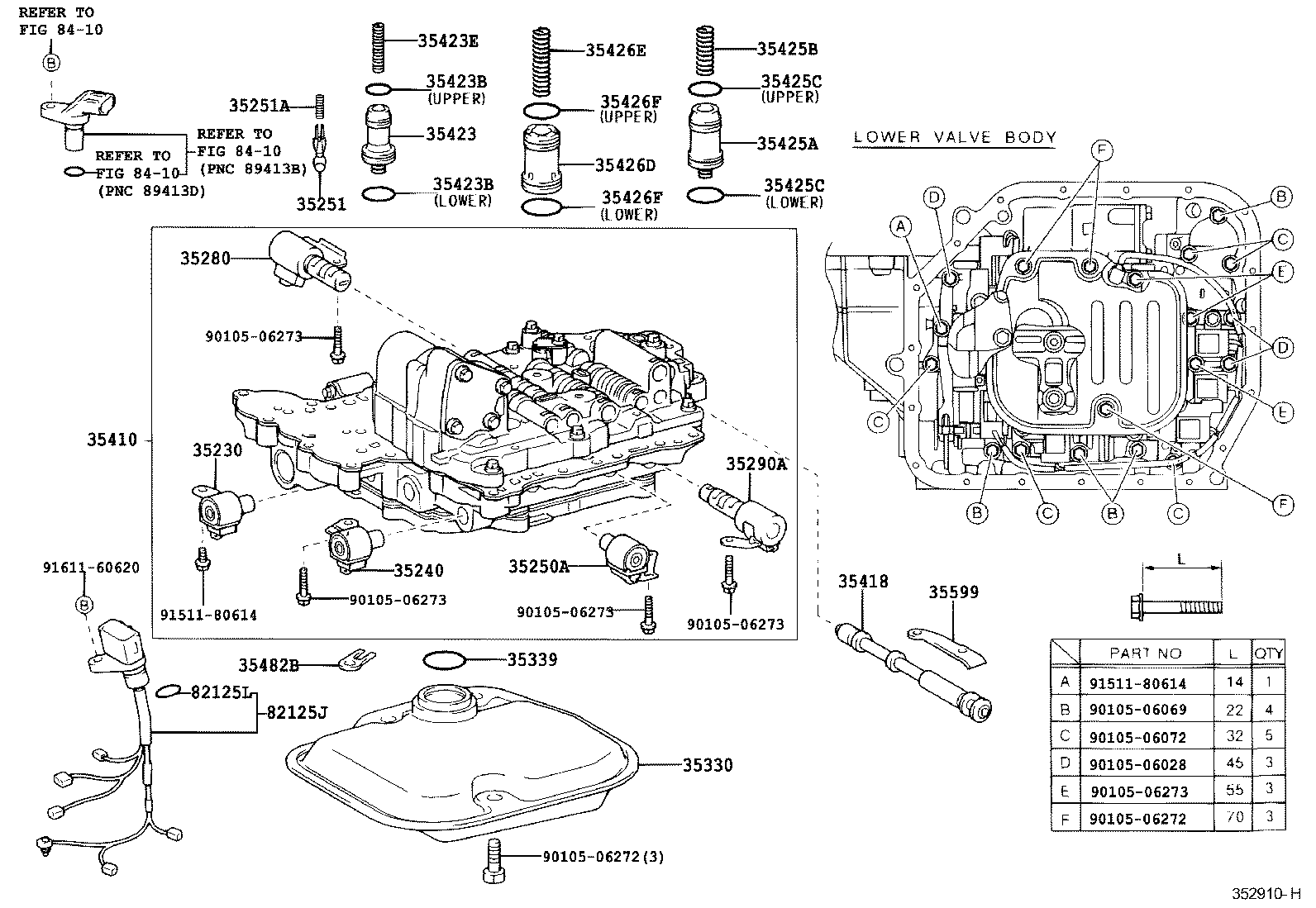

Toyota Corolla/altis sed/wg NZE121 VALVE BODY & OIL STRAINER (ATM)

Part #	Description	Period	Qty
35230 - SOLENOID ASSY, TRANSMISSION 3WAY, NO.2
35230-52011	NZE121..ATM;ZZE122..ATM..GCC	09/2001 - 09/2002	1
35230-52010	NZE121..ATM	08/2000 - 09/2001	1
35230-52011	NZE121..ATM;ZZE122..ATM..GCC	09/2002 - 04/2004	1
35230-52020	NZE121..ATM;ZZE122..ATM..GCC	08/2005 - 08/2007	1
35230-52011	NZE121..ATM;ZZE122..ATM..GCC	04/2004 - 08/2005	1
35240 - SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY
35240-52011	NZE121..ATM;ZZE122..ATM..GCC	09/2002 - 04/2004	1
35240-52010	NZE121..ATM	08/2000 - 09/2001	1
35240-52011	NZE121..ATM;ZZE122..ATM..GCC	04/2004 - 08/2005	1
35240-52050	NZE121..ATM;ZZE122..ATM..GCC	08/2005 - 08/2007	1
35240-52011	NZE121..ATM;ZZE122..ATM..GCC	09/2001 - 09/2002	1
35250A - SOLENOID ASSY, TRANSMISSION, NO.3
35250-52010	NZE121..ATM	08/2000 - 09/2002	1
35250-52080	NZE121..ATM	08/2005 - 08/2007	1
35250-52010	NZE121..ATM	09/2002 - 04/2004	1
35250-52010	NZE121..ATM	04/2004 - 08/2005	1
35251 - BODY, CHECK BALL
35251-30020	NZE12#,ZZE12#..ATM..(GCC,GEN)	09/2002 - 04/2004	1
35251-30020	ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN;NZE121,ZZE121..ATM..GEN	08/2000 - 09/2002	1
35251-30020	NZE12#,ZZE12#..ATM..(ARL,GCC,GEN)	04/2004 - 08/2007	1
35251A - SPRING, COMPRESSION (FOR CHECK BALL BODY)
90501-03005	NZE121,ZZE12#..ATM..(GCC,GEN)	09/2002 - 04/2004	1
90501-03005	NZE121,ZZE12#..ATM..(ARL,GCC,GEN)	04/2004 - 08/2007	1
90501-03005	NZE121,ZZE12#..ATM	08/2000 - 07/2005	1
35280 - SOLENOID ASSY, LOCK UP CONTROL
35270-52011	NZE121..ATM;ZZE122..ATM..GCC	09/2002 - 04/2004	1
35270-52011	NZE121..ATM;ZZE122..ATM..GCC	09/2001 - 09/2002	1
35270-52011	NZE121..ATM;ZZE122..ATM..GCC	04/2004 - 08/2007	1
35270-52010	NZE121..ATM	08/2000 - 09/2001	1
35290A - SOLENOID ASSY, LINE PRESSURE CONTROL
35290-52030	NZE121..ATM	08/2000 - 09/2002	1
35290-52030	NZE121..ATM	09/2002 - 04/2004	1
35290-52030	NZE121..ATM	04/2004 - 08/2007	1
35330 - STRAINER ASSY, VALVE BODY OIL
35330-0W020	NZE121..ATM	08/2000 - 09/2002	1
35330-0W020	NZE121..ATM	09/2002 - 04/2004	1
35330-0W020	NZE121..ATM	04/2004 - 08/2007	1
35339 - GASKET, OIL STRAINER
90301-32010	NZE121..ATM	09/2002 - 04/2004	1
90301-32010	NZE121..ATM	08/2000 - 09/2002	1
90301-32010	NZE121..ATM	04/2004 - 08/2007	1
35410 - BODY ASSY, TRANSMISSION VALVE
35410-52051	NZE121..ATM	09/2002 - 11/2002	1
35410-52050	NZE121..ATM	08/2000 - 09/2001	1
35410-52051	NZE121..ATM	09/2001 - 09/2002	1
35410-52052	NZE121..ATM	11/2002 - 03/2003	1
35410-52053	NZE121..ATM	03/2003 - 04/2004	1
35410-52180	NZE121..ATM	08/2005 - 11/2005	1
35410-52053	NZE121..ATM	04/2004 - 08/2005	1
35410-52181	NZE121..ATM	11/2005 - 08/2007	1
35418 - VALVE, MANUAL
35418-52020	NZE121..ATM;ZZE122..ATM..GCC	04/2004 - 08/2007	1
35418-52020	NZE121..ATM	08/2000 - 09/2002	1
35418-52020	NZE121..ATM;ZZE122..ATM..GCC	09/2002 - 04/2004	1
35423 - PISTON, B-2 ACCUMULATOR
35403-52020	NZE121..ATM	08/2000 - 09/2002	1
35403-52020	NZE121..ATM	04/2004 - 08/2007	1
35403-52020	NZE121..ATM	09/2002 - 04/2004	1
35423B - RING, O (FOR B-2 ACCUMULATOR PISTON)
90301-20010	NZE121..ATM UPPER	08/2000 - 09/2002	1
90301-29011	NZE121,ZZE12#..ATM..(GCC,GEN) LOWER	09/2002 - 04/2004	1
90301-29011	NZE121,ZZE12#..ATM LOWER	08/2000 - 07/2005	1
90301-20010	NZE121..ATM UPPER	09/2002 - 04/2004	1
90301-29011	NZE121,ZZE12#..ATM..(ARL,GCC,GEN) LOWER	04/2004 - 08/2007	1
90301-20010	NZE121..ATM UPPER	04/2004 - 08/2007	1
35423B - RING, O (FOR B-2 ACCUMULATOR PISTON)
90301-20010	NZE121..ATM UPPER	08/2000 - 09/2002	1
90301-29011	NZE121,ZZE12#..ATM..(GCC,GEN) LOWER	09/2002 - 04/2004	1
90301-29011	NZE121,ZZE12#..ATM LOWER	08/2000 - 07/2005	1
90301-20010	NZE121..ATM UPPER	09/2002 - 04/2004	1
90301-29011	NZE121,ZZE12#..ATM..(ARL,GCC,GEN) LOWER	04/2004 - 08/2007	1
90301-20010	NZE121..ATM UPPER	04/2004 - 08/2007	1
35423E - SPRING, COMPRESSION (FOR B-2 ACCMULATOR PISTON)
90501-20158	NZE121..ATM	08/2000 - 09/2002	1
90501-20158	NZE121..ATM	09/2002 - 04/2004	1
90501-20158	NZE121..ATM	04/2004 - 08/2007	1
35425A - PISTON, C-2 ACCUMULATOR
35405-52020	NZE121..ATM	08/2000 - 09/2002	1
35405-52020	NZE121..ATM	04/2004 - 08/2007	1
35405-52020	NZE121..ATM	09/2002 - 04/2004	1
35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)
90501-24036	NZE121..ATM	08/2000 - 09/2002	1
90501-24036	NZE121..ATM	09/2002 - 04/2004	1
90501-24036	NZE121..ATM	04/2004 - 08/2007	1
35425C - RING, O (FOR C-2 ACCUMULATOR PISTON)
90301-22010	NZE121..ATM LOWER	08/2000 - 09/2002	1
90301-35004	NZE121..ATM UPPER	08/2000 - 09/2002	1
90301-35004	NZE121..ATM UPPER	09/2002 - 04/2004	1
90301-35004	NZE121..ATM UPPER	04/2004 - 08/2007	1
90301-22010	NZE121..ATM LOWER	04/2004 - 08/2007	1
90301-22010	NZE121..ATM LOWER	09/2002 - 04/2004	1
35425C - RING, O (FOR C-2 ACCUMULATOR PISTON)
90301-22010	NZE121..ATM LOWER	08/2000 - 09/2002	1
90301-35004	NZE121..ATM UPPER	08/2000 - 09/2002	1
90301-35004	NZE121..ATM UPPER	09/2002 - 04/2004	1
90301-35004	NZE121..ATM UPPER	04/2004 - 08/2007	1
90301-22010	NZE121..ATM LOWER	04/2004 - 08/2007	1
90301-22010	NZE121..ATM LOWER	09/2002 - 04/2004	1
35426D - PISTON, C-3 ACCUMULATOR
35426-52020	NZE121..ATM	08/2000 - 09/2002	1
35426-52020	NZE121..ATM	04/2004 - 08/2007	1
35426-52020	NZE121..ATM	09/2002 - 04/2004	1
35426E - SPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON)
90501-25057	NZE121..ATM	08/2000 - 09/2002	1
90501-25057	NZE121..ATM	04/2004 - 08/2007	1
90501-25057	NZE121..ATM	09/2002 - 04/2004	1
35426F - RING, O (FOR C-3 ACCUMULATOR PISTON)
90301-24016	NZE121..ATM UPPER	08/2000 - 09/2002	1
90301-24016	NZE121..ATM UPPER	09/2002 - 04/2004	1
90301-29011	NZE121,ZZE12#..ATM LOWER	08/2000 - 07/2005	1
90301-24016	NZE121..ATM;ZZE122..ATM..GCC UNLEADED GASOLINE SPEC,UPPER	04/2004 - 08/2007	1
90301-29011	NZE121,ZZE12#..ATM..(GCC,GEN) LOWER	09/2002 - 04/2004	1
90301-29011	NZE121,ZZE12#..ATM..(ARL,GCC,GEN) LOWER	04/2004 - 08/2007	1
35426F - RING, O (FOR C-3 ACCUMULATOR PISTON)
90301-24016	NZE121..ATM UPPER	08/2000 - 09/2002	1
90301-24016	NZE121..ATM UPPER	09/2002 - 04/2004	1
90301-29011	NZE121,ZZE12#..ATM LOWER	08/2000 - 07/2005	1
90301-24016	NZE121..ATM;ZZE122..ATM..GCC UNLEADED GASOLINE SPEC,UPPER	04/2004 - 08/2007	1
90301-29011	NZE121,ZZE12#..ATM..(GCC,GEN) LOWER	09/2002 - 04/2004	1
90301-29011	NZE121,ZZE12#..ATM..(ARL,GCC,GEN) LOWER	04/2004 - 08/2007	1
35482B - CLAMP, TEMPERATURE SENSOR
35482-52020	NZE121..ATM;ZZE122..ATM..GCC	04/2004 - 08/2007	1
35482-52020	NZE121..ATM	08/2000 - 09/2002	1
35482-52020	NZE121..ATM;ZZE122..ATM..GCC	09/2002 - 04/2004	1
35599 - COVER, MANUAL DETENT SPRING
35599-52010	NZE121..ATM	08/2000 - 09/2002	1
35599-52010	NZE121..ATM	04/2004 - 08/2007	1
35599-52010	NZE121..ATM	09/2002 - 04/2004	1
82125J - WIRE, TRANSMISSION
82125-20270	NZE121..ATM	08/2000 - 09/2002	1
82125-52110	NZE121..ATM	08/2005 - 08/2007	1
82125-20270	NZE121..ATM	04/2004 - 08/2005	1
82125-20270	NZE121..ATM	09/2002 - 04/2004	1
82125L - RING, O(FOR TRANSMISSION WIRE)
90301-21009	ZZE122..RHD..ATM..GEN;NZE120,ZZE122..ATM..GCC;NZE121,ZZE121..ATM..GEN	08/2000 - 09/2002	1
90301-21009	NZE12#,ZZE12#..ATM..(GCC,GEN)	09/2002 - 04/2004	1
90301-21009	NZE12#,ZZE12#..ATM..(ARL,GCC,GEN)	04/2004 - 12/2999	1
Common parts
90105-06028
90105-06069
90105-06072
90105-06272
90105-06273
91511-80614
91611-60620

NZE121R-AEPDK (2000)

(0008- )NZE121..ATM ; (0507- )ATM..PKN ; (0510- )ATM..ARL
