Toyota Corolla/altis sed/wg NZE121 HEADLAMP

NZE121R-AEMEK (2000)

Toyota Corolla/Altis Sed/Wg

Production Aug 2000 - Dec 2005

Engine 1NZFE

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

(0008-0209)GCC,GEN

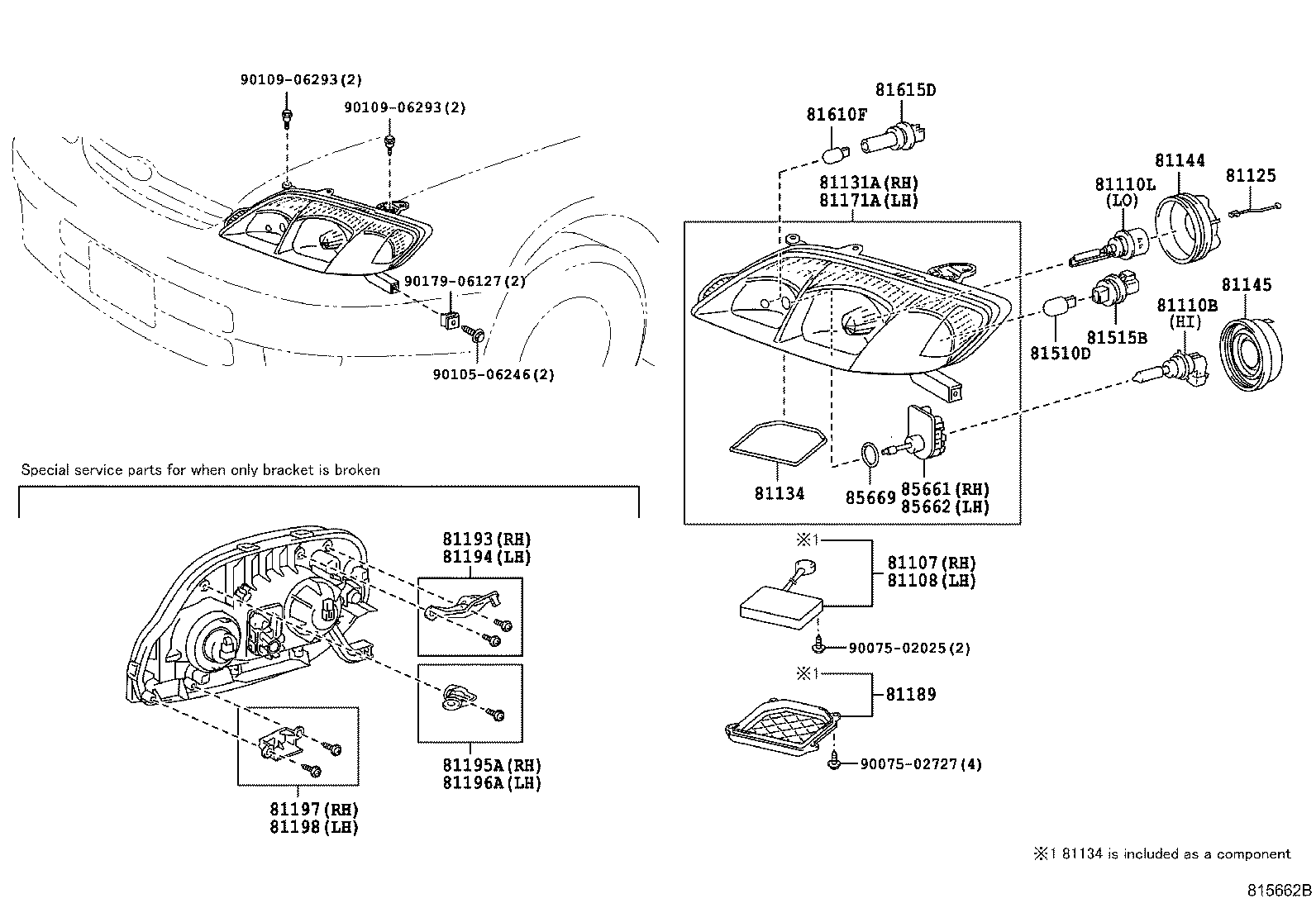

Click highlighted areas on diagram

Part #	Description	Period	Qty
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13058	CE120,NZE12#,ZZE12#..GCC,GEN 12V 60/55W,HALOGEN	08/2000 - 04/2004	2
90080-81041	CE120,NZE12#,ZZE12#..GCC,GEN 12V 65W	09/2002 - 04/2004	2
81131A - UNIT, HEADLAMP, RH
81145-1E710	NZE121..GLI DISCHARGE HEADLAMP	09/2002 - 04/2004	1
81130-1E690	CE120,NZE12#,ZZE12#..RHD..GEN	09/2002 - 04/2004	1
81130-1E490	CE120,NZE12#,ZZE12#..RHD..GEN	04/2004 - 12/2999	1
81130-1E600	CE120,NZE12#,ZZE12#..RHD..GEN	08/2000 - 09/2002	1
81145-12A00	NZE121..GLI DISCHARGE HEADLAMP	04/2004 - 12/2999	1
81144 - COVER, HEADLAMP, NO.1
90075-66003	NZE121..GLI DISCHARGE HEADLAMP	04/2004 - 12/2999	2
90075-65002	CE120,NZE12#,ZZE12#..GCC,GEN	08/2000 - 04/2004	2
90075-65002	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	2
90075-66003	NZE121..GLI DISCHARGE HEADLAMP	09/2002 - 04/2004	2
90075-65002	CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	2
81171A - UNIT, HEADLAMP, LH
81170-1E360	CE120,NZE12#,ZZE12#..RHD..GEN	04/2004 - 12/2999	1
81170-1E480	CE120,NZE12#,ZZE12#..RHD..GEN	08/2000 - 09/2002	1
81185-12A00	NZE121..GLI DISCHARGE HEADLAMP	04/2004 - 12/2999	1
81185-1E580	NZE121..GLI DISCHARGE HEADLAMP	09/2002 - 04/2004	1
81170-1E560	CE120,NZE12#,ZZE12#..GEN	09/2002 - 04/2004	1
81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH
81193-12010	NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN	08/2000 - 09/2002	1
81193-12010	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
81193-12010	CE120,NZE12#,ZZE12#..ARL,GCC,GEN	04/2004 - 12/2999	1
81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH
81194-12010	NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN	08/2000 - 09/2002	1
81194-12010	CE120,NZE12#,ZZE12#..ARL,GCC,GEN	04/2004 - 12/2999	1
81194-12010	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH
81195-12010	CE120,NZE12#,ZZE12#..ARL,GCC,GEN	04/2004 - 12/2999	1
81195-12010	NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN	08/2000 - 09/2002	1
81195-12010	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH
81196-12010	CE120,NZE12#,ZZE12#..ARL,GCC,GEN	04/2004 - 12/2999	1
81196-12010	NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN	08/2000 - 09/2002	1
81196-12010	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
81197 - BRACKET, HEADLAMP, LOWER RH
81197-12010	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
81197-12010	CE120,NZE12#,ZZE12#..ARL,GCC,GEN	04/2004 - 12/2999	1
81197-12010	NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN	08/2000 - 09/2002	1
81198 - BRACKET, HEADLAMP, LWR LH
81198-12010	NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN	08/2000 - 09/2002	1
81198-12010	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
81198-12010	CE120,NZE12#,ZZE12#..ARL,GCC,GEN	04/2004 - 12/2999	1
81510D - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15011	CE120,NZE12#,ZZE12#..GCC,GEN 12V 21W,AMBER	08/2000 - 04/2004	2
90981-15009	CE120,NZE12#,ZZE12#..GCC,GEN 12V 21W,AMBER	09/2002 - 04/2004	2
90981-15011	NZE121..GLI 12V 21W,AMBER,DISCHARGE HEADLAMP	09/2002 - 04/2004	2
90981-15011	CE120,NZE12#,ZZE12#..GCC,GEN 12V 21W,AMBER	04/2004 - 12/2999	2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
90075-60006	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	2
90075-60028	NZE121..GLI DISCHARGE HEADLAMP	09/2002 - 04/2004	2
90075-60028	CE120,NZE12#,ZZE12#..GCC,GEN	08/2000 - 04/2004	2
81610F - BULB(FOR CLEARANCE LAMP)
99132-12050	CE120,NZE12#,ZZE12# 12V 5W	08/2000 - 07/2005	2
99132-12050	CE120,NZE12#,ZZE12#..GCC,GEN 12V 5W	09/2002 - 04/2004	2
99132-12050	CE120,NZE12#,ZZE12#..ARL,GCC,GEN 12V 5W	04/2004 - 12/2999	2
81615D - SOCKET, CLEARANCE LAMP
90075-60046	CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 08/2005	2
90075-60001	CE120,NZE12#,ZZE12#..GCC,GEN	08/2000 - 04/2004	2
90075-60046	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	2
90075-60077	CE120,NZE12#,ZZE12#..GCC,GEN	09/2005 - 12/2999	2
Common parts
90105-06246
90109-06293
90179-06127

(0209-0404)GCC,GEN

Click highlighted areas on diagram

Part #	Description	Period	Qty
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13058	CE120,NZE12#,ZZE12#..GCC,GEN 12V 60/55W,HALOGEN	08/2000 - 04/2004	2
90080-81041	CE120,NZE12#,ZZE12#..GCC,GEN 12V 65W	09/2002 - 04/2004	2
81110D - BULB(FOR HEADLAMP, NO.2)
90981-13063	CE120,NZE12#,ZZE12#..GCC,GEN 12V 55W,HALOGEN	09/2002 - 04/2004	2
81131A - UNIT, HEADLAMP, RH
81145-1E710	NZE121..GLI DISCHARGE HEADLAMP	09/2002 - 04/2004	1
81130-1E690	CE120,NZE12#,ZZE12#..RHD..GEN	09/2002 - 04/2004	1
81130-1E490	CE120,NZE12#,ZZE12#..RHD..GEN	04/2004 - 12/2999	1
81130-1E600	CE120,NZE12#,ZZE12#..RHD..GEN	08/2000 - 09/2002	1
81145-12A00	NZE121..GLI DISCHARGE HEADLAMP	04/2004 - 12/2999	1
81144 - COVER, HEADLAMP, NO.1
90075-66003	NZE121..GLI DISCHARGE HEADLAMP	04/2004 - 12/2999	2
90075-65002	CE120,NZE12#,ZZE12#..GCC,GEN	08/2000 - 04/2004	2
90075-65002	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	2
90075-66003	NZE121..GLI DISCHARGE HEADLAMP	09/2002 - 04/2004	2
90075-65002	CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	2
81145A - ADAPTER ASSY
90075-99140	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	2
81171A - UNIT, HEADLAMP, LH
81170-1E360	CE120,NZE12#,ZZE12#..RHD..GEN	04/2004 - 12/2999	1
81170-1E480	CE120,NZE12#,ZZE12#..RHD..GEN	08/2000 - 09/2002	1
81185-12A00	NZE121..GLI DISCHARGE HEADLAMP	04/2004 - 12/2999	1
81185-1E580	NZE121..GLI DISCHARGE HEADLAMP	09/2002 - 04/2004	1
81170-1E560	CE120,NZE12#,ZZE12#..GEN	09/2002 - 04/2004	1
81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH
81193-12010	NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN	08/2000 - 09/2002	1
81193-12010	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
81193-12010	CE120,NZE12#,ZZE12#..ARL,GCC,GEN	04/2004 - 12/2999	1
81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH
81194-12010	NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN	08/2000 - 09/2002	1
81194-12010	CE120,NZE12#,ZZE12#..ARL,GCC,GEN	04/2004 - 12/2999	1
81194-12010	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH
81195-12010	CE120,NZE12#,ZZE12#..ARL,GCC,GEN	04/2004 - 12/2999	1
81195-12010	NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN	08/2000 - 09/2002	1
81195-12010	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH
81196-12010	CE120,NZE12#,ZZE12#..ARL,GCC,GEN	04/2004 - 12/2999	1
81196-12010	NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN	08/2000 - 09/2002	1
81196-12010	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
81197 - BRACKET, HEADLAMP, LOWER RH
81197-12010	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
81197-12010	CE120,NZE12#,ZZE12#..ARL,GCC,GEN	04/2004 - 12/2999	1
81197-12010	NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN	08/2000 - 09/2002	1
81198 - BRACKET, HEADLAMP, LWR LH
81198-12010	NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN	08/2000 - 09/2002	1
81198-12010	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
81198-12010	CE120,NZE12#,ZZE12#..ARL,GCC,GEN	04/2004 - 12/2999	1
81510D - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15011	CE120,NZE12#,ZZE12#..GCC,GEN 12V 21W,AMBER	08/2000 - 04/2004	2
90981-15009	CE120,NZE12#,ZZE12#..GCC,GEN 12V 21W,AMBER	09/2002 - 04/2004	2
90981-15011	NZE121..GLI 12V 21W,AMBER,DISCHARGE HEADLAMP	09/2002 - 04/2004	2
90981-15011	CE120,NZE12#,ZZE12#..GCC,GEN 12V 21W,AMBER	04/2004 - 12/2999	2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
90075-60006	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	2
90075-60028	NZE121..GLI DISCHARGE HEADLAMP	09/2002 - 04/2004	2
90075-60028	CE120,NZE12#,ZZE12#..GCC,GEN	08/2000 - 04/2004	2
81610F - BULB(FOR CLEARANCE LAMP)
99132-12050	CE120,NZE12#,ZZE12# 12V 5W	08/2000 - 07/2005	2
99132-12050	CE120,NZE12#,ZZE12#..GCC,GEN 12V 5W	09/2002 - 04/2004	2
99132-12050	CE120,NZE12#,ZZE12#..ARL,GCC,GEN 12V 5W	04/2004 - 12/2999	2
81615D - SOCKET, CLEARANCE LAMP
90075-60046	CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 08/2005	2
90075-60001	CE120,NZE12#,ZZE12#..GCC,GEN	08/2000 - 04/2004	2
90075-60046	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	2
90075-60077	CE120,NZE12#,ZZE12#..GCC,GEN	09/2005 - 12/2999	2
Common parts
90105-06246
90109-06293
90179-06127

(0404- )GCC,GEN

Click highlighted areas on diagram

Part #	Description	Period	Qty
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13058	CE120,NZE12#,ZZE12#..GCC,GEN 12V 60/55W,HALOGEN	08/2000 - 04/2004	2
90080-81041	CE120,NZE12#,ZZE12#..GCC,GEN 12V 65W	09/2002 - 04/2004	2
81110D - BULB(FOR HEADLAMP, NO.2)
90981-13063	CE120,NZE12#,ZZE12#..GCC,GEN 12V 55W,HALOGEN	09/2002 - 04/2004	2
81115B - SOCKET,HEADLAMP, NO.1
90075-99140	NZE121..MTM..GLI	04/2004 - 12/2005	2
81131A - UNIT, HEADLAMP, RH
81145-1E710	NZE121..GLI DISCHARGE HEADLAMP	09/2002 - 04/2004	1
81130-1E690	CE120,NZE12#,ZZE12#..RHD..GEN	09/2002 - 04/2004	1
81130-1E490	CE120,NZE12#,ZZE12#..RHD..GEN	04/2004 - 12/2999	1
81130-1E600	CE120,NZE12#,ZZE12#..RHD..GEN	08/2000 - 09/2002	1
81145-12A00	NZE121..GLI DISCHARGE HEADLAMP	04/2004 - 12/2999	1
81144 - COVER, HEADLAMP, NO.1
90075-66003	NZE121..GLI DISCHARGE HEADLAMP	04/2004 - 12/2999	2
90075-65002	CE120,NZE12#,ZZE12#..GCC,GEN	08/2000 - 04/2004	2
90075-65002	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	2
90075-66003	NZE121..GLI DISCHARGE HEADLAMP	09/2002 - 04/2004	2
90075-65002	CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	2
81145 - COVER, HEADLAMP, NO.2
90075-99054	NZE121..GLI	09/2002 - 04/2004	2
81171A - UNIT, HEADLAMP, LH
81170-1E360	CE120,NZE12#,ZZE12#..RHD..GEN	04/2004 - 12/2999	1
81170-1E480	CE120,NZE12#,ZZE12#..RHD..GEN	08/2000 - 09/2002	1
81185-12A00	NZE121..GLI DISCHARGE HEADLAMP	04/2004 - 12/2999	1
81185-1E580	NZE121..GLI DISCHARGE HEADLAMP	09/2002 - 04/2004	1
81170-1E560	CE120,NZE12#,ZZE12#..GEN	09/2002 - 04/2004	1
81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH
81193-12010	NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN	08/2000 - 09/2002	1
81193-12010	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
81193-12010	CE120,NZE12#,ZZE12#..ARL,GCC,GEN	04/2004 - 12/2999	1
81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH
81194-12010	NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN	08/2000 - 09/2002	1
81194-12010	CE120,NZE12#,ZZE12#..ARL,GCC,GEN	04/2004 - 12/2999	1
81194-12010	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH
81195-12010	CE120,NZE12#,ZZE12#..ARL,GCC,GEN	04/2004 - 12/2999	1
81195-12010	NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN	08/2000 - 09/2002	1
81195-12010	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH
81196-12010	CE120,NZE12#,ZZE12#..ARL,GCC,GEN	04/2004 - 12/2999	1
81196-12010	NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN	08/2000 - 09/2002	1
81196-12010	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
81197 - BRACKET, HEADLAMP, LOWER RH
81197-12010	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
81197-12010	CE120,NZE12#,ZZE12#..ARL,GCC,GEN	04/2004 - 12/2999	1
81197-12010	NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN	08/2000 - 09/2002	1
81198 - BRACKET, HEADLAMP, LWR LH
81198-12010	NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN	08/2000 - 09/2002	1
81198-12010	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
81198-12010	CE120,NZE12#,ZZE12#..ARL,GCC,GEN	04/2004 - 12/2999	1
81510D - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15011	CE120,NZE12#,ZZE12#..GCC,GEN 12V 21W,AMBER	08/2000 - 04/2004	2
90981-15009	CE120,NZE12#,ZZE12#..GCC,GEN 12V 21W,AMBER	09/2002 - 04/2004	2
90981-15011	NZE121..GLI 12V 21W,AMBER,DISCHARGE HEADLAMP	09/2002 - 04/2004	2
90981-15011	CE120,NZE12#,ZZE12#..GCC,GEN 12V 21W,AMBER	04/2004 - 12/2999	2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
90075-60006	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	2
90075-60028	NZE121..GLI DISCHARGE HEADLAMP	09/2002 - 04/2004	2
90075-60028	CE120,NZE12#,ZZE12#..GCC,GEN	08/2000 - 04/2004	2
81610F - BULB(FOR CLEARANCE LAMP)
99132-12050	CE120,NZE12#,ZZE12# 12V 5W	08/2000 - 07/2005	2
99132-12050	CE120,NZE12#,ZZE12#..GCC,GEN 12V 5W	09/2002 - 04/2004	2
99132-12050	CE120,NZE12#,ZZE12#..ARL,GCC,GEN 12V 5W	04/2004 - 12/2999	2
81615D - SOCKET, CLEARANCE LAMP
90075-60046	CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 08/2005	2
90075-60001	CE120,NZE12#,ZZE12#..GCC,GEN	08/2000 - 04/2004	2
90075-60046	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	2
90075-60077	CE120,NZE12#,ZZE12#..GCC,GEN	09/2005 - 12/2999	2
85661 - MOTOR, HEADLAMP LEVELING, RH
85661-12020	NZE121..MTM..GLI DISCHARGE HEADLAMP	04/2004 - 12/2005	1
85661-22020	NZE121..GLI	09/2002 - 04/2004	2
85662 - MOTOR, HEADLAMP LEVELING, LH
85661-12020	NZE121..MTM..GLI DISCHARGE HEADLAMP	04/2004 - 12/2005	1
85661-22020	NZE121..GLI	09/2002 - 04/2004	2
85669 - PACKING, HEADLAMP LEVELING MOTOR BASE
90075-99120	NZE121..GLI;NZE120,ZZE122..GCC	04/2004 - 12/2999	2
90075-99120	NZE121..GLI	09/2002 - 04/2004	2
Common parts
90105-06246
90109-06293
90179-06127

(0209-0404)GCC,GEN

Click highlighted areas on diagram

DISCHARGE HEADLAMP

Part #	Description	Period	Qty
81107 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH
81107-1E710	NZE121..GLI	09/2002 - 04/2004	1
81108 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH
81107-1E710	NZE121..GLI	09/2002 - 04/2004	1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13058	CE120,NZE12#,ZZE12#..GCC,GEN 12V 60/55W,HALOGEN	08/2000 - 04/2004	2
90080-81041	CE120,NZE12#,ZZE12#..GCC,GEN 12V 65W	09/2002 - 04/2004	2
81110L - BULB, DISCHARGE HEADLAMP
90981-20007	NZE121..GLI 85V 35W	09/2002 - 04/2004	2
81125 - CORD, HEADLAMP
81125-33460	NZE121..GLI	09/2002 - 04/2004	2
81125-33460	NZE121..MTM..GLI	04/2004 - 12/2005	2
81131A - UNIT, HEADLAMP, RH
81145-1E710	NZE121..GLI DISCHARGE HEADLAMP	09/2002 - 04/2004	1
81130-1E690	CE120,NZE12#,ZZE12#..RHD..GEN	09/2002 - 04/2004	1
81130-1E490	CE120,NZE12#,ZZE12#..RHD..GEN	04/2004 - 12/2999	1
81130-1E600	CE120,NZE12#,ZZE12#..RHD..GEN	08/2000 - 09/2002	1
81145-12A00	NZE121..GLI DISCHARGE HEADLAMP	04/2004 - 12/2999	1
81134 - GASKET, HEADLAMP
90075-68001	NZE121..GLI	09/2002 - 04/2004	1
81144 - COVER, HEADLAMP, NO.1
90075-66003	NZE121..GLI DISCHARGE HEADLAMP	04/2004 - 12/2999	2
90075-65002	CE120,NZE12#,ZZE12#..GCC,GEN	08/2000 - 04/2004	2
90075-65002	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	2
90075-66003	NZE121..GLI DISCHARGE HEADLAMP	09/2002 - 04/2004	2
90075-65002	CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	2
81145 - COVER, HEADLAMP, NO.2
90075-99054	NZE121..GLI	09/2002 - 04/2004	2
81171A - UNIT, HEADLAMP, LH
81170-1E360	CE120,NZE12#,ZZE12#..RHD..GEN	04/2004 - 12/2999	1
81170-1E480	CE120,NZE12#,ZZE12#..RHD..GEN	08/2000 - 09/2002	1
81185-12A00	NZE121..GLI DISCHARGE HEADLAMP	04/2004 - 12/2999	1
81185-1E580	NZE121..GLI DISCHARGE HEADLAMP	09/2002 - 04/2004	1
81170-1E560	CE120,NZE12#,ZZE12#..GEN	09/2002 - 04/2004	1
81189 - COVER, HEADLAMP
90075-67004	NZE121..GLI	09/2002 - 04/2004	2
90075-67004	NZE121..GLI	04/2004 - 12/2999	2
81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH
81193-12010	NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN	08/2000 - 09/2002	1
81193-12010	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
81193-12010	CE120,NZE12#,ZZE12#..ARL,GCC,GEN	04/2004 - 12/2999	1
81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH
81194-12010	NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN	08/2000 - 09/2002	1
81194-12010	CE120,NZE12#,ZZE12#..ARL,GCC,GEN	04/2004 - 12/2999	1
81194-12010	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH
81195-12010	CE120,NZE12#,ZZE12#..ARL,GCC,GEN	04/2004 - 12/2999	1
81195-12010	NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN	08/2000 - 09/2002	1
81195-12010	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH
81196-12010	CE120,NZE12#,ZZE12#..ARL,GCC,GEN	04/2004 - 12/2999	1
81196-12010	NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN	08/2000 - 09/2002	1
81196-12010	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
81197 - BRACKET, HEADLAMP, LOWER RH
81197-12010	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
81197-12010	CE120,NZE12#,ZZE12#..ARL,GCC,GEN	04/2004 - 12/2999	1
81197-12010	NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN	08/2000 - 09/2002	1
81198 - BRACKET, HEADLAMP, LWR LH
81198-12010	NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN	08/2000 - 09/2002	1
81198-12010	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
81198-12010	CE120,NZE12#,ZZE12#..ARL,GCC,GEN	04/2004 - 12/2999	1
81510D - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15011	CE120,NZE12#,ZZE12#..GCC,GEN 12V 21W,AMBER	08/2000 - 04/2004	2
90981-15009	CE120,NZE12#,ZZE12#..GCC,GEN 12V 21W,AMBER	09/2002 - 04/2004	2
90981-15011	NZE121..GLI 12V 21W,AMBER,DISCHARGE HEADLAMP	09/2002 - 04/2004	2
90981-15011	CE120,NZE12#,ZZE12#..GCC,GEN 12V 21W,AMBER	04/2004 - 12/2999	2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
90075-60006	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	2
90075-60028	NZE121..GLI DISCHARGE HEADLAMP	09/2002 - 04/2004	2
90075-60028	CE120,NZE12#,ZZE12#..GCC,GEN	08/2000 - 04/2004	2
81610F - BULB(FOR CLEARANCE LAMP)
99132-12050	CE120,NZE12#,ZZE12# 12V 5W	08/2000 - 07/2005	2
99132-12050	CE120,NZE12#,ZZE12#..GCC,GEN 12V 5W	09/2002 - 04/2004	2
99132-12050	CE120,NZE12#,ZZE12#..ARL,GCC,GEN 12V 5W	04/2004 - 12/2999	2
81615D - SOCKET, CLEARANCE LAMP
90075-60046	CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 08/2005	2
90075-60001	CE120,NZE12#,ZZE12#..GCC,GEN	08/2000 - 04/2004	2
90075-60046	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	2
90075-60077	CE120,NZE12#,ZZE12#..GCC,GEN	09/2005 - 12/2999	2
85661 - MOTOR, HEADLAMP LEVELING, RH
85661-12020	NZE121..MTM..GLI DISCHARGE HEADLAMP	04/2004 - 12/2005	1
85661-22020	NZE121..GLI	09/2002 - 04/2004	2
85669 - PACKING, HEADLAMP LEVELING MOTOR BASE
90075-99120	NZE121..GLI;NZE120,ZZE122..GCC	04/2004 - 12/2999	2
90075-99120	NZE121..GLI	09/2002 - 04/2004	2
Common parts
90075-02025
90075-02727
90105-06246
90109-06293
90179-06127

(0404- )NZE121..GLI

Click highlighted areas on diagram

DISCHARGE HEADLAMP

Part #	Description	Period	Qty
81107 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH
81107-1E710	NZE121..GLI	09/2002 - 04/2004	1
81108 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH
81107-1E710	NZE121..GLI	09/2002 - 04/2004	1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13058	CE120,NZE12#,ZZE12#..GCC,GEN 12V 60/55W,HALOGEN	08/2000 - 04/2004	2
90080-81041	CE120,NZE12#,ZZE12#..GCC,GEN 12V 65W	09/2002 - 04/2004	2
81110L - BULB, DISCHARGE HEADLAMP
90981-20007	NZE121..GLI 85V 35W	09/2002 - 04/2004	2
81125 - CORD, HEADLAMP
81125-33460	NZE121..GLI	09/2002 - 04/2004	2
81125-33460	NZE121..MTM..GLI	04/2004 - 12/2005	2
81131A - UNIT, HEADLAMP, RH
81145-1E710	NZE121..GLI DISCHARGE HEADLAMP	09/2002 - 04/2004	1
81130-1E690	CE120,NZE12#,ZZE12#..RHD..GEN	09/2002 - 04/2004	1
81130-1E490	CE120,NZE12#,ZZE12#..RHD..GEN	04/2004 - 12/2999	1
81130-1E600	CE120,NZE12#,ZZE12#..RHD..GEN	08/2000 - 09/2002	1
81145-12A00	NZE121..GLI DISCHARGE HEADLAMP	04/2004 - 12/2999	1
81134 - GASKET, HEADLAMP
90075-68001	NZE121..GLI	09/2002 - 04/2004	1
81144 - COVER, HEADLAMP, NO.1
90075-66003	NZE121..GLI DISCHARGE HEADLAMP	04/2004 - 12/2999	2
90075-65002	CE120,NZE12#,ZZE12#..GCC,GEN	08/2000 - 04/2004	2
90075-65002	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	2
90075-66003	NZE121..GLI DISCHARGE HEADLAMP	09/2002 - 04/2004	2
90075-65002	CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	2
81145 - COVER, HEADLAMP, NO.2
90075-99054	NZE121..GLI	09/2002 - 04/2004	2
81171A - UNIT, HEADLAMP, LH
81170-1E360	CE120,NZE12#,ZZE12#..RHD..GEN	04/2004 - 12/2999	1
81170-1E480	CE120,NZE12#,ZZE12#..RHD..GEN	08/2000 - 09/2002	1
81185-12A00	NZE121..GLI DISCHARGE HEADLAMP	04/2004 - 12/2999	1
81185-1E580	NZE121..GLI DISCHARGE HEADLAMP	09/2002 - 04/2004	1
81170-1E560	CE120,NZE12#,ZZE12#..GEN	09/2002 - 04/2004	1
81189 - COVER, HEADLAMP
90075-67004	NZE121..GLI	09/2002 - 04/2004	2
90075-67004	NZE121..GLI	04/2004 - 12/2999	2
81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH
81193-12010	NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN	08/2000 - 09/2002	1
81193-12010	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
81193-12010	CE120,NZE12#,ZZE12#..ARL,GCC,GEN	04/2004 - 12/2999	1
81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH
81194-12010	NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN	08/2000 - 09/2002	1
81194-12010	CE120,NZE12#,ZZE12#..ARL,GCC,GEN	04/2004 - 12/2999	1
81194-12010	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH
81195-12010	CE120,NZE12#,ZZE12#..ARL,GCC,GEN	04/2004 - 12/2999	1
81195-12010	NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN	08/2000 - 09/2002	1
81195-12010	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH
81196-12010	CE120,NZE12#,ZZE12#..ARL,GCC,GEN	04/2004 - 12/2999	1
81196-12010	NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN	08/2000 - 09/2002	1
81196-12010	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
81197 - BRACKET, HEADLAMP, LOWER RH
81197-12010	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
81197-12010	CE120,NZE12#,ZZE12#..ARL,GCC,GEN	04/2004 - 12/2999	1
81197-12010	NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN	08/2000 - 09/2002	1
81198 - BRACKET, HEADLAMP, LWR LH
81198-12010	NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN	08/2000 - 09/2002	1
81198-12010	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
81198-12010	CE120,NZE12#,ZZE12#..ARL,GCC,GEN	04/2004 - 12/2999	1
81510D - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15011	CE120,NZE12#,ZZE12#..GCC,GEN 12V 21W,AMBER	08/2000 - 04/2004	2
90981-15009	CE120,NZE12#,ZZE12#..GCC,GEN 12V 21W,AMBER	09/2002 - 04/2004	2
90981-15011	NZE121..GLI 12V 21W,AMBER,DISCHARGE HEADLAMP	09/2002 - 04/2004	2
90981-15011	CE120,NZE12#,ZZE12#..GCC,GEN 12V 21W,AMBER	04/2004 - 12/2999	2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
90075-60006	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	2
90075-60028	NZE121..GLI DISCHARGE HEADLAMP	09/2002 - 04/2004	2
90075-60028	CE120,NZE12#,ZZE12#..GCC,GEN	08/2000 - 04/2004	2
81610F - BULB(FOR CLEARANCE LAMP)
99132-12050	CE120,NZE12#,ZZE12# 12V 5W	08/2000 - 07/2005	2
99132-12050	CE120,NZE12#,ZZE12#..GCC,GEN 12V 5W	09/2002 - 04/2004	2
99132-12050	CE120,NZE12#,ZZE12#..ARL,GCC,GEN 12V 5W	04/2004 - 12/2999	2
81615D - SOCKET, CLEARANCE LAMP
90075-60046	CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 08/2005	2
90075-60001	CE120,NZE12#,ZZE12#..GCC,GEN	08/2000 - 04/2004	2
90075-60046	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	2
90075-60077	CE120,NZE12#,ZZE12#..GCC,GEN	09/2005 - 12/2999	2
85661 - MOTOR, HEADLAMP LEVELING, RH
85661-12020	NZE121..MTM..GLI DISCHARGE HEADLAMP	04/2004 - 12/2005	1
85661-22020	NZE121..GLI	09/2002 - 04/2004	2
85662 - MOTOR, HEADLAMP LEVELING, LH
85661-12020	NZE121..MTM..GLI DISCHARGE HEADLAMP	04/2004 - 12/2005	1
85661-22020	NZE121..GLI	09/2002 - 04/2004	2
85669 - PACKING, HEADLAMP LEVELING MOTOR BASE
90075-99120	NZE121..GLI;NZE120,ZZE122..GCC	04/2004 - 12/2999	2
90075-99120	NZE121..GLI	09/2002 - 04/2004	2
Common parts
90075-02025
90075-02727
90105-06246
90109-06293
90179-06127

NZE121R-AEMEK (2000)

(0008-0209)GCC,GEN

(0209-0404)GCC,GEN

(0404- )GCC,GEN

(0209-0404)GCC,GEN

(0404- )NZE121..GLI

Part Price Details
