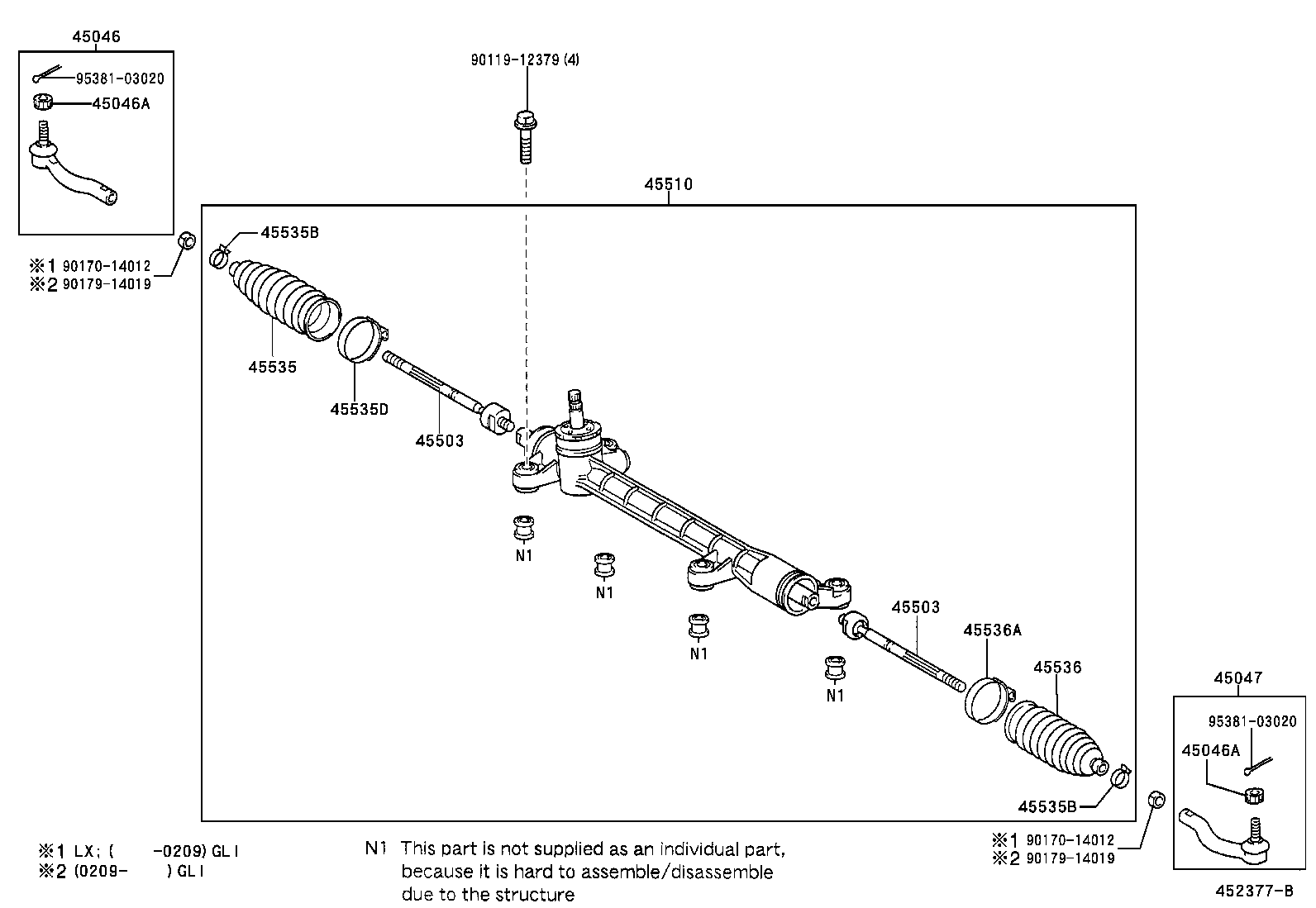

Toyota Corolla/altis sed/wg NZE121 FRONT STEERING GEAR & LINK

Part #	Description	Period	Qty
45046 - END SUB-ASSY, TIE ROD, RH
45046-19265	NZE121	08/2000 - 09/2002	1
45046-19265	NZE121	09/2002 - 04/2004	1
45046-19265	NZE121	04/2004 - 08/2007	1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028	NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN	08/2000 - 09/2002	2
90171-12028	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	2
90171-12028	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028	NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN	08/2000 - 09/2002	2
90171-12028	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	2
90171-12028	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	2
45047 - END SUB-ASSY, TIE ROD, LH
45047-19115	NZE121	08/2000 - 09/2002	1
45047-19115	NZE121	09/2002 - 04/2004	1
45047-19115	NZE121	04/2004 - 08/2007	1
45503 - END SUB-ASSY, STEERING RACK
45503-12130	NZE121;ZZE121..XLI;NZE120,ZZE122..XLI..GCC W(MANUAL STEERING)	08/2000 - 09/2002	2
45503-12130	NZE121;NZE120,ZZE12#..LHD..XLI W(MANUAL STEERING)	09/2002 - 04/2004	2
45503-12130	NZE121;NZE120..GCC W(MANUAL STEERING)	04/2004 - 08/2007	2
45503 - END SUB-ASSY, STEERING RACK
45503-12130	NZE121;ZZE121..XLI;NZE120,ZZE122..XLI..GCC W(MANUAL STEERING)	08/2000 - 09/2002	2
45503-12130	NZE121;NZE120,ZZE12#..LHD..XLI W(MANUAL STEERING)	09/2002 - 04/2004	2
45503-12130	NZE121;NZE120..GCC W(MANUAL STEERING)	04/2004 - 08/2007	2
45510 - GEAR ASSY, STEERING
45510-12290	NZE121	08/2000 - 09/2002	1
45510-12290	NZE121..LX	04/2004 - 12/2999	1
45510-12290	NZE121..LX	09/2002 - 04/2004	1
45535 - BOOT, STEERING RACK, NO.1
45535-52060	NZE121;NZE120,ZZE12#..LHD..XLI W(MANUAL STEERING)	08/2000 - 04/2004	1
45535-52060	NZE121;NZE120,ZZE12#..LHD..XLI W(MANUAL STEERING)	09/2002 - 04/2004	1
45535-52060	NZE121;NZE120..GCC W(MANUAL STEERING)	04/2004 - 12/2999	1
45535B - CLIP(FOR STEERING RACK BOOT)
90080-46174	NZE121	08/2000 - 09/2002	2
90467-19021	NZE121;NZE120,ZZE12#..LHD..XLI (J)	09/2002 - 04/2004	2
90467-19021	NZE121;NZE120..GCC (J)	04/2004 - 12/2999	2
90467-19021	NZE121 (J)	08/2000 - 04/2004	2
90080-46174	NZE121;NZE120..GCC (L)	04/2004 - 12/2999	2
90080-46174	NZE121;NZE120,ZZE12#..LHD..XLI (L)	09/2002 - 04/2004	2
45535B - CLIP(FOR STEERING RACK BOOT)
90080-46174	NZE121	08/2000 - 09/2002	2
90467-19021	NZE121;NZE120,ZZE12#..LHD..XLI (J)	09/2002 - 04/2004	2
90467-19021	NZE121;NZE120..GCC (J)	04/2004 - 12/2999	2
90467-19021	NZE121 (J)	08/2000 - 04/2004	2
90080-46174	NZE121;NZE120..GCC (L)	04/2004 - 12/2999	2
90080-46174	NZE121;NZE120,ZZE12#..LHD..XLI (L)	09/2002 - 04/2004	2
45535D - CLAMP(FOR STEERING RACK BOOT NO.1)
90460-58008	NZE121;NZE120..GCC	04/2004 - 12/2999	1
90460-58008	NZE121;NZE120,ZZE12#..LHD..XLI	08/2000 - 04/2004	1
90460-58008	NZE121;NZE120,ZZE12#..LHD..XLI	09/2002 - 04/2004	1
45536 - BOOT, STEERING RACK, NO.2
45535-52060	NZE121;NZE120,ZZE12#..LHD..XLI W(MANUAL STEERING)	09/2002 - 04/2004	1
45535-52060	NZE121;NZE120,ZZE12#..LHD..XLI W(MANUAL STEERING)	08/2000 - 04/2004	1
45535-52060	NZE121;NZE120..GCC W(MANUAL STEERING)	04/2004 - 12/2999	1
45536A - CLAMP(FOR STEERING RACK BOOT NO.2)
90460-58008	NZE121;NZE120,ZZE12#..LHD..XLI	08/2000 - 04/2004	1
90460-58008	NZE121;NZE120..GCC	04/2004 - 12/2999	1
90460-58008	NZE121;NZE120,ZZE12#..LHD..XLI	09/2002 - 04/2004	1
Common parts
90119-12379
90170-14012
90179-14019
95381-03020

NZE121R-AEMDK (2000)

(0008- )NZE121
