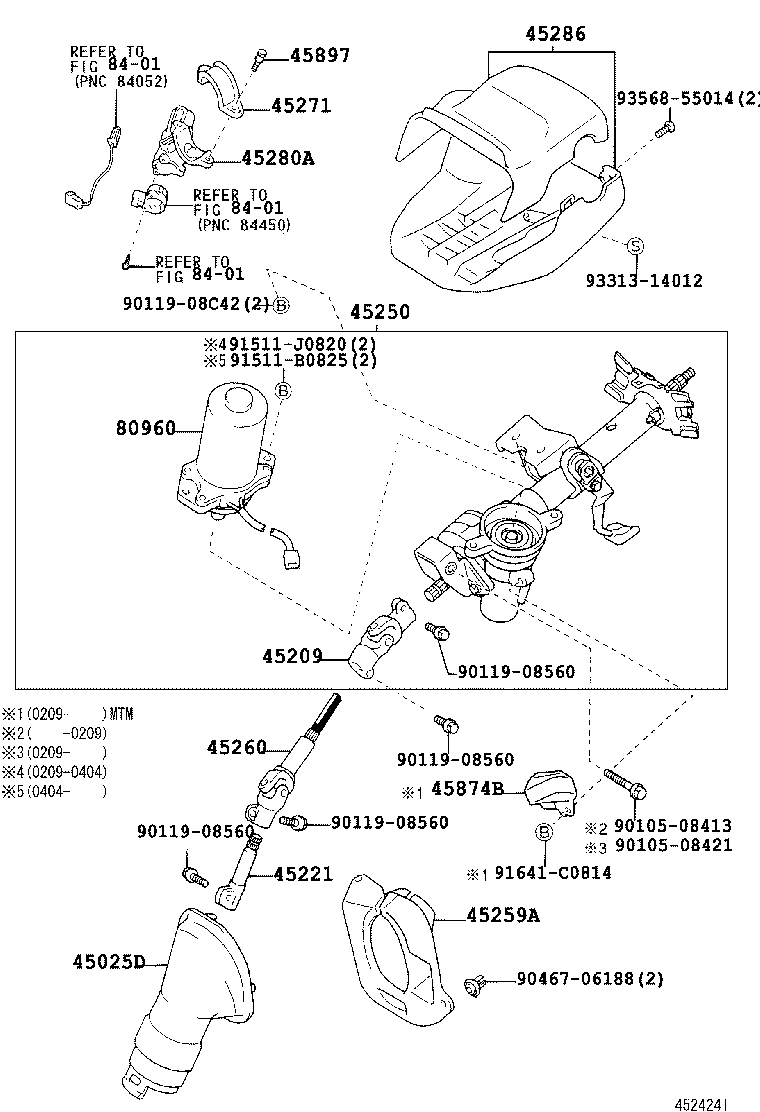

Toyota Corolla/altis sed/wg NZE121 STEERING COLUMN & SHAFT

Part #	Description	Period	Qty
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-12220	NZE121	08/2000 - 09/2002	1
45025-12220	NZE121	09/2002 - 04/2004	1
45025-12220	NZE121	04/2004 - 12/2999	1
45209 - YOKE SUB-ASSY, STEERING SLIDING
45209-12150	CE120,NZE12#,ZZE12#..RHD..GEN	09/2002 - 04/2004	1
45209-12150	CE120,NZE12#,ZZE12#..RHD	08/2000 - 07/2005	1
45209-12151	NZE121..ATM;NZE121..MTM..LX;ZZE122..WG..ARL;CE120,NZE120,ZZE12#..RHD..GEN	10/2005 - 12/2999	1
45209-12150	NZE121..ATM;NZE121..MTM..LX;CE120,NZE120,ZZE12#..RHD..(ARL,GEN)	04/2004 - 09/2005	1
45221 - SHAFT, STEERING INTERMEDIATE
45221-12280	NZE121;NZE120,ZZE12#..LHD..XLI	08/2000 - 04/2004	1
45221-12281	NZE121;NZE120..GCC	04/2004 - 12/2999	1
45250 - COLUMN ASSY, STEERING
45250-1E311	NZE121..LX	04/2004 - 08/2004	1
45250-1E310	NZE121..LX	09/2002 - 02/2003	1
45250-1E312	NZE121..LX	08/2004 - 09/2005	1
45250-1E192	NZE121	08/2000 - 09/2002	1
45250-1E313	NZE121..LX	10/2005 - 12/2999	1
45250-1E311	NZE121..LX	02/2003 - 04/2004	1
45259A - SHEET, COLUMN HOLE COVER SILENCER
45259-12010	CE120,NZE12#,ZZE12#..RHD..GEN	09/2002 - 04/2004	1
45259-12010	CE120,NZE12#,ZZE12#..RHD..GEN	08/2000 - 09/2002	1
45259-12010	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..RHD..GEN	04/2004 - 12/2999	1
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-12530	NZE121	08/2000 - 09/2002	1
45260-12530	NZE121	09/2002 - 04/2004	1
45260-12530	NZE121	04/2004 - 05/2005	1
45260-12531	NZE121	06/2005 - 12/2999	1
45271 - CLAMP, STEERING COLUMN, UPPER
45271-16020	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
45271-16020	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	1
45271-16020	NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN	08/2000 - 09/2002	1
45280A - BRACKET ASSY, STEERING COLUMN, UPPER
45280-12390	NZE121..MTM	08/2000 - 09/2002	1
45280-12390	NZE121..MTM	04/2004 - 12/2999	1
45280-12390	NZE121..MTM	09/2002 - 04/2004	1
45286 - COVER, STEERING COLUMN
45286-12968E0	NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN SANDAL WOOD,TRIM0#	08/2000 - 09/2002	1
45286-12968B2	CE120,NZE12#,ZZE12#..SED..(GCC,GEN) DK.GRAY,TRIM1#	09/2002 - 04/2004	1
45286-12968E0	CE120,NZE12#,ZZE12#..GCC,GEN SANDAL WOOD,TRIM0#	09/2002 - 04/2004	1
45286-12968B2	CE120,NZE12#,ZZE12#..SED..(GCC,GEN) DK.GRAY,TRIM1#	08/2000 - 09/2002	1
45286-12968B2	NZE121..ATM;NZE121..MTM..LX;CE120,NZE120,ZZE12#..ARL,GCC,GEN DK.GRAY,TRIM1#	04/2004 - 12/2999	1
45286-12968E0	NZE121..ATM;NZE121..MTM..LX;CE120,NZE120,ZZE12#..GCC,GEN SANDAL WOOD,TRIM0#	04/2004 - 12/2999	1
45874B - PROTECTOR, STEERING COLUMN, NO.1
45874-13020	NZE121..MTM	09/2002 - 04/2004	1
45874-13020	NZE121..MTM	04/2004 - 10/2004	1
45874-13021	NZE121..MTM	11/2004 - 12/2999	1
45897 - BOLT, STEERING LOCK SET
45897-12020	NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN	08/2000 - 09/2002	2
45897-12020	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	2
45897-12020	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	2
80960 - MOTOR ASSY, POWER STEERING
80960-12010	NZE121	08/2000 - 09/2002	1
80960-12040	NZE121..LX	04/2004 - 08/2004	1
80960-12040	NZE121..LX	09/2002 - 04/2004	1
80960-12041	NZE121..LX	08/2004 - 08/2007	1
Common parts
90105-08413
90105-08421
90119-08560
90119-08C42
90467-06188
91511-B0825
91511-J0820
91641-C0814
93313-14012
93568-55014
Linked diagrams
8401

NZE121R-AEMDK (2000)

(0008- )NZE121
