Toyota Corolla/altis sed/wg NZE121 CLUTCH PEDAL & FLEXIBLE HOSE

Manufacturers Home
Toyota
GR
COROLLA/ALTIS SED/WG
NZE121R-AEMDK (2000)
3102 - CLUTCH PEDAL & FLEXIBLE HOSE

NZE121R-AEMDK (2000)

Toyota Corolla/Altis Sed/Wg

Production Aug 2000 - Aug 2007

Engine 1NZFE

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0008- )MTM

Click highlighted areas on diagram

Part #	Description	Period	Qty
31301 - PEDAL SUB-ASSY, CLUTCH
31301-12450	CE120,NZE12#,ZZE12#..RHD..MTM..GEN REFER TO THE COMMENT IN THE ILLUSTRATION	08/2000 - 09/2002	1
31301-12450	ZZE122..WG..MTM..ARL;CE120,NZE12#,ZZE12#..RHD..MTM..GEN REFER TO THE COMMENT IN THE ILLUSTRATION	04/2004 - 12/2999	1
31301-12450	CE120,NZE12#,ZZE12#..RHD..MTM..GEN REFER TO THE COMMENT IN THE ILLUSTRATION	09/2002 - 04/2004	1
31301A - SPRING(FOR CLUTCH PEDAL)
90507-14050	NZE120..MTM..GCC;ZZE121..MTM..GEN;CE120,NZE12#..RHD..MTM..GEN	08/2000 - 09/2002	1
90507-14050	CE120,NZE12#,ZZE121..MTM..(GCC,GEN)	04/2004 - 12/2999	1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036	CE120,NZE12#,ZZE12#..RHD..MTM..GEN	08/2000 - 09/2002	2
90541-06036	CE120,NZE12#,ZZE12#..RHD..MTM..GEN	09/2002 - 04/2004	2
90541-06036	ZZE122..WG..MTM..ARL;CE120,NZE12#,ZZE12#..RHD..MTM..GEN	04/2004 - 12/2999	2
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036	CE120,NZE12#,ZZE12#..RHD..MTM..GEN	08/2000 - 09/2002	2
90541-06036	CE120,NZE12#,ZZE12#..RHD..MTM..GEN	09/2002 - 04/2004	2
90541-06036	ZZE122..WG..MTM..ARL;CE120,NZE12#,ZZE12#..RHD..MTM..GEN	04/2004 - 12/2999	2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015	ZZE121..MTM..GEN;NZE120,ZZE122..MTM..GCC;CE120,NZE12#,ZZE122..RHD..MTM..GEN	08/2000 - 09/2002	2
90386-13015	ZZE122..WG..MTM..ARL;CE120,NZE12#,ZZE12#..MTM..(GCC,GEN)	04/2004 - 12/2999	2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015	ZZE121..MTM..GEN;NZE120,ZZE122..MTM..GCC;CE120,NZE12#,ZZE122..RHD..MTM..GEN	08/2000 - 09/2002	2
90386-13015	ZZE122..WG..MTM..ARL;CE120,NZE12#,ZZE12#..MTM..(GCC,GEN)	04/2004 - 12/2999	2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10369	ZZE121..MTM..GEN;NZE120,ZZE122..MTM..GCC;CE120,NZE12#,ZZE122..RHD..MTM..GEN	08/2000 - 09/2002	1
90101-10369	ZZE122..WG..MTM..ARL;CE120,NZE12#,ZZE12#..MTM..(GCC,GEN)	04/2004 - 12/2999	1
31321 - PAD, CLUTCH PEDAL
31321-52010	ZZE122..WG..MTM..ARL;CE120,NZE12#,ZZE12#..MTM..(GCC,GEN)	04/2004 - 12/2999	1
31321-52010	ZZE121..MTM..GEN;NZE120,ZZE122..MTM..GCC;CE120,NZE12#,ZZE122..RHD..MTM..GEN	08/2000 - 09/2002	1
31324 - SHAFT, CLUTCH PEDAL
90109-10167	ZZE121..MTM..GEN;NZE120,ZZE122..MTM..GCC;CE120,NZE12#,ZZE122..RHD..MTM..GEN	08/2000 - 09/2002	1
90109-10167	ZZE122..WG..MTM..ARL;CE120,NZE12#,ZZE12#..MTM..(GCC,GEN)	04/2004 - 12/2999	1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90249-08243	ZZE121..MTM..GEN;NZE120,ZZE122..MTM..GCC;CE120,NZE12#,ZZE122..RHD..MTM..GEN L=30	08/2000 - 09/2002	1
90249-08243	ZZE122..WG..MTM..ARL;CE120,NZE12#,ZZE12#..MTM..(GCC,GEN) L=30	04/2004 - 12/2999	1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002	ZZE121..MTM..GEN;NZE120,ZZE122..MTM..GCC;CE120,NZE12#,ZZE122..RHD..MTM..GEN	08/2000 - 09/2002	1
90386-08002	ZZE122..WG..MTM..ARL;CE120,NZE12#,ZZE12#..MTM..(GCC,GEN)	04/2004 - 12/2999	1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-12200	CE120,NZE12#,ZZE12#..RHD..MTM..GEN	09/2002 - 04/2004	1
55107-12200	CE120,NZE12#,ZZE12#..RHD..MTM..(ARL,GEN)	04/2004 - 08/2007	1
55107-12200	CE120,NZE12#,ZZE12#..RHD..MTM	08/2000 - 07/2005	1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-12200	CE120,NZE12#,ZZE12#..RHD..MTM..GEN	09/2002 - 04/2004	1
55107-12200	CE120,NZE12#,ZZE12#..RHD..MTM..(ARL,GEN)	04/2004 - 08/2007	1
55107-12200	CE120,NZE12#,ZZE12#..RHD..MTM	08/2000 - 07/2005	1
Common parts
90179-10088
90468-16142
91621-J0814
91635-60832
94120-41000

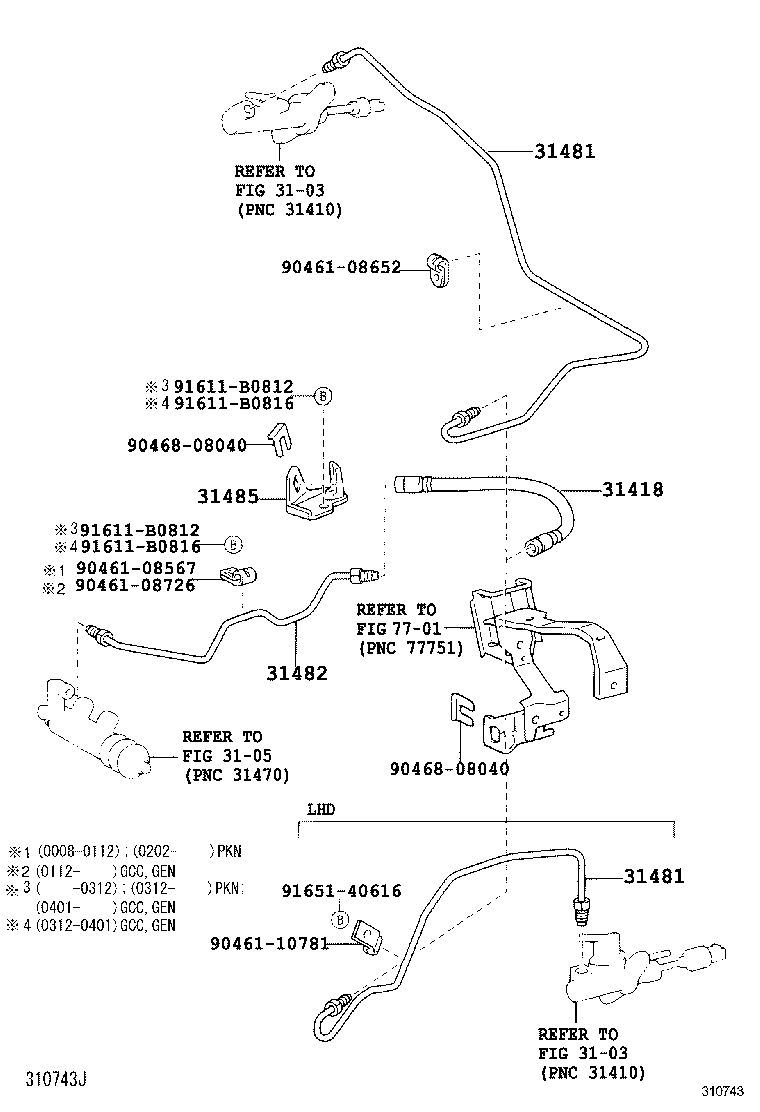

ILLUST NO. 2 OF 2(0008- )NZE12#..MTM

Click highlighted areas on diagram

Part #	Description	Period	Qty
31418 - HOSE, CLUTCH
90947-02B47	NZE12#..MTM	08/2000 - 12/2001	1
90947-02D12	NZE120..MTM..GCC;NZE12#..RHD..MTM..GEN	12/2001 - 09/2002	1
90947-02D12	NZE12#..MTM..(GCC,GEN)	04/2004 - 12/2999	1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-12250	NZE12#,ZZE121..RHD..MTM	08/2000 - 09/2001	1
31481-12320	NZE120..RHD..GLI..GEN;CE120,NZE121,ZZE12#..RHD..MTM..(ARL,GEN)	09/2001 - 04/2004	1
31481-12320	ZZE122..WG..MTM..ARL;CE120,NZE12#,ZZE12#..RHD..MTM..GEN	04/2004 - 12/2999	1
31481-12320	CE120,NZE12#,ZZE12#..RHD..MTM..GEN	09/2002 - 04/2004	1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-12250	NZE12#,ZZE121..RHD..MTM	08/2000 - 09/2001	1
31481-12320	NZE120..RHD..GLI..GEN;CE120,NZE121,ZZE12#..RHD..MTM..(ARL,GEN)	09/2001 - 04/2004	1
31481-12320	ZZE122..WG..MTM..ARL;CE120,NZE12#,ZZE12#..RHD..MTM..GEN	04/2004 - 12/2999	1
31481-12320	CE120,NZE12#,ZZE12#..RHD..MTM..GEN	09/2002 - 04/2004	1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-12180	NZE12#..MTM	08/2000 - 12/2001	1
31482-12300	NZE120..MTM..GCC;NZE12#..RHD..MTM..GEN	12/2001 - 09/2002	1
31482-12300	NZE12#..MTM..(GCC,GEN)	04/2004 - 08/2007	1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31484-12320	NZE120..MTM..GCC;NZE12#..RHD..MTM..GEN	08/2000 - 09/2002	1
31484-12320	NZE12#..MTM..(GCC,GEN)	04/2004 - 12/2999	1
Common parts
90461-08567
90461-08652
90461-08726
90461-10781
90468-08040
91611-B0812
91611-B0816
91651-40616
