NZE121R-AEMDK (2000)

Toyota Corolla/Altis Sed/Wg

Production Aug 2000 - Aug 2007
Engine 1NZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0008- )1NZFE,2NZFE..MTM

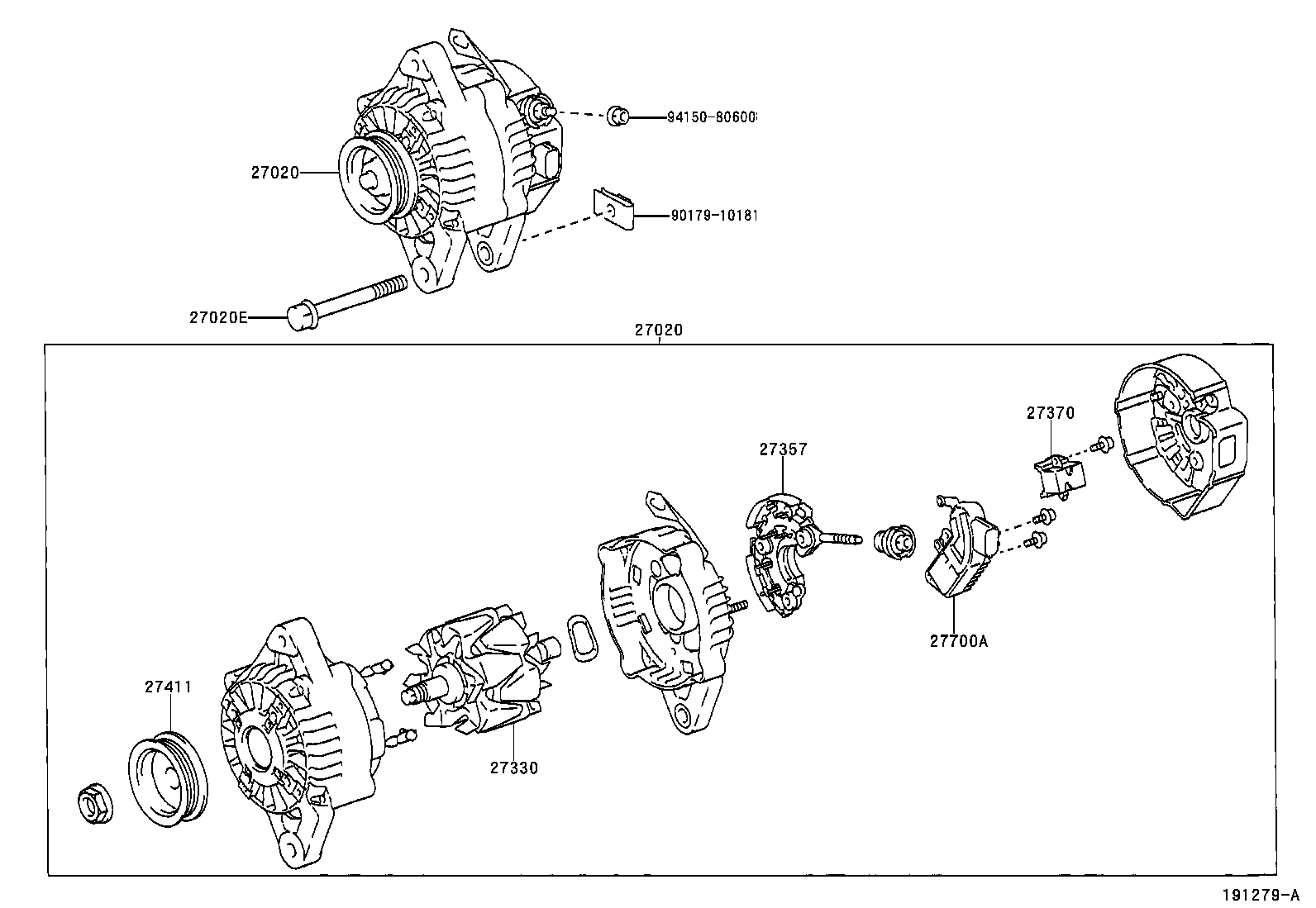

Click highlighted areas on diagram

12V 70A

diagram 27020 27020 27020E 27330 27357 27370 27411 27700A 9017910181 9415080600
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-21050

1NZFE,2NZFE..NZE12#..MTM

12V 70A

 1
27060-21050

1NZFE,2NZFE..NZE12#..MTM..(GCC,GEN)

12V 70A

 1
27060-21050

1NZFE,2NZFE..NZE12#..MTM..(GCC,GEN)

12V 70A

 1
27020 - ALTERNATOR ASSY
27060-21050

1NZFE,2NZFE..NZE12#..MTM

12V 70A

 1
27060-21050

1NZFE,2NZFE..NZE12#..MTM..(GCC,GEN)

12V 70A

 1
27060-21050

1NZFE,2NZFE..NZE12#..MTM..(GCC,GEN)

12V 70A

 1
27020E - BOLT(FOR ALTERNATOR)
90105-10038

2NZFE..NZE120..GCC;1NZFE,2NZFE..NZE12#..RHD..GEN

 1
90105-10038

1NZFE,2NZFE..NZE12#..GCC,GEN

 1
90105-10038

1NZFE,2NZFE..NZE12#..GCC,GEN

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-67100

1NZFE,2NZFE,1ZZFE,3ZZFE..NZE12#,ZZE12#..MTM

 1
27330-67100

1NZFE,2NZFE,1ZZFE,3ZZFE..NZE12#,ZZE12#..MTM..(GCC,GEN)

 1
27330-67100

1ZZFE..ZZE122..WG..MTM..ARL;1NZFE,2NZFE,1ZZFE,3ZZFE..NZE12#,ZZE12#..MTM..(GCC,GEN)

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-21060

1ZZFE..ZZE122..WG..MTM..ARL;1NZFE,2NZFE,1ZZFE,3ZZFE..NZE12#,ZZE12#..MTM..(GCC,GEN)

 1
27357-21060

1NZFE,2NZFE,1ZZFE,3ZZFE..NZE12#,ZZE12#..MTM

 1
27357-21060

1NZFE,2NZFE,1ZZFE,3ZZFE..NZE12#,ZZE12#..MTM..(GCC,GEN)

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-35060

1NZFE,2NZFE,1ZZFE,3ZZFE..NZE12#,ZZE12#..MTM..(GCC,GEN)

 1
27370-35060

1NZFE,2NZFE,1ZZFE,3ZZFE..NZE12#,ZZE12#..MTM

 1
27370-35060

1ZZFE..ZZE122..WG..MTM..ARL;1NZFE,2NZFE,1ZZFE,3ZZFE..NZE12#,ZZE12#..MTM..(GCC,GEN)

 1
27411 - PULLEY, ALTERNATOR
27411-65010

1NZFE,2NZFE..NZE12#..MTM

 1
27411-65010

1NZFE,2NZFE..NZE12#..MTM..(GCC,GEN)

 1
27411-65010

1NZFE,2NZFE..NZE12#..MTM..(GCC,GEN)

 1
27700A - REGULATOR ASSY, GENERATOR
27700-21020

1NZFE,2NZFE..NZE12#..MTM

 1
27700-21020

1NZFE,2NZFE..NZE12#..MTM..(GCC,GEN)

 1
27700-21020

1NZFE,2NZFE..NZE12#..MTM..(GCC,GEN)

 1
Common parts
90179-10181
94150-80600
