Toyota Corolla/altis sed/wg NZE120 HEATING & AIR CONDITIONING - COOLER PIPING

Part #	Description	Period	Qty
88460 - CONDENSER ASSY, COOLER
88450-12230	NZE120,ZZE12#..LHD	08/2000 - 07/2002	1
88460-12550	NZE120,ZZE12#..LHD..GEN DEALER OPTION	10/2001 - 09/2002	1
88460-12551	NZE120,ZZE122..LHD..GEN DEALER OPTION	09/2002 - 04/2004	1
88450-12231	NZE120,ZZE12#..LHD	07/2002 - 01/2004	1
88450-12231	NZE120,ZZE122..LHD..GEN MAKER OPTION	09/2002 - 04/2004	1
88460-12551	NZE120..LHD..GEN DEALER OPTION	09/2002 - 04/2004	1
88450-12231	NZE120,ZZE12#..LHD MAKER OPTION	04/2004 - 12/2999	1
88460-12551	NZE120,ZZE12#..LHD..GEN	04/2004 - 12/2999	1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12180	NZE121..GLI;ZZE122..LHD..MTM;ZZE122..LHD..ATM..GEN;CE120,NZE120,ZZE121..LHD;ZZE122..ATM..(GLI,ULT,XLI)..(ARL,GCC)	09/2002 - 04/2004	2
88467-12180	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	2
88467-12180	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	2
88469D - COLLAR, CONDENSER BRACKET, NO.1
88469-52010	NZE121..GLI;ZZE122..LHD..MTM;ZZE122..LHD..ATM..GEN;CE120,NZE120,ZZE121..LHD;ZZE122..ATM..(GLI,ULT,XLI)..(ARL,GCC)	09/2002 - 04/2004	2
88469-52010	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	2
88469-52010	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	2
88474 - DRYER, COOLER
88474-17010	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	1
88474-17010	CE120,NZE120,ZZE12#..LHD MAKER OPTION	09/2002 - 04/2004	1
88474-47010	NZE121..LX;CE120,NZE120,ZZE12#..ARL,GEN MAKER OPTION	08/2000 - 09/2002	1
88474-17010	CE120,NZE12#,ZZE12#..GCC,GEN MAKER OPTION	09/2002 - 04/2004	1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02008	ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN 200G	09/2002 - 04/2004	1
90986-02007	CE120..GEN;NZE120..GLI..GEN;ZZE12#..RHD..GEN;NZE120..LHD..XLI..GEN 250G	09/2002 - 04/2004	1
90986-02008	ZZE12#..RHD..GEN;CE120,NZE12#..GEN 200G	09/2002 - 04/2004	1
90986-02007	ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN 250G	09/2002 - 04/2004	1
90986-02007	NZE120,ZZE12#..LHD..GEN 250G	11/2005 - 12/2999	1
90986-02008	NZE120,ZZE12#..LHD..GEN 200G	11/2005 - 12/2999	1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02008	ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN 200G	09/2002 - 04/2004	1
90986-02007	CE120..GEN;NZE120..GLI..GEN;ZZE12#..RHD..GEN;NZE120..LHD..XLI..GEN 250G	09/2002 - 04/2004	1
90986-02008	ZZE12#..RHD..GEN;CE120,NZE12#..GEN 200G	09/2002 - 04/2004	1
90986-02007	ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN 250G	09/2002 - 04/2004	1
90986-02007	NZE120,ZZE12#..LHD..GEN 250G	11/2005 - 12/2999	1
90986-02008	NZE120,ZZE12#..LHD..GEN 200G	11/2005 - 12/2999	1
88705A - TUBE SUB-ASSY, DISCHARGE
88705-12200	ZZE12#..RHD..GEN;CE120,NZE12#..GEN	09/2002 - 04/2004	1
88705-12200	CE120,NZE120,ZZE122..LHD..GEN	09/2002 - 04/2004	1
88705-12200	NZE120,ZZE12#..LHD..GEN	11/2005 - 12/2999	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88703-12620	NZE120..LHD..GEN MAKER OPTION	10/2002 - 04/2004	1
88703-12530	NZE120..LHD..GEN	08/2000 - 10/2002	1
88703-12700	NZE120..LHD..GEN DEALER OPTION	09/2002 - 04/2004	1
88703-12700	NZE12#..GEN DEALER OPTION	09/2002 - 04/2004	1
88703-12760	NZE12#..GCC,GEN MAKER OPTION	04/2004 - 08/2006	1
88703-12620	NZE12#..GCC,GEN MAKER OPTION	09/2002 - 04/2004	1
88703-12700	NZE120..LHD..GEN DEALER OPTION	11/2005 - 08/2007	1
88703-12761	NZE12#..GCC,GEN MAKER OPTION	09/2006 - 08/2007	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88703-12620	NZE120..LHD..GEN MAKER OPTION	10/2002 - 04/2004	1
88703-12530	NZE120..LHD..GEN	08/2000 - 10/2002	1
88703-12700	NZE120..LHD..GEN DEALER OPTION	09/2002 - 04/2004	1
88703-12700	NZE12#..GEN DEALER OPTION	09/2002 - 04/2004	1
88703-12760	NZE12#..GCC,GEN MAKER OPTION	04/2004 - 08/2006	1
88703-12620	NZE12#..GCC,GEN MAKER OPTION	09/2002 - 04/2004	1
88703-12700	NZE120..LHD..GEN DEALER OPTION	11/2005 - 08/2007	1
88703-12761	NZE12#..GCC,GEN MAKER OPTION	09/2006 - 08/2007	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88704-12840	NZE120..LHD	08/2000 - 04/2004	1
88704-1A150	NZE120..LHD MAKER OPTION	04/2004 - 08/2006	1
88704-12840	NZE120..LHD	09/2002 - 04/2004	1
88704-1A151	NZE120..LHD MAKER OPTION	09/2006 - 08/2007	1
88704-12840	NZE120..LHD..GEN	11/2005 - 08/2007	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88710-12530	NZE120,ZZE122..LHD	08/2000 - 10/2001	1
88710-12531	CE120,NZE120,ZZE12#..LHD MAKER OPTION	09/2002 - 04/2004	1
88710-12580	CE120,NZE120,ZZE122..LHD..GEN	09/2002 - 04/2004	1
88710-12531	CE120,NZE120,ZZE12#..LHD MAKER OPTION	10/2001 - 01/2004	1
88710-12580	CE120,NZE120..LHD..GEN DEALER OPTION	09/2002 - 04/2004	1
88710-12531	CE120,NZE120,ZZE12#..LHD MAKER OPTION	04/2004 - 08/2006	1
88710-12580	NZE120,ZZE12#..LHD..GEN	11/2005 - 08/2007	1
88710-12532	CE120,NZE120,ZZE12#..LHD MAKER OPTION	09/2006 - 08/2007	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88710-12530	NZE120,ZZE122..LHD	08/2000 - 10/2001	1
88710-12531	CE120,NZE120,ZZE12#..LHD MAKER OPTION	09/2002 - 04/2004	1
88710-12580	CE120,NZE120,ZZE122..LHD..GEN	09/2002 - 04/2004	1
88710-12531	CE120,NZE120,ZZE12#..LHD MAKER OPTION	10/2001 - 01/2004	1
88710-12580	CE120,NZE120..LHD..GEN DEALER OPTION	09/2002 - 04/2004	1
88710-12531	CE120,NZE120,ZZE12#..LHD MAKER OPTION	04/2004 - 08/2006	1
88710-12580	NZE120,ZZE12#..LHD..GEN	11/2005 - 08/2007	1
88710-12532	CE120,NZE120,ZZE12#..LHD MAKER OPTION	09/2006 - 08/2007	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-1A660	CE120,NZE120..LHD..GEN	09/2002 - 04/2004	1
88716-1A660	NZE120,ZZE12#..LHD..GEN	11/2005 - 12/2999	1
88716-1A660	CE120,NZE120,ZZE122..LHD..GEN	09/2002 - 04/2004	1
Common parts
-
88688-1E050
88688-1E060
88688-1E310
88688-2J030
88718-2A230
88718-2D140
88718-2D150
88899-52050
90179-06156
91511-60635
91511-G0625
91511-J0630
91631-J0612
Linked diagrams
8714
8719

NZE120L-AEPDK (2000)

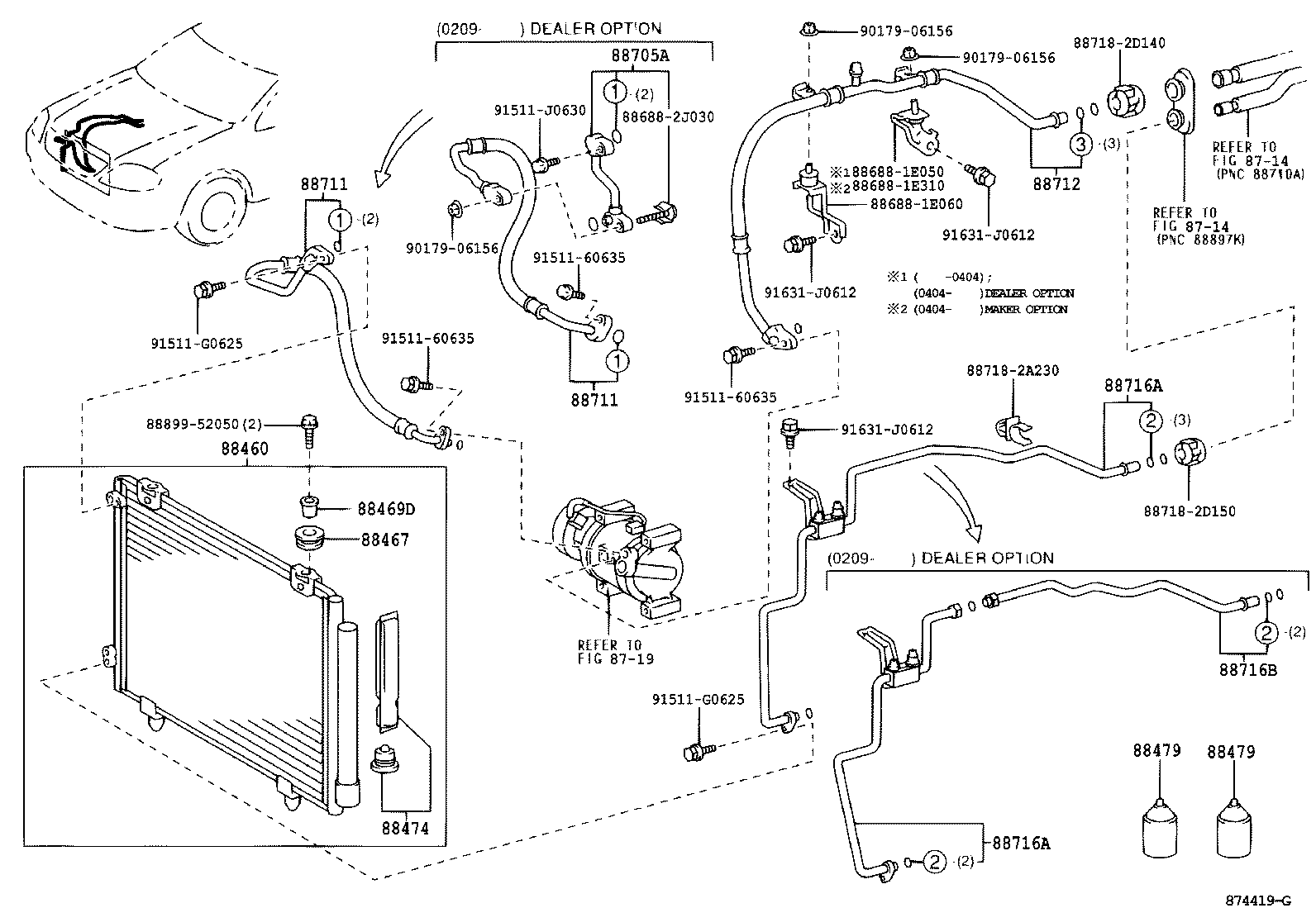

ILLUST NO. 1 OF 2(0008- )LHD

ILLUST NO. 2 OF 2(0008- )CE120,NZE12#,ZZE121 ; (0008- )ZZE122..ARL,GCC,GEN
