Toyota Corolla/altis sed/wg NZE120 AIR BAG

NZE120L-AEPDK (2000)

Toyota Corolla/Altis Sed/Wg

Production Aug 2000 - Aug 2007

Engine 2NZFE

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

(0008-0209)NZE121..LX ; (0008-0209)CE120,NZE120,ZZE12# ; (0209-0404)CE120,ZZE12#..A

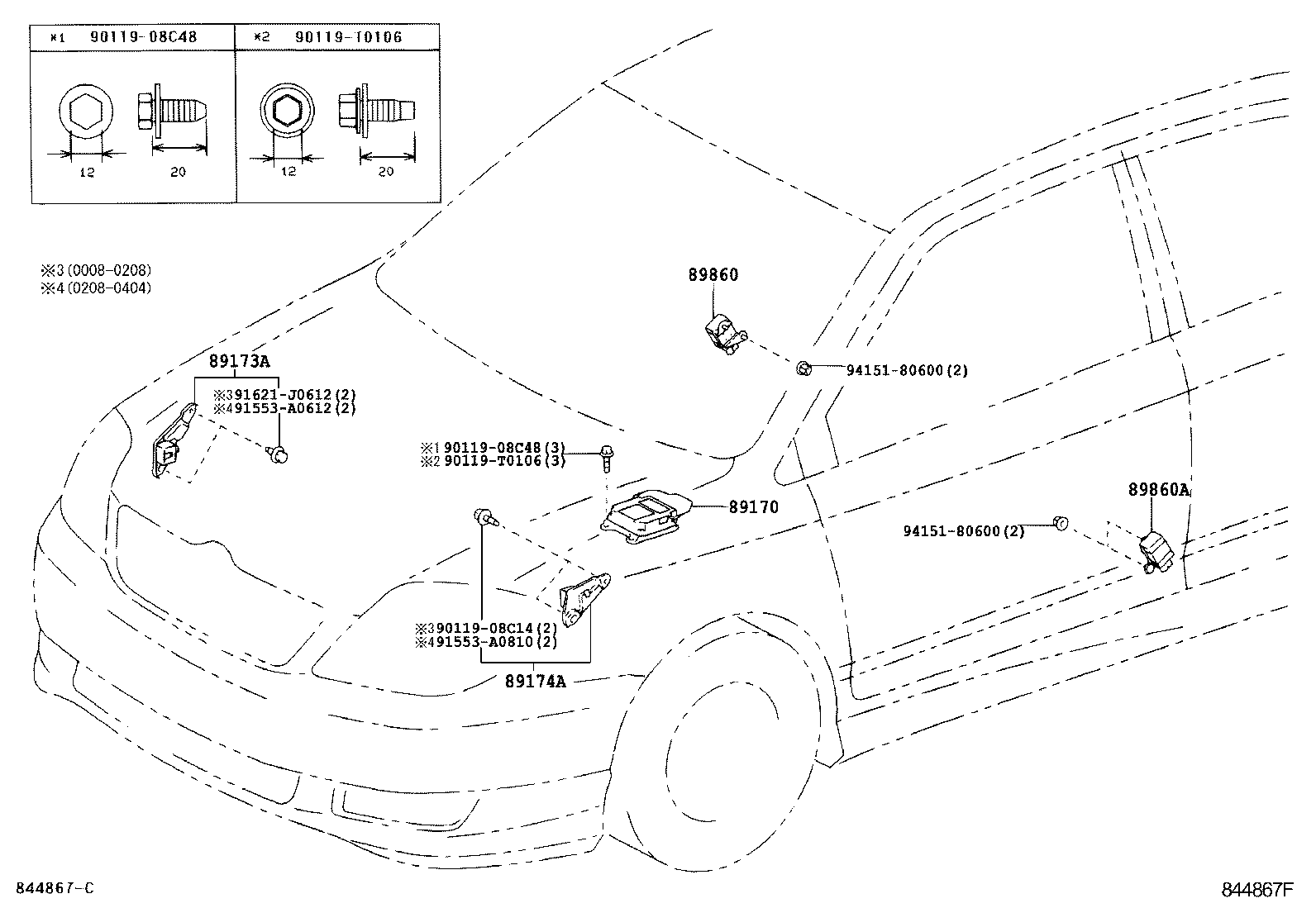

Click highlighted areas on diagram

Part #	Description	Period	Qty
89170 - SENSOR ASSY, AIR BAG
89170-12340	ZZE122..CONQ;CE120,NZE120,ZZE122..LHD..GEN *80,DRIVER SIDE	08/2000 - 10/2002	1
89170-12470	ZZE122..CONQ;CE120,NZE120,ZZE122..LHD..GEN *80,DRIVER SIDE	10/2002 - 11/2003	1
89170-12480	ZZE122..GCC;NZE121,ZZE121..GEN;NZE120..RHD..GLI..GEN;CE120,ZZE122..RHD..GEN;NZE120..XLI..(GCC,GEN);ZZE122..LHD..SED..XLI..GEN *80,DRIVER SIDE & PASSENGER SIDE	09/2002 - 12/2003	1
89170-12471	NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..GCC,GEN *80,DRIVER SIDE	12/2003 - 04/2004	1
89170-12480	ZZE122..CONQ;CE120,NZE120,ZZE122..LHD..GEN *80,DRIVER SIDE & PASSENGER SIDE	10/2002 - 11/2003	1
89170-12471	ZZE122..CONQ;CE120,NZE120,ZZE122..LHD..GEN *80,DRIVER SIDE	12/2003 - 04/2004	1
89170-12481	CE120,NZE12#,ZZE12#..GCC,GEN *80,DRIVER SIDE & PASSENGER SIDE	12/2003 - 04/2004	1
89170-12481	ZZE122..CONQ;CE120,NZE120,ZZE122..LHD..GEN *80,DRIVER SIDE & PASSENGER SIDE	12/2003 - 04/2004	1
89170-12481	CE120,NZE12#,ZZE12#..SED..(CONQ,GLI,LX,XLI)..(ARL,GCC,GEN) *80,DRIVER SIDE & PASSENGER SIDE	04/2004 - 12/2999	1
89170-12350	ZZE122..CONQ;CE120,NZE120,ZZE122..LHD..GEN *80,DRIVER SIDE & PASSENGER SIDE	08/2000 - 10/2002	1
89170-12471	NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..SED..(CONQ,GLI,XLI)..(ARL,GEN) *80,DRIVER SIDE	04/2004 - 12/2999	1
89170-12470	ZZE122..GCC;ZZE122..RHD..GEN;NZE120..RHD..GLI..GEN;NZE120..XLI..(GCC,GEN);ZZE12#..LHD..SED..(LX,XLI)..GEN;CE120,NZE121..RHD..(LX,XLI)..GEN *80,DRIVER SIDE	09/2002 - 12/2003	1
89173A - SENSOR, AIR BAG, FRONT RH
89173-19235	ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN	08/2000 - 04/2004	1
89173-19375	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 08/2007	1
89173-19235	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
89174A - SENSOR, AIR BAG, FRONT LH
89174-19045	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
89174-19045	ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN	08/2000 - 04/2004	1
89174-19175	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 08/2007	1
Common parts
90119-08C14
90119-08C48
90119-T0106
91553-A0612
91553-A0810
91621-J0612
94151-80600

(0209-0404)GCC,GEN

Click highlighted areas on diagram

Part #	Description	Period	Qty
89170 - SENSOR ASSY, AIR BAG
89170-12340	ZZE122..CONQ;CE120,NZE120,ZZE122..LHD..GEN *80,DRIVER SIDE	08/2000 - 10/2002	1
89170-12470	ZZE122..CONQ;CE120,NZE120,ZZE122..LHD..GEN *80,DRIVER SIDE	10/2002 - 11/2003	1
89170-12480	ZZE122..GCC;NZE121,ZZE121..GEN;NZE120..RHD..GLI..GEN;CE120,ZZE122..RHD..GEN;NZE120..XLI..(GCC,GEN);ZZE122..LHD..SED..XLI..GEN *80,DRIVER SIDE & PASSENGER SIDE	09/2002 - 12/2003	1
89170-12471	NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..GCC,GEN *80,DRIVER SIDE	12/2003 - 04/2004	1
89170-12480	ZZE122..CONQ;CE120,NZE120,ZZE122..LHD..GEN *80,DRIVER SIDE & PASSENGER SIDE	10/2002 - 11/2003	1
89170-12471	ZZE122..CONQ;CE120,NZE120,ZZE122..LHD..GEN *80,DRIVER SIDE	12/2003 - 04/2004	1
89170-12481	CE120,NZE12#,ZZE12#..GCC,GEN *80,DRIVER SIDE & PASSENGER SIDE	12/2003 - 04/2004	1
89170-12481	ZZE122..CONQ;CE120,NZE120,ZZE122..LHD..GEN *80,DRIVER SIDE & PASSENGER SIDE	12/2003 - 04/2004	1
89170-12481	CE120,NZE12#,ZZE12#..SED..(CONQ,GLI,LX,XLI)..(ARL,GCC,GEN) *80,DRIVER SIDE & PASSENGER SIDE	04/2004 - 12/2999	1
89170-12350	ZZE122..CONQ;CE120,NZE120,ZZE122..LHD..GEN *80,DRIVER SIDE & PASSENGER SIDE	08/2000 - 10/2002	1
89170-12471	NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..SED..(CONQ,GLI,XLI)..(ARL,GEN) *80,DRIVER SIDE	04/2004 - 12/2999	1
89170-12470	ZZE122..GCC;ZZE122..RHD..GEN;NZE120..RHD..GLI..GEN;NZE120..XLI..(GCC,GEN);ZZE12#..LHD..SED..(LX,XLI)..GEN;CE120,NZE121..RHD..(LX,XLI)..GEN *80,DRIVER SIDE	09/2002 - 12/2003	1
89173A - SENSOR, AIR BAG, FRONT RH
89173-19235	ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN	08/2000 - 04/2004	1
89173-19375	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 08/2007	1
89173-19235	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
89174A - SENSOR, AIR BAG, FRONT LH
89174-19045	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
89174-19045	ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN	08/2000 - 04/2004	1
89174-19175	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 08/2007	1
Common parts
90119-08C48
91553-A0612
91553-A0810

(0404- )ARL,GCC,GEN

Click highlighted areas on diagram

Part #	Description	Period	Qty
89170 - SENSOR ASSY, AIR BAG
89170-12340	ZZE122..CONQ;CE120,NZE120,ZZE122..LHD..GEN *80,DRIVER SIDE	08/2000 - 10/2002	1
89170-12470	ZZE122..CONQ;CE120,NZE120,ZZE122..LHD..GEN *80,DRIVER SIDE	10/2002 - 11/2003	1
89170-12480	ZZE122..GCC;NZE121,ZZE121..GEN;NZE120..RHD..GLI..GEN;CE120,ZZE122..RHD..GEN;NZE120..XLI..(GCC,GEN);ZZE122..LHD..SED..XLI..GEN *80,DRIVER SIDE & PASSENGER SIDE	09/2002 - 12/2003	1
89170-12471	NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..GCC,GEN *80,DRIVER SIDE	12/2003 - 04/2004	1
89170-12480	ZZE122..CONQ;CE120,NZE120,ZZE122..LHD..GEN *80,DRIVER SIDE & PASSENGER SIDE	10/2002 - 11/2003	1
89170-12471	ZZE122..CONQ;CE120,NZE120,ZZE122..LHD..GEN *80,DRIVER SIDE	12/2003 - 04/2004	1
89170-12481	CE120,NZE12#,ZZE12#..GCC,GEN *80,DRIVER SIDE & PASSENGER SIDE	12/2003 - 04/2004	1
89170-12481	ZZE122..CONQ;CE120,NZE120,ZZE122..LHD..GEN *80,DRIVER SIDE & PASSENGER SIDE	12/2003 - 04/2004	1
89170-12481	CE120,NZE12#,ZZE12#..SED..(CONQ,GLI,LX,XLI)..(ARL,GCC,GEN) *80,DRIVER SIDE & PASSENGER SIDE	04/2004 - 12/2999	1
89170-12350	ZZE122..CONQ;CE120,NZE120,ZZE122..LHD..GEN *80,DRIVER SIDE & PASSENGER SIDE	08/2000 - 10/2002	1
89170-12471	NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..SED..(CONQ,GLI,XLI)..(ARL,GEN) *80,DRIVER SIDE	04/2004 - 12/2999	1
89170-12470	ZZE122..GCC;ZZE122..RHD..GEN;NZE120..RHD..GLI..GEN;NZE120..XLI..(GCC,GEN);ZZE12#..LHD..SED..(LX,XLI)..GEN;CE120,NZE121..RHD..(LX,XLI)..GEN *80,DRIVER SIDE	09/2002 - 12/2003	1
89173A - SENSOR, AIR BAG, FRONT RH
89173-19235	ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN	08/2000 - 04/2004	1
89173-19375	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 08/2007	1
89173-19235	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
89174A - SENSOR, AIR BAG, FRONT LH
89174-19045	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
89174-19045	ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN	08/2000 - 04/2004	1
89174-19175	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 08/2007	1
Common parts
90119-08C14
90119-08C48
91621-J0612
94151-80600
