Toyota Corolla/altis sed/wg NZE120 ELECTRONIC FUEL INJECTION SYSTEM

Part #	Description	Period	Qty
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
90080-87019	NZE12#;ZZE122..GEN P/N LABEL=9008087019	09/2001 - 10/2001	1
90987-02020	NZE120,ZZE122..LHD..GEN P/N LABEL=9098702020	08/2000 - 01/2004	1
90080-87008	NZE120..LHD..XLI (L)	10/2001 - 04/2004	1
90987-02020	NZE120,ZZE122..LHD..XLI PART NUMBER LABEL=90987-02020	08/2000 - 04/2004	1
90080-87008	NZE120,ZZE122..LHD..GEN P/N LABEL=9008087008	08/2000 - 01/2004	1
90987-02020	NZE12#,ZZE12#..GCC,GEN PART NUMBER LABEL=90987-02020	08/2000 - 04/2004	1
90080-87008	NZE120,ZZE122..LHD..GEN PART NUMBER LABEL=90080-87008	08/2000 - 04/2004	1
90987-02020	ZZE122..LHD..WG..GEN;NZE120,ZZE121..LHD..XLI (J)	10/2001 - 04/2004	1
90987-02020	NZE12#,ZZE12#..ARL,GCC,GEN	04/2004 - 12/2999	1
85910F - RELAY, COMPUTER (FOR EFI)
90080-87019	NZE12#;ZZE122..GEN P/N LABEL=9008087019	09/2001 - 10/2001	1
90987-02020	NZE120,ZZE122..LHD..GEN P/N LABEL=9098702020	08/2000 - 01/2004	1
90080-87008	NZE120,ZZE122..LHD..GEN P/N LABEL=9008087008	08/2000 - 01/2004	1
90987-02020	NZE120,ZZE122..LHD..XLI PART NUMBER LABEL=90987-02020	08/2000 - 04/2004	1
90080-87008	NZE120..LHD..XLI (L)	10/2001 - 04/2004	1
90987-02020	ZZE122..LHD..WG..GEN;NZE120,ZZE121..LHD..XLI (J)	10/2001 - 04/2004	1
90080-87008	NZE120,ZZE122..LHD..GEN PART NUMBER LABEL=90080-87008	08/2000 - 04/2004	1
90987-02020	NZE12#,ZZE12#..GCC,GEN PART NUMBER LABEL=90987-02020	08/2000 - 04/2004	1
90987-02020	NZE12#,ZZE12#..ARL,GCC,GEN	04/2004 - 12/2999	1
89279 - COVER, ENGINE CONTROL COMPUTER
89279-12160	NZE12#..GCC,GEN	09/2002 - 04/2004	1
89279-12160	NZE120..XLI;NZE12#..RHD..(GLI,LX)	08/2000 - 07/2005	1
89279-12160	NZE12#..GCC,GEN	04/2004 - 12/2999	1
89279 - COVER, ENGINE CONTROL COMPUTER
89279-12160	NZE12#..GCC,GEN	09/2002 - 04/2004	1
89279-12160	NZE120..XLI;NZE12#..RHD..(GLI,LX)	08/2000 - 07/2005	1
89279-12160	NZE12#..GCC,GEN	04/2004 - 12/2999	1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-35010	NZE120..XLI;ZZE122..RHD;ZZE122..GCC;NZE121,ZZE121;NZE120..RHD..GLI;ZZE122..LHD..XLI..GEN	08/2000 - 07/2005	1
89422-35010	NZE12#,ZZE12#..GCC,GEN	08/2000 - 04/2004	1
89422-35010	NZE121..LX;NZE121..MTM..GLI;NZE120,ZZE12#..ARL,GCC,GEN	04/2004 - 12/2999	1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-20130	NZE12#..GCC,GEN;ZZE122..LHD..XLI PART NUMBER LABEL=89452-20130	08/2000 - 04/2004	1
89452-20130	NZE12#..GCC,GEN PART NUMBER LABEL=89452-20130	08/2000 - 04/2004	1
89452-20130	NZE121..LX;NZE121..MTM..GLI;NZE120,ZZE12#..GCC,GEN	04/2004 - 12/2999	1
89456 - RESISTOR, VARIABLE
89456-30010	NZE120..XLI;ZZE122..GCC;ZZE122..RHD..GEN;ZZE122..LHD..XLI..GEN;NZE120,ZZE121..RHD..(GLI,SESAL)	08/2000 - 07/2005	1
89456-30010	NZE120,ZZE122..GCC,GEN	04/2004 - 12/2999	1
89456-30010	NZE120,ZZE122..GCC,GEN	09/2002 - 04/2004	1
89459A - BRACKET, VARIABLE RESISTOR
89459-12030	NZE120..XLI;ZZE122..GCC;ZZE122..RHD..GEN;ZZE122..LHD..XLI..GEN;NZE120,ZZE121..RHD..(GLI,SESAL)	08/2000 - 07/2005	1
89459-12030	NZE120,ZZE122..GCC,GEN	04/2004 - 12/2999	1
89459-12030	NZE120,ZZE122..GCC,GEN	09/2002 - 04/2004	1
89661 - COMPUTER, ENGINE CONTROL
89666-12110	NZE120..ATM PART NUMBER LABEL=89666-12110	08/2000 - 04/2004	1
89661-1E490	NZE120..ATM PART NUMBER LABEL=89661-1E490	09/2002 - 04/2004	1
89666-12110	NZE120..ATM PART NUMBER LABEL=89666-12110	09/2002 - 04/2004	1
89661-1E490	NZE120..ATM PART NUMBER LABEL=89661-1E490	10/2001 - 04/2004	1
89661-1E490	NZE120..ATM PART NUMBER LABEL=89661-1E490	04/2004 - 12/2999	1
89666-12110	NZE120..ATM PART NUMBER LABEL=89666-12110	04/2004 - 12/2999	1
89661 - COMPUTER, ENGINE CONTROL
89666-12110	NZE120..ATM PART NUMBER LABEL=89666-12110	08/2000 - 04/2004	1
89661-1E490	NZE120..ATM PART NUMBER LABEL=89661-1E490	09/2002 - 04/2004	1
89666-12110	NZE120..ATM PART NUMBER LABEL=89666-12110	09/2002 - 04/2004	1
89661-1E490	NZE120..ATM PART NUMBER LABEL=89661-1E490	10/2001 - 04/2004	1
89661-1E490	NZE120..ATM PART NUMBER LABEL=89661-1E490	04/2004 - 12/2999	1
89666-12110	NZE120..ATM PART NUMBER LABEL=89666-12110	04/2004 - 12/2999	1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-12200	NZE12#..GCC,GEN	09/2002 - 04/2004	1
89667-12200	NZE121..LX;NZE120..GCC,GEN;NZE121..MTM..GLI	04/2004 - 12/2999	1
89667-12200	NZE120..XLI;NZE12#..RHD..(GLI,LX);ZZE121..RHD..MTM..GEN	08/2000 - 07/2005	1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-12110	NZE120..XLI;NZE12#..RHD..(GLI,LX)	08/2000 - 07/2005	1
89668-12110	NZE12#..GCC,GEN	09/2002 - 04/2004	1
89668-12110	NZE121..LX;NZE120..GCC,GEN;NZE121..MTM..GLI	04/2004 - 12/2999	1
89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3
89669-12030	NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
89669-12030	NZE121..LX;NZE121..MTM..GLI;NZE120,ZZE12#..ARL,GCC,GEN	04/2004 - 12/2999	1
89669-12030	NZE120..XLI;NZE121,ZZE12#;NZE120..RHD..GLI	08/2000 - 07/2005	1
89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3
89669-12030	NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
89669-12030	NZE121..LX;NZE121..MTM..GLI;NZE120,ZZE12#..ARL,GCC,GEN	04/2004 - 12/2999	1
89669-12030	NZE120..XLI;NZE121,ZZE12#;NZE120..RHD..GLI	08/2000 - 07/2005	1
Common parts
90119-06539
90159-50138
90430-12005
93319-15010

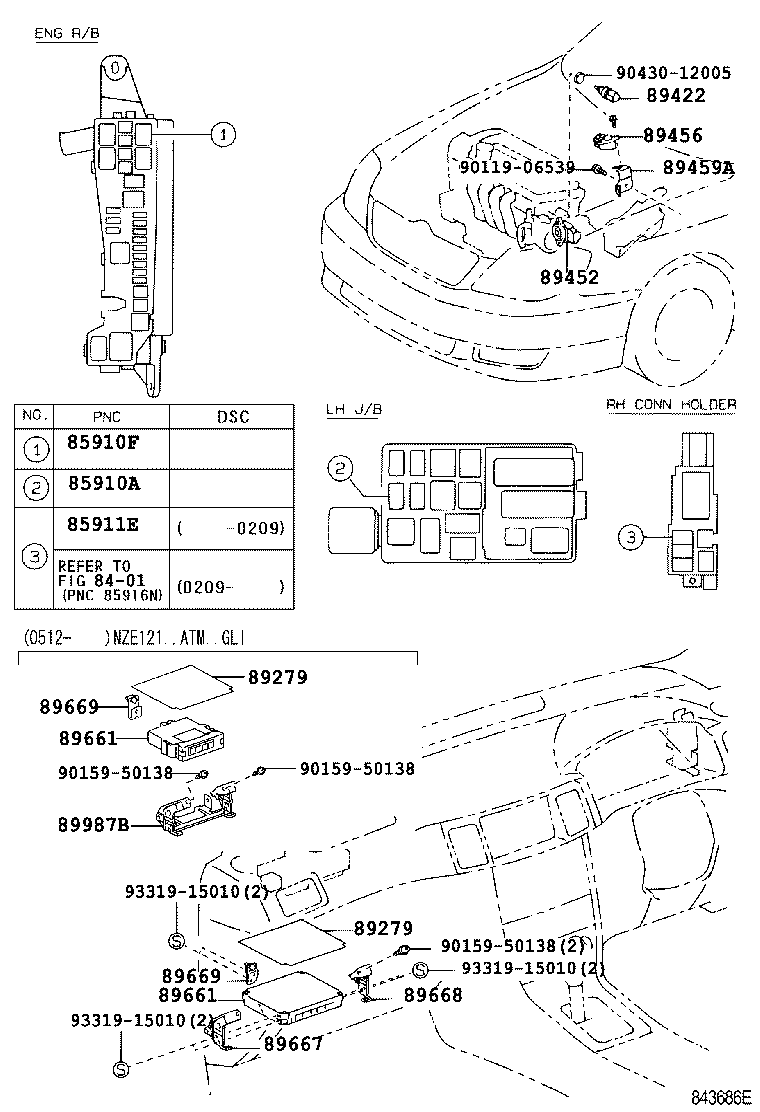

Linked diagrams
8401

NZE120L-AEPDK (2000)

(0008- )NZE12#
