NZE120L-AEPDK (2000)
Toyota Corolla/Altis Sed/Wg
ILLUST NO. 2 OF 7(0008- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09009 |
ZZE122..SED..ARL;CE120,NZE120,ZZE12#..LHD..SED..GEN 10A,MINI FUSE,RED |
1 | ||
| 90982-09007 |
ZZE122..SED..ARL;CE120,NZE120,ZZE12#..LHD..SED..GEN 5A,MINI FUSE,TAN |
1 | ||
| 90982-09012 |
ZZE122..SED..ARL;CE120,NZE120,ZZE12#..LHD..SED..GEN 25A,MINI FUSE |
1 | ||
| 90982-09010 |
ZZE122..SED..ARL;CE120,NZE120,ZZE12#..LHD..SED..GEN 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09008 |
ZZE122..SED..ARL;CE120,NZE120,ZZE12#..LHD..SED..GEN 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09007 |
CE120,NZE12#,ZZE12#..GCC,GEN 5A,MINI FUSE,TAN |
1 | ||
| 90982-09010 |
CE120,NZE12#,ZZE12#..GCC,GEN 15A,MINI FUSE,BLUE,TAIHEIYO |
1 | ||
| 90982-09009 |
CE120,NZE12#,ZZE12#..GCC,GEN 10A,MINI FUSE,RED,TAIHEIYO |
1 | ||
| 90982-09008 |
CE120,NZE12#,ZZE12#..GCC,GEN 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09012 |
CE120,NZE12#,ZZE12#..GCC,GEN 25A,MINI FUSE |
1 | ||
| 90982-09013 |
CE120,NZE12#,ZZE12#..GCC,GEN 30A,MINI FUSE,GRN,TAIHEIYO |
1 | ||
| 90982-09007 |
CE120,NZE12#,ZZE12#..GCC,GEN 5A,MINI FUSE,TAN |
1 | ||
| 90982-09009 |
ZZE122..WG..XLI;ZZE122..SED..(ARL,GCC,GEN);CE120,NZE12#,ZZE121..GCC,GEN 10A,MINI FUSE,RED |
1 | ||
| 90982-09010 |
ZZE122..WG..XLI;ZZE122..SED..(ARL,GCC,GEN);CE120,NZE12#,ZZE121..GCC,GEN 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09012 |
ZZE122..WG..XLI;ZZE122..SED..(ARL,GCC,GEN);CE120,NZE12#,ZZE121..GCC,GEN 25A,MINI FUSE |
1 | ||
| 90982-09013 |
ZZE122..WG..XLI;ZZE122..SED..(ARL,GCC,GEN);CE120,NZE12#,ZZE121..GCC,GEN 30A,MINI FUSE,GRN |
1 | ||
| 90982-09008 |
ZZE122..WG..XLI;ZZE122..SED..(ARL,GCC,GEN);CE120,NZE12#,ZZE121..GCC,GEN 7.5A,MINI FUSE,BRN |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-20010 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 82616-20010 |
ZZE122..SED..ARL;CE120,NZE120,ZZE122..LHD..SED..GEN |
1 | ||
| 82616-20010 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-12150 |
NZE120,ZZE12#..GCC,GEN |
1 | ||
| 82662-12060 |
NZE120,ZZE122..LHD..GEN MIDDLE SOUTH AMERICA SPEC |
1 | ||
| 82662-12240 |
ZZE122..WG..ARL;NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 82662-12060 |
NZE120,ZZE122..LHD..GEN |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-12010 |
ZZE122..SED..ARL;NZE120,ZZE122..LHD..SED..GEN |
1 | ||
| 82663-12010 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 82663-12010 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-12020 |
ZZE122..SED..ARL;NZE120,ZZE122..LHD..SED..GEN |
1 | ||
| 82741-12020 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 82741-12020 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90080-87021 |
ZZE122..ARL;NZE120,ZZE122..LHD..GEN P/N LABEL=9008087021 |
1 | ||
| 90987-02012 |
ZZE122..ARL;NZE120,ZZE122..LHD..GEN P/N LABEL=9098702012 |
1 | ||
| 90080-87008 |
ZZE122..ARL;NZE120,ZZE122..LHD..GEN P/N LABEL=9008087008 |
1 | ||
| 90080-87020 |
ZZE122..ARL;NZE120,ZZE122..LHD..GEN P/N LABEL=9008087020 |
1 | ||
| 90080-87010 |
ZZE122..ARL;NZE120,ZZE122..LHD..GEN P/N LABEL=9008087010 |
1 | ||
| 90080-87027 |
ZZE122..ARL;NZE120,ZZE122..LHD..GEN P/N LABEL=9008087027 |
1 | ||
| 90080-87008 |
NZE12#,ZZE12#..GCC,GEN P/N LABEL=9008087008 |
1 | ||
| 90080-87010 |
NZE12#,ZZE12#..GCC,GEN P/N LABEL=9008087010 |
1 | ||
| 90987-02012 |
NZE12#,ZZE12#..GCC,GEN P/N LABEL=9098702012 |
1 | ||
| 90080-87021 |
NZE12#,ZZE12#..GCC,GEN P/N LABEL=9008087021 |
1 | ||
| 90987-02020 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN PART NUMBER LABEL=90987-02020 |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-04004 |
ZZE122..ARL;NZE120,ZZE122..LHD..GEN P/N LABEL=9098704004 |
1 | ||
| 90080-87009 |
ZZE122..ARL;NZE120,ZZE122..LHD..GEN P/N LABEL=9008087009 |
1 | ||
| 90080-87020 |
NZE12#,ZZE12#..GCC,GEN P/N LABEL=9008087020 |
1 | ||
| 90080-87028 |
ZZE122..ARL;NZE120,ZZE122..LHD..GEN P/N LABEL=9008087028 |
1 | ||
| 90080-87009 |
NZE12#,ZZE12#..GCC,GEN P/N LABEL=9008087009 |
1 | ||
| 90987-04004 |
NZE12#,ZZE12#..GCC,GEN P/N LABEL=9098704004 |
1 | ||
| 90987-04004 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 85928B - RESISTOR, COOLING FAN | ||||
| 85928-12010 |
ZZE122..RHD;ZZE122..GCC;NZE12#,ZZE121 |
1 | ||
| 85928-12010 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 85928-12010 |
NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90987-02020 |
CE120,NZE120,ZZE122..LHD..GEN PART NUMBER LABEL=90987-02020 |
1 | ||
| 90987-02028 |
CE120,NZE120..LHD..GEN PART NUMBER LABEL=90987-02028 |
1 | ||
| 90987-02028 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 90987-02020 |
CE120,ZZE121;NZE120..GCC,PKN;NZE120..LHD..GEN;ZZE122..ARL,GCC,GEN |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02020 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 90987-02020 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 89448A - SENSOR, POWER STEERING OIL PRESSURE | ||||
| 89448-51010 |
NZE120..XLI;NZE120..RHD..GLI |
1 | ||
| 89448-51010 |
NZE120..GCC,GEN |
1 | ||
| 89448-51010 |
NZE120..GCC,GEN |
1 | ||
| Common parts | ||||
| 90119-T0038 | ||||
| 90119-T0184 | ||||
| 90179-06292 | ||||
| 90301-11021 | ||||
| 91631-J0612 | ||||
| 91651-B0614 | ||||
| 91651-B0618 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8404 | ||||

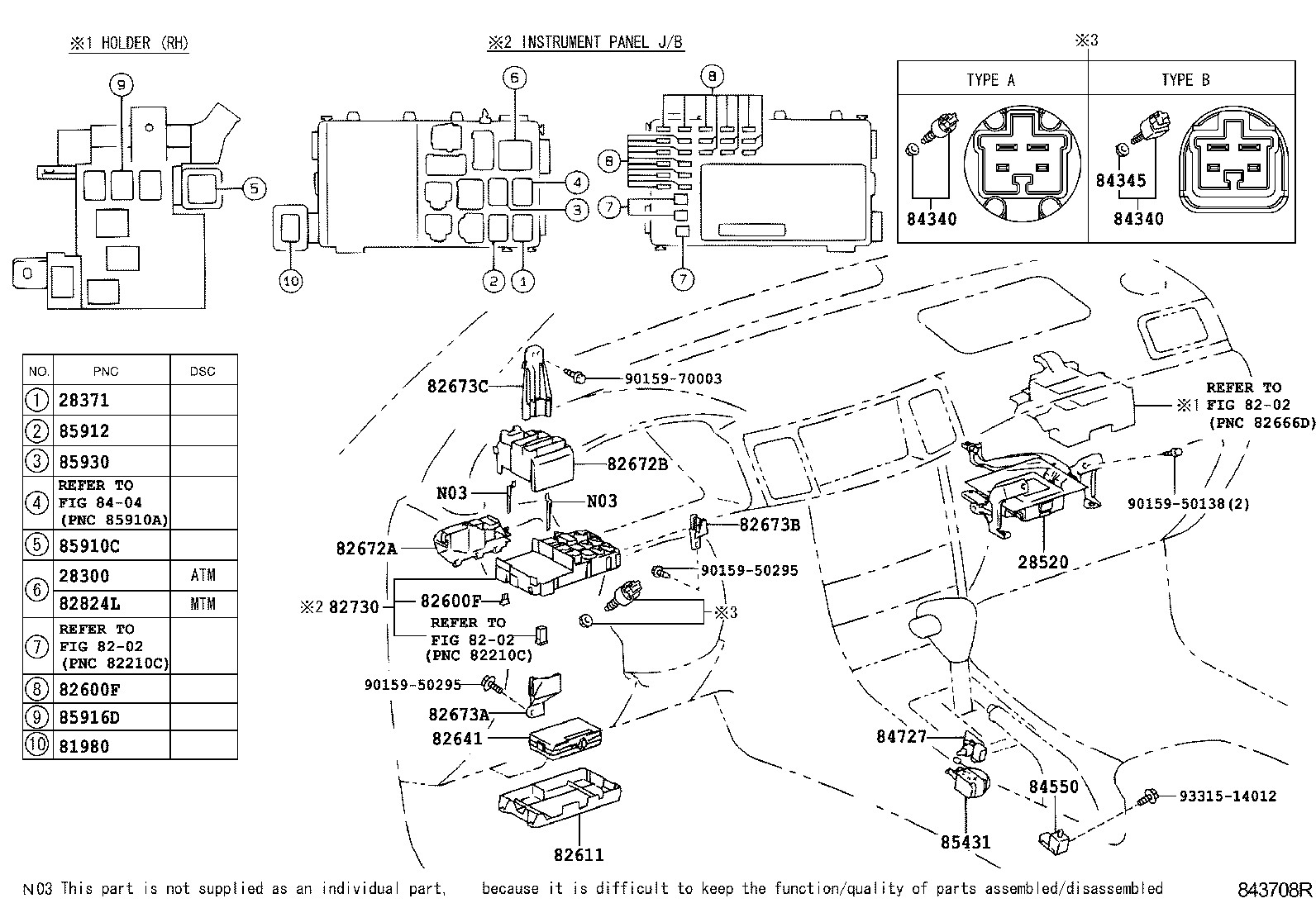

ILLUST NO. 3 OF 7(0008- )LHD
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-10020 |
1NZFE,2NZFE,1ZZFE,3ZZFE..NZE12#,ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 28300-10020 |
1ZZFE..ZZE122..ATM..ARL;2NZFE,1ZZFE..NZE120,ZZE122..LHD..ATM..GEN |
1 | ||
| 28300-10020 |
1ZZFE..ZZE122..WG..ATM..ARL;1NZFE,2NZFE,1ZZFE,3ZZFE..NZE12#,ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-02020 |
1ZZFE..ZZE122..WG..ARL;2C,1NZFE,2NZFE,1ZZFE,3ZZFE..CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 90987-02020 |
1ZZFE..ZZE122..ARL;2C,2NZFE,1ZZFE..CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-02020 |
CE120,NZE12#,ZZE12# (L) |
1 | ||
| 81980-50030 |
NZE12#,ZZE12# |
1 | ||
| 81980-50030 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN PART NUMBER LABEL=81980-50030 |
1 | ||
| 81980-50030 |
CE120,NZE12#,ZZE12# (J) |
1 | ||
| 81980-50030 |
CE120,NZE12#,ZZE12#..GCC,GEN PART NUMBER LABEL=81980-50030 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09009 |
ZZE122..SED..ARL;CE120,NZE120,ZZE12#..LHD..SED..GEN 10A,MINI FUSE,RED |
1 | ||
| 90982-09007 |
ZZE122..SED..ARL;CE120,NZE120,ZZE12#..LHD..SED..GEN 5A,MINI FUSE,TAN |
1 | ||
| 90982-09012 |
ZZE122..SED..ARL;CE120,NZE120,ZZE12#..LHD..SED..GEN 25A,MINI FUSE |
1 | ||
| 90982-09010 |
ZZE122..SED..ARL;CE120,NZE120,ZZE12#..LHD..SED..GEN 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09008 |
ZZE122..SED..ARL;CE120,NZE120,ZZE12#..LHD..SED..GEN 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09007 |
CE120,NZE12#,ZZE12#..GCC,GEN 5A,MINI FUSE,TAN |
1 | ||
| 90982-09010 |
CE120,NZE12#,ZZE12#..GCC,GEN 15A,MINI FUSE,BLUE,TAIHEIYO |
1 | ||
| 90982-09009 |
CE120,NZE12#,ZZE12#..GCC,GEN 10A,MINI FUSE,RED,TAIHEIYO |
1 | ||
| 90982-09008 |
CE120,NZE12#,ZZE12#..GCC,GEN 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09012 |
CE120,NZE12#,ZZE12#..GCC,GEN 25A,MINI FUSE |
1 | ||
| 90982-09013 |
CE120,NZE12#,ZZE12#..GCC,GEN 30A,MINI FUSE,GRN,TAIHEIYO |
1 | ||
| 90982-09007 |
CE120,NZE12#,ZZE12#..GCC,GEN 5A,MINI FUSE,TAN |
1 | ||
| 90982-09009 |
ZZE122..WG..XLI;ZZE122..SED..(ARL,GCC,GEN);CE120,NZE12#,ZZE121..GCC,GEN 10A,MINI FUSE,RED |
1 | ||
| 90982-09010 |
ZZE122..WG..XLI;ZZE122..SED..(ARL,GCC,GEN);CE120,NZE12#,ZZE121..GCC,GEN 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09012 |
ZZE122..WG..XLI;ZZE122..SED..(ARL,GCC,GEN);CE120,NZE12#,ZZE121..GCC,GEN 25A,MINI FUSE |
1 | ||
| 90982-09013 |
ZZE122..WG..XLI;ZZE122..SED..(ARL,GCC,GEN);CE120,NZE12#,ZZE121..GCC,GEN 30A,MINI FUSE,GRN |
1 | ||
| 90982-09008 |
ZZE122..WG..XLI;ZZE122..SED..(ARL,GCC,GEN);CE120,NZE12#,ZZE121..GCC,GEN 7.5A,MINI FUSE,BRN |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09009 |
ZZE122..SED..ARL;CE120,NZE120,ZZE12#..LHD..SED..GEN 10A,MINI FUSE,RED |
1 | ||
| 90982-09007 |
ZZE122..SED..ARL;CE120,NZE120,ZZE12#..LHD..SED..GEN 5A,MINI FUSE,TAN |
1 | ||
| 90982-09012 |
ZZE122..SED..ARL;CE120,NZE120,ZZE12#..LHD..SED..GEN 25A,MINI FUSE |
1 | ||
| 90982-09010 |
ZZE122..SED..ARL;CE120,NZE120,ZZE12#..LHD..SED..GEN 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09008 |
ZZE122..SED..ARL;CE120,NZE120,ZZE12#..LHD..SED..GEN 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09007 |
CE120,NZE12#,ZZE12#..GCC,GEN 5A,MINI FUSE,TAN |
1 | ||
| 90982-09010 |
CE120,NZE12#,ZZE12#..GCC,GEN 15A,MINI FUSE,BLUE,TAIHEIYO |
1 | ||
| 90982-09009 |
CE120,NZE12#,ZZE12#..GCC,GEN 10A,MINI FUSE,RED,TAIHEIYO |
1 | ||
| 90982-09008 |
CE120,NZE12#,ZZE12#..GCC,GEN 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09012 |
CE120,NZE12#,ZZE12#..GCC,GEN 25A,MINI FUSE |
1 | ||
| 90982-09013 |
CE120,NZE12#,ZZE12#..GCC,GEN 30A,MINI FUSE,GRN,TAIHEIYO |
1 | ||
| 90982-09007 |
CE120,NZE12#,ZZE12#..GCC,GEN 5A,MINI FUSE,TAN |
1 | ||
| 90982-09009 |
ZZE122..WG..XLI;ZZE122..SED..(ARL,GCC,GEN);CE120,NZE12#,ZZE121..GCC,GEN 10A,MINI FUSE,RED |
1 | ||
| 90982-09010 |
ZZE122..WG..XLI;ZZE122..SED..(ARL,GCC,GEN);CE120,NZE12#,ZZE121..GCC,GEN 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09012 |
ZZE122..WG..XLI;ZZE122..SED..(ARL,GCC,GEN);CE120,NZE12#,ZZE121..GCC,GEN 25A,MINI FUSE |
1 | ||
| 90982-09013 |
ZZE122..WG..XLI;ZZE122..SED..(ARL,GCC,GEN);CE120,NZE12#,ZZE121..GCC,GEN 30A,MINI FUSE,GRN |
1 | ||
| 90982-09008 |
ZZE122..WG..XLI;ZZE122..SED..(ARL,GCC,GEN);CE120,NZE12#,ZZE121..GCC,GEN 7.5A,MINI FUSE,BRN |
1 | ||
| 82611 - COVER, FUSE BLOCK | ||||
| 82611-12120 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 82611-12120 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 82611-12120 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-12240 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN W(KEY LESS ENTRY) |
1 | ||
| 82641-12190 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN W(WIRELESS DOOR LOCK) |
1 | ||
| 82641-02100 |
NZE120..GLI..PKN;CE120,NZE12#,ZZE12#..ARL,GCC,GEN (L) |
1 | ||
| 82641-12240 |
CE120,NZE12#,ZZE12#..GCC,GEN W(KEY LESS ENTRY) |
1 | ||
| 82641-12200 |
NZE120..GLI..PKN;CE120,NZE12#,ZZE12#..ARL,GCC,GEN (J) |
1 | ||
| 82641-12240 |
NZE121..LX;ZZE121..LHD;ZZE122..WG..ARL;CE120,NZE120,ZZE122..GCC,GEN W(KEY LESS ENTRY) |
1 | ||
| 82641-12250 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 82641-12250 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-12400 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 82672-12400 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 82672-12400 |
ZZE122..SED..ARL;CE120,NZE120,ZZE12#..LHD..SED..GEN |
1 | ||
| 82672B - COVER, JUNCTION BLOCK | ||||
| 82672-12410 |
ZZE122..SED..ARL;CE120,NZE120,ZZE12#..LHD..SED..GEN |
1 | ||
| 82672-12410 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-12050 |
CE120,NZE120,ZZE12#..LHD |
1 | ||
| 82673-12050 |
CE120,NZE120,ZZE12#..LHD..SED..GEN |
1 | ||
| 82673-12050 |
CE120,NZE120,ZZE12#..LHD |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-12060 |
CE120,NZE120,ZZE12#..LHD |
1 | ||
| 82673-12060 |
CE120,NZE120,ZZE12#..LHD |
1 | ||
| 82673-12060 |
CE120,NZE120,ZZE12#..LHD..SED..GEN |
1 | ||
| 82673C - BRACKET, JUNCTION BLOCK | ||||
| 82673-12080 |
CE120,NZE120,ZZE12#..LHD |
1 | ||
| 82673-12080 |
CE120,NZE120,ZZE12#..LHD..SED..GEN |
1 | ||
| 82673-12080 |
CE120,NZE120,ZZE12#..LHD |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-12150 |
CE120,NZE120,ZZE12#..LHD..SED..GEN |
1 | ||
| 82730-12150 |
CE120,NZE120,ZZE12#..LHD |
1 | ||
| 82730-12150 |
CE120,NZE120,ZZE12#..LHD |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32050 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN TYPE A:REFER ILLUST. |
1 | ||
| 84340-69035 |
NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN TYPE B:REFER ILLUST. |
1 | ||
| 84340-32050 |
NZE121..LX;NZE121..MTM..GLI;CE120,NZE120,ZZE12#..SED..(GCC,GEN) TYPE A:REFER ILLUST. |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32050 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN TYPE A:REFER ILLUST. |
1 | ||
| 84340-69035 |
NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN TYPE B:REFER ILLUST. |
1 | ||
| 84340-32050 |
NZE121..LX;NZE121..MTM..GLI;CE120,NZE120,ZZE12#..SED..(GCC,GEN) TYPE A:REFER ILLUST. |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-33010 |
CE120,NZE120,ZZE12#..LHD |
1 | ||
| 84550-33010 |
CE120,NZE120,ZZE12#..LHD |
1 | ||
| 84550-33010 |
CE120,NZE120,ZZE12#..LHD |
1 | ||
| 84727 - SWITCH, SHIFT LOCK CONTROL | ||||
| 84727-12090 |
NZE120,ZZE122..LHD..ATM..GEN |
1 | ||
| 84727-12090 |
NZE120,ZZE12#..LHD..ATM |
1 | ||
| 84727-12090 |
NZE120,ZZE12#..LHD..ATM |
1 | ||
| 85431 - SOLENOID, SHIFT LOCK | ||||
| 85431-12060 |
NZE12#,ZZE12#..ATM..(ARL,GCC,GEN) |
1 | ||
| 85431-12060 |
ZZE122..ATM..ARL;NZE120,ZZE122..LHD..ATM..GEN |
1 | ||
| 85431-12060 |
NZE12#,ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04010 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 90987-04010 |
CE120,NZE12#,ZZE12# |
1 | ||
| 90987-04010 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02012 |
NZE12#,ZZE12# P/N LABEL=9098702012 |
1 | ||
| 90987-02020 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN P/N LABEL=9098702020 |
1 | ||
| 90080-87008 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN P/N LABEL=9008087008 |
1 | ||
| 90987-02020 |
CE120,NZE12#,ZZE12#..GCC,GEN P/N LABEL=9098702020 |
1 | ||
| 90080-87010 |
CE120,NZE12#,ZZE12#..GCC,GEN P/N LABEL=9008087010 |
1 | ||
| 90080-87008 |
CE120,NZE12#,ZZE12#..GCC,GEN PART NUMBER LABEL=90080-87008 |
1 | ||
| 90987-02020 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN PART NUMBER LABEL=90987-02020 |
1 | ||
| 90080-87010 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN P/N LABEL=9008087010 |
1 | ||
| 85930 - RELAY ASSY, POWER WINDOW | ||||
| 90987-02020 |
CE120,NZE12#,ZZE12#..GCC,GEN PART NUMBER LABEL=90987-02020 |
1 | ||
| 90987-02020 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 90987-02020 |
CE120,NZE12#,ZZE12#..(CONQ,GLI,LX,XLI)..(ARL,GCC,GEN) PART NUMBER LABEL=90987-02020 |
1 | ||
| Common parts | ||||
| 90159-50138 | ||||
| 90159-50295 | ||||
| 90159-70003 | ||||
| 93315-14012 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8404 | ||||

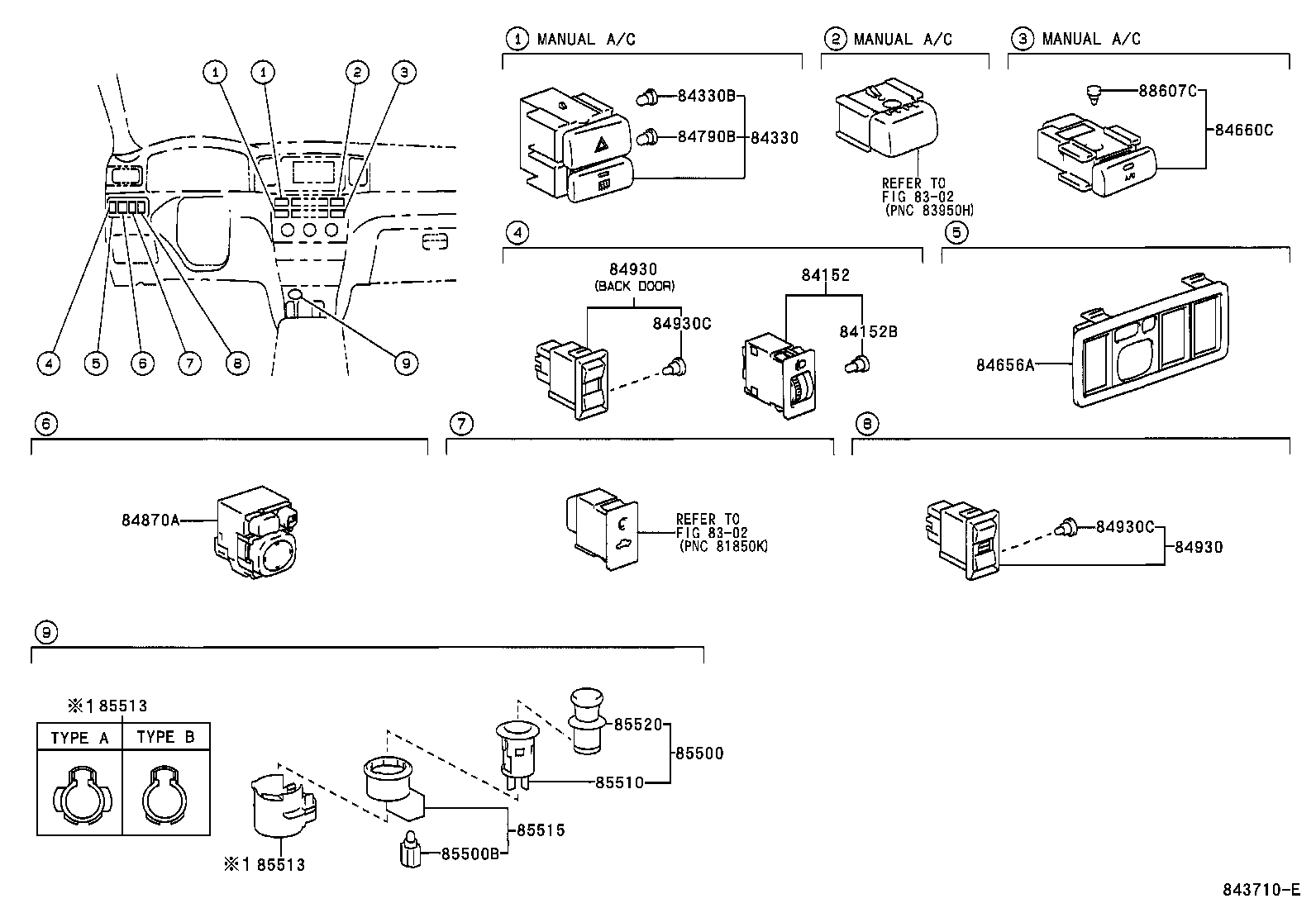

ILLUST NO. 4 OF 7(0008- )LHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-12450 |
CE120,NZE120,ZZE12#..LHD W(MANUAL AIR CONDITIONER) |
1 | ||
| 84332-12450 |
CE120,NZE120,ZZE12#..LHD W(MANUAL AIR CONDITIONER) |
1 | ||
| 84332-12450 |
ZZE122..GCC;NZE120..LHD..XLI;ZZE122..LHD..SED..XLI..GEN W(MANUAL AIR CONDITIONER) |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10310 |
ZZE122..GCC;NZE120..XLI..(GCC,GEN);NZE121,ZZE121..RHD..GEN;ZZE122..LHD..SED..XLI..GEN 14V 0.91W,W(MANUAL AIR CONDITIONER) |
1 | ||
| 84999-10310 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN 14V 0.91W,W(MANUAL AIR CONDITIONER) |
1 | ||
| 84999-10310 |
ZZE122..ARL;ZZE121..MTM..XLI;CE120,NZE120,ZZE122..LHD..GEN 14V 0.91W,W(MANUAL AIR CONDITIONER) |
1 | ||
| 84656A - BEZEL, SWITCH | ||||
| 84656-12130B2 |
CE120,NZE120,ZZE12#..LHD..SED..GEN MD.GRAY,TRIM15 |
1 | ||
| 84656-12120B1 |
ZZE122..LHD..SED..XLI..GEN;CE120,NZE120,ZZE121..LHD..(GLI,XLI)..GEN W/O(OUTER MIRROR SWITCH),STONE,TRIM17 |
1 | ||
| 84656-12130B1 |
CE120,NZE120,ZZE12#..LHD..SED..GEN STONE,TRIM17 |
1 | ||
| 84656-12120B2 |
CE120,NZE120..LHD..GEN;ZZE122..LHD..SED..XLI..GEN W/O(OUTER MIRROR SWITCH),MD.GRAY,TRIM1# |
1 | ||
| 84656-12130A0 |
CE120,NZE120,ZZE12#..LHD IVORY,TRIM0# |
1 | ||
| 84656-12120B2 |
ZZE122..LHD..SED..XLI..GEN;CE120,NZE120,ZZE121..LHD..(GLI,XLI)..GEN W/O(OUTER MIRROR SWITCH),MD.GRAY,TRIM15 |
1 | ||
| 84656-12130B2 |
CE120,NZE120,ZZE122..LHD..SED..GEN MD.GRAY,TRIM1# |
1 | ||
| 84656-12120A0 |
ZZE122..LHD..XLI;CE120,NZE120,ZZE121..LHD..(GLI,XLI) W/O(OUTER MIRROR SWITCH),IVORY,TRIM0# |
1 | ||
| 84656-12120A0 |
ZZE122..LHD..XLI;CE120,NZE120,ZZE121..LHD..(GLI,XLI) W/O(OUTER MIRROR SWITCH),IVORY,TRIM0# |
1 | ||
| 84656-12120B2 |
ZZE122..LHD..SED..XLI;CE120,NZE120,ZZE121..LHD..SED..(GLI,XLI) W/O(OUTER MIRROR SWITCH),MD.GRAY,TRIM1# |
1 | ||
| 84656-12130B2 |
CE120,NZE120,ZZE12#..LHD..SED MD.GRAY,TRIM1# |
1 | ||
| 84656-12130A0 |
CE120,NZE120,ZZE12#..LHD IVORY,TRIM0# |
1 | ||
| 84656-12120A0 |
ZZE122..LHD..XLI;CE120,NZE120,ZZE121..LHD..(GLI,XLI) W/O(OUTER MIRROR SWITCH),IVORY,TRIM0# |
1 | ||
| 84656-12120B2 |
ZZE122..LHD..SED..XLI;CE120,NZE120,ZZE121..LHD..SED..(GLI,XLI) W/O(OUTER MIRROR SWITCH),MD.GRAY,TRIM1# |
1 | ||
| 84656-12130A0 |
CE120,NZE120,ZZE12#..LHD IVORY,TRIM0# |
1 | ||
| 84656-12130B2 |
CE120,NZE120,ZZE12#..LHD..SED MD.GRAY,TRIM1# |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-12190 |
NZE120..LHD..XLI..GEN W(MANUAL AIR CONDITIONER) |
1 | ||
| 84660-12190 |
CE120,NZE120,ZZE12#..LHD W(MANUAL AIR CONDITIONER) |
1 | ||
| 84660-12190 |
CE120,NZE120,ZZE12#..LHD W(MANUAL AIR CONDITIONER) |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 90010-01060 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN 14V0.84W,W/GREEN CAP,W(MANUAL AIR CONDITIONER) |
1 | ||
| 90010-01060 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN 14V0.84W,W/GREEN CAP,W(MANUAL AIR CONDITIONER) |
1 | ||
| 90010-01060 |
ZZE122..GCC;NZE120..XLI..(GCC,GEN);NZE121,ZZE121..RHD..GEN;ZZE122..LHD..SED..XLI..GEN 14V0.84W,W/GREEN CAP,W(MANUAL AIR CONDITIONER) |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-52030 |
NZE121..LX;ZZE122..WG..ARL;CE120,NZE120,ZZE12#..GCC,GEN |
1 | ||
| 84872-52030 |
CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 84872-52030 |
NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-52010 |
ZZE121..XLI;ZZE122..GLI..GCC;CE120,NZE12#,ZZE122..(LX,XLI)..(GCC,GEN) |
1 | ||
| 84930-52010 |
ZZE122..SED..CONQ;CE120,NZE120,ZZE122..LHD..XLI..GEN |
1 | ||
| 84930-52010 |
ZZE121..XLI;ZZE122..WG..ARL;ZZE122..GLI..GCC;CE120,NZE12#,ZZE122..(LX,XLI)..(GCC,GEN) |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-52010 |
ZZE122..SED..CONQ;CE120,NZE120,ZZE122..LHD..XLI..GEN |
1 | ||
| 84930-52010 |
ZZE121..XLI;ZZE122..GLI..GCC;CE120,NZE12#,ZZE122..(LX,XLI)..(GCC,GEN) |
1 | ||
| 84930-52010 |
ZZE121..XLI;ZZE122..WG..ARL;ZZE122..GLI..GCC;CE120,NZE12#,ZZE122..(LX,XLI)..(GCC,GEN) |
1 | ||
| 84930C - BULB(FOR DOOR CONTROL SWITCH) | ||||
| 84999-10310 |
ZZE122..SED..CONQ;CE120,NZE120,ZZE122..LHD..XLI..GEN 14V 0.91W |
1 | ||
| 84999-10310 |
ZZE121..XLI;ZZE122..WG..ARL;ZZE122..GLI..GCC;CE120,NZE12#,ZZE122..(LX,XLI)..(GCC,GEN) 14V 0.91W |
1 | ||
| 84930C - BULB(FOR DOOR CONTROL SWITCH) | ||||
| 84999-10310 |
ZZE122..SED..CONQ;CE120,NZE120,ZZE122..LHD..XLI..GEN 14V 0.91W |
1 | ||
| 84999-10310 |
ZZE121..XLI;ZZE122..WG..ARL;ZZE122..GLI..GCC;CE120,NZE12#,ZZE122..(LX,XLI)..(GCC,GEN) 14V 0.91W |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-12240 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 85500-12240 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90010-01065 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN 14V1.4W,W(GREEN CAP) |
1 | ||
| 90010-01065 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN 14V1.4W,W(GREEN CAP) |
1 | ||
| 85510 - SOCKET & RETAINER ASSY, CIGARLIGHTER | ||||
| 85510-16040 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 85510-16040 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-28010 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN TYPE B:REFER ILLUST. |
1 | ||
| 85513-12020 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN TYPE A:REFER ILLUST. |
1 | ||
| 85513-28010 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN TYPE B:REFER ILLUST. |
1 | ||
| 85513-12020 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN TYPE A:REFER ILLUST. |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-28010 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN TYPE B:REFER ILLUST. |
1 | ||
| 85513-12020 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN TYPE A:REFER ILLUST. |
1 | ||
| 85513-28010 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN TYPE B:REFER ILLUST. |
1 | ||
| 85513-12020 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN TYPE A:REFER ILLUST. |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-12110 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 85515-12110 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 85520-28010 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 88607C - LAMP SUB-ASSY, INDICATOR | ||||
| 90010-03044 |
NZE120..LHD..XLI..GEN 14V0.84W,W/GREEN CAP,W(MANUAL AIR CONDITIONER) |
1 | ||
| 90010-03044 |
CE120,NZE12#,ZZE12#..GCC,GEN 14V0.84W,W/GREEN CAP,W(MANUAL AIR CONDITIONER) |
1 | ||
| 90010-03044 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN 14V0.84W,W/GREEN CAP,W(MANUAL AIR CONDITIONER) |
1 | ||
| Linked diagrams | ||||
| 8302 | ||||

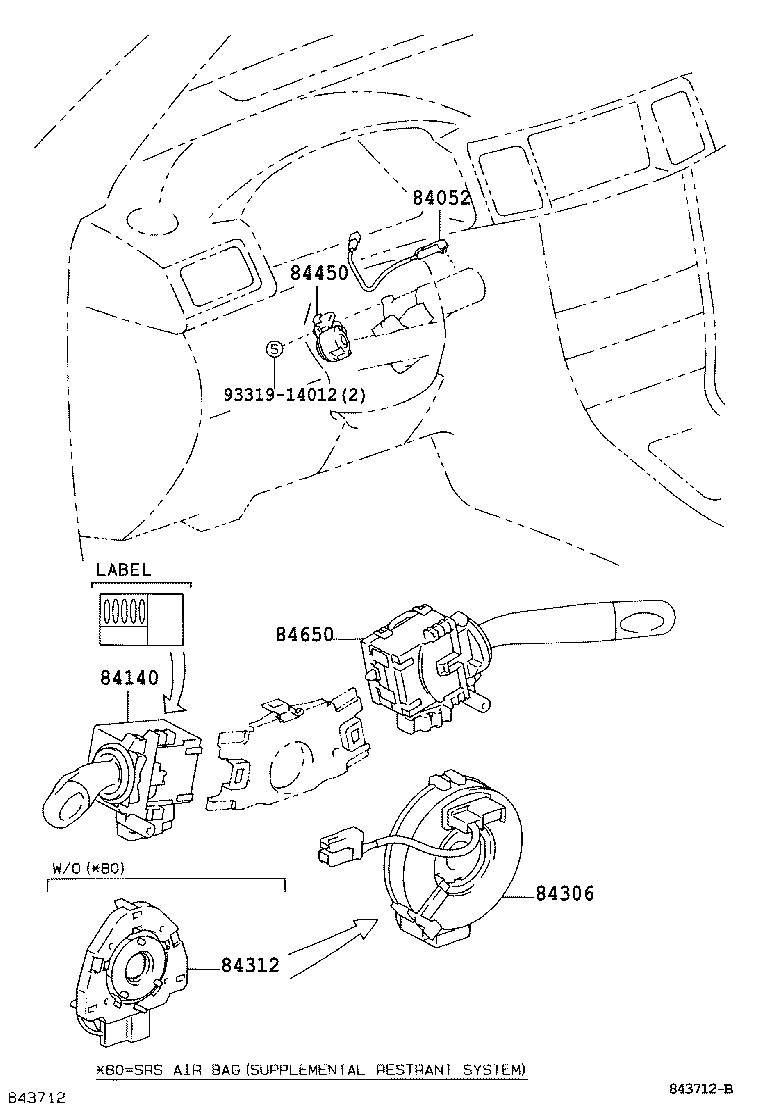

ILLUST NO. 5 OF 7(0008- )LHD
IGNITION & COMBINATION SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-60010 |
CE120,NZE12#,ZZE12# |
1 | ||
| 84052-60010 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 84052-60010 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-12550 |
CE120,NZE120,ZZE12#..LHD PART NUMBER LABEL=12550 |
1 | ||
| 84140-52020 |
CE120,NZE120,ZZE122..LHD..GEN PART NUMBER LABEL=52020 |
1 | ||
| 84140-52020 |
CE120,NZE120,ZZE122..LHD..GEN MIDDLE SOUTH AMERICA SPEC |
1 | ||
| 84140-12550 |
CE120,NZE120,ZZE12#..LHD PART NUMBER LABEL=12550 |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-52020 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 84306-52041 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 84306-32030 |
CE120,NZE120,ZZE122..LHD..GEN MIDDLE SOUTH AMERICA SPEC |
1 | ||
| 84306-52041 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-52010 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..GEN |
1 | ||
| 84312-52010 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..GEN |
1 | ||
| 84312-52010 |
CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-52010 |
CE120,NZE12#,ZZE12# |
1 | ||
| 84450-52010 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 84450-52010 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-1A820 |
CE120,NZE120,ZZE122..LHD..SED..GEN W(VARIABLE INTERMITTENT WIPER) |
1 | ||
| 84652-52060 |
CE120,NZE120..LHD..XLI..GEN |
1 | ||
| 84652-52050 |
CE120,NZE120,ZZE122..LHD..SED..GEN W(INTERMITTENT WIPER) |
1 | ||
| 84652-1A820 |
ZZE122..SED..XLI..GCC;CE120,NZE120,ZZE12#..LHD..SED..GEN W(VARIABLE INTERMITTENT WIPER) |
1 | ||
| 84652-1A820 |
ZZE122..LHD..SED;CE120,NZE120,ZZE121..LHD..GEN W(VARIABLE INTERMITTENT WIPER) |
1 | ||
| 84652-52050 |
CE120,NZE120,ZZE12#..LHD..SED W(INTERMITTENT WIPER) |
1 | ||
| 84652-52060 |
CE120,NZE120,ZZE121..LHD..SED..XLI |
1 | ||
| Common parts | ||||
| 93319-14012 | ||||
ILLUST NO. 7 OF 7(0008- )
DOOR,ROOF,FLOOR & LUGGAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-12700 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 83320-12640 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 83320-12640 |
NZE12#,ZZE12#..GCC,GEN,PKN |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-12700 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 83320-12640 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 83320-12640 |
NZE12#,ZZE12#..GCC,GEN,PKN |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
2 | ||
| 84231-60070 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
2 | ||
| 84231-60070 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-53010 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
2 | ||
| 84231-53010 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-53010 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
2 | ||
| 84231-53010 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
2 | ||
| 84236 - SWITCH ASSY, COURTESY LAMP(FOR LUGGAGE COMPARTMENT ROOM | ||||
| 84231-12130 |
ZZE122..SED..ARL;CE120,NZE120,ZZE122..LHD..SED..GEN |
1 | ||
| 84231-12130 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) |
1 | ||
| 84231-12130 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-12080 |
ZZE121;ZZE122..CONQ,GLI;ZZE122..LHD..XLI;CE120,NZE120..LHD;CE120,NZE12#..RHD..(20DSA,GLI) |
1 | ||
| 84810-12080 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 84810-12080 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-12080 |
ZZE121;ZZE122..GLI;ZZE122..LHD..XLI;CE120,NZE120..LHD;CE120,NZE12#..RHD..(20DSA,GLI) |
2 | ||
| 84810-12080 |
CE120,NZE12#,ZZE12#..GCC,GEN |
2 | ||
| 84810-12080 |
CE120,NZE12#,ZZE12#..GCC,GEN |
2 | ||
| 84810-12080 |
CE120,NZE12#,ZZE12#..GCC,GEN |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-12080 |
ZZE121;ZZE122..GLI;ZZE122..LHD..XLI;CE120,NZE120..LHD;CE120,NZE12#..RHD..(20DSA,GLI) |
2 | ||
| 84810-12080 |
CE120,NZE12#,ZZE12#..GCC,GEN |
2 | ||
| 84810-12080 |
CE120,NZE12#,ZZE12#..GCC,GEN |
2 | ||
| 84810-12080 |
CE120,NZE12#,ZZE12#..GCC,GEN |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-12480 |
CE120,NZE120,ZZE12#..LHD |
1 | ||
| 84820-12480 |
CE120,NZE120,ZZE12#..LHD |
1 | ||
| 84820-12480 |
CE120,NZE120,ZZE12#..LHD |
1 | ||
| Common parts | ||||
| 48966-68010 | ||||
| 90109-06296 | ||||
| 90164-40103 | ||||
| 91631-B0820 | ||||
| 93269-15008 | ||||
| 93319-14008 | ||||
| 94150-10641 | ||||

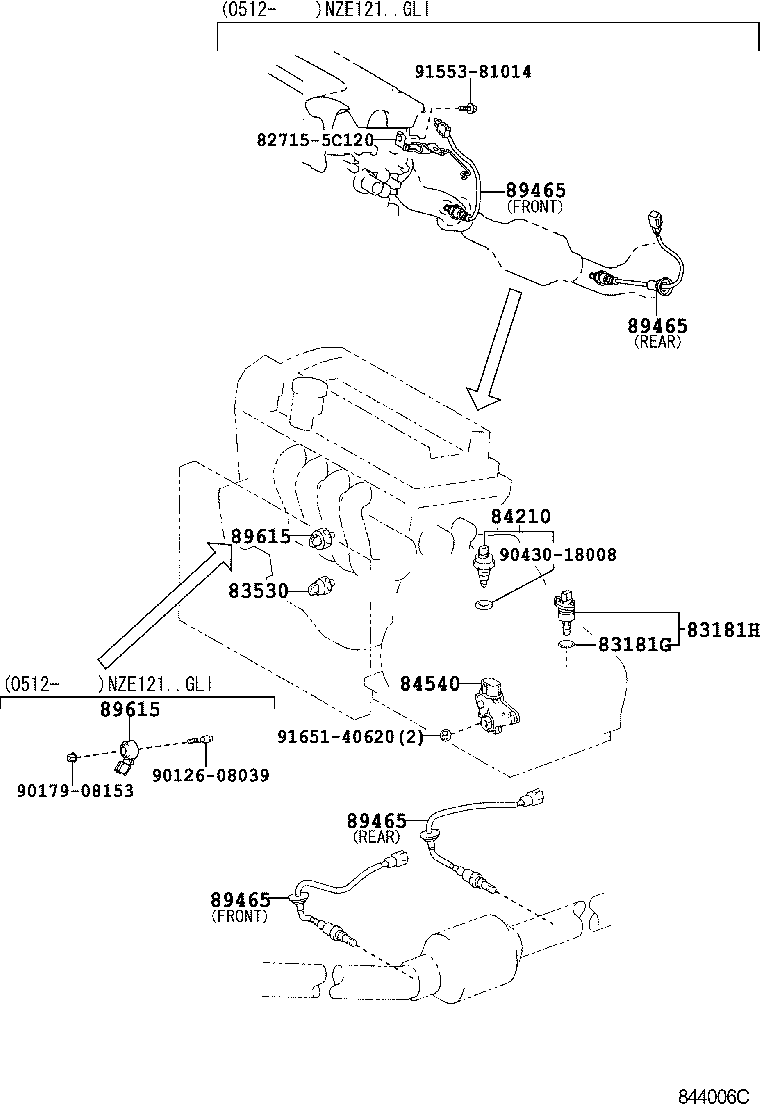

ILLUST NO. 1 OF 7(0008- )NZE12#
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83181G - SENSOR, SPEEDOMETER | ||||
| 83181-12020 |
NZE121..MTM;NZE120,ZZE12#..ARL,GCC,GEN TRANSAXLE = A245E |
1 | ||
| 83181-12020 |
NZE121..MTM;NZE120,ZZE12#..GCC,GEN TRANSAXLE = A245E |
1 | ||
| 83181-12020 |
NZE121..MTM;ZZE122..GEN;NZE120,ZZE121..GCC,GEN;ZZE122..MTM..(ARL,GCC) |
1 | ||
| 83181H - RING, O (FOR SPEEDOMETER SENSOR) | ||||
| 96711-24030 |
NZE121..MTM;NZE120,ZZE12#..GCC,GEN TRANSAXLE = A245E |
1 | ||
| 96711-24030 |
NZE121..MTM;NZE120,ZZE12#..ARL,GCC,GEN TRANSAXLE = A245E |
1 | ||
| 96711-24030 |
NZE121..MTM;ZZE122..GEN;ZZE122..SED..MTM..GCC;NZE120,ZZE121..GCC,GEN;ZZE122..WG..MTM..(ARL,GCC) |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28020 |
NZE12#,ZZE12# DENSO |
1 | ||
| 83530-60020 |
NZE12#,ZZE12#..GCC,GEN YAZAKI |
1 | ||
| 83530-28020 |
ZZE122..WG..ARL;NZE12#,ZZE12#..GCC,GEN DENSO |
1 | ||
| 83530-60020 |
NZE12#,ZZE12# YAZAKI |
1 | ||
| 83530-28020 |
NZE12#,ZZE12#..GCC,GEN DENSO |
1 | ||
| 83530-60020 |
ZZE122..WG..ARL;NZE12#,ZZE12#..GCC,GEN YAZAKI |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-52010 |
NZE120..ATM PART NUMBER LABEL=84540-52010 |
1 | ||
| 84540-52010 |
NZE120..ATM PART NUMBER LABEL=84540-52010 |
1 | ||
| 84540-46010 |
NZE12#..ATM;ZZE122..ATM..GCC PART NUMBER LABEL=84540-46010 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-12630 |
NZE120..LHD..XLI..GEN REAR |
1 | ||
| 89465-12630 |
NZE12#..GCC,GEN REAR |
1 | ||
| 89465-12620 |
NZE120..LHD..XLI..GEN FRONT |
1 | ||
| 89465-12620 |
NZE121..LX;NZE120..LHD..XLI;NZE121..MTM..GLI FRONT |
1 | ||
| 89465-12630 |
NZE121..LX;NZE120..LHD..XLI;NZE121..MTM..GLI REAR |
1 | ||
| 89465-12620 |
NZE121;ZZE122..GCC;NZE120..LHD..XLI;ZZE122..LHD..WG..GEN FRONT |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-12630 |
NZE120..LHD..XLI..GEN REAR |
1 | ||
| 89465-12630 |
NZE12#..GCC,GEN REAR |
1 | ||
| 89465-12620 |
NZE120..LHD..XLI..GEN FRONT |
1 | ||
| 89465-12620 |
NZE121..LX;NZE120..LHD..XLI;NZE121..MTM..GLI FRONT |
1 | ||
| 89465-12630 |
NZE121..LX;NZE120..LHD..XLI;NZE121..MTM..GLI REAR |
1 | ||
| 89465-12620 |
NZE121;ZZE122..GCC;NZE120..LHD..XLI;ZZE122..LHD..WG..GEN FRONT |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-12630 |
NZE120..LHD..XLI..GEN REAR |
1 | ||
| 89465-12630 |
NZE12#..GCC,GEN REAR |
1 | ||
| 89465-12620 |
NZE120..LHD..XLI..GEN FRONT |
1 | ||
| 89465-12620 |
NZE121..LX;NZE120..LHD..XLI;NZE121..MTM..GLI FRONT |
1 | ||
| 89465-12630 |
NZE121..LX;NZE120..LHD..XLI;NZE121..MTM..GLI REAR |
1 | ||
| 89465-12620 |
NZE121;ZZE122..GCC;NZE120..LHD..XLI;ZZE122..LHD..WG..GEN FRONT |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-12630 |
NZE120..LHD..XLI..GEN REAR |
1 | ||
| 89465-12630 |
NZE12#..GCC,GEN REAR |
1 | ||
| 89465-12620 |
NZE120..LHD..XLI..GEN FRONT |
1 | ||
| 89465-12620 |
NZE121..LX;NZE120..LHD..XLI;NZE121..MTM..GLI FRONT |
1 | ||
| 89465-12630 |
NZE121..LX;NZE120..LHD..XLI;NZE121..MTM..GLI REAR |
1 | ||
| 89465-12620 |
NZE121;ZZE122..GCC;NZE120..LHD..XLI;ZZE122..LHD..WG..GEN FRONT |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-52040 |
NZE12# TOYOTA |
1 | ||
| 89615-52030 |
NZE12#..GCC,GEN DENSO |
1 | ||
| 89615-52030 |
NZE12# DENSO |
1 | ||
| 89615-52030 |
NZE12#..GCC,GEN |
1 | ||
| 89615-52030 |
NZE120..LHD..GEN |
1 | ||
| 89615-52040 |
NZE12#..GCC,GEN TOYOTA |
1 | ||
| 89615-52030 |
NZE121..LX;NZE120..GCC,GEN;NZE121..MTM..GLI |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-52040 |
NZE12# TOYOTA |
1 | ||
| 89615-52030 |
NZE12#..GCC,GEN DENSO |
1 | ||
| 89615-52030 |
NZE12# DENSO |
1 | ||
| 89615-52030 |
NZE12#..GCC,GEN |
1 | ||
| 89615-52030 |
NZE120..LHD..GEN |
1 | ||
| 89615-52040 |
NZE12#..GCC,GEN TOYOTA |
1 | ||
| 89615-52030 |
NZE121..LX;NZE120..GCC,GEN;NZE121..MTM..GLI |
1 | ||
| Common parts | ||||
| 82715-5C120 | ||||
| 90126-08039 | ||||
| 90179-08153 | ||||
| 90430-18008 | ||||
| 91553-81014 | ||||
| 91651-40620 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
