NZE120L-AEPDK (2000)
Toyota Corolla/Altis Sed/Wg

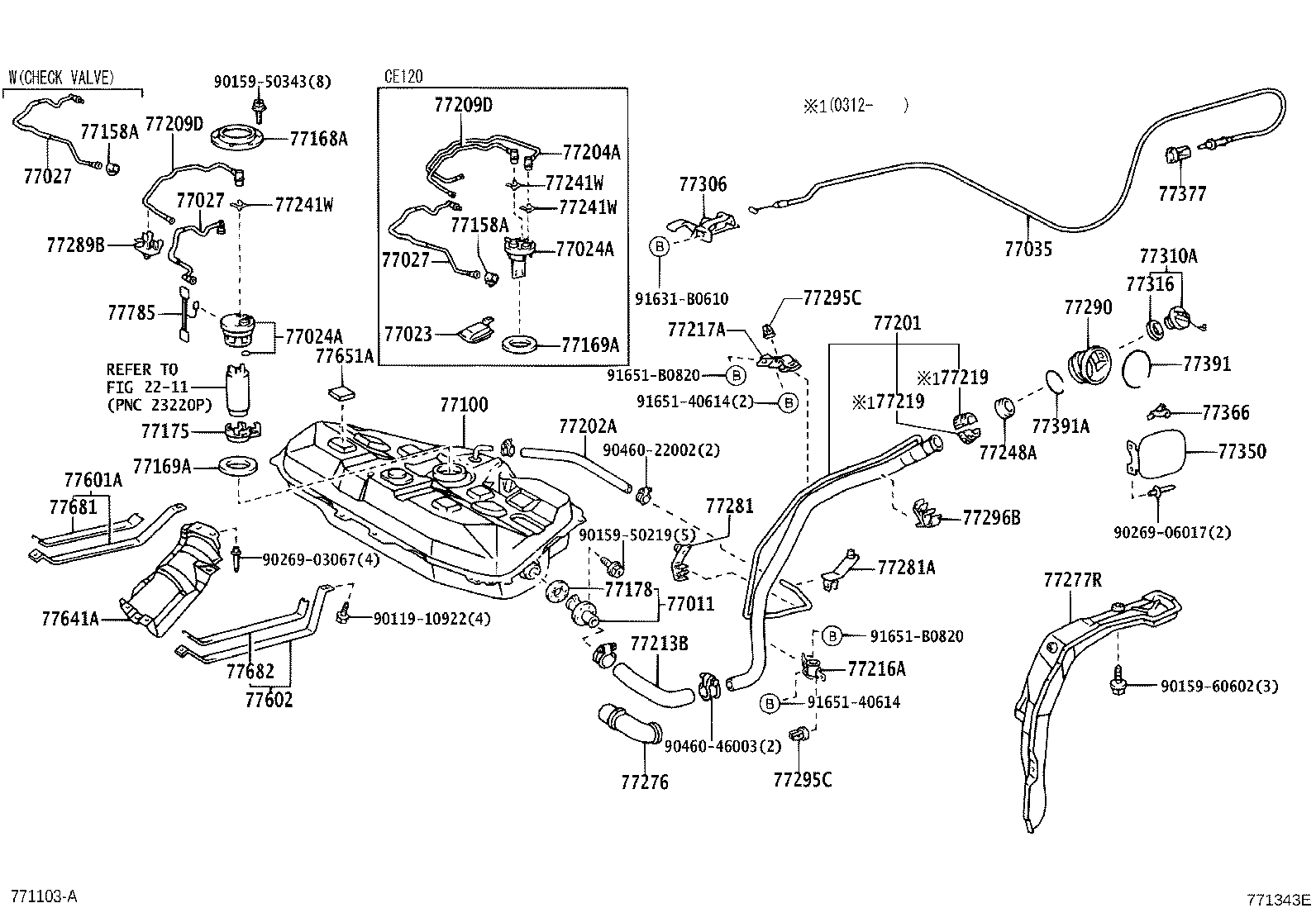

ILLUST NO. 2 OF 2(0008- )NZE120,ZZE122..GEN ; (0202-0507)NZE120,ZZE121..PKN ; (0507- )NZE120..
FUEL TUBE W/O(CANISTER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77241V - CLIP, TUBE JOINT | ||||
| 77241-12240 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN NO.1:REFER TO ILLUSTRATION |
2 | ||
| 77241-12240 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN NO.1:REFER TO ILLUSTRATION |
2 | ||
| 77241-12250 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN NO.2:REFER TO ILLUSTRATION |
1 | ||
| 77241-12240 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN NO.1:REFER TO ILLUSTRATION |
2 | ||
| 77241-12250 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN NO.2:REFER TO ILLUSTRATION |
1 | ||
| 77241-12250 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN NO.2:REFER TO ILLUSTRATION |
1 | ||
| 77241V - CLIP, TUBE JOINT | ||||
| 77241-12240 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN NO.1:REFER TO ILLUSTRATION |
2 | ||
| 77241-12240 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN NO.1:REFER TO ILLUSTRATION |
2 | ||
| 77241-12250 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN NO.2:REFER TO ILLUSTRATION |
1 | ||
| 77241-12240 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN NO.1:REFER TO ILLUSTRATION |
2 | ||
| 77241-12250 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN NO.2:REFER TO ILLUSTRATION |
1 | ||
| 77241-12250 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN NO.2:REFER TO ILLUSTRATION |
1 | ||
| 77241V - CLIP, TUBE JOINT | ||||
| 77241-12240 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN NO.1:REFER TO ILLUSTRATION |
2 | ||
| 77241-12240 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN NO.1:REFER TO ILLUSTRATION |
2 | ||
| 77241-12250 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN NO.2:REFER TO ILLUSTRATION |
1 | ||
| 77241-12240 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN NO.1:REFER TO ILLUSTRATION |
2 | ||
| 77241-12250 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN NO.2:REFER TO ILLUSTRATION |
1 | ||
| 77241-12250 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN NO.2:REFER TO ILLUSTRATION |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-12660 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77251-12660 |
NZE120,ZZE122..LHD..GEN |
1 | ||
| 77251-12660 |
ZZE122..WG..ARL;NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-12120 |
CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 77266-12120 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN |
1 | ||
| 77266-12120 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN |
1 | ||
| 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 | ||||
| 77289-20060 |
ZZE122..ARL;NZE120,ZZE122..LHD..GEN TYPE B:REFER ILLUST. |
1 | ||
| 77298-12060 |
ZZE122..ARL;NZE120,ZZE122..LHD..GEN TYPE E:REFER ILLUST. |
1 | ||
| 77286-12060 |
CE120,NZE120,ZZE122..LHD..GEN TYPE F:REFER TO ILLUSTRATION |
1 | ||
| 77286-47020 |
NZE120..LHD..XLI..GEN TYPE A:REFER ILLUST. |
1 | ||
| 77298-20080 |
ZZE122..ARL;NZE120,ZZE122..LHD..GEN TYPE C:REFER ILLUST. |
1 | ||
| 77298-20080 |
CE120,NZE120,ZZE122..LHD..GEN TYPE C:REFER TO ILLUSTRATION & W(PROTECTOR) |
1 | ||
| 77298-12090 |
CE120,NZE120,ZZE122..LHD..GEN TYPE K:REFER TO ILLUSTRATION |
1 | ||
| 77286-12060 |
ZZE122..ARL;NZE120,ZZE122..LHD..GEN TYPE F:REFER ILLUST. |
1 | ||
| 77298-12100 |
ZZE122..ARL;NZE120,ZZE122..LHD..GEN TYPE D:REFER ILLUST. |
1 | ||
| 77289-20060 |
CE120,NZE120,ZZE122..LHD..GEN TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 77298-12080 |
CE120,NZE120,ZZE122..LHD..GEN TYPE J:REFER TO ILLUSTRATION |
1 | ||
| 77298-12060 |
CE120,NZE120,ZZE122..LHD..GEN TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 77298-12070 |
CE120,NZE120,ZZE122..LHD..GEN TYPE H:REFER TO ILLUSTRATION |
1 | ||
| 77286-47020 |
ZZE122..GCC;NZE120..LHD..XLI;NZE121,ZZE121..GEN;ZZE122..LHD..WG..GEN TYPE A:REFER ILLUST. |
1 | ||
| 77298-12070 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE H:REFER TO ILLUSTRATION |
1 | ||
| 77298-12060 |
CE120,NZE12#,ZZE12#..GCC,GEN TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 77298-20080 |
CE120,NZE12#,ZZE12#..GCC,GEN TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 77289-20060 |
CE120,NZE12#,ZZE12#..GCC,GEN TYPE B:REFER ILLUST. |
1 | ||
| 77298-12100 |
CE120,NZE12#,ZZE12#..GCC,GEN TYPE D:REFER ILLUST. |
1 | ||
| 77298-12090 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE K:REFER TO ILLUSTRATION |
1 | ||
| 77286-12060 |
CE120,NZE12#,ZZE12#..GCC,GEN TYPE F:REFER ILLUST. |
1 | ||
| 77286-47020 |
ZZE122..LHD..WG..GEN;NZE120..LHD..XLI..GEN TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 77298-12080 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE J:REFER TO ILLUSTRATION |
1 | ||
| 77298-20080 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN W(PROTECTOR),TYPE C:REFER ILLUST. |
3 | ||
| 77298-20080 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE C:REFER TO ILLUSTRATION & W(PROTECTOR) |
1 | ||
| 77298-20080 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE C:REFER ILLUST. |
1 | ||
| 77298-12080 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE J:REFER ILLUST. |
1 | ||
| 77298-12070 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE H:REFER ILLUST. |
1 | ||
| 77286-47020 |
NZE120..LHD..XLI;ZZE122..SED..GCC;NZE121,ZZE121..GEN;ZZE122..LHD..WG..GEN;ZZE122..WG..(ARL,GCC) TYPE A:REFER ILLUST. |
1 | ||
| 77289-20060 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN TYPE B:REFER ILLUST. |
1 | ||
| 77286-12060 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN TYPE F:REFER ILLUST. |
1 | ||
| 77298-12090 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE K:REFER ILLUST. |
1 | ||
| 77298-12060 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN TYPE E:REFER ILLUST. |
1 | ||
| 77298-12100 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN TYPE D:REFER ILLUST. |
1 | ||
| 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 | ||||
| 77289-20060 |
ZZE122..ARL;NZE120,ZZE122..LHD..GEN TYPE B:REFER ILLUST. |
1 | ||
| 77298-12060 |
ZZE122..ARL;NZE120,ZZE122..LHD..GEN TYPE E:REFER ILLUST. |
1 | ||
| 77286-12060 |
CE120,NZE120,ZZE122..LHD..GEN TYPE F:REFER TO ILLUSTRATION |
1 | ||
| 77286-47020 |
NZE120..LHD..XLI..GEN TYPE A:REFER ILLUST. |
1 | ||
| 77298-20080 |
ZZE122..ARL;NZE120,ZZE122..LHD..GEN TYPE C:REFER ILLUST. |
1 | ||
| 77298-20080 |
CE120,NZE120,ZZE122..LHD..GEN TYPE C:REFER TO ILLUSTRATION & W(PROTECTOR) |
1 | ||
| 77298-12090 |
CE120,NZE120,ZZE122..LHD..GEN TYPE K:REFER TO ILLUSTRATION |
1 | ||
| 77286-12060 |
ZZE122..ARL;NZE120,ZZE122..LHD..GEN TYPE F:REFER ILLUST. |
1 | ||
| 77298-12100 |
ZZE122..ARL;NZE120,ZZE122..LHD..GEN TYPE D:REFER ILLUST. |
1 | ||
| 77289-20060 |
CE120,NZE120,ZZE122..LHD..GEN TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 77298-12080 |
CE120,NZE120,ZZE122..LHD..GEN TYPE J:REFER TO ILLUSTRATION |
1 | ||
| 77298-12060 |
CE120,NZE120,ZZE122..LHD..GEN TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 77298-12070 |
CE120,NZE120,ZZE122..LHD..GEN TYPE H:REFER TO ILLUSTRATION |
1 | ||
| 77286-47020 |
ZZE122..GCC;NZE120..LHD..XLI;NZE121,ZZE121..GEN;ZZE122..LHD..WG..GEN TYPE A:REFER ILLUST. |
1 | ||
| 77298-12070 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE H:REFER TO ILLUSTRATION |
1 | ||
| 77298-12060 |
CE120,NZE12#,ZZE12#..GCC,GEN TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 77298-20080 |
CE120,NZE12#,ZZE12#..GCC,GEN TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 77289-20060 |
CE120,NZE12#,ZZE12#..GCC,GEN TYPE B:REFER ILLUST. |
1 | ||
| 77298-12100 |
CE120,NZE12#,ZZE12#..GCC,GEN TYPE D:REFER ILLUST. |
1 | ||
| 77298-12090 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE K:REFER TO ILLUSTRATION |
1 | ||
| 77286-12060 |
CE120,NZE12#,ZZE12#..GCC,GEN TYPE F:REFER ILLUST. |
1 | ||
| 77286-47020 |
ZZE122..LHD..WG..GEN;NZE120..LHD..XLI..GEN TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 77298-12080 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE J:REFER TO ILLUSTRATION |
1 | ||
| 77298-20080 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN W(PROTECTOR),TYPE C:REFER ILLUST. |
3 | ||
| 77298-20080 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE C:REFER TO ILLUSTRATION & W(PROTECTOR) |
1 | ||
| 77298-20080 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE C:REFER ILLUST. |
1 | ||
| 77298-12080 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE J:REFER ILLUST. |
1 | ||
| 77298-12070 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE H:REFER ILLUST. |
1 | ||
| 77286-47020 |
NZE120..LHD..XLI;ZZE122..SED..GCC;NZE121,ZZE121..GEN;ZZE122..LHD..WG..GEN;ZZE122..WG..(ARL,GCC) TYPE A:REFER ILLUST. |
1 | ||
| 77289-20060 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN TYPE B:REFER ILLUST. |
1 | ||
| 77286-12060 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN TYPE F:REFER ILLUST. |
1 | ||
| 77298-12090 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE K:REFER ILLUST. |
1 | ||
| 77298-12060 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN TYPE E:REFER ILLUST. |
1 | ||
| 77298-12100 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN TYPE D:REFER ILLUST. |
1 | ||
| 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 | ||||
| 77289-20060 |
ZZE122..ARL;NZE120,ZZE122..LHD..GEN TYPE B:REFER ILLUST. |
1 | ||
| 77298-12060 |
ZZE122..ARL;NZE120,ZZE122..LHD..GEN TYPE E:REFER ILLUST. |
1 | ||
| 77286-12060 |
CE120,NZE120,ZZE122..LHD..GEN TYPE F:REFER TO ILLUSTRATION |
1 | ||
| 77286-47020 |
NZE120..LHD..XLI..GEN TYPE A:REFER ILLUST. |
1 | ||
| 77298-20080 |
ZZE122..ARL;NZE120,ZZE122..LHD..GEN TYPE C:REFER ILLUST. |
1 | ||
| 77298-20080 |
CE120,NZE120,ZZE122..LHD..GEN TYPE C:REFER TO ILLUSTRATION & W(PROTECTOR) |
1 | ||
| 77298-12090 |
CE120,NZE120,ZZE122..LHD..GEN TYPE K:REFER TO ILLUSTRATION |
1 | ||
| 77286-12060 |
ZZE122..ARL;NZE120,ZZE122..LHD..GEN TYPE F:REFER ILLUST. |
1 | ||
| 77298-12100 |
ZZE122..ARL;NZE120,ZZE122..LHD..GEN TYPE D:REFER ILLUST. |
1 | ||
| 77289-20060 |
CE120,NZE120,ZZE122..LHD..GEN TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 77298-12080 |
CE120,NZE120,ZZE122..LHD..GEN TYPE J:REFER TO ILLUSTRATION |
1 | ||
| 77298-12060 |
CE120,NZE120,ZZE122..LHD..GEN TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 77298-12070 |
CE120,NZE120,ZZE122..LHD..GEN TYPE H:REFER TO ILLUSTRATION |
1 | ||
| 77286-47020 |
ZZE122..GCC;NZE120..LHD..XLI;NZE121,ZZE121..GEN;ZZE122..LHD..WG..GEN TYPE A:REFER ILLUST. |
1 | ||
| 77298-12070 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE H:REFER TO ILLUSTRATION |
1 | ||
| 77298-12060 |
CE120,NZE12#,ZZE12#..GCC,GEN TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 77298-20080 |
CE120,NZE12#,ZZE12#..GCC,GEN TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 77289-20060 |
CE120,NZE12#,ZZE12#..GCC,GEN TYPE B:REFER ILLUST. |
1 | ||
| 77298-12100 |
CE120,NZE12#,ZZE12#..GCC,GEN TYPE D:REFER ILLUST. |
1 | ||
| 77298-12090 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE K:REFER TO ILLUSTRATION |
1 | ||
| 77286-12060 |
CE120,NZE12#,ZZE12#..GCC,GEN TYPE F:REFER ILLUST. |
1 | ||
| 77286-47020 |
ZZE122..LHD..WG..GEN;NZE120..LHD..XLI..GEN TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 77298-12080 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE J:REFER TO ILLUSTRATION |
1 | ||
| 77298-20080 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN W(PROTECTOR),TYPE C:REFER ILLUST. |
3 | ||
| 77298-20080 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE C:REFER TO ILLUSTRATION & W(PROTECTOR) |
1 | ||
| 77298-20080 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE C:REFER ILLUST. |
1 | ||
| 77298-12080 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE J:REFER ILLUST. |
1 | ||
| 77298-12070 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE H:REFER ILLUST. |
1 | ||
| 77286-47020 |
NZE120..LHD..XLI;ZZE122..SED..GCC;NZE121,ZZE121..GEN;ZZE122..LHD..WG..GEN;ZZE122..WG..(ARL,GCC) TYPE A:REFER ILLUST. |
1 | ||
| 77289-20060 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN TYPE B:REFER ILLUST. |
1 | ||
| 77286-12060 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN TYPE F:REFER ILLUST. |
1 | ||
| 77298-12090 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE K:REFER ILLUST. |
1 | ||
| 77298-12060 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN TYPE E:REFER ILLUST. |
1 | ||
| 77298-12100 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN TYPE D:REFER ILLUST. |
1 | ||
| 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 | ||||
| 77289-20060 |
ZZE122..ARL;NZE120,ZZE122..LHD..GEN TYPE B:REFER ILLUST. |
1 | ||
| 77298-12060 |
ZZE122..ARL;NZE120,ZZE122..LHD..GEN TYPE E:REFER ILLUST. |
1 | ||
| 77286-12060 |
CE120,NZE120,ZZE122..LHD..GEN TYPE F:REFER TO ILLUSTRATION |
1 | ||
| 77286-47020 |
NZE120..LHD..XLI..GEN TYPE A:REFER ILLUST. |
1 | ||
| 77298-20080 |
ZZE122..ARL;NZE120,ZZE122..LHD..GEN TYPE C:REFER ILLUST. |
1 | ||
| 77298-20080 |
CE120,NZE120,ZZE122..LHD..GEN TYPE C:REFER TO ILLUSTRATION & W(PROTECTOR) |
1 | ||
| 77298-12090 |
CE120,NZE120,ZZE122..LHD..GEN TYPE K:REFER TO ILLUSTRATION |
1 | ||
| 77286-12060 |
ZZE122..ARL;NZE120,ZZE122..LHD..GEN TYPE F:REFER ILLUST. |
1 | ||
| 77298-12100 |
ZZE122..ARL;NZE120,ZZE122..LHD..GEN TYPE D:REFER ILLUST. |
1 | ||
| 77289-20060 |
CE120,NZE120,ZZE122..LHD..GEN TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 77298-12080 |
CE120,NZE120,ZZE122..LHD..GEN TYPE J:REFER TO ILLUSTRATION |
1 | ||
| 77298-12060 |
CE120,NZE120,ZZE122..LHD..GEN TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 77298-12070 |
CE120,NZE120,ZZE122..LHD..GEN TYPE H:REFER TO ILLUSTRATION |
1 | ||
| 77286-47020 |
ZZE122..GCC;NZE120..LHD..XLI;NZE121,ZZE121..GEN;ZZE122..LHD..WG..GEN TYPE A:REFER ILLUST. |
1 | ||
| 77298-12070 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE H:REFER TO ILLUSTRATION |
1 | ||
| 77298-12060 |
CE120,NZE12#,ZZE12#..GCC,GEN TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 77298-20080 |
CE120,NZE12#,ZZE12#..GCC,GEN TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 77289-20060 |
CE120,NZE12#,ZZE12#..GCC,GEN TYPE B:REFER ILLUST. |
1 | ||
| 77298-12100 |
CE120,NZE12#,ZZE12#..GCC,GEN TYPE D:REFER ILLUST. |
1 | ||
| 77298-12090 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE K:REFER TO ILLUSTRATION |
1 | ||
| 77286-12060 |
CE120,NZE12#,ZZE12#..GCC,GEN TYPE F:REFER ILLUST. |
1 | ||
| 77286-47020 |
ZZE122..LHD..WG..GEN;NZE120..LHD..XLI..GEN TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 77298-12080 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE J:REFER TO ILLUSTRATION |
1 | ||
| 77298-20080 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN W(PROTECTOR),TYPE C:REFER ILLUST. |
3 | ||
| 77298-20080 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE C:REFER TO ILLUSTRATION & W(PROTECTOR) |
1 | ||
| 77298-20080 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE C:REFER ILLUST. |
1 | ||
| 77298-12080 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE J:REFER ILLUST. |
1 | ||
| 77298-12070 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE H:REFER ILLUST. |
1 | ||
| 77286-47020 |
NZE120..LHD..XLI;ZZE122..SED..GCC;NZE121,ZZE121..GEN;ZZE122..LHD..WG..GEN;ZZE122..WG..(ARL,GCC) TYPE A:REFER ILLUST. |
1 | ||
| 77289-20060 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN TYPE B:REFER ILLUST. |
1 | ||
| 77286-12060 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN TYPE F:REFER ILLUST. |
1 | ||
| 77298-12090 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE K:REFER ILLUST. |
1 | ||
| 77298-12060 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN TYPE E:REFER ILLUST. |
1 | ||
| 77298-12100 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN TYPE D:REFER ILLUST. |
1 | ||
| 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 | ||||
| 77289-20060 |
ZZE122..ARL;NZE120,ZZE122..LHD..GEN TYPE B:REFER ILLUST. |
1 | ||
| 77298-12060 |
ZZE122..ARL;NZE120,ZZE122..LHD..GEN TYPE E:REFER ILLUST. |
1 | ||
| 77286-12060 |
CE120,NZE120,ZZE122..LHD..GEN TYPE F:REFER TO ILLUSTRATION |
1 | ||
| 77286-47020 |
NZE120..LHD..XLI..GEN TYPE A:REFER ILLUST. |
1 | ||
| 77298-20080 |
ZZE122..ARL;NZE120,ZZE122..LHD..GEN TYPE C:REFER ILLUST. |
1 | ||
| 77298-20080 |
CE120,NZE120,ZZE122..LHD..GEN TYPE C:REFER TO ILLUSTRATION & W(PROTECTOR) |
1 | ||
| 77298-12090 |
CE120,NZE120,ZZE122..LHD..GEN TYPE K:REFER TO ILLUSTRATION |
1 | ||
| 77286-12060 |
ZZE122..ARL;NZE120,ZZE122..LHD..GEN TYPE F:REFER ILLUST. |
1 | ||
| 77298-12100 |
ZZE122..ARL;NZE120,ZZE122..LHD..GEN TYPE D:REFER ILLUST. |
1 | ||
| 77289-20060 |
CE120,NZE120,ZZE122..LHD..GEN TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 77298-12080 |
CE120,NZE120,ZZE122..LHD..GEN TYPE J:REFER TO ILLUSTRATION |
1 | ||
| 77298-12060 |
CE120,NZE120,ZZE122..LHD..GEN TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 77298-12070 |
CE120,NZE120,ZZE122..LHD..GEN TYPE H:REFER TO ILLUSTRATION |
1 | ||
| 77286-47020 |
ZZE122..GCC;NZE120..LHD..XLI;NZE121,ZZE121..GEN;ZZE122..LHD..WG..GEN TYPE A:REFER ILLUST. |
1 | ||
| 77298-12070 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE H:REFER TO ILLUSTRATION |
1 | ||
| 77298-12060 |
CE120,NZE12#,ZZE12#..GCC,GEN TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 77298-20080 |
CE120,NZE12#,ZZE12#..GCC,GEN TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 77289-20060 |
CE120,NZE12#,ZZE12#..GCC,GEN TYPE B:REFER ILLUST. |
1 | ||
| 77298-12100 |
CE120,NZE12#,ZZE12#..GCC,GEN TYPE D:REFER ILLUST. |
1 | ||
| 77298-12090 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE K:REFER TO ILLUSTRATION |
1 | ||
| 77286-12060 |
CE120,NZE12#,ZZE12#..GCC,GEN TYPE F:REFER ILLUST. |
1 | ||
| 77286-47020 |
ZZE122..LHD..WG..GEN;NZE120..LHD..XLI..GEN TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 77298-12080 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE J:REFER TO ILLUSTRATION |
1 | ||
| 77298-20080 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN W(PROTECTOR),TYPE C:REFER ILLUST. |
3 | ||
| 77298-20080 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE C:REFER TO ILLUSTRATION & W(PROTECTOR) |
1 | ||
| 77298-20080 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE C:REFER ILLUST. |
1 | ||
| 77298-12080 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE J:REFER ILLUST. |
1 | ||
| 77298-12070 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE H:REFER ILLUST. |
1 | ||
| 77286-47020 |
NZE120..LHD..XLI;ZZE122..SED..GCC;NZE121,ZZE121..GEN;ZZE122..LHD..WG..GEN;ZZE122..WG..(ARL,GCC) TYPE A:REFER ILLUST. |
1 | ||
| 77289-20060 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN TYPE B:REFER ILLUST. |
1 | ||
| 77286-12060 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN TYPE F:REFER ILLUST. |
1 | ||
| 77298-12090 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE K:REFER ILLUST. |
1 | ||
| 77298-12060 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN TYPE E:REFER ILLUST. |
1 | ||
| 77298-12100 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN TYPE D:REFER ILLUST. |
1 | ||
| 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 | ||||
| 77289-20060 |
ZZE122..ARL;NZE120,ZZE122..LHD..GEN TYPE B:REFER ILLUST. |
1 | ||
| 77298-12060 |
ZZE122..ARL;NZE120,ZZE122..LHD..GEN TYPE E:REFER ILLUST. |
1 | ||
| 77286-12060 |
CE120,NZE120,ZZE122..LHD..GEN TYPE F:REFER TO ILLUSTRATION |
1 | ||
| 77286-47020 |
NZE120..LHD..XLI..GEN TYPE A:REFER ILLUST. |
1 | ||
| 77298-20080 |
ZZE122..ARL;NZE120,ZZE122..LHD..GEN TYPE C:REFER ILLUST. |
1 | ||
| 77298-20080 |
CE120,NZE120,ZZE122..LHD..GEN TYPE C:REFER TO ILLUSTRATION & W(PROTECTOR) |
1 | ||
| 77298-12090 |
CE120,NZE120,ZZE122..LHD..GEN TYPE K:REFER TO ILLUSTRATION |
1 | ||
| 77286-12060 |
ZZE122..ARL;NZE120,ZZE122..LHD..GEN TYPE F:REFER ILLUST. |
1 | ||
| 77298-12100 |
ZZE122..ARL;NZE120,ZZE122..LHD..GEN TYPE D:REFER ILLUST. |
1 | ||
| 77289-20060 |
CE120,NZE120,ZZE122..LHD..GEN TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 77298-12080 |
CE120,NZE120,ZZE122..LHD..GEN TYPE J:REFER TO ILLUSTRATION |
1 | ||
| 77298-12060 |
CE120,NZE120,ZZE122..LHD..GEN TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 77298-12070 |
CE120,NZE120,ZZE122..LHD..GEN TYPE H:REFER TO ILLUSTRATION |
1 | ||
| 77286-47020 |
ZZE122..GCC;NZE120..LHD..XLI;NZE121,ZZE121..GEN;ZZE122..LHD..WG..GEN TYPE A:REFER ILLUST. |
1 | ||
| 77298-12070 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE H:REFER TO ILLUSTRATION |
1 | ||
| 77298-12060 |
CE120,NZE12#,ZZE12#..GCC,GEN TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 77298-20080 |
CE120,NZE12#,ZZE12#..GCC,GEN TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 77289-20060 |
CE120,NZE12#,ZZE12#..GCC,GEN TYPE B:REFER ILLUST. |
1 | ||
| 77298-12100 |
CE120,NZE12#,ZZE12#..GCC,GEN TYPE D:REFER ILLUST. |
1 | ||
| 77298-12090 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE K:REFER TO ILLUSTRATION |
1 | ||
| 77286-12060 |
CE120,NZE12#,ZZE12#..GCC,GEN TYPE F:REFER ILLUST. |
1 | ||
| 77286-47020 |
ZZE122..LHD..WG..GEN;NZE120..LHD..XLI..GEN TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 77298-12080 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE J:REFER TO ILLUSTRATION |
1 | ||
| 77298-20080 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN W(PROTECTOR),TYPE C:REFER ILLUST. |
3 | ||
| 77298-20080 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE C:REFER TO ILLUSTRATION & W(PROTECTOR) |
1 | ||
| 77298-20080 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE C:REFER ILLUST. |
1 | ||
| 77298-12080 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE J:REFER ILLUST. |
1 | ||
| 77298-12070 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE H:REFER ILLUST. |
1 | ||
| 77286-47020 |
NZE120..LHD..XLI;ZZE122..SED..GCC;NZE121,ZZE121..GEN;ZZE122..LHD..WG..GEN;ZZE122..WG..(ARL,GCC) TYPE A:REFER ILLUST. |
1 | ||
| 77289-20060 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN TYPE B:REFER ILLUST. |
1 | ||
| 77286-12060 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN TYPE F:REFER ILLUST. |
1 | ||
| 77298-12090 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE K:REFER ILLUST. |
1 | ||
| 77298-12060 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN TYPE E:REFER ILLUST. |
1 | ||
| 77298-12100 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN TYPE D:REFER ILLUST. |
1 | ||
| 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 | ||||
| 77289-20060 |
ZZE122..ARL;NZE120,ZZE122..LHD..GEN TYPE B:REFER ILLUST. |
1 | ||
| 77298-12060 |
ZZE122..ARL;NZE120,ZZE122..LHD..GEN TYPE E:REFER ILLUST. |
1 | ||
| 77286-12060 |
CE120,NZE120,ZZE122..LHD..GEN TYPE F:REFER TO ILLUSTRATION |
1 | ||
| 77286-47020 |
NZE120..LHD..XLI..GEN TYPE A:REFER ILLUST. |
1 | ||
| 77298-20080 |
ZZE122..ARL;NZE120,ZZE122..LHD..GEN TYPE C:REFER ILLUST. |
1 | ||
| 77298-20080 |
CE120,NZE120,ZZE122..LHD..GEN TYPE C:REFER TO ILLUSTRATION & W(PROTECTOR) |
1 | ||
| 77298-12090 |
CE120,NZE120,ZZE122..LHD..GEN TYPE K:REFER TO ILLUSTRATION |
1 | ||
| 77286-12060 |
ZZE122..ARL;NZE120,ZZE122..LHD..GEN TYPE F:REFER ILLUST. |
1 | ||
| 77298-12100 |
ZZE122..ARL;NZE120,ZZE122..LHD..GEN TYPE D:REFER ILLUST. |
1 | ||
| 77289-20060 |
CE120,NZE120,ZZE122..LHD..GEN TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 77298-12080 |
CE120,NZE120,ZZE122..LHD..GEN TYPE J:REFER TO ILLUSTRATION |
1 | ||
| 77298-12060 |
CE120,NZE120,ZZE122..LHD..GEN TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 77298-12070 |
CE120,NZE120,ZZE122..LHD..GEN TYPE H:REFER TO ILLUSTRATION |
1 | ||
| 77286-47020 |
ZZE122..GCC;NZE120..LHD..XLI;NZE121,ZZE121..GEN;ZZE122..LHD..WG..GEN TYPE A:REFER ILLUST. |
1 | ||
| 77298-12070 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE H:REFER TO ILLUSTRATION |
1 | ||
| 77298-12060 |
CE120,NZE12#,ZZE12#..GCC,GEN TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 77298-20080 |
CE120,NZE12#,ZZE12#..GCC,GEN TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 77289-20060 |
CE120,NZE12#,ZZE12#..GCC,GEN TYPE B:REFER ILLUST. |
1 | ||
| 77298-12100 |
CE120,NZE12#,ZZE12#..GCC,GEN TYPE D:REFER ILLUST. |
1 | ||
| 77298-12090 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE K:REFER TO ILLUSTRATION |
1 | ||
| 77286-12060 |
CE120,NZE12#,ZZE12#..GCC,GEN TYPE F:REFER ILLUST. |
1 | ||
| 77286-47020 |
ZZE122..LHD..WG..GEN;NZE120..LHD..XLI..GEN TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 77298-12080 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE J:REFER TO ILLUSTRATION |
1 | ||
| 77298-20080 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN W(PROTECTOR),TYPE C:REFER ILLUST. |
3 | ||
| 77298-20080 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE C:REFER TO ILLUSTRATION & W(PROTECTOR) |
1 | ||
| 77298-20080 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE C:REFER ILLUST. |
1 | ||
| 77298-12080 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE J:REFER ILLUST. |
1 | ||
| 77298-12070 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE H:REFER ILLUST. |
1 | ||
| 77286-47020 |
NZE120..LHD..XLI;ZZE122..SED..GCC;NZE121,ZZE121..GEN;ZZE122..LHD..WG..GEN;ZZE122..WG..(ARL,GCC) TYPE A:REFER ILLUST. |
1 | ||
| 77289-20060 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN TYPE B:REFER ILLUST. |
1 | ||
| 77286-12060 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN TYPE F:REFER ILLUST. |
1 | ||
| 77298-12090 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE K:REFER ILLUST. |
1 | ||
| 77298-12060 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN TYPE E:REFER ILLUST. |
1 | ||
| 77298-12100 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN TYPE D:REFER ILLUST. |
1 | ||
| 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 | ||||
| 77289-20060 |
ZZE122..ARL;NZE120,ZZE122..LHD..GEN TYPE B:REFER ILLUST. |
1 | ||
| 77298-12060 |
ZZE122..ARL;NZE120,ZZE122..LHD..GEN TYPE E:REFER ILLUST. |
1 | ||
| 77286-12060 |
CE120,NZE120,ZZE122..LHD..GEN TYPE F:REFER TO ILLUSTRATION |
1 | ||
| 77286-47020 |
NZE120..LHD..XLI..GEN TYPE A:REFER ILLUST. |
1 | ||
| 77298-20080 |
ZZE122..ARL;NZE120,ZZE122..LHD..GEN TYPE C:REFER ILLUST. |
1 | ||
| 77298-20080 |
CE120,NZE120,ZZE122..LHD..GEN TYPE C:REFER TO ILLUSTRATION & W(PROTECTOR) |
1 | ||
| 77298-12090 |
CE120,NZE120,ZZE122..LHD..GEN TYPE K:REFER TO ILLUSTRATION |
1 | ||
| 77286-12060 |
ZZE122..ARL;NZE120,ZZE122..LHD..GEN TYPE F:REFER ILLUST. |
1 | ||
| 77298-12100 |
ZZE122..ARL;NZE120,ZZE122..LHD..GEN TYPE D:REFER ILLUST. |
1 | ||
| 77289-20060 |
CE120,NZE120,ZZE122..LHD..GEN TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 77298-12080 |
CE120,NZE120,ZZE122..LHD..GEN TYPE J:REFER TO ILLUSTRATION |
1 | ||
| 77298-12060 |
CE120,NZE120,ZZE122..LHD..GEN TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 77298-12070 |
CE120,NZE120,ZZE122..LHD..GEN TYPE H:REFER TO ILLUSTRATION |
1 | ||
| 77286-47020 |
ZZE122..GCC;NZE120..LHD..XLI;NZE121,ZZE121..GEN;ZZE122..LHD..WG..GEN TYPE A:REFER ILLUST. |
1 | ||
| 77298-12070 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE H:REFER TO ILLUSTRATION |
1 | ||
| 77298-12060 |
CE120,NZE12#,ZZE12#..GCC,GEN TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 77298-20080 |
CE120,NZE12#,ZZE12#..GCC,GEN TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 77289-20060 |
CE120,NZE12#,ZZE12#..GCC,GEN TYPE B:REFER ILLUST. |
1 | ||
| 77298-12100 |
CE120,NZE12#,ZZE12#..GCC,GEN TYPE D:REFER ILLUST. |
1 | ||
| 77298-12090 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE K:REFER TO ILLUSTRATION |
1 | ||
| 77286-12060 |
CE120,NZE12#,ZZE12#..GCC,GEN TYPE F:REFER ILLUST. |
1 | ||
| 77286-47020 |
ZZE122..LHD..WG..GEN;NZE120..LHD..XLI..GEN TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 77298-12080 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE J:REFER TO ILLUSTRATION |
1 | ||
| 77298-20080 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN W(PROTECTOR),TYPE C:REFER ILLUST. |
3 | ||
| 77298-20080 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE C:REFER TO ILLUSTRATION & W(PROTECTOR) |
1 | ||
| 77298-20080 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE C:REFER ILLUST. |
1 | ||
| 77298-12080 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE J:REFER ILLUST. |
1 | ||
| 77298-12070 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE H:REFER ILLUST. |
1 | ||
| 77286-47020 |
NZE120..LHD..XLI;ZZE122..SED..GCC;NZE121,ZZE121..GEN;ZZE122..LHD..WG..GEN;ZZE122..WG..(ARL,GCC) TYPE A:REFER ILLUST. |
1 | ||
| 77289-20060 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN TYPE B:REFER ILLUST. |
1 | ||
| 77286-12060 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN TYPE F:REFER ILLUST. |
1 | ||
| 77298-12090 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE K:REFER ILLUST. |
1 | ||
| 77298-12060 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN TYPE E:REFER ILLUST. |
1 | ||
| 77298-12100 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN TYPE D:REFER ILLUST. |
1 | ||
| 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 | ||||
| 77289-20060 |
ZZE122..ARL;NZE120,ZZE122..LHD..GEN TYPE B:REFER ILLUST. |
1 | ||
| 77298-12060 |
ZZE122..ARL;NZE120,ZZE122..LHD..GEN TYPE E:REFER ILLUST. |
1 | ||
| 77286-12060 |
CE120,NZE120,ZZE122..LHD..GEN TYPE F:REFER TO ILLUSTRATION |
1 | ||
| 77286-47020 |
NZE120..LHD..XLI..GEN TYPE A:REFER ILLUST. |
1 | ||
| 77298-20080 |
ZZE122..ARL;NZE120,ZZE122..LHD..GEN TYPE C:REFER ILLUST. |
1 | ||
| 77298-20080 |
CE120,NZE120,ZZE122..LHD..GEN TYPE C:REFER TO ILLUSTRATION & W(PROTECTOR) |
1 | ||
| 77298-12090 |
CE120,NZE120,ZZE122..LHD..GEN TYPE K:REFER TO ILLUSTRATION |
1 | ||
| 77286-12060 |
ZZE122..ARL;NZE120,ZZE122..LHD..GEN TYPE F:REFER ILLUST. |
1 | ||
| 77298-12100 |
ZZE122..ARL;NZE120,ZZE122..LHD..GEN TYPE D:REFER ILLUST. |
1 | ||
| 77289-20060 |
CE120,NZE120,ZZE122..LHD..GEN TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 77298-12080 |
CE120,NZE120,ZZE122..LHD..GEN TYPE J:REFER TO ILLUSTRATION |
1 | ||
| 77298-12060 |
CE120,NZE120,ZZE122..LHD..GEN TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 77298-12070 |
CE120,NZE120,ZZE122..LHD..GEN TYPE H:REFER TO ILLUSTRATION |
1 | ||
| 77286-47020 |
ZZE122..GCC;NZE120..LHD..XLI;NZE121,ZZE121..GEN;ZZE122..LHD..WG..GEN TYPE A:REFER ILLUST. |
1 | ||
| 77298-12070 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE H:REFER TO ILLUSTRATION |
1 | ||
| 77298-12060 |
CE120,NZE12#,ZZE12#..GCC,GEN TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 77298-20080 |
CE120,NZE12#,ZZE12#..GCC,GEN TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 77289-20060 |
CE120,NZE12#,ZZE12#..GCC,GEN TYPE B:REFER ILLUST. |
1 | ||
| 77298-12100 |
CE120,NZE12#,ZZE12#..GCC,GEN TYPE D:REFER ILLUST. |
1 | ||
| 77298-12090 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE K:REFER TO ILLUSTRATION |
1 | ||
| 77286-12060 |
CE120,NZE12#,ZZE12#..GCC,GEN TYPE F:REFER ILLUST. |
1 | ||
| 77286-47020 |
ZZE122..LHD..WG..GEN;NZE120..LHD..XLI..GEN TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 77298-12080 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE J:REFER TO ILLUSTRATION |
1 | ||
| 77298-20080 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN W(PROTECTOR),TYPE C:REFER ILLUST. |
3 | ||
| 77298-20080 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE C:REFER TO ILLUSTRATION & W(PROTECTOR) |
1 | ||
| 77298-20080 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE C:REFER ILLUST. |
1 | ||
| 77298-12080 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE J:REFER ILLUST. |
1 | ||
| 77298-12070 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE H:REFER ILLUST. |
1 | ||
| 77286-47020 |
NZE120..LHD..XLI;ZZE122..SED..GCC;NZE121,ZZE121..GEN;ZZE122..LHD..WG..GEN;ZZE122..WG..(ARL,GCC) TYPE A:REFER ILLUST. |
1 | ||
| 77289-20060 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN TYPE B:REFER ILLUST. |
1 | ||
| 77286-12060 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN TYPE F:REFER ILLUST. |
1 | ||
| 77298-12090 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE K:REFER ILLUST. |
1 | ||
| 77298-12060 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN TYPE E:REFER ILLUST. |
1 | ||
| 77298-12100 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN TYPE D:REFER ILLUST. |
1 | ||
| 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 | ||||
| 77289-20060 |
ZZE122..ARL;NZE120,ZZE122..LHD..GEN TYPE B:REFER ILLUST. |
1 | ||
| 77298-12060 |
ZZE122..ARL;NZE120,ZZE122..LHD..GEN TYPE E:REFER ILLUST. |
1 | ||
| 77286-12060 |
CE120,NZE120,ZZE122..LHD..GEN TYPE F:REFER TO ILLUSTRATION |
1 | ||
| 77286-47020 |
NZE120..LHD..XLI..GEN TYPE A:REFER ILLUST. |
1 | ||
| 77298-20080 |
ZZE122..ARL;NZE120,ZZE122..LHD..GEN TYPE C:REFER ILLUST. |
1 | ||
| 77298-20080 |
CE120,NZE120,ZZE122..LHD..GEN TYPE C:REFER TO ILLUSTRATION & W(PROTECTOR) |
1 | ||
| 77298-12090 |
CE120,NZE120,ZZE122..LHD..GEN TYPE K:REFER TO ILLUSTRATION |
1 | ||
| 77286-12060 |
ZZE122..ARL;NZE120,ZZE122..LHD..GEN TYPE F:REFER ILLUST. |
1 | ||
| 77298-12100 |
ZZE122..ARL;NZE120,ZZE122..LHD..GEN TYPE D:REFER ILLUST. |
1 | ||
| 77289-20060 |
CE120,NZE120,ZZE122..LHD..GEN TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 77298-12080 |
CE120,NZE120,ZZE122..LHD..GEN TYPE J:REFER TO ILLUSTRATION |
1 | ||
| 77298-12060 |
CE120,NZE120,ZZE122..LHD..GEN TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 77298-12070 |
CE120,NZE120,ZZE122..LHD..GEN TYPE H:REFER TO ILLUSTRATION |
1 | ||
| 77286-47020 |
ZZE122..GCC;NZE120..LHD..XLI;NZE121,ZZE121..GEN;ZZE122..LHD..WG..GEN TYPE A:REFER ILLUST. |
1 | ||
| 77298-12070 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE H:REFER TO ILLUSTRATION |
1 | ||
| 77298-12060 |
CE120,NZE12#,ZZE12#..GCC,GEN TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 77298-20080 |
CE120,NZE12#,ZZE12#..GCC,GEN TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 77289-20060 |
CE120,NZE12#,ZZE12#..GCC,GEN TYPE B:REFER ILLUST. |
1 | ||
| 77298-12100 |
CE120,NZE12#,ZZE12#..GCC,GEN TYPE D:REFER ILLUST. |
1 | ||
| 77298-12090 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE K:REFER TO ILLUSTRATION |
1 | ||
| 77286-12060 |
CE120,NZE12#,ZZE12#..GCC,GEN TYPE F:REFER ILLUST. |
1 | ||
| 77286-47020 |
ZZE122..LHD..WG..GEN;NZE120..LHD..XLI..GEN TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 77298-12080 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE J:REFER TO ILLUSTRATION |
1 | ||
| 77298-20080 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN W(PROTECTOR),TYPE C:REFER ILLUST. |
3 | ||
| 77298-20080 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE C:REFER TO ILLUSTRATION & W(PROTECTOR) |
1 | ||
| 77298-20080 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE C:REFER ILLUST. |
1 | ||
| 77298-12080 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE J:REFER ILLUST. |
1 | ||
| 77298-12070 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE H:REFER ILLUST. |
1 | ||
| 77286-47020 |
NZE120..LHD..XLI;ZZE122..SED..GCC;NZE121,ZZE121..GEN;ZZE122..LHD..WG..GEN;ZZE122..WG..(ARL,GCC) TYPE A:REFER ILLUST. |
1 | ||
| 77289-20060 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN TYPE B:REFER ILLUST. |
1 | ||
| 77286-12060 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN TYPE F:REFER ILLUST. |
1 | ||
| 77298-12090 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE K:REFER ILLUST. |
1 | ||
| 77298-12060 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN TYPE E:REFER ILLUST. |
1 | ||
| 77298-12100 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN TYPE D:REFER ILLUST. |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77705-12110 |
NZE120..ATM..GEN |
1 | ||
| 77705-12110 |
ZZE122..RHD..ATM..GEN;ZZE122..SED..ATM..GCC;ZZE122..LHD..WG..ATM..GEN;ZZE122..WG..ATM..(ARL,GCC);NZE12#,ZZE121..ATM..(GCC,GEN) |
1 | ||
| 77705-12110 |
ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN;ZZE122..LHD..WG..ATM..GEN;NZE12#,ZZE121..ATM..(GCC,GEN) |
1 | ||
| Common parts | ||||
| 90119-06918 | ||||
| 90179-06074 | ||||
| Linked diagrams | ||||
| 2211 | ||||
| 5102 | ||||
ILLUST NO. 1 OF 2(0008-0209)GCC,GEN
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-12010 |
ZZE121..LHD;NZE120,ZZE122..ARL,GEN |
1 | ||
| 77024-12010 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77024-12010 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77024-12010 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77024-12010 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-12010 |
ZZE121..LHD;NZE120,ZZE122..ARL,GEN |
1 | ||
| 77024-12010 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77024-12010 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77024-12010 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77024-12010 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77027 - TUBE SUB-ASSY, FUEL EVAPORATION, NO.2 | ||||
| 77027-12020 |
ZZE122..GCC;NZE120..LHD..XLI;NZE121,ZZE121..GEN;ZZE122..LHD..WG..GEN |
1 | ||
| 77027-12020 |
ZZE122..GCC;NZE120..LHD..XLI;NZE121,ZZE121..GEN;ZZE122..LHD..WG..GEN |
1 | ||
| 77027-12030 |
NZE120,ZZE122..GEN |
1 | ||
| 77027-12030 |
CE120,NZE120,ZZE122..GEN W(CHECK VALVE) |
1 | ||
| 77027-12030 |
CE120,NZE120,ZZE122..GEN W(CHECK VALVE) |
1 | ||
| 77027 - TUBE SUB-ASSY, FUEL EVAPORATION, NO.2 | ||||
| 77027-12020 |
ZZE122..GCC;NZE120..LHD..XLI;NZE121,ZZE121..GEN;ZZE122..LHD..WG..GEN |
1 | ||
| 77027-12020 |
ZZE122..GCC;NZE120..LHD..XLI;NZE121,ZZE121..GEN;ZZE122..LHD..WG..GEN |
1 | ||
| 77027-12030 |
NZE120,ZZE122..GEN |
1 | ||
| 77027-12030 |
CE120,NZE120,ZZE122..GEN W(CHECK VALVE) |
1 | ||
| 77027-12030 |
CE120,NZE120,ZZE122..GEN W(CHECK VALVE) |
1 | ||
| 77027 - TUBE SUB-ASSY, FUEL EVAPORATION, NO.2 | ||||
| 77027-12020 |
ZZE122..GCC;NZE120..LHD..XLI;NZE121,ZZE121..GEN;ZZE122..LHD..WG..GEN |
1 | ||
| 77027-12020 |
ZZE122..GCC;NZE120..LHD..XLI;NZE121,ZZE121..GEN;ZZE122..LHD..WG..GEN |
1 | ||
| 77027-12030 |
NZE120,ZZE122..GEN |
1 | ||
| 77027-12030 |
CE120,NZE120,ZZE122..GEN W(CHECK VALVE) |
1 | ||
| 77027-12030 |
CE120,NZE120,ZZE122..GEN W(CHECK VALVE) |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-12410 |
CE120,NZE120,ZZE122..LHD..SED..GEN |
1 | ||
| 77035-12410 |
CE120,NZE120,ZZE12#..LHD..SED |
1 | ||
| 77035-12410 |
CE120,NZE120,ZZE12#..LHD..SED |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-12830 |
CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 77001-12830 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77001-12830 |
CE120,NZE120,ZZE122..LHD..GEN MIDDLE SOUTH AMERICA SPEC |
1 | ||
| 77001-12820 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77001-12C40 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77001-12830 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77108B - VALVE SUB-ASSY, FUEL TANK FILLER CHECK | ||||
| 77108-12040 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 77108-12040 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77108-12040 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77158A - SUPPORT, TANK SUCTION TUBE | ||||
| 77158-12030 |
CE120,NZE120,ZZE122..GEN |
1 | ||
| 77158-12030 |
CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 77158-12030 |
CE120,NZE120,ZZE122..GEN |
1 | ||
| 77158A - SUPPORT, TANK SUCTION TUBE | ||||
| 77158-12030 |
CE120,NZE120,ZZE122..GEN |
1 | ||
| 77158-12030 |
CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 77158-12030 |
CE120,NZE120,ZZE122..GEN |
1 | ||
| 77168A - PLATE, FUEL TANK VENT TUBE SET | ||||
| 77168-52010 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 77168-52010 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77168-52010 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77168-52010 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-33020 |
ZZE121..LHD;CE120,NZE120,ZZE122..ARL,GEN |
4 | ||
| 77169-33020 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77169-33020 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77169-33020 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77169-33020 |
NZE121..ATM;NZE121..MTM..LX;NZE120,ZZE12#..SED..(GCC,GEN) |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-33020 |
ZZE121..LHD;CE120,NZE120,ZZE122..ARL,GEN |
4 | ||
| 77169-33020 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77169-33020 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77169-33020 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77169-33020 |
NZE121..ATM;NZE121..MTM..LX;NZE120,ZZE12#..SED..(GCC,GEN) |
1 | ||
| 77175 - SUPPORT, FUEL SUCTION, NO.2 | ||||
| 77175-47010 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77175-47010 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77175-47010 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77175-47010 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77175-47010 |
ZZE121..LHD;NZE120,ZZE122..ARL,GEN |
4 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-12590 |
NZE120..LHD..XLI..GEN W(INTERFRENCE) |
1 | ||
| 77201-12580 |
CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 77201-12580 |
NZE121,ZZE121..RHD..LX;CE120,NZE120,ZZE122..GCC,GEN |
1 | ||
| 77201-12590 |
ZZE122..GCC;NZE120..LHD..XLI;NZE121,ZZE121..GEN;ZZE122..LHD..WG..GEN W(INTERFRENCE) |
1 | ||
| 77201-12591 |
ZZE122..ARL;ZZE122..LHD..WG..GEN;NZE120..LHD..XLI..GEN W(INTERFRENCE) |
1 | ||
| 77201-12591 |
NZE121..GLI;ZZE122..SED..GCC;ZZE122..LHD..WG..GEN;ZZE122..WG..(ARL,GCC);NZE120,ZZE121..LHD..(LX,XLI) W(INTERFRENCE) |
1 | ||
| 77201-12580 |
NZE121,ZZE121..RHD..LX..GEN;CE120,NZE120,ZZE122..GCC,GEN |
1 | ||
| 77202A - HOSE, FUEL, NO.1 (FOR BREATHER TUBE) | ||||
| 95313-13034 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN L=340 |
1 | ||
| 95313-13034 |
CE120,NZE12#,ZZE12#..GCC,GEN L=340 |
1 | ||
| 95313-13034 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN L=340 |
1 | ||
| 77209D - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-12160 |
ZZE121..LHD;CE120,NZE120,ZZE122..ARL,GEN |
4 | ||
| 77209-12160 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77209-12160 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77209-12160 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77209-12160 |
NZE121..ATM;NZE121..MTM..LX;NZE120,ZZE12#..SED..(GCC,GEN) |
1 | ||
| 77209D - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-12160 |
ZZE121..LHD;CE120,NZE120,ZZE122..ARL,GEN |
4 | ||
| 77209-12160 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77209-12160 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77209-12160 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77209-12160 |
NZE121..ATM;NZE121..MTM..LX;NZE120,ZZE12#..SED..(GCC,GEN) |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-32090 |
CE120..RHD..GEN;NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 77213-32090 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77213-32090 |
ZZE122..WG..ARL;NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-32060 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77216-32060 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77216-32060 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-32050 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 77217-32050 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77217-32050 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
ZZE121..LHD;NZE120,ZZE122..ARL,GEN |
4 | ||
| 77241-33011 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77241-33011 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77241-33011 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77241-33011 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
ZZE121..LHD;NZE120,ZZE122..ARL,GEN |
4 | ||
| 77241-33011 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77241-33011 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77241-33011 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77241-33011 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
ZZE121..LHD;NZE120,ZZE122..ARL,GEN |
4 | ||
| 77241-33011 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77241-33011 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77241-33011 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77241-33011 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77276 - PROTECTOR, FUEL HOSE | ||||
| 77276-12050 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77276-12050 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 77276-12050 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-12170 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77277-12170 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77277-12170 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 77281 - BRACKET, FUEL MAIN TUBE, NO.1 | ||||
| 77281-32040 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77281-32040 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 77281-32040 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77281A - CLAMP, FUEL FILLER PIPE | ||||
| 77281-12070 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 77281-12070 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77281-12070 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 77289-12030 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 77289-12030 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77289-12030 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77289-12030 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77291-12150 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 77291-12150 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77291-12150 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-12070 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
2 | ||
| 77295-12070 |
CE120,NZE12#,ZZE12#..GCC,GEN |
2 | ||
| 77295-12070 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN |
2 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-12070 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
2 | ||
| 77295-12070 |
CE120,NZE12#,ZZE12#..GCC,GEN |
2 | ||
| 77295-12070 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN |
2 | ||
| 77296B - SUPPORT, FUEL TUBE PROTECTOR, NO.1 | ||||
| 77296-12030 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 77296-12030 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77296-12030 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 64606-12050 |
CE120,NZE120,ZZE122..LHD..SED..GEN |
1 | ||
| 64606-12050 |
CE120,NZE120,ZZE12#..LHD..SED |
1 | ||
| 64606-12050 |
CE120,NZE120,ZZE12#..LHD..SED |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-48010 |
ZZE122..ARL;NZE120,ZZE122..LHD..GEN |
1 | ||
| 77310-48010 |
ZZE121..LHD;NZE120,ZZE122..GCC,GEN |
1 | ||
| 77310-48010 |
ZZE121..LHD;NZE120,ZZE122..GCC,GEN |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77316-16010 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77316-16010 |
ZZE122..ARL;NZE120,ZZE122..LHD..GEN |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-12440 |
ZZE122..SED..ARL;CE120,NZE120,ZZE122..LHD..SED..GEN |
1 | ||
| 77350-12440 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) |
1 | ||
| 77350-12440 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-30080 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 77360-30080 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77360-30080 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-12050 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 77377-12050 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77377-12050 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-12040 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 77391-12040 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77391-12040 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-12020 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77391-12020 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 77391-12020 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-12230 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 77601-12250 |
CE120,NZE120,ZZE122..LHD..GEN W(PROTECTOR = PNC 77266A) |
1 | ||
| 77601-12230 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77601-12230 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77601-12250 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN W(PROTECTOR = PNC 77266A) |
1 | ||
| 77601-12250 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN W(PROTECTOR = PNC 77266A) |
1 | ||
| 77602 - CASE SUB-ASSY, FUEL TANK, UPPER | ||||
| 77602-12180 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 77602-12190 |
CE120,NZE120,ZZE122..LHD..GEN W(PROTECTOR = PNC 77266A) |
1 | ||
| 77602-12180 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77602-12190 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN W(PROTECTOR = PNC 77266A) |
1 | ||
| 77602-12180 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77602-12190 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN W(PROTECTOR = PNC 77266A) |
1 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-12160 |
CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 77641-12160 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77641-12160 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77642A - PROTECTOR, FUEL TANK, NO.2 | ||||
| 77642-12040 |
CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 77642-12040 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN |
1 | ||
| 77642-12040 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN |
1 | ||
| 77642-12041 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-20090 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
7 | ||
| 77651-20090 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
7 | ||
| 77651-20090 |
CE120,NZE12#,ZZE12#..GCC,GEN |
7 | ||
| 77681 - SEAT, FUEL TANK BAND, RH | ||||
| 77681-34030 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77681-34030 |
CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 77681-34030 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77682 - SEAT, FUEL TANK BAND, LH | ||||
| 77681-32060 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77681-32060 |
CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 77681-32060 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-52020 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77785-52020 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77785-52020 |
ZZE121..LHD;NZE120,ZZE122..ARL,GEN |
4 | ||
| 77785-52020 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77785-52020 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| Common parts | ||||
| 82711-16790 | ||||
| 82711-1E300 | ||||
| 90119-06391 | ||||
| 90119-10922 | ||||
| 90159-50343 | ||||
| 90159-60602 | ||||
| 90269-03067 | ||||
| 90269-06017 | ||||
| 90460-22002 | ||||
| 90460-46003 | ||||
| 91626-B0614 | ||||
| 91631-B0610 | ||||
| 91651-B0820 | ||||
| Linked diagrams | ||||
| 2211 | ||||
ILLUST NO. 1 OF 2(0209- )GCC,GEN
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-12010 |
ZZE121..LHD;NZE120,ZZE122..ARL,GEN |
1 | ||
| 77024-12010 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77024-12010 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77024-12010 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77024-12010 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-12010 |
ZZE121..LHD;NZE120,ZZE122..ARL,GEN |
1 | ||
| 77024-12010 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77024-12010 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77024-12010 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77024-12010 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77027 - TUBE SUB-ASSY, FUEL EVAPORATION, NO.2 | ||||
| 77027-12020 |
ZZE122..GCC;NZE120..LHD..XLI;NZE121,ZZE121..GEN;ZZE122..LHD..WG..GEN |
1 | ||
| 77027-12020 |
ZZE122..GCC;NZE120..LHD..XLI;NZE121,ZZE121..GEN;ZZE122..LHD..WG..GEN |
1 | ||
| 77027-12030 |
NZE120,ZZE122..GEN |
1 | ||
| 77027-12030 |
CE120,NZE120,ZZE122..GEN W(CHECK VALVE) |
1 | ||
| 77027-12030 |
CE120,NZE120,ZZE122..GEN W(CHECK VALVE) |
1 | ||
| 77027 - TUBE SUB-ASSY, FUEL EVAPORATION, NO.2 | ||||
| 77027-12020 |
ZZE122..GCC;NZE120..LHD..XLI;NZE121,ZZE121..GEN;ZZE122..LHD..WG..GEN |
1 | ||
| 77027-12020 |
ZZE122..GCC;NZE120..LHD..XLI;NZE121,ZZE121..GEN;ZZE122..LHD..WG..GEN |
1 | ||
| 77027-12030 |
NZE120,ZZE122..GEN |
1 | ||
| 77027-12030 |
CE120,NZE120,ZZE122..GEN W(CHECK VALVE) |
1 | ||
| 77027-12030 |
CE120,NZE120,ZZE122..GEN W(CHECK VALVE) |
1 | ||
| 77027 - TUBE SUB-ASSY, FUEL EVAPORATION, NO.2 | ||||
| 77027-12020 |
ZZE122..GCC;NZE120..LHD..XLI;NZE121,ZZE121..GEN;ZZE122..LHD..WG..GEN |
1 | ||
| 77027-12020 |
ZZE122..GCC;NZE120..LHD..XLI;NZE121,ZZE121..GEN;ZZE122..LHD..WG..GEN |
1 | ||
| 77027-12030 |
NZE120,ZZE122..GEN |
1 | ||
| 77027-12030 |
CE120,NZE120,ZZE122..GEN W(CHECK VALVE) |
1 | ||
| 77027-12030 |
CE120,NZE120,ZZE122..GEN W(CHECK VALVE) |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-12410 |
CE120,NZE120,ZZE122..LHD..SED..GEN |
1 | ||
| 77035-12410 |
CE120,NZE120,ZZE12#..LHD..SED |
1 | ||
| 77035-12410 |
CE120,NZE120,ZZE12#..LHD..SED |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-12830 |
CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 77001-12830 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77001-12830 |
CE120,NZE120,ZZE122..LHD..GEN MIDDLE SOUTH AMERICA SPEC |
1 | ||
| 77001-12820 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77001-12C40 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77001-12830 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77108B - VALVE SUB-ASSY, FUEL TANK FILLER CHECK | ||||
| 77108-12040 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 77108-12040 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77108-12040 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77158A - SUPPORT, TANK SUCTION TUBE | ||||
| 77158-12030 |
CE120,NZE120,ZZE122..GEN |
1 | ||
| 77158-12030 |
CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 77158-12030 |
CE120,NZE120,ZZE122..GEN |
1 | ||
| 77158A - SUPPORT, TANK SUCTION TUBE | ||||
| 77158-12030 |
CE120,NZE120,ZZE122..GEN |
1 | ||
| 77158-12030 |
CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 77158-12030 |
CE120,NZE120,ZZE122..GEN |
1 | ||
| 77168A - PLATE, FUEL TANK VENT TUBE SET | ||||
| 77168-52010 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 77168-52010 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77168-52010 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77168-52010 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-33020 |
ZZE121..LHD;CE120,NZE120,ZZE122..ARL,GEN |
4 | ||
| 77169-33020 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77169-33020 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77169-33020 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77169-33020 |
NZE121..ATM;NZE121..MTM..LX;NZE120,ZZE12#..SED..(GCC,GEN) |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-33020 |
ZZE121..LHD;CE120,NZE120,ZZE122..ARL,GEN |
4 | ||
| 77169-33020 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77169-33020 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77169-33020 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77169-33020 |
NZE121..ATM;NZE121..MTM..LX;NZE120,ZZE12#..SED..(GCC,GEN) |
1 | ||
| 77175 - SUPPORT, FUEL SUCTION, NO.2 | ||||
| 77175-47010 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77175-47010 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77175-47010 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77175-47010 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77175-47010 |
ZZE121..LHD;NZE120,ZZE122..ARL,GEN |
4 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-12590 |
NZE120..LHD..XLI..GEN W(INTERFRENCE) |
1 | ||
| 77201-12580 |
CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 77201-12580 |
NZE121,ZZE121..RHD..LX;CE120,NZE120,ZZE122..GCC,GEN |
1 | ||
| 77201-12590 |
ZZE122..GCC;NZE120..LHD..XLI;NZE121,ZZE121..GEN;ZZE122..LHD..WG..GEN W(INTERFRENCE) |
1 | ||
| 77201-12591 |
ZZE122..ARL;ZZE122..LHD..WG..GEN;NZE120..LHD..XLI..GEN W(INTERFRENCE) |
1 | ||
| 77201-12591 |
NZE121..GLI;ZZE122..SED..GCC;ZZE122..LHD..WG..GEN;ZZE122..WG..(ARL,GCC);NZE120,ZZE121..LHD..(LX,XLI) W(INTERFRENCE) |
1 | ||
| 77201-12580 |
NZE121,ZZE121..RHD..LX..GEN;CE120,NZE120,ZZE122..GCC,GEN |
1 | ||
| 77202A - HOSE, FUEL, NO.1 (FOR BREATHER TUBE) | ||||
| 95313-13034 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN L=340 |
1 | ||
| 95313-13034 |
CE120,NZE12#,ZZE12#..GCC,GEN L=340 |
1 | ||
| 95313-13034 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN L=340 |
1 | ||
| 77209D - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-12160 |
ZZE121..LHD;CE120,NZE120,ZZE122..ARL,GEN |
4 | ||
| 77209-12160 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77209-12160 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77209-12160 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77209-12160 |
NZE121..ATM;NZE121..MTM..LX;NZE120,ZZE12#..SED..(GCC,GEN) |
1 | ||
| 77209D - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-12160 |
ZZE121..LHD;CE120,NZE120,ZZE122..ARL,GEN |
4 | ||
| 77209-12160 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77209-12160 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77209-12160 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77209-12160 |
NZE121..ATM;NZE121..MTM..LX;NZE120,ZZE12#..SED..(GCC,GEN) |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-32090 |
CE120..RHD..GEN;NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 77213-32090 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77213-32090 |
ZZE122..WG..ARL;NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-32060 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77216-32060 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77216-32060 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-32050 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 77217-32050 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77217-32050 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77219 - COVER, FUEL TANK FILLER PIPE | ||||
| 77219-52050 |
NZE120,ZZE122..LHD..GEN |
2 | ||
| 77219-52050 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
2 | ||
| 77219 - COVER, FUEL TANK FILLER PIPE | ||||
| 77219-52050 |
NZE120,ZZE122..LHD..GEN |
2 | ||
| 77219-52050 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
2 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
ZZE121..LHD;NZE120,ZZE122..ARL,GEN |
4 | ||
| 77241-33011 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77241-33011 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77241-33011 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77241-33011 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
ZZE121..LHD;NZE120,ZZE122..ARL,GEN |
4 | ||
| 77241-33011 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77241-33011 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77241-33011 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77241-33011 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
ZZE121..LHD;NZE120,ZZE122..ARL,GEN |
4 | ||
| 77241-33011 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77241-33011 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77241-33011 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77241-33011 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77276 - PROTECTOR, FUEL HOSE | ||||
| 77276-12050 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77276-12050 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 77276-12050 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-12170 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77277-12170 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77277-12170 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 77281 - BRACKET, FUEL MAIN TUBE, NO.1 | ||||
| 77281-32040 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77281-32040 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 77281-32040 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77281A - CLAMP, FUEL FILLER PIPE | ||||
| 77281-12070 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 77281-12070 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77281-12070 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 77289-12030 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 77289-12030 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77289-12030 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77289-12030 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77291-12150 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 77291-12150 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77291-12150 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-12070 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
2 | ||
| 77295-12070 |
CE120,NZE12#,ZZE12#..GCC,GEN |
2 | ||
| 77295-12070 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN |
2 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-12070 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
2 | ||
| 77295-12070 |
CE120,NZE12#,ZZE12#..GCC,GEN |
2 | ||
| 77295-12070 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN |
2 | ||
| 77296B - SUPPORT, FUEL TUBE PROTECTOR, NO.1 | ||||
| 77296-12030 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 77296-12030 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77296-12030 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 64606-12050 |
CE120,NZE120,ZZE122..LHD..SED..GEN |
1 | ||
| 64606-12050 |
CE120,NZE120,ZZE12#..LHD..SED |
1 | ||
| 64606-12050 |
CE120,NZE120,ZZE12#..LHD..SED |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-48010 |
ZZE122..ARL;NZE120,ZZE122..LHD..GEN |
1 | ||
| 77310-48010 |
ZZE121..LHD;NZE120,ZZE122..GCC,GEN |
1 | ||
| 77310-48010 |
ZZE121..LHD;NZE120,ZZE122..GCC,GEN |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77316-16010 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77316-16010 |
ZZE122..ARL;NZE120,ZZE122..LHD..GEN |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-12440 |
ZZE122..SED..ARL;CE120,NZE120,ZZE122..LHD..SED..GEN |
1 | ||
| 77350-12440 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) |
1 | ||
| 77350-12440 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-30080 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 77360-30080 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77360-30080 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-12050 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 77377-12050 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77377-12050 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-12040 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 77391-12040 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77391-12040 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-12020 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77391-12020 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 77391-12020 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-12230 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 77601-12250 |
CE120,NZE120,ZZE122..LHD..GEN W(PROTECTOR = PNC 77266A) |
1 | ||
| 77601-12230 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77601-12230 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77601-12250 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN W(PROTECTOR = PNC 77266A) |
1 | ||
| 77601-12250 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN W(PROTECTOR = PNC 77266A) |
1 | ||
| 77602 - CASE SUB-ASSY, FUEL TANK, UPPER | ||||
| 77602-12180 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 77602-12190 |
CE120,NZE120,ZZE122..LHD..GEN W(PROTECTOR = PNC 77266A) |
1 | ||
| 77602-12180 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77602-12190 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN W(PROTECTOR = PNC 77266A) |
1 | ||
| 77602-12180 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77602-12190 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN W(PROTECTOR = PNC 77266A) |
1 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-12160 |
CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 77641-12160 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77641-12160 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77642A - PROTECTOR, FUEL TANK, NO.2 | ||||
| 77642-12040 |
CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 77642-12040 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN |
1 | ||
| 77642-12040 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN |
1 | ||
| 77642-12041 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-20090 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
7 | ||
| 77651-20090 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
7 | ||
| 77651-20090 |
CE120,NZE12#,ZZE12#..GCC,GEN |
7 | ||
| 77681 - SEAT, FUEL TANK BAND, RH | ||||
| 77681-34030 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77681-34030 |
CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 77681-34030 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77682 - SEAT, FUEL TANK BAND, LH | ||||
| 77681-32060 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77681-32060 |
CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 77681-32060 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-52020 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77785-52020 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77785-52020 |
ZZE121..LHD;NZE120,ZZE122..ARL,GEN |
4 | ||
| 77785-52020 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77785-52020 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| Common parts | ||||
| 82711-16790 | ||||
| 82711-1E300 | ||||
| 90119-06391 | ||||
| 90119-10922 | ||||
| 90159-50343 | ||||
| 90159-60602 | ||||
| 90269-03067 | ||||
| 90269-06017 | ||||
| 90460-22002 | ||||
| 90460-46003 | ||||
| 91626-B0614 | ||||
| 91631-60622 | ||||
| 91631-B0610 | ||||
| 91631-B0614 | ||||
| 91651-B0820 | ||||
| Linked diagrams | ||||
| 2211 | ||||
| 8401 | ||||
ILLUST NO. 1 OF 2(0209-0404)CE120,NZE120,ZZE122..LHD..GEN
FUEL TANK MIDDLE SOUTH AMERICA SPEC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-12010 |
ZZE121..LHD;NZE120,ZZE122..ARL,GEN |
1 | ||
| 77024-12010 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77024-12010 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77024-12010 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77024-12010 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-12010 |
ZZE121..LHD;NZE120,ZZE122..ARL,GEN |
1 | ||
| 77024-12010 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77024-12010 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77024-12010 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77024-12010 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77027 - TUBE SUB-ASSY, FUEL EVAPORATION, NO.2 | ||||
| 77027-12030 |
NZE120,ZZE122..GEN |
1 | ||
| 77027-12020 |
ZZE122..GCC;NZE120..LHD..XLI;NZE121,ZZE121..GEN;ZZE122..LHD..WG..GEN |
1 | ||
| 77027-12020 |
ZZE122..GCC;NZE120..LHD..XLI;NZE121,ZZE121..GEN;ZZE122..LHD..WG..GEN |
1 | ||
| 77027-12030 |
CE120,NZE120,ZZE122..GEN W(CHECK VALVE) |
1 | ||
| 77027-12030 |
CE120,NZE120,ZZE122..GEN W(CHECK VALVE) |
1 | ||
| 77027 - TUBE SUB-ASSY, FUEL EVAPORATION, NO.2 | ||||
| 77027-12030 |
NZE120,ZZE122..GEN |
1 | ||
| 77027-12020 |
ZZE122..GCC;NZE120..LHD..XLI;NZE121,ZZE121..GEN;ZZE122..LHD..WG..GEN |
1 | ||
| 77027-12020 |
ZZE122..GCC;NZE120..LHD..XLI;NZE121,ZZE121..GEN;ZZE122..LHD..WG..GEN |
1 | ||
| 77027-12030 |
CE120,NZE120,ZZE122..GEN W(CHECK VALVE) |
1 | ||
| 77027-12030 |
CE120,NZE120,ZZE122..GEN W(CHECK VALVE) |
1 | ||
| 77027 - TUBE SUB-ASSY, FUEL EVAPORATION, NO.2 | ||||
| 77027-12030 |
NZE120,ZZE122..GEN |
1 | ||
| 77027-12020 |
ZZE122..GCC;NZE120..LHD..XLI;NZE121,ZZE121..GEN;ZZE122..LHD..WG..GEN |
1 | ||
| 77027-12020 |
ZZE122..GCC;NZE120..LHD..XLI;NZE121,ZZE121..GEN;ZZE122..LHD..WG..GEN |
1 | ||
| 77027-12030 |
CE120,NZE120,ZZE122..GEN W(CHECK VALVE) |
1 | ||
| 77027-12030 |
CE120,NZE120,ZZE122..GEN W(CHECK VALVE) |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-12410 |
CE120,NZE120,ZZE122..LHD..SED..GEN |
1 | ||
| 77035-12410 |
CE120,NZE120,ZZE12#..LHD..SED |
1 | ||
| 77035-12410 |
CE120,NZE120,ZZE12#..LHD..SED |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-12830 |
CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 77001-12830 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77001-12830 |
CE120,NZE120,ZZE122..LHD..GEN MIDDLE SOUTH AMERICA SPEC |
1 | ||
| 77001-12820 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77001-12C40 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77001-12830 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77158A - SUPPORT, TANK SUCTION TUBE | ||||
| 77158-12030 |
CE120,NZE120,ZZE122..GEN |
1 | ||
| 77158-12030 |
CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 77158-12030 |
CE120,NZE120,ZZE122..GEN |
1 | ||
| 77158A - SUPPORT, TANK SUCTION TUBE | ||||
| 77158-12030 |
CE120,NZE120,ZZE122..GEN |
1 | ||
| 77158-12030 |
CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 77158-12030 |
CE120,NZE120,ZZE122..GEN |
1 | ||
| 77168A - PLATE, FUEL TANK VENT TUBE SET | ||||
| 77168-52010 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 77168-52010 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77168-52010 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77168-52010 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-33020 |
ZZE121..LHD;CE120,NZE120,ZZE122..ARL,GEN |
4 | ||
| 77169-33020 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77169-33020 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77169-33020 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77169-33020 |
NZE121..ATM;NZE121..MTM..LX;NZE120,ZZE12#..SED..(GCC,GEN) |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-33020 |
ZZE121..LHD;CE120,NZE120,ZZE122..ARL,GEN |
4 | ||
| 77169-33020 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77169-33020 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77169-33020 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77169-33020 |
NZE121..ATM;NZE121..MTM..LX;NZE120,ZZE12#..SED..(GCC,GEN) |
1 | ||
| 77175 - SUPPORT, FUEL SUCTION, NO.2 | ||||
| 77175-47010 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77175-47010 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77175-47010 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77175-47010 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77175-47010 |
ZZE121..LHD;NZE120,ZZE122..ARL,GEN |
4 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-12590 |
NZE120..LHD..XLI..GEN W(INTERFRENCE) |
1 | ||
| 77201-12580 |
CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 77201-12580 |
NZE121,ZZE121..RHD..LX;CE120,NZE120,ZZE122..GCC,GEN |
1 | ||
| 77201-12590 |
ZZE122..GCC;NZE120..LHD..XLI;NZE121,ZZE121..GEN;ZZE122..LHD..WG..GEN W(INTERFRENCE) |
1 | ||
| 77201-12591 |
ZZE122..ARL;ZZE122..LHD..WG..GEN;NZE120..LHD..XLI..GEN W(INTERFRENCE) |
1 | ||
| 77201-12591 |
NZE121..GLI;ZZE122..SED..GCC;ZZE122..LHD..WG..GEN;ZZE122..WG..(ARL,GCC);NZE120,ZZE121..LHD..(LX,XLI) W(INTERFRENCE) |
1 | ||
| 77201-12580 |
NZE121,ZZE121..RHD..LX..GEN;CE120,NZE120,ZZE122..GCC,GEN |
1 | ||
| 77202A - HOSE, FUEL, NO.1 (FOR BREATHER TUBE) | ||||
| 95313-13034 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN L=340 |
1 | ||
| 95313-13034 |
CE120,NZE12#,ZZE12#..GCC,GEN L=340 |
1 | ||
| 95313-13034 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN L=340 |
1 | ||
| 77209D - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-12160 |
ZZE121..LHD;CE120,NZE120,ZZE122..ARL,GEN |
4 | ||
| 77209-12160 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77209-12160 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77209-12160 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77209-12160 |
NZE121..ATM;NZE121..MTM..LX;NZE120,ZZE12#..SED..(GCC,GEN) |
1 | ||
| 77209D - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-12160 |
ZZE121..LHD;CE120,NZE120,ZZE122..ARL,GEN |
4 | ||
| 77209-12160 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77209-12160 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77209-12160 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77209-12160 |
NZE121..ATM;NZE121..MTM..LX;NZE120,ZZE12#..SED..(GCC,GEN) |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-32090 |
CE120..RHD..GEN;NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 77213-32090 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77213-32090 |
ZZE122..WG..ARL;NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-32060 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77216-32060 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77216-32060 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-32050 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 77217-32050 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77217-32050 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77219 - COVER, FUEL TANK FILLER PIPE | ||||
| 77219-52050 |
NZE120,ZZE122..LHD..GEN |
2 | ||
| 77219-52050 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
2 | ||
| 77219 - COVER, FUEL TANK FILLER PIPE | ||||
| 77219-52050 |
NZE120,ZZE122..LHD..GEN |
2 | ||
| 77219-52050 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
2 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
ZZE121..LHD;NZE120,ZZE122..ARL,GEN |
4 | ||
| 77241-33011 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77241-33011 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77241-33011 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77241-33011 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
ZZE121..LHD;NZE120,ZZE122..ARL,GEN |
4 | ||
| 77241-33011 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77241-33011 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77241-33011 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77241-33011 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
ZZE121..LHD;NZE120,ZZE122..ARL,GEN |
4 | ||
| 77241-33011 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77241-33011 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77241-33011 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77241-33011 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77276 - PROTECTOR, FUEL HOSE | ||||
| 77276-12050 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77276-12050 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 77276-12050 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-12170 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77277-12170 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77277-12170 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 77281 - BRACKET, FUEL MAIN TUBE, NO.1 | ||||
| 77281-32040 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77281-32040 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 77281-32040 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77281A - CLAMP, FUEL FILLER PIPE | ||||
| 77281-12070 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 77281-12070 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77281-12070 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 77289-12030 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 77289-12030 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77289-12030 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77289-12030 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77291-12150 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 77291-12150 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77291-12150 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-12070 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
2 | ||
| 77295-12070 |
CE120,NZE12#,ZZE12#..GCC,GEN |
2 | ||
| 77295-12070 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN |
2 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-12070 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
2 | ||
| 77295-12070 |
CE120,NZE12#,ZZE12#..GCC,GEN |
2 | ||
| 77295-12070 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN |
2 | ||
| 77296B - SUPPORT, FUEL TUBE PROTECTOR, NO.1 | ||||
| 77296-12030 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 77296-12030 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77296-12030 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 64606-12050 |
CE120,NZE120,ZZE122..LHD..SED..GEN |
1 | ||
| 64606-12050 |
CE120,NZE120,ZZE12#..LHD..SED |
1 | ||
| 64606-12050 |
CE120,NZE120,ZZE12#..LHD..SED |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-48010 |
ZZE122..ARL;NZE120,ZZE122..LHD..GEN |
1 | ||
| 77310-48010 |
ZZE121..LHD;NZE120,ZZE122..GCC,GEN |
1 | ||
| 77310-48010 |
ZZE121..LHD;NZE120,ZZE122..GCC,GEN |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77316-16010 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77316-16010 |
ZZE122..ARL;NZE120,ZZE122..LHD..GEN |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-12440 |
ZZE122..SED..ARL;CE120,NZE120,ZZE122..LHD..SED..GEN |
1 | ||
| 77350-12440 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) |
1 | ||
| 77350-12440 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-30080 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 77360-30080 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77360-30080 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-12050 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 77377-12050 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77377-12050 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-12040 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 77391-12040 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77391-12040 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-12020 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77391-12020 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 77391-12020 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-12230 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 77601-12250 |
CE120,NZE120,ZZE122..LHD..GEN W(PROTECTOR = PNC 77266A) |
1 | ||
| 77601-12230 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77601-12230 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77601-12250 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN W(PROTECTOR = PNC 77266A) |
1 | ||
| 77601-12250 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN W(PROTECTOR = PNC 77266A) |
1 | ||
| 77602 - CASE SUB-ASSY, FUEL TANK, UPPER | ||||
| 77602-12180 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 77602-12190 |
CE120,NZE120,ZZE122..LHD..GEN W(PROTECTOR = PNC 77266A) |
1 | ||
| 77602-12180 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77602-12190 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN W(PROTECTOR = PNC 77266A) |
1 | ||
| 77602-12180 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77602-12190 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN W(PROTECTOR = PNC 77266A) |
1 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-12160 |
CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 77641-12160 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77641-12160 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-20090 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
7 | ||
| 77651-20090 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
7 | ||
| 77651-20090 |
CE120,NZE12#,ZZE12#..GCC,GEN |
7 | ||
| 77681 - SEAT, FUEL TANK BAND, RH | ||||
| 77681-34030 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77681-34030 |
CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 77681-34030 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77682 - SEAT, FUEL TANK BAND, LH | ||||
| 77681-32060 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77681-32060 |
CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 77681-32060 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-52020 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77785-52020 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77785-52020 |
ZZE121..LHD;NZE120,ZZE122..ARL,GEN |
4 | ||
| 77785-52020 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77785-52020 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| Common parts | ||||
| 90119-10922 | ||||
| 90159-50219 | ||||
| 90159-50343 | ||||
| 90159-60602 | ||||
| 90269-03067 | ||||
| 90269-06017 | ||||
| 90460-22002 | ||||
| 90460-46003 | ||||
| 91631-B0610 | ||||
| 91651-40614 | ||||
| 91651-B0820 | ||||
| Linked diagrams | ||||
| 2211 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
