NZE120L-AEPDK (2000)
Toyota Corolla/Altis Sed/Wg
ILLUST NO. 1 OF 4(0008- )
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-1A681 |
ZZE122..ARL;ZZE121..MTM..XLI;CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 67001-1A680 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 67001-1A681 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 67001-1A680 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 67001-1A620 |
CE120,NZE12#,ZZE12# |
1 | ||
| 67001-1A681 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-1A640 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 67002-1A640 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 67002-1A640 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 67002-1A580 |
CE120,NZE12#,ZZE12# |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-12670 |
CE120,NZE12#,ZZE12# |
1 | ||
| 67111-12670 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 67111-12670 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-12660 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 67112-12660 |
ZZE122..ARL;ZZE121..MTM..XLI;CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 67112-12660 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 67112-12660 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 67112-12660 |
CE120,NZE12#,ZZE12# |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-12220 |
CE120,NZE12#,ZZE12# |
1 | ||
| 67403-12220 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 67403-12220 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-12200 |
CE120,NZE12#,ZZE12# |
1 | ||
| 67404-12200 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 67404-12200 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 67813B - PACKING, DOOR PROTECTOR | ||||
| 67817-47010 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
2 | ||
| 67817-47010 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
2 | ||
| 67817-47010 |
CE120,NZE12#,ZZE12# |
2 | ||
| 67817-47010 |
ZZE122..ARL;ZZE121..MTM..XLI;CE120,NZE120,ZZE122..LHD..GEN |
2 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-12590 |
CE120,NZE12#,ZZE12#..GCC,GEN,PKN |
1 | ||
| 67831-12630 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 67831-12630 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 67831-12590 |
CE120,NZE120,ZZE122..LHD..GEN MIDDLE SOUTH AMERICA SPEC |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-12380 |
CE120,NZE12#,ZZE12#..GCC,GEN,PKN |
1 | ||
| 67832-12380 |
CE120,NZE120,ZZE122..LHD..GEN MIDDLE SOUTH AMERICA SPEC |
1 | ||
| 67832-12410 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 67832-12410 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-1A020 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 67861-1A020 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 67861-1A020 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-12870 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 67862-12870 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 67862-12870 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
CE120,NZE12#,ZZE12# |
14 | ||
| 67867-12150 |
CE120,NZE12#,ZZE12#..GCC,GEN |
14 | ||
| 67867-12150 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
14 | ||
| 67867-12150 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
14 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
CE120,NZE12#,ZZE12#..GCC,GEN |
14 | ||
| 67867-12150 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
14 | ||
| 67867-12150 |
CE120,NZE12#,ZZE12# |
14 | ||
| 67867-12150 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
14 | ||
| 67869B - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67869-12050 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
2 | ||
| 67869-12050 |
CE120,NZE12#,ZZE12#..GCC,GEN |
2 | ||
| 67869-12050 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
2 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-1A480 |
NZE121..LX;CE120,NZE120,ZZE12#..(GLI,LX,ULT,XLI)..(ARL,GCC,GEN) *UVCTT,T=3.5,GREEN |
1 | ||
| 68101-1A480 |
NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN *UVCTT,T=3.5,GREEN |
1 | ||
| 68101-1A480 |
NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN *UVCTT,T=3.5,GREEN |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-1A480 |
NZE121..LX;CE120,NZE120,ZZE12#..(GLI,LX,ULT,XLI)..(ARL,GCC,GEN) *UVCTT,T=3.5,GREEN |
1 | ||
| 68102-1A480 |
NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN *UVCTT,T=3.5,GREEN |
1 | ||
| 68102-1A480 |
NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN *UVCTT,T=3.5,GREEN |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-12510 |
CE120,NZE12#,ZZE12# |
1 | ||
| 68141-12511 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 68141-12511 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 68141-12511 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 68141-12512 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 68145A - CUSHION, FRONT DOOR WINDOW | ||||
| 69759-12110 |
CE120,NZE12#,ZZE12#..GCC,GEN |
4 | ||
| 69759-12110 |
CE120,NZE12#,ZZE12# |
4 | ||
| 69759-12060 |
NZE12#,ZZE12# |
4 | ||
| 69759-12110 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
4 | ||
| 68151C - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-12211 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 68151-12210 |
CE120,NZE12#,ZZE12# |
1 | ||
| 68151-12211 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 68151-12211 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 68151-12212 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 68610B - CHECK ASSY, FRONT DOOR, RH | ||||
| 68610-12161 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 68610-12160 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 68610-12160 |
CE120,NZE12#,ZZE12# |
1 | ||
| 68620 - CHECK ASSY, FRONT DOOR, LH | ||||
| 68620-12091 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 68620-12090 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 68620-12090 |
CE120,NZE12#,ZZE12# |
1 | ||
| 75921C - TAPE, BLACK OUT, NO.1 RH | ||||
| 75921-12032 |
ZZE122..SED..ARL;CE120,NZE120,ZZE122..LHD..SED..GEN |
1 | ||
| 75921-12032 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) |
1 | ||
| 75921-12031 |
ZZE122..SED..ARL;CE120,NZE120,ZZE122..LHD..SED..GEN |
1 | ||
| 75921-12030 |
CE120,NZE12#,ZZE12#..SED |
1 | ||
| 75921-12032 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 75921-12032 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 75922M - TAPE, BLACK OUT, NO.1 LH | ||||
| 75922-12031 |
ZZE122..SED..ARL;CE120,NZE120,ZZE122..LHD..SED..GEN |
1 | ||
| 75922-12030 |
CE120,NZE12#,ZZE12#..SED |
1 | ||
| 75922-12032 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) |
1 | ||
| 75922-12032 |
ZZE122..SED..ARL;CE120,NZE120,ZZE122..LHD..SED..GEN |
1 | ||
| 75922-12032 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 75922-12032 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| Common parts | ||||
| 90109-08295 | ||||
| 90159-60550 | ||||
| 90159-T0010 | ||||
| 90541-09069 | ||||
| 90950-01429 | ||||
| 90950-01620 | ||||
| 90950-06105 | ||||
| 91515-60616 | ||||
ILLUST NO. 3 OF 4(0008-0209) ; (0209-0303)ARL

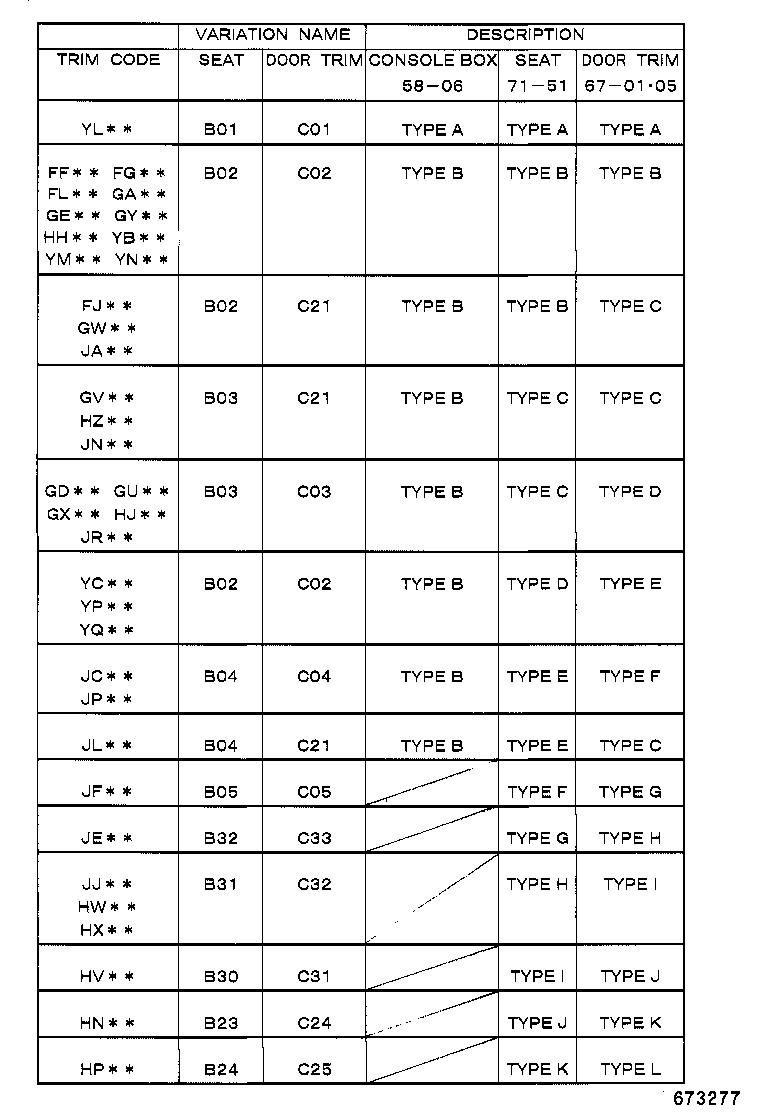

TRIM CODE TABLE
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 2 OF 4(0008- )
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-12460 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 67491-12470 |
NZE120..LHD..GLI;CE120,NZE120,ZZE12#..XLI..(GCC,GEN) MANUAL REMOTE CONTROL MIRROR |
1 | ||
| 67491-12470 |
ZZE122..LHD..XLI..GEN;CE120,NZE120..LHD..GEN MANUAL REMOTE CONTROL MIRROR |
1 | ||
| 67491-12460 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 67491-12460 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 67491-12470 |
NZE120..LHD..GLI;CE120,NZE120,ZZE12#..XLI..(GCC,GEN) MANUAL REMOTE CONTROL MIRROR |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-12470 |
ZZE122..LHD..XLI..GEN;CE120,NZE120..LHD..GEN MANUAL REMOTE CONTROL MIRROR |
1 | ||
| 67492-12460 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 67492-12470 |
NZE120..LHD..GLI;CE120,NZE120,ZZE12#..XLI..(GCC,GEN) MANUAL REMOTE CONTROL MIRROR |
1 | ||
| 67492-12460 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 67492-12460 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 67492-12470 |
NZE120..LHD..GLI;CE120,NZE120,ZZE12#..XLI..(GCC,GEN) MANUAL REMOTE CONTROL MIRROR |
1 | ||
| 67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH | ||||
| 67771-12060 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN |
2 | ||
| 67771-12060 |
CE120,NZE12#,ZZE12#..GCC,GEN |
2 | ||
| 67771-12060 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
2 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-1K890B2 |
CE120,NZE120,ZZE12#..LHD..SED..XLI..GEN DOOR TRIM=TYPE C-*104,STONE,TRIM1# |
1 | ||
| 67610-1L050B5 |
CE120,NZE120,ZZE122..LHD..SED..XLI..GEN DOOR TRIM=TYPE F-*104 & MIDDLE SOUTH AMERICA SPEC,GRAY,TRIM1# |
1 | ||
| 67610-1K890B3 |
CE120,NZE120,ZZE122..LHD..SED..XLI..GEN DOOR TRIM=TYPE C-*104,GRAY,TRIM1# |
1 | ||
| 67610-1K890A2 |
CE120,NZE120,ZZE12#..LHD..XLI..GEN DOOR TRIM=TYPE C-*104,IVORY,TRIM0# |
1 | ||
| 67650-1H800B0 |
CE120,NZE120,ZZE122..LHD..SED..XLI..GEN DOOR TRIM=TYPE D-*104 & MIDDLE SOUTH AMERICA SPEC,GRAY,TRIM1# |
1 | ||
| 67650-1H800A0 |
CE120,NZE120,ZZE12#..LHD..XLI..GEN DOOR TRIM=TYPE D-*104 & MIDDLE SOUTH AMERICA SPEC,IVORY,TRIM0# |
1 | ||
| 67650-1H050B0 |
CE120,NZE120,ZZE122..LHD..SED..GEN DOOR TRIM=TYPE B-*104 & MIDDLE SOUTH AMERICA SPEC,GRAY,TRIM1# |
1 | ||
| 67650-1H050A0 |
CE120,NZE120,ZZE12#..LHD..GEN DOOR TRIM=TYPE B-*104 & MIDDLE SOUTH AMERICA SPEC,IVORY,TRIM0# |
1 | ||
| 67610-1L090B5 |
CE120,NZE120,ZZE12#..LHD..SED W(POWER WINDOW) & TRIM = TYPE B-*104,STONE,TRIM1# |
1 | ||
| 67610-1L090A4 |
NZE120..LHD..SED;CE120,ZZE12#..LHD W(POWER WINDOW) & TRIM = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 67610-1L050B5 |
CE120,NZE120,ZZE122..LHD..SED..XLI..GEN DOOR TRIM=TYPE F-*104 & MIDDLE SOUTH AMERICA SPEC,GRAY,TRIM1# |
1 | ||
| 67610-1K890B3 |
CE120,NZE120,ZZE122..LHD..SED..XLI..GEN DOOR TRIM=TYPE C-*104 & MIDDLE SOUTH AMERICA SPEC,GRAY,TRIM1# |
1 | ||
| 67610-1K890A2 |
CE120,NZE120,ZZE122..LHD..XLI..GEN DOOR TRIM=TYPE C-*104 & MIDDLE SOUTH AMERICA SPEC,IVORY,TRIM0# |
1 | ||
| 67610-1L700A0 |
NZE120..LHD..SED;CE120,ZZE12#..LHD DOOR TRIM=TYPE C-*104 & W(POWER WINDOW),IVORY,TRIM0# |
1 | ||
| 67610-1L750B0 |
ZZE122..LHD..SED..XLI..GEN;CE120,NZE120,ZZE121..LHD..SED..XLI DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),MD.GRAY,TRIM1# |
1 | ||
| 67610-1L700B0 |
CE120,NZE120,ZZE12#..LHD..SED DOOR TRIM=TYPE C-*104 & W(POWER WINDOW),MD.GRAY,TRIM1# |
1 | ||
| 67610-1L770B4 |
CE120,NZE120,ZZE12#..LHD..SED..XLI..GEN DOOR TRIM=TYPE E-*104,GRAY,TRIM1# |
1 | ||
| 67610-1L750A0 |
ZZE122..LHD..XLI..GEN;CE120,NZE120,ZZE121..LHD..XLI DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),IVORY,TRIM0# |
1 | ||
| 67610-1L740B0 |
ZZE122..LHD..SED..XLI..GEN;CE120,NZE120,ZZE121..LHD..SED..XLI DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),MD.GRAY,TRIM1# |
1 | ||
| 67610-12C80B1 |
ZZE122..LHD..SED..XLI..GEN;CE120,NZE120,ZZE121..LHD..SED..XLI DOOR TRIM=TYPE A-*104 & W/O(POWER WINDOW),MD.GRAY,TRIM1# |
1 | ||
| 67610-1L770A3 |
CE120,NZE120,ZZE12#..LHD..XLI..GEN DOOR TRIM=TYPE E-*104,IVORY,TRIM0# |
1 | ||
| 67610-12C40B1 |
ZZE122..LHD..SED..XLI..GEN;CE120,NZE120,ZZE121..LHD..SED..XLI DOOR TRIM=TYPE A-*104;W(POWER WINDOW),MD.GRAY,TRIM1# |
1 | ||
| 67610-12C50A1 |
CE120,NZE120,ZZE12#..LHD..SED..GEN W(POWER WINDOW);DOOR TRIM=TYPE E-*104,IVORY,TRIM05 |
1 | ||
| 67610-12C30B0 |
ZZE122..LHD..SED..XLI..GEN;CE120,NZE120,ZZE121..LHD..SED..XLI DOOR TRIM=TYPE C-*104,DK.GRAY,TRIM1# |
1 | ||
| 67610-12C70B0 |
ZZE122..LHD..SED..XLI..GEN;CE120,NZE120,ZZE121..LHD..SED..XLI DOOR TRIM=TYPE C-*104 & W/O(POWER WINDOW),MD.GRAY,TRIM1# |
1 | ||
| 67610-12C90B2 |
ZZE122..SED..GCC;ZZE122..LHD..SED..XLI..GEN;CE120,NZE120,ZZE121..LHD..SED..XLI DOOR TRIM=TYPE E-*104 & W/O(POWER WINDOW),MD.GRAY,TRIM1# |
1 | ||
| 67610-12C30A0 |
ZZE122..LHD..XLI..GEN;CE120,NZE120,ZZE121..LHD..XLI DOOR TRIM=TYPE C-*104,IVORY,TRIM0# |
1 | ||
| 67610-12C70A0 |
ZZE122..LHD..XLI..GEN;CE120,NZE120,ZZE121..LHD..XLI DOOR TRIM=TYPE C-*104 & W/O(POWER WINDOW),IVORY,TRIM0# |
1 | ||
| 67610-12C90A1 |
ZZE122..GCC;ZZE122..LHD..XLI..GEN;CE120,NZE120,ZZE121..LHD..SED..XLI DOOR TRIM=TYPE E-*104 & W/O(POWER WINDOW),IVORY,TRIM0# |
1 | ||
| 67610-12C80B0 |
ZZE122..LHD..SED..XLI..GEN;CE120,NZE120,ZZE121..LHD..SED..XLI DOOR TRIM=TYPE A-*104 & W/O(POWER WINDOW),MD.GRAY,TRIM1# |
1 | ||
| 67610-12C50B2 |
CE120,NZE120,ZZE12#..LHD..SED..GEN W(POWER WINDOW);DOOR TRIM=TYPE E-*104,DK.GRAY,TRIM1# |
1 | ||
| 67610-12C40B0 |
ZZE122..LHD..SED..XLI..GEN;CE120,NZE120,ZZE121..LHD..SED..XLI DOOR TRIM=TYPE A-*104;W(POWER WINDOW),MD.GRAY,TRIM1# |
1 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-12050 |
NZE120..GCC,PKN;ZZE122..GLI..GCC;NZE120..LHD..XLI..GEN;CE120,ZZE12#..20D,20DSA,CONQ,SESAL,ULT,XLI |
8 | ||
| 67771-12050 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
8 | ||
| 67771-12050 |
CE120,NZE12#,ZZE12#..GCC,GEN |
8 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-12050 |
NZE120..GCC,PKN;ZZE122..GLI..GCC;NZE120..LHD..XLI..GEN;CE120,ZZE12#..20D,20DSA,CONQ,SESAL,ULT,XLI |
8 | ||
| 67771-12050 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
8 | ||
| 67771-12050 |
CE120,NZE12#,ZZE12#..GCC,GEN |
8 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-12050 |
NZE120..GCC,PKN;ZZE122..GLI..GCC;NZE120..LHD..XLI..GEN;CE120,ZZE12#..20D,20DSA,CONQ,SESAL,ULT,XLI |
8 | ||
| 67771-12050 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
8 | ||
| 67771-12050 |
CE120,NZE12#,ZZE12#..GCC,GEN |
8 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1N750B1 |
ZZE122..LHD..XLI..GEN;CE120,NZE120,ZZE121..LHD..XLI TRIM = TYPE D-*104,STONE,TRIM17 |
1 | ||
| 67620-1N770B2 |
CE120,NZE120,ZZE12#..LHD..SED..XLI..GEN TRIM = TYPE C-*104,STONE,TRIM1# |
1 | ||
| 67620-1T030B0 |
CE120,NZE120,ZZE12#..LHD..SED..XLI..GEN TRIM = TYPE F-*104 & W(POWER WINDOW),STONE,TRIM1# |
1 | ||
| 67620-1N750A1 |
ZZE122..LHD..XLI..GEN;CE120,NZE120,ZZE121..LHD..XLI TRIM = TYPE D-*104,IVORY,TRIM03 |
1 | ||
| 67620-1T030B1 |
CE120,NZE120,ZZE12#..LHD..SED..XLI..GEN DOOR TRIM=TYPE F-*104 & MIDDLE SOUTH AMERICA SPEC,GRAY,TRIM1# |
1 | ||
| 67620-1N770B3 |
ZZE121..MTM..XLI;CE120,NZE120,ZZE122..LHD..SED..XLI..GEN TRIM = TYPE C-*104,GRAY,TRIM1# |
1 | ||
| 67050-12250B0 |
ZZE121..MTM..XLI;CE120,NZE120,ZZE122..LHD..SED..XLI..GEN DOOR TRIM=TYPE D-*104 & MIDDLE SOUTH AMERICA SPEC,GRAY,TRIM1# |
1 | ||
| 67620-1N770A2 |
CE120,NZE120,ZZE12#..LHD..XLI..GEN TRIM = TYPE C-*104,IVORY,TRIM0# |
1 | ||
| 67050-12250A0 |
ZZE121..MTM..XLI;CE120,NZE120,ZZE122..LHD..XLI..GEN DOOR TRIM=TYPE D-*104 & MIDDLE SOUTH AMERICA SPEC,IVORY,TRIM0# |
1 | ||
| 67660-12410A0 |
ZZE121..MTM..XLI;CE120,NZE120,ZZE122..LHD..GEN DOOR TRIM=TYPE B-*104 & MIDDLE SOUTH AMERICA SPEC,IVORY,TRIM0# |
1 | ||
| 67660-12410B0 |
ZZE121..MTM..XLI;CE120,NZE120,ZZE122..LHD..SED..GEN DOOR TRIM=TYPE B-*104 & MIDDLE SOUTH AMERICA SPEC,GRAY,TRIM1# |
1 | ||
| 67620-1N660B5 |
CE120,NZE120,ZZE12#..LHD..SED W(POWER WINDOW) & TRIM = TYPE B-*104,STONE,TRIM1# |
1 | ||
| 67620-1T030B1 |
ZZE121..MTM..XLI;CE120,NZE120,ZZE122..LHD..SED..XLI..GEN DOOR TRIM=TYPE F-*104 & MIDDLE SOUTH AMERICA SPEC,GRAY,TRIM1# |
1 | ||
| 67050-12250B0 |
CE120,NZE120,ZZE122..LHD..SED..XLI..GEN DOOR TRIM=TYPE D-*104 & MIDDLE SOUTH AMERICA SPEC,GRAY,TRIM1# |
1 | ||
| 67620-1N660A4 |
NZE120..LHD..SED;CE120,ZZE12#..LHD W(POWER WINDOW) & TRIM = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 67620-1N770A2 |
CE120,NZE120,ZZE122..LHD..XLI..GEN DOOR TRIM=TYPE C-*104 & MIDDLE SOUTH AMERICA SPEC,IVORY,TRIM0# |
1 | ||
| 67050-12250A0 |
CE120,NZE120,ZZE122..LHD..XLI..GEN DOOR TRIM=TYPE D-*104 & MIDDLE SOUTH AMERICA SPEC,IVORY,TRIM0# |
1 | ||
| 67620-1N770B3 |
CE120,NZE120,ZZE122..LHD..SED..XLI..GEN DOOR TRIM=TYPE C-*104 & MIDDLE SOUTH AMERICA SPEC,GRAY,TRIM1# |
1 | ||
| 67620-1T370B0 |
CE120,NZE120,ZZE12#..LHD..SED DOOR TRIM=TYPE C-*104 & W(POWER WINDOW),MD.GRAY,TRIM1# |
1 | ||
| 67620-1T410A0 |
ZZE122..LHD..XLI..GEN;CE120,NZE120,ZZE121..LHD..XLI DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),IVORY,TRIM0# |
1 | ||
| 67620-1T440B4 |
CE120,NZE120,ZZE12#..LHD..SED..XLI..GEN DOOR TRIM=TYPE E-*104,GRAY,TRIM1# |
1 | ||
| 67620-1T410B0 |
ZZE122..LHD..SED..XLI..GEN;CE120,NZE120,ZZE121..LHD..SED..XLI DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),MD.GRAY,TRIM1# |
1 | ||
| 67620-1T370A0 |
NZE120..LHD..SED;CE120,ZZE12#..LHD DOOR TRIM=TYPE C-*104 & W(POWER WINDOW),IVORY,TRIM0# |
1 | ||
| 67620-1T440A3 |
CE120,NZE120,ZZE12#..LHD..XLI..GEN DOOR TRIM=TYPE E-*104,IVORY,TRIM0# |
1 | ||
| 67620-12B30B1 |
ZZE122..LHD..SED..XLI..GEN;CE120,NZE120,ZZE121..LHD..SED..XLI DOOR TRIM=TYPE A-*104,MD.GRAY,TRIM1# |
1 | ||
| 67620-12B70B1 |
CE120,NZE120,ZZE12#..LHD..SED..XLI..GEN DOOR TRIM=TYPE A-*104 & W/O(POWER WINDOW),MD.GRAY,TRIM1# |
1 | ||
| 67620-1T430B0 |
ZZE122..LHD..SED..XLI..GEN;CE120,NZE120,ZZE121..LHD..SED..XLI DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),MD.GRAY,TRIM1# |
1 | ||
| 67620-12B20A0 |
ZZE122..LHD..XLI..GEN;CE120,NZE120,ZZE121..LHD..XLI DOOR TRIM=TYPE C-*104,IVORY,TRIM0# |
1 | ||
| 67620-12B40A1 |
CE120,NZE120,ZZE12#..LHD..SED..GEN IVORY,TRIM05 |
1 | ||
| 67620-12B20B0 |
ZZE122..LHD..SED..XLI..GEN;CE120,NZE120,ZZE121..LHD..SED..XLI DOOR TRIM=TYPE C-*104,DK.GRAY,TRIM1# |
1 | ||
| 67620-12B80B2 |
ZZE122..SED..GCC;ZZE122..LHD..SED..XLI..GEN;CE120,NZE120,ZZE121..LHD..SED..XLI DOOR TRIM=TYPE E-*104 & W/O(POWER WINDOW),MD.GRAY,TRIM1# |
1 | ||
| 67620-12B80A1 |
ZZE122..GCC;ZZE122..LHD..XLI..GEN;CE120,NZE120,ZZE121..LHD..SED..XLI DOOR TRIM=TYPE E-*104 & W/O(POWER WINDOW),IVORY,TRIM0# |
1 | ||
| 67620-12B40B2 |
CE120,NZE120,ZZE12#..LHD..SED..GEN DK.GRAY,TRIM14 |
1 | ||
| 67620-12B30B0 |
ZZE122..LHD..SED..XLI..GEN;CE120,NZE120,ZZE121..LHD..SED..XLI DOOR TRIM=TYPE A-*104,MD.GRAY,TRIM1# |
1 | ||
| 67620-12B70B0 |
ZZE122..LHD..SED..XLI..GEN;CE120,NZE120,ZZE121..LHD..SED..XLI DOOR TRIM=TYPE A-*104 & W/O(POWER WINDOW),MD.GRAY,TRIM1# |
1 | ||
| 67620-12B60A0 |
ZZE122..LHD..XLI..GEN;CE120,NZE120,ZZE121..LHD..XLI DOOR TRIM=TYPE C-*104 & W/O(POWER WINDOW),IVORY,TRIM0# |
1 | ||
| 67620-12B60B0 |
ZZE122..LHD..SED..XLI..GEN;CE120,NZE120,ZZE121..LHD..SED..XLI DOOR TRIM=TYPE C-*104 & W/O(POWER WINDOW),MD.GRAY,TRIM1# |
1 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-12050 |
NZE120..GCC,PKN;ZZE122..GLI..GCC;NZE120..LHD..XLI..GEN;CE120,ZZE12#..20D,20DSA,CONQ,SESAL,ULT,XLI |
8 | ||
| 67771-12050 |
CE120,NZE12#,ZZE12#..GCC,GEN |
8 | ||
| 67771-12050 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
8 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-12050 |
NZE120..GCC,PKN;ZZE122..GLI..GCC;NZE120..LHD..XLI..GEN;CE120,ZZE12#..20D,20DSA,CONQ,SESAL,ULT,XLI |
8 | ||
| 67771-12050 |
CE120,NZE12#,ZZE12#..GCC,GEN |
8 | ||
| 67771-12050 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
8 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-12050 |
NZE120..GCC,PKN;ZZE122..GLI..GCC;NZE120..LHD..XLI..GEN;CE120,ZZE12#..20D,20DSA,CONQ,SESAL,ULT,XLI |
8 | ||
| 67771-12050 |
CE120,NZE12#,ZZE12#..GCC,GEN |
8 | ||
| 67771-12050 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
8 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68171-12290 |
CE120,NZE12#,ZZE12# RH |
1 | ||
| 68172-12240 |
CE120,NZE12#,ZZE12#..GCC,GEN LH |
1 | ||
| 68171-12320 |
CE120,NZE12#,ZZE12#..GCC,GEN RH |
1 | ||
| 68172-12240 |
CE120,NZE12#,ZZE12# LH |
1 | ||
| 68172-12210 |
CE120,NZE12#,ZZE12# LH |
1 | ||
| 68172-12240 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN LH |
1 | ||
| 68171-12320 |
CE120,NZE12#,ZZE12# RH |
1 | ||
| 68171-12320 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN RH |
1 | ||
| 86262E - COVER, SPEAKER, FRONT | ||||
| 86262-17010 |
CE120,NZE120,ZZE122..LHD..GEN |
2 | ||
| 86262-17010 |
CE120,NZE12#,ZZE12#..GEN |
2 | ||
| 86262-17010 |
CE120,NZE120,ZZE12#..LHD..GEN |
2 | ||
| Common parts | ||||
| 90164-50032 | ||||
| 90164-60018 | ||||
| 90189-05003 | ||||
| 90189-06018 | ||||
| Linked diagrams | ||||
| 6703 | ||||
ILLUST NO. 4 OF 4(0209-0404)LHD..GLI,XLI..GEN
TRIM CODE,MIDDLE SOUTH AMERICA SPEC
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 3 OF 4(0404- )ARL,GCC,GEN
TRIM CODE TABLE
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 3 OF 4(0209-0404)GCC,GEN,PKN ; (0304-0404)ARL ; (0404-0507)PKN ; (0404- )CE120,NZE120,
TRIM CODE TABLE
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 3 OF 4(0209-0404)GCC,GEN,PKN ; (0304-0404)ARL ; (0404-0507)PKN ; (0404- )CE120,NZE120,
TRIM CODE TABLE
| Part # | Description | Qty | Price |
|---|
Part Price Details
Loading price information...
Part Number:
Price:
