NZE120L-AEPDK (2000)
Toyota Corolla/Altis Sed/Wg
(0008-0104)

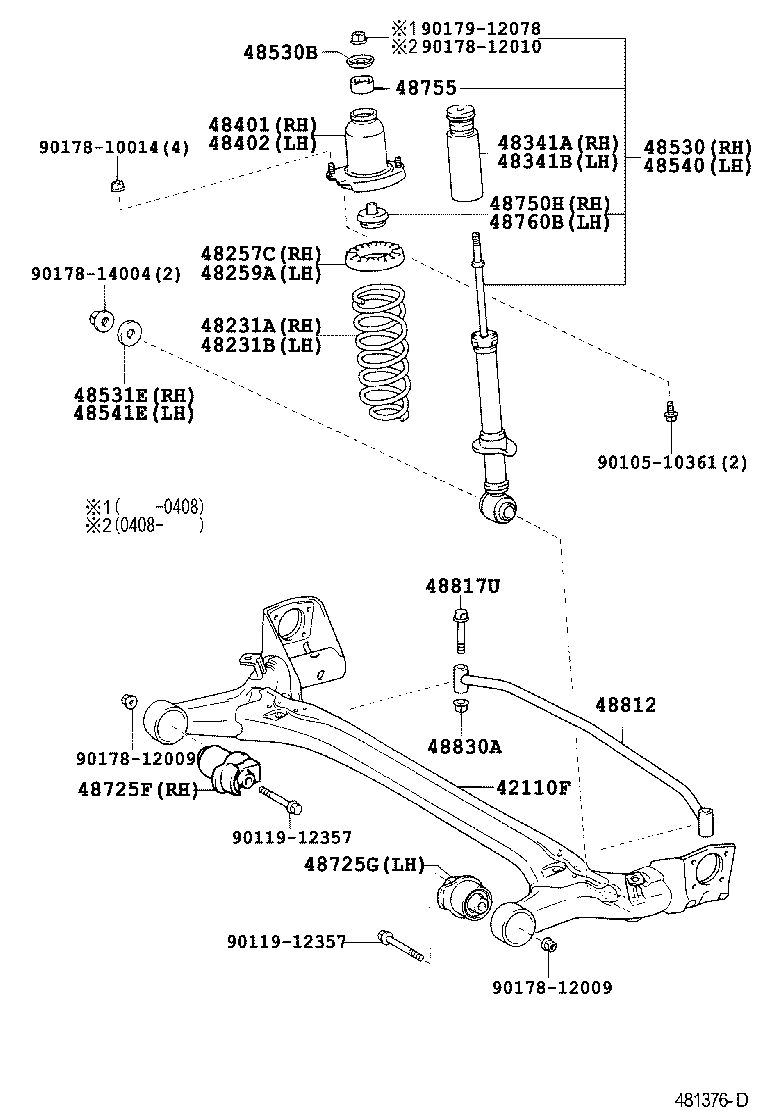

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42110F - BEAM ASSY, REAR AXLE | ||||
| 42101-12100 |
ZZE122..RHD..XLI;ZZE122..LHD..WG..GEN;CE120,NZE120..GCC,GEN W(STEEL TYPE ENGINE UNDER COVER) |
1 | ||
| 42101-12100 |
ZZE122..RHD..XLI;ZZE122..LHD..WG..GEN;CE120,NZE120..GCC,GEN W(STEEL TYPE ENGINE UNDER COVER) |
1 | ||
| 42101-32030 |
ZZE122..RHD..XLI;ZZE122..LHD..WG..GEN;CE120,NZE120,ZZE121..(GLI,XLI)..GEN |
1 | ||
| 42101-32030 |
ZZE122..RHD..XLI;ZZE122..LHD..WG..GEN;CE120,NZE120,ZZE121..(GLI,XLI)..GEN |
1 | ||
| 42101-12120 |
ZZE122..RHD..XLI;CE120,NZE120..GEN;ZZE122..LHD..WG..GEN ROUGH ROAD PACKAGE |
1 | ||
| 42101-32030 |
ZZE122..RHD..XLI;ZZE122..LHD..WG..GEN;CE120,NZE120,ZZE121..(GLI,XLI)..GEN |
1 | ||
| 42101-12140 |
ZZE122..RHD..XLI;ZZE122..LHD..WG..GEN;CE120,NZE120,ZZE121..(GLI,XLI)..GEN |
1 | ||
| 48231A - SPRING, COIL, REAR RH | ||||
| 48231-1H540 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) |
1 | ||
| 48231-1H580 |
ZZE121..LHD;CE120,NZE120,ZZE122..SED..(GCC,GEN) ROUGH ROAD PACKAGE |
1 | ||
| 48231-1H540 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) |
1 | ||
| 48231-1H580 |
ZZE121..LHD;CE120,NZE121..(LX,XLI)..GEN;NZE120,ZZE122..SED..(GCC,GEN) ROUGH ROAD PACKAGE |
1 | ||
| 48231-1H540 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) |
1 | ||
| 48231-1H580 |
ZZE121..LHD;CE120,NZE121..LX,XLI;NZE120,ZZE122..SED..(GCC,GEN) ROUGH ROAD PACKAGE |
1 | ||
| 48231B - SPRING, COIL, REAR LH | ||||
| 48231-1H540 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) |
1 | ||
| 48231-1H580 |
ZZE121..LHD;CE120,NZE120,ZZE122..SED..(GCC,GEN) ROUGH ROAD PACKAGE |
1 | ||
| 48231-1H580 |
ZZE121..LHD;CE120,NZE121..(LX,XLI)..GEN;NZE120,ZZE122..SED..(GCC,GEN) ROUGH ROAD PACKAGE |
1 | ||
| 48231-1H540 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) |
1 | ||
| 48231-1H580 |
ZZE121..LHD;CE120,NZE121..LX,XLI;NZE120,ZZE122..SED..(GCC,GEN) ROUGH ROAD PACKAGE |
1 | ||
| 48231-1H540 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) |
1 | ||
| 48257C - INSULATOR, REAR COIL SPRING, UPPER RH | ||||
| 48257-32090 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 48257-32090 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 48257-32090 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 48259A - INSULATOR, REAR COIL SPRING, UPPER LH | ||||
| 48257-32090 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 48257-32090 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 48257-32090 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 48341A - BUMPER, REAR SPRING, NO.1 RH | ||||
| 48341-47010 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 48341-47010 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 48341-47010 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 48341B - BUMPER, REAR SPRING, NO.1 LH | ||||
| 48341-47010 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 48341-47010 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 48341-47010 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 48401 - BRACKET SUB-ASSY, REAR SPRING, FRONT RH | ||||
| 48401-32020 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 48401-32020 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 48401-32020 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 48402 - BRACKET SUB-ASSY, REAR SPRING, FRONT LH | ||||
| 48403-32010 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 48403-32010 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 48403-32010 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48530-80032 |
NZE120,ZZE122 MARK 48530-1A430 |
1 | ||
| 48530-80033 |
NZE120,ZZE122..SED MARK 48530-1A440,ROUGH ROAD PACKAGE |
1 | ||
| 48530-80050 |
ZZE121..LHD;CE120,NZE120,ZZE122..GCC,GEN MARK 48530-1A430 |
1 | ||
| 48530-80052 |
CE120,NZE120,ZZE121..PKN;CE120,NZE120,ZZE122..LHD..SED..GEN MARK 48530-1A440 |
1 | ||
| 48530-80095 |
CE120,NZE120,ZZE122..LHD..GEN MARK 48530-1A650 |
1 | ||
| 48530-80095 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..GCC,GEN MARK 48530-1A650 |
1 | ||
| 48530-80052 |
ZZE121..LHD;CE120,NZE121..(LX,XLI)..GEN;NZE120,ZZE122..SED..(GCC,GEN) MARK 48530-1A440 |
1 | ||
| 48530-80146 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..GCC,GEN MARK 48530-12B30 |
1 | ||
| 48530-80147 |
ZZE121..LHD;CE120,NZE121..(LX,XLI)..GEN;NZE120,ZZE122..SED..(GCC,GEN) MARK 48530-12A40 |
1 | ||
| 48530-80146 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..GCC,GEN MARK 48530-12B30 |
1 | ||
| 48530-80276 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..GCC,GEN MARK 48530-12B30 |
1 | ||
| 48530-80197 |
ZZE121..LHD;CE120,NZE121..LX,XLI;NZE120,ZZE122..SED..(GCC,GEN) MARK 48530-12B50 |
1 | ||
| 48530-80410 |
ZZE121..LHD;CE120,NZE121..LX,XLI;NZE120,ZZE122..SED..(GCC,GEN) MARK 48530-12B51 |
1 | ||
| 48530-80278 |
ZZE121..LHD;CE120,NZE121..LX,XLI;NZE120,ZZE122..SED..(GCC,GEN) MARK 48530-12B50 |
1 | ||
| 48530-80408 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..GCC,GEN MARK 48530-12B31 |
1 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03021 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN |
2 | ||
| 90948-03021 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
2 | ||
| 90948-03021 |
CE120,NZE12#,ZZE12#..GCC,GEN |
2 | ||
| 48531E - RETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER RH) | ||||
| 90560-14028 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 90560-14028 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 90560-14028 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48530-80032 |
NZE120,ZZE122 MARK 48530-1A430 |
1 | ||
| 48530-80033 |
NZE120,ZZE122..SED MARK 48530-1A440,ROUGH ROAD PACKAGE |
1 | ||
| 48530-80050 |
ZZE121..LHD;CE120,NZE120,ZZE122..GCC,GEN MARK 48530-1A430 |
1 | ||
| 48530-80095 |
CE120,NZE120,ZZE122..LHD..GEN MARK 48530-1A650 |
1 | ||
| 48530-80052 |
CE120,NZE120,ZZE121..PKN;CE120,NZE120,ZZE122..LHD..SED..GEN MARK 48530-1A440 |
1 | ||
| 48530-80095 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..GCC,GEN MARK 48530-1A650 |
1 | ||
| 48530-80052 |
ZZE121..LHD;CE120,NZE121..(LX,XLI)..GEN;NZE120,ZZE122..SED..(GCC,GEN) MARK 48530-1A440 |
1 | ||
| 48530-80197 |
ZZE121..LHD;CE120,NZE121..LX,XLI;NZE120,ZZE122..SED..(GCC,GEN) MARK 48530-12B50 |
1 | ||
| 48530-80146 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..GCC,GEN MARK 48530-12B30 |
1 | ||
| 48530-80147 |
ZZE121..LHD;CE120,NZE121..(LX,XLI)..GEN;NZE120,ZZE122..SED..(GCC,GEN) MARK 48530-12A40 |
1 | ||
| 48530-80278 |
ZZE121..LHD;CE120,NZE121..LX,XLI;NZE120,ZZE122..SED..(GCC,GEN) MARK 48530-12B50 |
1 | ||
| 48530-80276 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..GCC,GEN MARK 48530-12B30 |
1 | ||
| 48530-80408 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..GCC,GEN MARK 48530-12B31 |
1 | ||
| 48530-80146 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..GCC,GEN MARK 48530-12B30 |
1 | ||
| 48530-80410 |
ZZE121..LHD;CE120,NZE121..LX,XLI;NZE120,ZZE122..SED..(GCC,GEN) MARK 48530-12B51 |
1 | ||
| 48541E - RETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER LH) | ||||
| 90560-14028 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 90560-14028 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 90560-14028 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 48725F - BUSH, REAR AXLE CARRIER, RH | ||||
| 48725-12570 |
CE120,NZE120,ZZE122..LHD..GEN ROUGH ROAD PACKAGE |
1 | ||
| 48725-12570 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..GCC,GEN ROUGH ROAD PACKAGE |
1 | ||
| 48725-12570 |
NZE121..LX;NZE120,ZZE122..GCC,GEN |
1 | ||
| 48725G - BUSH, REAR AXLE CARRIER, LH | ||||
| 48725-12570 |
CE120,NZE120,ZZE122..LHD..GEN ROUGH ROAD PACKAGE |
1 | ||
| 48725-12570 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..GCC,GEN ROUGH ROAD PACKAGE |
1 | ||
| 48725-12570 |
NZE121..LX;NZE120,ZZE122..GCC,GEN |
1 | ||
| 48750H - SUPPORT ASSY, REAR SUSPENSION, RH | ||||
| 48750-47010 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 48750-47010 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 48750-47010 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 48755 - SUPPORT, REAR SUSPENSION | ||||
| 48755-63010 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN |
2 | ||
| 48755-63010 |
CE120,NZE12#,ZZE12#..GCC,GEN |
2 | ||
| 48755-63010 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
2 | ||
| 48760B - SUPPORT ASSY REAR SUSPENSION, LH | ||||
| 48750-47010 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 48750-47010 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 48750-47010 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 48812 - BAR, STABILIZER, REAR | ||||
| 48812-13010 |
ZZE121..LHD;CE120,NZE120,ZZE122..GCC,GEN |
1 | ||
| 48812-13050 |
CE120,NZE120,ZZE122..LHD..GEN MIDDLE SOUTH AMERICA SPEC |
1 | ||
| 48812-13050 |
CE120,NZE120,ZZE122..LHD..GEN MIDDLE SOUTH AMERICA SPEC |
1 | ||
| 48812-13040 |
CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 48812-32480 |
CE120,NZE120,ZZE12#..ARL,GCC,GEN ROUGH ROAD PACKAGE |
1 | ||
| 48812-13040 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..GCC,GEN |
1 | ||
| 48812-12400 |
CE120,NZE120,ZZE122..LHD..GEN ROUGH ROAD PACKAGE |
1 | ||
| 48812-12400 |
NZE121..LX;ZZE122..WG..ARL;CE120,NZE120,ZZE12#..GCC,GEN OD=20.0 |
1 | ||
| 48812-12400 |
NZE121..LX;NZE120,ZZE122..GCC,GEN ROUGH ROAD PACKAGE |
1 | ||
| 48812-13050 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..GCC,GEN |
1 | ||
| 48812-13050 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..GCC,GEN OD=22.2 |
1 | ||
| 48817U - BOLT(FOR REAR STABILIZER) | ||||
| 90105-14138 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN |
2 | ||
| 90105-14138 |
NZE121..LX;ZZE122..WG..ARL;CE120,NZE120,ZZE12#..GCC,GEN |
2 | ||
| 90105-14138 |
NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN |
2 | ||
| 48830A - NUT(FOR REAR STABILIZER LINK) | ||||
| 90179-14062 |
NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN |
2 | ||
| 90179-14062 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN |
2 | ||
| 90179-14062 |
NZE121..LX;ZZE122..WG..ARL;CE120,NZE120,ZZE12#..GCC,GEN |
2 | ||
| Common parts | ||||
| 90105-10361 | ||||
| 90119-12357 | ||||
| 90178-10014 | ||||
| 90178-12009 | ||||
| 90178-14004 | ||||
| 90179-12078 | ||||
(0104- )

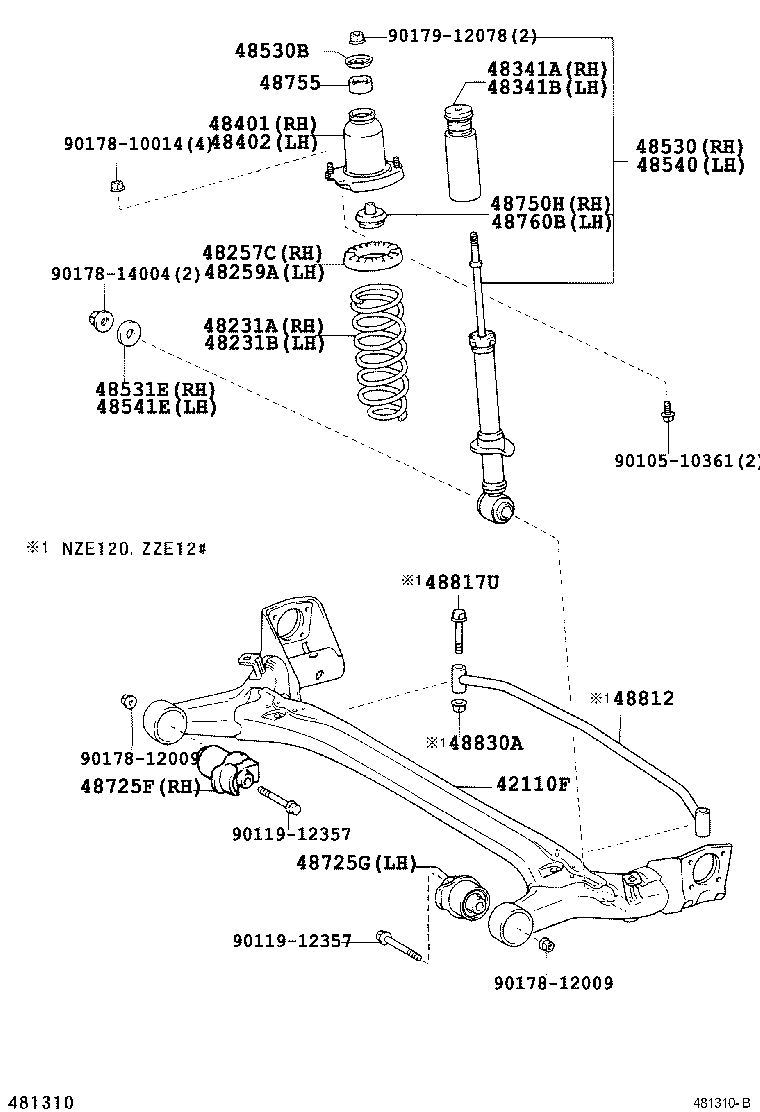

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42110F - BEAM ASSY, REAR AXLE | ||||
| 42101-12100 |
ZZE122..RHD..XLI;ZZE122..LHD..WG..GEN;CE120,NZE120..GCC,GEN W(STEEL TYPE ENGINE UNDER COVER) |
1 | ||
| 42101-12100 |
ZZE122..RHD..XLI;ZZE122..LHD..WG..GEN;CE120,NZE120..GCC,GEN W(STEEL TYPE ENGINE UNDER COVER) |
1 | ||
| 42101-32030 |
ZZE122..RHD..XLI;ZZE122..LHD..WG..GEN;CE120,NZE120,ZZE121..(GLI,XLI)..GEN |
1 | ||
| 42101-32030 |
ZZE122..RHD..XLI;ZZE122..LHD..WG..GEN;CE120,NZE120,ZZE121..(GLI,XLI)..GEN |
1 | ||
| 42101-12120 |
ZZE122..RHD..XLI;CE120,NZE120..GEN;ZZE122..LHD..WG..GEN ROUGH ROAD PACKAGE |
1 | ||
| 42101-32030 |
ZZE122..RHD..XLI;ZZE122..LHD..WG..GEN;CE120,NZE120,ZZE121..(GLI,XLI)..GEN |
1 | ||
| 42101-12140 |
ZZE122..RHD..XLI;ZZE122..LHD..WG..GEN;CE120,NZE120,ZZE121..(GLI,XLI)..GEN |
1 | ||
| 48231A - SPRING, COIL, REAR RH | ||||
| 48231-1H540 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) |
1 | ||
| 48231-1H580 |
ZZE121..LHD;CE120,NZE120,ZZE122..SED..(GCC,GEN) ROUGH ROAD PACKAGE |
1 | ||
| 48231-1H540 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) |
1 | ||
| 48231-1H580 |
ZZE121..LHD;CE120,NZE121..(LX,XLI)..GEN;NZE120,ZZE122..SED..(GCC,GEN) ROUGH ROAD PACKAGE |
1 | ||
| 48231-1H540 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) |
1 | ||
| 48231-1H580 |
ZZE121..LHD;CE120,NZE121..LX,XLI;NZE120,ZZE122..SED..(GCC,GEN) ROUGH ROAD PACKAGE |
1 | ||
| 48231B - SPRING, COIL, REAR LH | ||||
| 48231-1H540 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) |
1 | ||
| 48231-1H580 |
ZZE121..LHD;CE120,NZE120,ZZE122..SED..(GCC,GEN) ROUGH ROAD PACKAGE |
1 | ||
| 48231-1H580 |
ZZE121..LHD;CE120,NZE121..(LX,XLI)..GEN;NZE120,ZZE122..SED..(GCC,GEN) ROUGH ROAD PACKAGE |
1 | ||
| 48231-1H540 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) |
1 | ||
| 48231-1H580 |
ZZE121..LHD;CE120,NZE121..LX,XLI;NZE120,ZZE122..SED..(GCC,GEN) ROUGH ROAD PACKAGE |
1 | ||
| 48231-1H540 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) |
1 | ||
| 48257C - INSULATOR, REAR COIL SPRING, UPPER RH | ||||
| 48257-32090 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 48257-32090 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 48257-32090 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 48259A - INSULATOR, REAR COIL SPRING, UPPER LH | ||||
| 48257-32090 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 48257-32090 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 48257-32090 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 48341A - BUMPER, REAR SPRING, NO.1 RH | ||||
| 48341-47010 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 48341-47010 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 48341-47010 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 48341B - BUMPER, REAR SPRING, NO.1 LH | ||||
| 48341-47010 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 48341-47010 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 48341-47010 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 48401 - BRACKET SUB-ASSY, REAR SPRING, FRONT RH | ||||
| 48401-32020 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 48401-32020 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 48401-32020 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 48402 - BRACKET SUB-ASSY, REAR SPRING, FRONT LH | ||||
| 48403-32010 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 48403-32010 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 48403-32010 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48530-80032 |
NZE120,ZZE122 MARK 48530-1A430 |
1 | ||
| 48530-80033 |
NZE120,ZZE122..SED MARK 48530-1A440,ROUGH ROAD PACKAGE |
1 | ||
| 48530-80050 |
ZZE121..LHD;CE120,NZE120,ZZE122..GCC,GEN MARK 48530-1A430 |
1 | ||
| 48530-80052 |
CE120,NZE120,ZZE121..PKN;CE120,NZE120,ZZE122..LHD..SED..GEN MARK 48530-1A440 |
1 | ||
| 48530-80095 |
CE120,NZE120,ZZE122..LHD..GEN MARK 48530-1A650 |
1 | ||
| 48530-80095 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..GCC,GEN MARK 48530-1A650 |
1 | ||
| 48530-80052 |
ZZE121..LHD;CE120,NZE121..(LX,XLI)..GEN;NZE120,ZZE122..SED..(GCC,GEN) MARK 48530-1A440 |
1 | ||
| 48530-80146 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..GCC,GEN MARK 48530-12B30 |
1 | ||
| 48530-80147 |
ZZE121..LHD;CE120,NZE121..(LX,XLI)..GEN;NZE120,ZZE122..SED..(GCC,GEN) MARK 48530-12A40 |
1 | ||
| 48530-80146 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..GCC,GEN MARK 48530-12B30 |
1 | ||
| 48530-80276 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..GCC,GEN MARK 48530-12B30 |
1 | ||
| 48530-80197 |
ZZE121..LHD;CE120,NZE121..LX,XLI;NZE120,ZZE122..SED..(GCC,GEN) MARK 48530-12B50 |
1 | ||
| 48530-80410 |
ZZE121..LHD;CE120,NZE121..LX,XLI;NZE120,ZZE122..SED..(GCC,GEN) MARK 48530-12B51 |
1 | ||
| 48530-80278 |
ZZE121..LHD;CE120,NZE121..LX,XLI;NZE120,ZZE122..SED..(GCC,GEN) MARK 48530-12B50 |
1 | ||
| 48530-80408 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..GCC,GEN MARK 48530-12B31 |
1 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03021 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN |
2 | ||
| 90948-03021 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
2 | ||
| 90948-03021 |
CE120,NZE12#,ZZE12#..GCC,GEN |
2 | ||
| 48531E - RETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER RH) | ||||
| 90560-14028 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 90560-14028 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 90560-14028 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48530-80032 |
NZE120,ZZE122 MARK 48530-1A430 |
1 | ||
| 48530-80033 |
NZE120,ZZE122..SED MARK 48530-1A440,ROUGH ROAD PACKAGE |
1 | ||
| 48530-80050 |
ZZE121..LHD;CE120,NZE120,ZZE122..GCC,GEN MARK 48530-1A430 |
1 | ||
| 48530-80095 |
CE120,NZE120,ZZE122..LHD..GEN MARK 48530-1A650 |
1 | ||
| 48530-80052 |
CE120,NZE120,ZZE121..PKN;CE120,NZE120,ZZE122..LHD..SED..GEN MARK 48530-1A440 |
1 | ||
| 48530-80095 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..GCC,GEN MARK 48530-1A650 |
1 | ||
| 48530-80052 |
ZZE121..LHD;CE120,NZE121..(LX,XLI)..GEN;NZE120,ZZE122..SED..(GCC,GEN) MARK 48530-1A440 |
1 | ||
| 48530-80197 |
ZZE121..LHD;CE120,NZE121..LX,XLI;NZE120,ZZE122..SED..(GCC,GEN) MARK 48530-12B50 |
1 | ||
| 48530-80146 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..GCC,GEN MARK 48530-12B30 |
1 | ||
| 48530-80147 |
ZZE121..LHD;CE120,NZE121..(LX,XLI)..GEN;NZE120,ZZE122..SED..(GCC,GEN) MARK 48530-12A40 |
1 | ||
| 48530-80278 |
ZZE121..LHD;CE120,NZE121..LX,XLI;NZE120,ZZE122..SED..(GCC,GEN) MARK 48530-12B50 |
1 | ||
| 48530-80276 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..GCC,GEN MARK 48530-12B30 |
1 | ||
| 48530-80408 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..GCC,GEN MARK 48530-12B31 |
1 | ||
| 48530-80146 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..GCC,GEN MARK 48530-12B30 |
1 | ||
| 48530-80410 |
ZZE121..LHD;CE120,NZE121..LX,XLI;NZE120,ZZE122..SED..(GCC,GEN) MARK 48530-12B51 |
1 | ||
| 48541E - RETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER LH) | ||||
| 90560-14028 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 90560-14028 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 90560-14028 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 48725F - BUSH, REAR AXLE CARRIER, RH | ||||
| 48725-12570 |
CE120,NZE120,ZZE122..LHD..GEN ROUGH ROAD PACKAGE |
1 | ||
| 48725-12570 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..GCC,GEN ROUGH ROAD PACKAGE |
1 | ||
| 48725-12570 |
NZE121..LX;NZE120,ZZE122..GCC,GEN |
1 | ||
| 48725G - BUSH, REAR AXLE CARRIER, LH | ||||
| 48725-12570 |
CE120,NZE120,ZZE122..LHD..GEN ROUGH ROAD PACKAGE |
1 | ||
| 48725-12570 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..GCC,GEN ROUGH ROAD PACKAGE |
1 | ||
| 48725-12570 |
NZE121..LX;NZE120,ZZE122..GCC,GEN |
1 | ||
| 48750H - SUPPORT ASSY, REAR SUSPENSION, RH | ||||
| 48750-47010 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 48750-47010 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 48750-47010 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 48755 - SUPPORT, REAR SUSPENSION | ||||
| 48755-63010 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN |
2 | ||
| 48755-63010 |
CE120,NZE12#,ZZE12#..GCC,GEN |
2 | ||
| 48755-63010 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
2 | ||
| 48760B - SUPPORT ASSY REAR SUSPENSION, LH | ||||
| 48750-47010 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 48750-47010 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 48750-47010 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 48812 - BAR, STABILIZER, REAR | ||||
| 48812-13010 |
ZZE121..LHD;CE120,NZE120,ZZE122..GCC,GEN |
1 | ||
| 48812-13050 |
CE120,NZE120,ZZE122..LHD..GEN MIDDLE SOUTH AMERICA SPEC |
1 | ||
| 48812-13050 |
CE120,NZE120,ZZE122..LHD..GEN MIDDLE SOUTH AMERICA SPEC |
1 | ||
| 48812-13040 |
CE120,NZE120,ZZE122..LHD..GEN |
1 | ||
| 48812-32480 |
CE120,NZE120,ZZE12#..ARL,GCC,GEN ROUGH ROAD PACKAGE |
1 | ||
| 48812-13040 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..GCC,GEN |
1 | ||
| 48812-12400 |
CE120,NZE120,ZZE122..LHD..GEN ROUGH ROAD PACKAGE |
1 | ||
| 48812-12400 |
NZE121..LX;ZZE122..WG..ARL;CE120,NZE120,ZZE12#..GCC,GEN OD=20.0 |
1 | ||
| 48812-12400 |
NZE121..LX;NZE120,ZZE122..GCC,GEN ROUGH ROAD PACKAGE |
1 | ||
| 48812-13050 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..GCC,GEN |
1 | ||
| 48812-13050 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..GCC,GEN OD=22.2 |
1 | ||
| 48817U - BOLT(FOR REAR STABILIZER) | ||||
| 90105-14138 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN |
2 | ||
| 90105-14138 |
NZE121..LX;ZZE122..WG..ARL;CE120,NZE120,ZZE12#..GCC,GEN |
2 | ||
| 90105-14138 |
NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN |
2 | ||
| 48830A - NUT(FOR REAR STABILIZER LINK) | ||||
| 90179-14062 |
NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN |
2 | ||
| 90179-14062 |
ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN |
2 | ||
| 90179-14062 |
NZE121..LX;ZZE122..WG..ARL;CE120,NZE120,ZZE12#..GCC,GEN |
2 | ||
| Common parts | ||||
| 90105-10361 | ||||
| 90119-12357 | ||||
| 90178-10014 | ||||
| 90178-12009 | ||||
| 90178-12010 | ||||
| 90178-14004 | ||||
| 90179-12078 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
