NZE120L-AEPDK (2000)

Toyota Corolla/Altis Sed/Wg

Production Aug 2000 - Aug 2007
Engine 2NZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0008- )NZE120..LHD

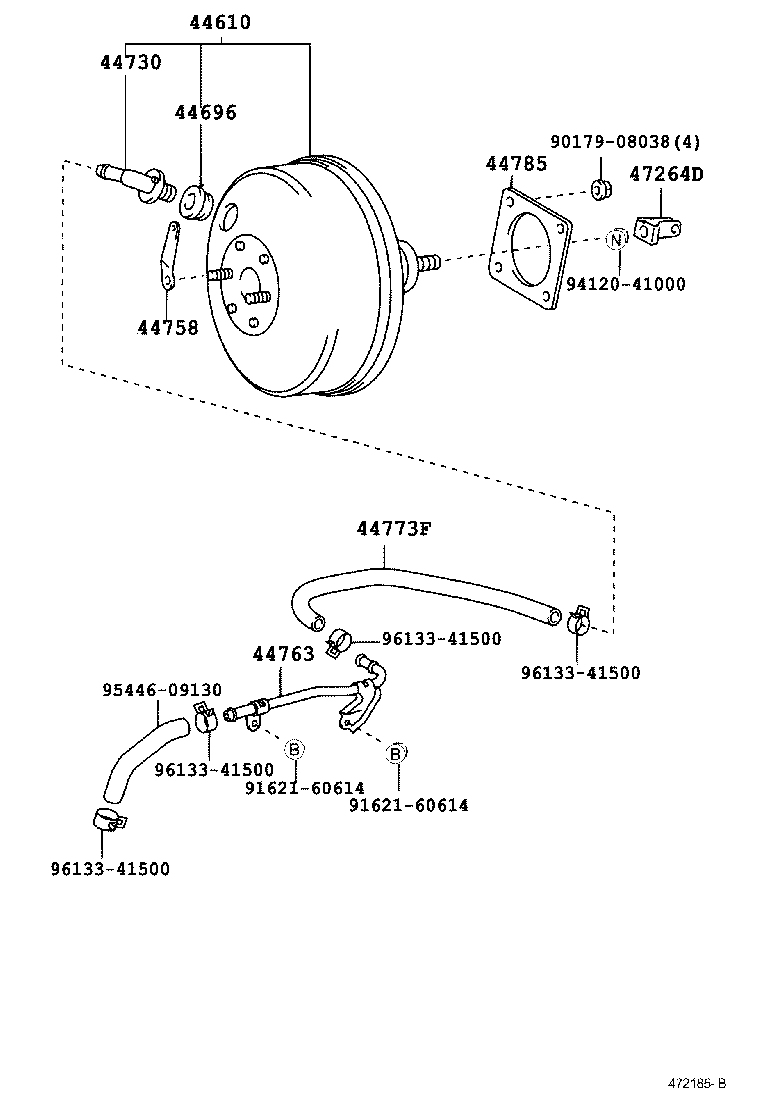

Click highlighted areas on diagram

diagram 44610 44696 44730 44758 44763 44773F 44785 47264D 9017908038 9162160614 9162160614 9412041000 9544609130 9613341500 9613341500 9613341500 9613341500
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-1E520

NZE120,ZZE122..LHD..GEN

W(ABS)

 1
44610-1E480

NZE120,ZZE122..LHD..GEN

 1
44610-1E520

NZE120,ZZE12#..LHD

W(ABS)

 1
44610-1E480

NZE120,ZZE12#..LHD

 1
44610-1E480

NZE120,ZZE12#..LHD

 1
44610-1E520

NZE120,ZZE12#..LHD

W(ABS)

 1
44696 - GROMMET, CHECK VALVE
90480-24439

ZZE122..ARL;NZE120,ZZE122..LHD..GEN

 1
90480-24439

NZE12#,ZZE12#..GCC,GEN

 1
90480-24439

ZZE122..WG..ARL;NZE12#,ZZE12#..GCC,GEN

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-12070

NZE12#,ZZE12#..GCC,GEN

 1
44730-14050

ZZE122..WG..ARL;NZE12#,ZZE12#..GCC,GEN

 1
44730-12070

ZZE122..ARL;NZE120,ZZE122..LHD..GEN

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-42010

NZE120,ZZE12#..LHD

 1
44758-42010

NZE120,ZZE122..LHD..GEN

 1
44758-42010

NZE120,ZZE12#..LHD

 1
44763 - TUBE, BOOSTER VACUUM
44763-52010

NZE120..LHD..GEN

 1
44763-52010

NZE12#..GCC,GEN

 1
44763-52010

NZE121..LX;NZE120..GCC,GEN;NZE121..MTM..GLI

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-12700

NZE120..LHD

 1
44773-12700

NZE120..LHD

 1
44773-12700

NZE120..LHD..GEN

 1
44785 - GASKET, BRAKE BOOSTER
44785-20020

ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN

 1
44785-20020

CE120,NZE12#,ZZE12#..GCC,GEN

 1
44785-20020

ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN

 1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-63010

ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN

 1
47264-63010

CE120,NZE12#,ZZE12#..GCC,GEN

 1
47264-63010

CE120..LHD;ZZE122..WG..ARL;NZE12#,ZZE12#..GCC,GEN

 1
Common parts
90179-08038
91621-60614
94120-41000
95446-09130
96133-41500
