Toyota Corolla/altis sed/wg NZE120 FRONT STEERING GEAR & LINK

NZE120L-AEPDK (2000)

Toyota Corolla/Altis Sed/Wg

Production Aug 2000 - Aug 2007

Engine 2NZFE

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

(0008- )LHD..XLI

Click highlighted areas on diagram

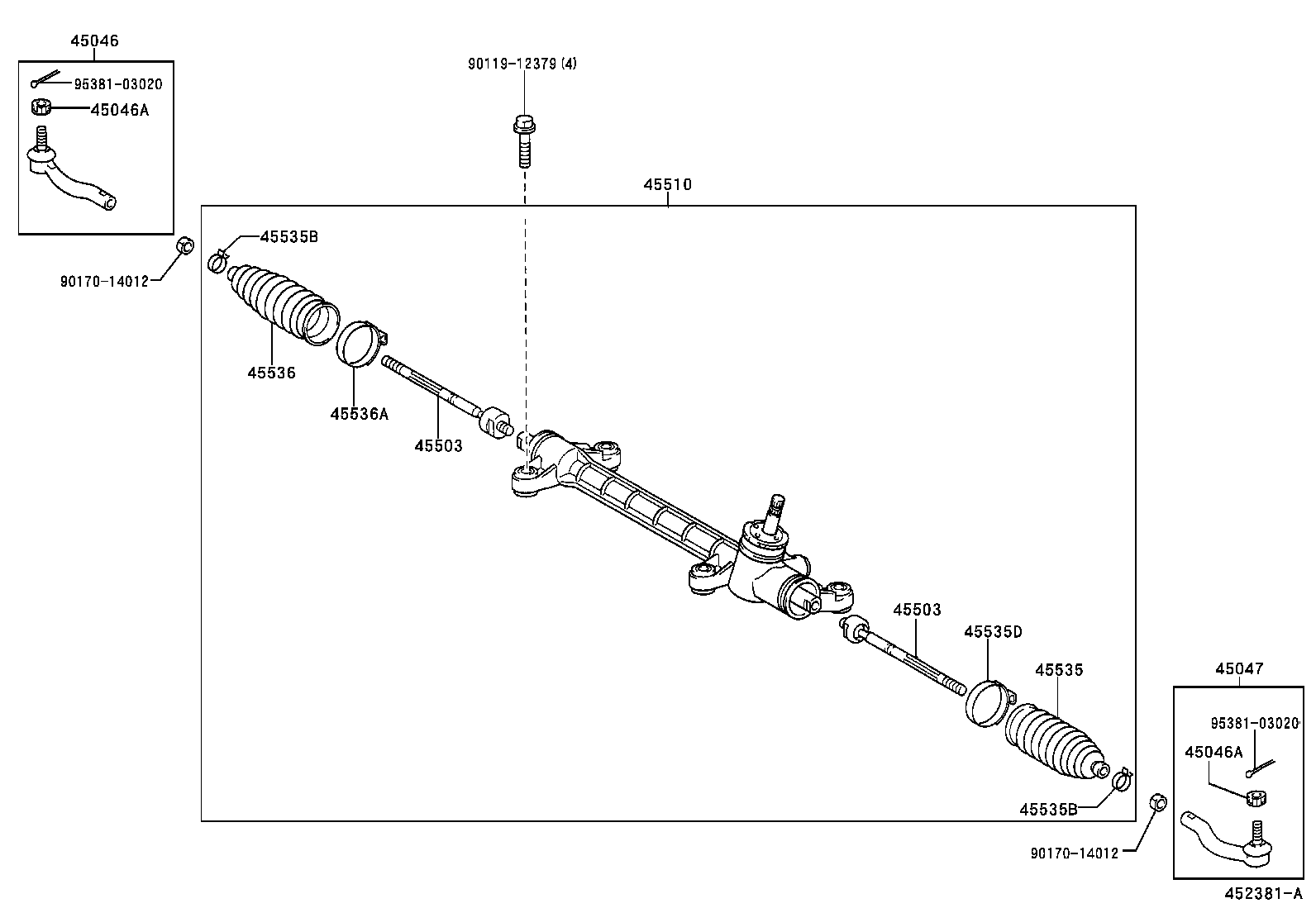

MANUAL STEERING

Part #	Description	Period	Qty
45046 - END SUB-ASSY, TIE ROD, RH
45046-49115	CE120,NZE120,ZZE12#..ARL,GCC,GEN	04/2004 - 08/2007	1
45046-49115	ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN	08/2000 - 04/2004	1
45046-49115	CE120,NZE120,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	2
90171-12028	ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN	08/2000 - 04/2004	2
90171-12028	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	2
90171-12028	ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN	08/2000 - 04/2004	2
90171-12028	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	2
45047 - END SUB-ASSY, TIE ROD, LH
45047-49045	CE120,NZE120,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
45047-49045	ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN	08/2000 - 04/2004	1
45047-49045	CE120,NZE120,ZZE12#..ARL,GCC,GEN	04/2004 - 08/2007	1
45503 - END SUB-ASSY, STEERING RACK
45503-12130	NZE120,ZZE122..LHD..XLI..GEN W(MANUAL STEERING)	08/2000 - 04/2004	2
45503-19255	CE120,NZE120,ZZE12#..ARL,GCC,GEN	04/2004 - 08/2007	2
45503-19255	NZE120,ZZE122..LHD..SED..XLI..GEN	08/2000 - 04/2004	2
45503-12130	NZE121;NZE120,ZZE12#..LHD..XLI W(MANUAL STEERING)	09/2002 - 04/2004	2
45503 - END SUB-ASSY, STEERING RACK
45503-12130	NZE120,ZZE122..LHD..XLI..GEN W(MANUAL STEERING)	08/2000 - 04/2004	2
45503-19255	CE120,NZE120,ZZE12#..ARL,GCC,GEN	04/2004 - 08/2007	2
45503-19255	NZE120,ZZE122..LHD..SED..XLI..GEN	08/2000 - 04/2004	2
45503-12130	NZE121;NZE120,ZZE12#..LHD..XLI W(MANUAL STEERING)	09/2002 - 04/2004	2
45510 - GEAR ASSY, STEERING
45510-12280	NZE120,ZZE122..LHD..XLI..GEN	08/2000 - 04/2004	1
45510-12280	NZE120,ZZE12#..LHD..XLI	09/2002 - 04/2004	1
45535 - BOOT, STEERING RACK, NO.1
45535-52060	NZE121;NZE120,ZZE12#..LHD..XLI W(MANUAL STEERING)	08/2000 - 04/2004	1
45535-32070	CE120,NZE120,ZZE12#..LHD	08/2000 - 04/2004	2
45535-32070	CE120,NZE120,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
45535-52060	NZE121;NZE120,ZZE12#..LHD..XLI W(MANUAL STEERING)	09/2002 - 04/2004	1
45535-32070	CE120,NZE120,ZZE12#..GCC,GEN	04/2004 - 12/2999	1
45535B - CLIP(FOR STEERING RACK BOOT)
90467-19021	NZE121;NZE120,ZZE12#..LHD..XLI (J)	09/2002 - 04/2004	2
90080-46174	NZE120,ZZE12#..LHD..XLI (L)	08/2000 - 04/2004	2
90467-19019	NZE120..GCC,PKN;ZZE121..LHD..LX;NZE120..GLI..GEN;NZE120..LHD..XLI..GEN;CE120,ZZE12#..20D,20DSA,CONQ,GLI,SESAL,ULT,XLI	08/2000 - 07/2005	2
90467-19019	CE120,NZE120,ZZE12#..GCC,GEN	09/2002 - 04/2004	2
90080-46174	NZE121;NZE120,ZZE12#..LHD..XLI (L)	09/2002 - 04/2004	2
90467-19019	ZZE122..WG..ARL;CE120,NZE120,ZZE12#..GCC,GEN	04/2004 - 12/2999	2
90467-19021	NZE120,ZZE12#..LHD..XLI (J)	04/2002 - 04/2004	2
45535B - CLIP(FOR STEERING RACK BOOT)
90467-19021	NZE121;NZE120,ZZE12#..LHD..XLI (J)	09/2002 - 04/2004	2
90080-46174	NZE120,ZZE12#..LHD..XLI (L)	08/2000 - 04/2004	2
90467-19019	NZE120..GCC,PKN;ZZE121..LHD..LX;NZE120..GLI..GEN;NZE120..LHD..XLI..GEN;CE120,ZZE12#..20D,20DSA,CONQ,GLI,SESAL,ULT,XLI	08/2000 - 07/2005	2
90467-19019	CE120,NZE120,ZZE12#..GCC,GEN	09/2002 - 04/2004	2
90080-46174	NZE121;NZE120,ZZE12#..LHD..XLI (L)	09/2002 - 04/2004	2
90467-19019	ZZE122..WG..ARL;CE120,NZE120,ZZE12#..GCC,GEN	04/2004 - 12/2999	2
90467-19021	NZE120,ZZE12#..LHD..XLI (J)	04/2002 - 04/2004	2
45535D - CLAMP(FOR STEERING RACK BOOT NO.1)
90460-58008	NZE121;NZE120,ZZE12#..LHD..XLI	08/2000 - 04/2004	1
90460-58008	NZE121;NZE120,ZZE12#..LHD..XLI	09/2002 - 04/2004	1
45536 - BOOT, STEERING RACK, NO.2
45535-32070	CE120,NZE120,ZZE12#..LHD	08/2000 - 04/2004	2
45535-52060	NZE121;NZE120,ZZE12#..LHD..XLI W(MANUAL STEERING)	09/2002 - 04/2004	1
45535-32070	CE120,NZE120,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
45535-32070	CE120,NZE120,ZZE12#..GCC,GEN	04/2004 - 12/2999	1
45535-52060	NZE121;NZE120,ZZE12#..LHD..XLI W(MANUAL STEERING)	08/2000 - 04/2004	1
45536A - CLAMP(FOR STEERING RACK BOOT NO.2)
90460-58008	NZE121;NZE120,ZZE12#..LHD..XLI	08/2000 - 04/2004	1
90460-58008	NZE121;NZE120,ZZE12#..LHD..XLI	09/2002 - 04/2004	1
Common parts
90119-12379
90170-14012
95381-03020

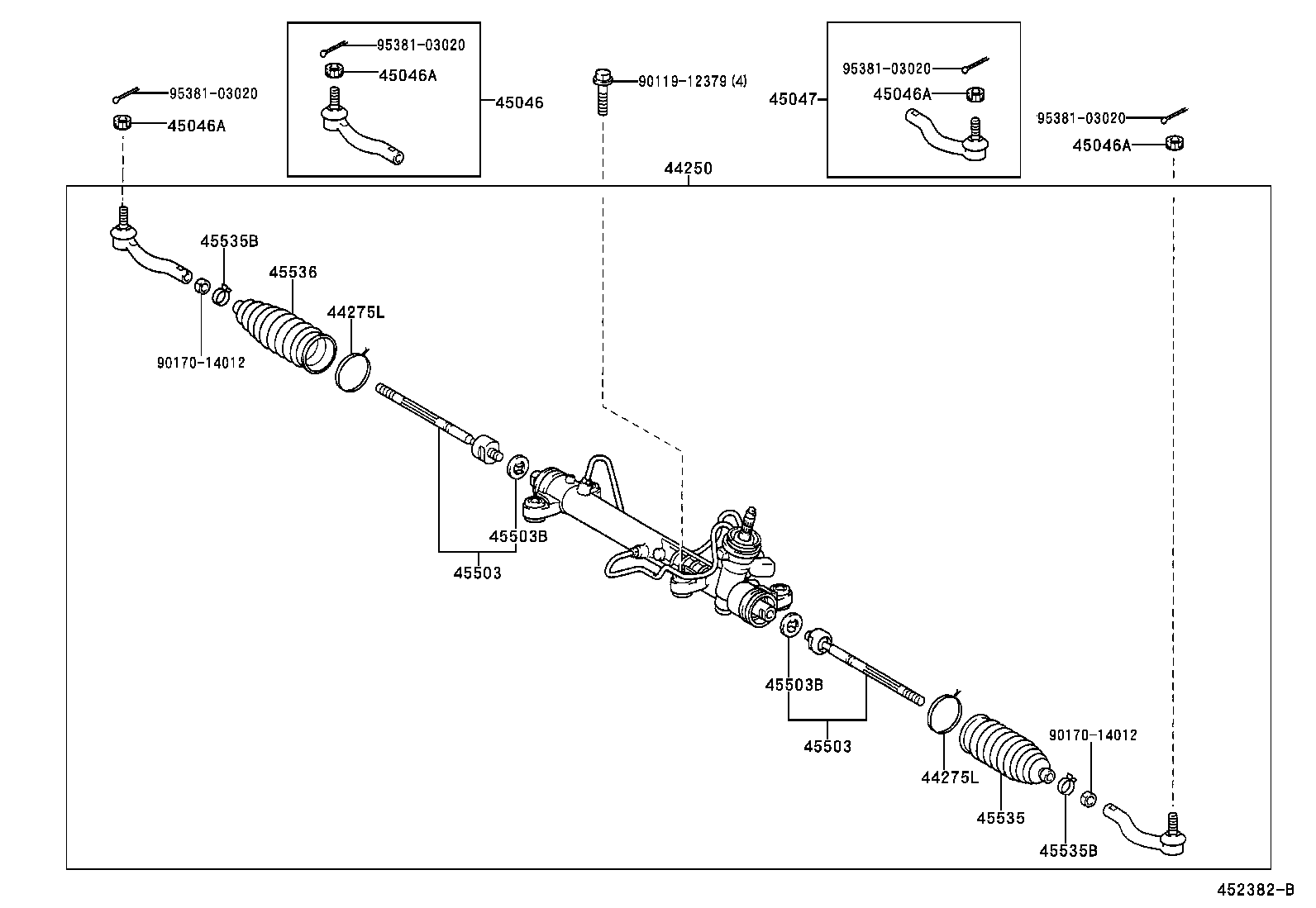

ILLUST NO. 1 OF 2(0008- )LHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION)
44200-12760	CE120,NZE120,ZZE12#..LHD	08/2000 - 04/2004	1
44200-12760	CE120,NZE120,ZZE12#..LHD	09/2002 - 04/2004	1
44200-12760	CE120,NZE120,ZZE12#..LHD	04/2004 - 12/2999	1
44275L - WIRE, BOOT
90580-14073	ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN	08/2000 - 04/2004	2
90580-14073	CE120,NZE120,ZZE12#..GCC,GEN	09/2002 - 04/2004	2
90580-14073	CE120,NZE120,ZZE12#..GCC,GEN	04/2004 - 12/2999	2
44275L - WIRE, BOOT
90580-14073	ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN	08/2000 - 04/2004	2
90580-14073	CE120,NZE120,ZZE12#..GCC,GEN	09/2002 - 04/2004	2
90580-14073	CE120,NZE120,ZZE12#..GCC,GEN	04/2004 - 12/2999	2
45046 - END SUB-ASSY, TIE ROD, RH
45046-49115	CE120,NZE120,ZZE12#..ARL,GCC,GEN	04/2004 - 08/2007	1
45046-49115	ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN	08/2000 - 04/2004	1
45046-49115	CE120,NZE120,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	2
90171-12028	ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN	08/2000 - 04/2004	2
90171-12028	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	2
90171-12028	ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN	08/2000 - 04/2004	2
90171-12028	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	2
90171-12028	ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN	08/2000 - 04/2004	2
90171-12028	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	2
90171-12028	ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN	08/2000 - 04/2004	2
90171-12028	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	2
45047 - END SUB-ASSY, TIE ROD, LH
45047-49045	CE120,NZE120,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
45047-49045	ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN	08/2000 - 04/2004	1
45047-49045	CE120,NZE120,ZZE12#..ARL,GCC,GEN	04/2004 - 08/2007	1
45503 - END SUB-ASSY, STEERING RACK
45503-12130	NZE120,ZZE122..LHD..XLI..GEN W(MANUAL STEERING)	08/2000 - 04/2004	2
45503-19255	CE120,NZE120,ZZE12#..ARL,GCC,GEN	04/2004 - 08/2007	2
45503-19255	NZE120,ZZE122..LHD..SED..XLI..GEN	08/2000 - 04/2004	2
45503-12130	NZE121;NZE120,ZZE12#..LHD..XLI W(MANUAL STEERING)	09/2002 - 04/2004	2
45503 - END SUB-ASSY, STEERING RACK
45503-12130	NZE120,ZZE122..LHD..XLI..GEN W(MANUAL STEERING)	08/2000 - 04/2004	2
45503-19255	CE120,NZE120,ZZE12#..ARL,GCC,GEN	04/2004 - 08/2007	2
45503-19255	NZE120,ZZE122..LHD..SED..XLI..GEN	08/2000 - 04/2004	2
45503-12130	NZE121;NZE120,ZZE12#..LHD..XLI W(MANUAL STEERING)	09/2002 - 04/2004	2
45503B - WASHER, CLAW(FOR STEERING RACK END)
90214-14009	ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN OD=35.2	08/2000 - 04/2004	2
90214-14009	ZZE122..WG..ARL;CE120,NZE120,ZZE12#..GCC,GEN OD=35.2	04/2004 - 12/2999	2
90214-14009	CE120,NZE120,ZZE12#..GCC,GEN OD=35.2	09/2002 - 04/2004	2
45503B - WASHER, CLAW(FOR STEERING RACK END)
90214-14009	ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN OD=35.2	08/2000 - 04/2004	2
90214-14009	ZZE122..WG..ARL;CE120,NZE120,ZZE12#..GCC,GEN OD=35.2	04/2004 - 12/2999	2
90214-14009	CE120,NZE120,ZZE12#..GCC,GEN OD=35.2	09/2002 - 04/2004	2
45535 - BOOT, STEERING RACK, NO.1
45535-52060	NZE121;NZE120,ZZE12#..LHD..XLI W(MANUAL STEERING)	08/2000 - 04/2004	1
45535-32070	CE120,NZE120,ZZE12#..LHD	08/2000 - 04/2004	2
45535-32070	CE120,NZE120,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
45535-52060	NZE121;NZE120,ZZE12#..LHD..XLI W(MANUAL STEERING)	09/2002 - 04/2004	1
45535-32070	CE120,NZE120,ZZE12#..GCC,GEN	04/2004 - 12/2999	1
45535B - CLIP(FOR STEERING RACK BOOT)
90467-19021	NZE121;NZE120,ZZE12#..LHD..XLI (J)	09/2002 - 04/2004	2
90080-46174	NZE120,ZZE12#..LHD..XLI (L)	08/2000 - 04/2004	2
90467-19019	NZE120..GCC,PKN;ZZE121..LHD..LX;NZE120..GLI..GEN;NZE120..LHD..XLI..GEN;CE120,ZZE12#..20D,20DSA,CONQ,GLI,SESAL,ULT,XLI	08/2000 - 07/2005	2
90467-19019	CE120,NZE120,ZZE12#..GCC,GEN	09/2002 - 04/2004	2
90080-46174	NZE121;NZE120,ZZE12#..LHD..XLI (L)	09/2002 - 04/2004	2
90467-19019	ZZE122..WG..ARL;CE120,NZE120,ZZE12#..GCC,GEN	04/2004 - 12/2999	2
90467-19021	NZE120,ZZE12#..LHD..XLI (J)	04/2002 - 04/2004	2
45535B - CLIP(FOR STEERING RACK BOOT)
90467-19021	NZE121;NZE120,ZZE12#..LHD..XLI (J)	09/2002 - 04/2004	2
90080-46174	NZE120,ZZE12#..LHD..XLI (L)	08/2000 - 04/2004	2
90467-19019	NZE120..GCC,PKN;ZZE121..LHD..LX;NZE120..GLI..GEN;NZE120..LHD..XLI..GEN;CE120,ZZE12#..20D,20DSA,CONQ,GLI,SESAL,ULT,XLI	08/2000 - 07/2005	2
90467-19019	CE120,NZE120,ZZE12#..GCC,GEN	09/2002 - 04/2004	2
90080-46174	NZE121;NZE120,ZZE12#..LHD..XLI (L)	09/2002 - 04/2004	2
90467-19019	ZZE122..WG..ARL;CE120,NZE120,ZZE12#..GCC,GEN	04/2004 - 12/2999	2
90467-19021	NZE120,ZZE12#..LHD..XLI (J)	04/2002 - 04/2004	2
45536 - BOOT, STEERING RACK, NO.2
45535-32070	CE120,NZE120,ZZE12#..LHD	08/2000 - 04/2004	2
45535-52060	NZE121;NZE120,ZZE12#..LHD..XLI W(MANUAL STEERING)	09/2002 - 04/2004	1
45535-32070	CE120,NZE120,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
45535-32070	CE120,NZE120,ZZE12#..GCC,GEN	04/2004 - 12/2999	1
45535-52060	NZE121;NZE120,ZZE12#..LHD..XLI W(MANUAL STEERING)	08/2000 - 04/2004	1
Common parts
90119-12379
90170-14012
95381-03020

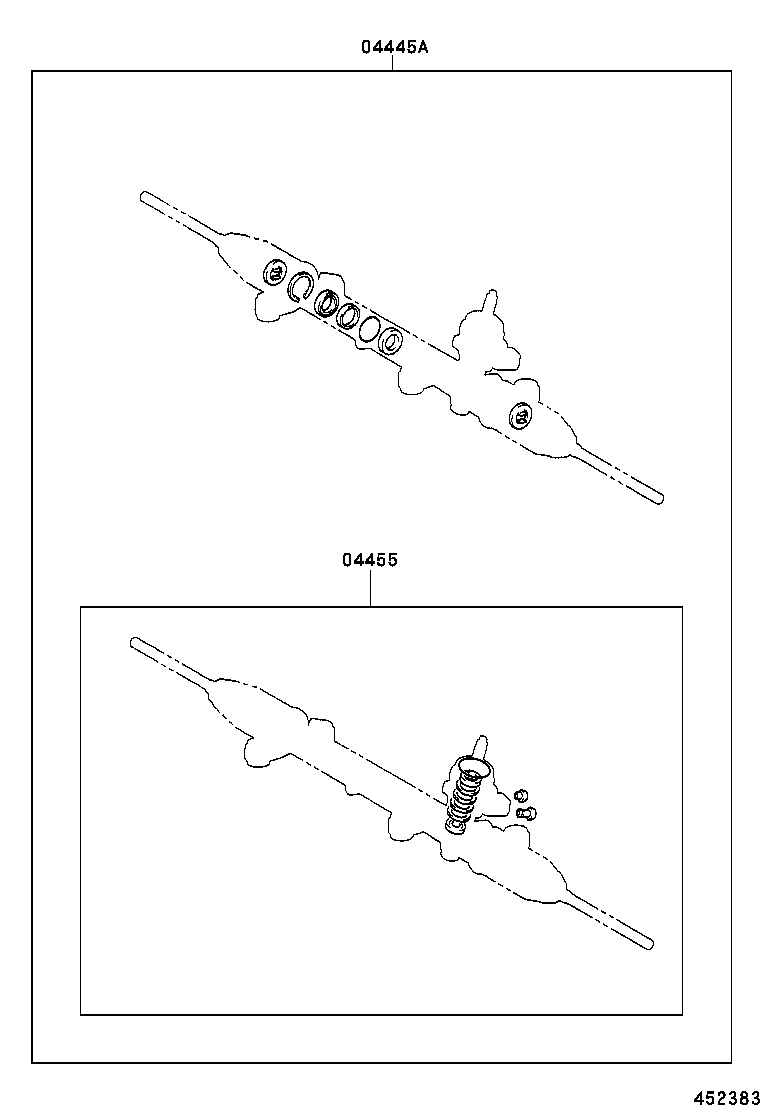

ILLUST NO. 2 OF 2(0008- )LHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)
04445-12170	CE120,NZE120,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
04445-20261	CE120,NZE120,ZZE12#..GCC,GEN	04/2004 - 08/2007	1
04445-12170	CE120,NZE120,ZZE12#..ARL,GCC,GEN	08/2000 - 04/2004	1
04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE
04455-12220	CE120,NZE120,ZZE12#	08/2000 - 11/2001	1
04455-20171	CE120,NZE120,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
04455-20171	ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN	11/2001 - 04/2004	1
04455-20171	CE120,NZE120,ZZE12#..GCC,GEN	04/2004 - 08/2007	1

ILLUST NO. 1 OF 2(0008- )CE120,NZE120,ZZE12#..ARL,GCC,GEN ; (0202- )CE120,NZE120..PKN

Click highlighted areas on diagram

Part #	Description	Period	Qty
44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION)
44200-12760	CE120,NZE120,ZZE12#..LHD	08/2000 - 04/2004	1
44200-12760	CE120,NZE120,ZZE12#..LHD	09/2002 - 04/2004	1
44200-12760	CE120,NZE120,ZZE12#..LHD	04/2004 - 12/2999	1
44275L - WIRE, BOOT
90580-14073	ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN	08/2000 - 04/2004	2
90580-14073	CE120,NZE120,ZZE12#..GCC,GEN	09/2002 - 04/2004	2
90580-14073	CE120,NZE120,ZZE12#..GCC,GEN	04/2004 - 12/2999	2
44275L - WIRE, BOOT
90580-14073	ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN	08/2000 - 04/2004	2
90580-14073	CE120,NZE120,ZZE12#..GCC,GEN	09/2002 - 04/2004	2
90580-14073	CE120,NZE120,ZZE12#..GCC,GEN	04/2004 - 12/2999	2
45046 - END SUB-ASSY, TIE ROD, RH
45046-49115	CE120,NZE120,ZZE12#..ARL,GCC,GEN	04/2004 - 08/2007	1
45046-49115	ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN	08/2000 - 04/2004	1
45046-49115	CE120,NZE120,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	2
90171-12028	ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN	08/2000 - 04/2004	2
90171-12028	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	2
90171-12028	ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN	08/2000 - 04/2004	2
90171-12028	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	2
90171-12028	ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN	08/2000 - 04/2004	2
90171-12028	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	2
90171-12028	ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN	08/2000 - 04/2004	2
90171-12028	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	2
45047 - END SUB-ASSY, TIE ROD, LH
45047-49045	CE120,NZE120,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
45047-49045	ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN	08/2000 - 04/2004	1
45047-49045	CE120,NZE120,ZZE12#..ARL,GCC,GEN	04/2004 - 08/2007	1
45503 - END SUB-ASSY, STEERING RACK
45503-12130	NZE120,ZZE122..LHD..XLI..GEN W(MANUAL STEERING)	08/2000 - 04/2004	2
45503-19255	CE120,NZE120,ZZE12#..ARL,GCC,GEN	04/2004 - 08/2007	2
45503-19255	NZE120,ZZE122..LHD..SED..XLI..GEN	08/2000 - 04/2004	2
45503-12130	NZE121;NZE120,ZZE12#..LHD..XLI W(MANUAL STEERING)	09/2002 - 04/2004	2
45503 - END SUB-ASSY, STEERING RACK
45503-12130	NZE120,ZZE122..LHD..XLI..GEN W(MANUAL STEERING)	08/2000 - 04/2004	2
45503-19255	CE120,NZE120,ZZE12#..ARL,GCC,GEN	04/2004 - 08/2007	2
45503-19255	NZE120,ZZE122..LHD..SED..XLI..GEN	08/2000 - 04/2004	2
45503-12130	NZE121;NZE120,ZZE12#..LHD..XLI W(MANUAL STEERING)	09/2002 - 04/2004	2
45503B - WASHER, CLAW(FOR STEERING RACK END)
90214-14009	ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN OD=35.2	08/2000 - 04/2004	2
90214-14009	ZZE122..WG..ARL;CE120,NZE120,ZZE12#..GCC,GEN OD=35.2	04/2004 - 12/2999	2
90214-14009	CE120,NZE120,ZZE12#..GCC,GEN OD=35.2	09/2002 - 04/2004	2
45503B - WASHER, CLAW(FOR STEERING RACK END)
90214-14009	ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN OD=35.2	08/2000 - 04/2004	2
90214-14009	ZZE122..WG..ARL;CE120,NZE120,ZZE12#..GCC,GEN OD=35.2	04/2004 - 12/2999	2
90214-14009	CE120,NZE120,ZZE12#..GCC,GEN OD=35.2	09/2002 - 04/2004	2
45535 - BOOT, STEERING RACK, NO.1
45535-52060	NZE121;NZE120,ZZE12#..LHD..XLI W(MANUAL STEERING)	08/2000 - 04/2004	1
45535-32070	CE120,NZE120,ZZE12#..LHD	08/2000 - 04/2004	2
45535-32070	CE120,NZE120,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
45535-52060	NZE121;NZE120,ZZE12#..LHD..XLI W(MANUAL STEERING)	09/2002 - 04/2004	1
45535-32070	CE120,NZE120,ZZE12#..GCC,GEN	04/2004 - 12/2999	1
45535B - CLIP(FOR STEERING RACK BOOT)
90467-19021	NZE121;NZE120,ZZE12#..LHD..XLI (J)	09/2002 - 04/2004	2
90080-46174	NZE120,ZZE12#..LHD..XLI (L)	08/2000 - 04/2004	2
90467-19019	NZE120..GCC,PKN;ZZE121..LHD..LX;NZE120..GLI..GEN;NZE120..LHD..XLI..GEN;CE120,ZZE12#..20D,20DSA,CONQ,GLI,SESAL,ULT,XLI	08/2000 - 07/2005	2
90467-19019	CE120,NZE120,ZZE12#..GCC,GEN	09/2002 - 04/2004	2
90080-46174	NZE121;NZE120,ZZE12#..LHD..XLI (L)	09/2002 - 04/2004	2
90467-19019	ZZE122..WG..ARL;CE120,NZE120,ZZE12#..GCC,GEN	04/2004 - 12/2999	2
90467-19021	NZE120,ZZE12#..LHD..XLI (J)	04/2002 - 04/2004	2
45535B - CLIP(FOR STEERING RACK BOOT)
90467-19021	NZE121;NZE120,ZZE12#..LHD..XLI (J)	09/2002 - 04/2004	2
90080-46174	NZE120,ZZE12#..LHD..XLI (L)	08/2000 - 04/2004	2
90467-19019	NZE120..GCC,PKN;ZZE121..LHD..LX;NZE120..GLI..GEN;NZE120..LHD..XLI..GEN;CE120,ZZE12#..20D,20DSA,CONQ,GLI,SESAL,ULT,XLI	08/2000 - 07/2005	2
90467-19019	CE120,NZE120,ZZE12#..GCC,GEN	09/2002 - 04/2004	2
90080-46174	NZE121;NZE120,ZZE12#..LHD..XLI (L)	09/2002 - 04/2004	2
90467-19019	ZZE122..WG..ARL;CE120,NZE120,ZZE12#..GCC,GEN	04/2004 - 12/2999	2
90467-19021	NZE120,ZZE12#..LHD..XLI (J)	04/2002 - 04/2004	2
45536 - BOOT, STEERING RACK, NO.2
45535-32070	CE120,NZE120,ZZE12#..LHD	08/2000 - 04/2004	2
45535-52060	NZE121;NZE120,ZZE12#..LHD..XLI W(MANUAL STEERING)	09/2002 - 04/2004	1
45535-32070	CE120,NZE120,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
45535-32070	CE120,NZE120,ZZE12#..GCC,GEN	04/2004 - 12/2999	1
45535-52060	NZE121;NZE120,ZZE12#..LHD..XLI W(MANUAL STEERING)	08/2000 - 04/2004	1
Common parts
90119-12332
90119-12379
90170-14012
95381-03020
95381-03025

NZE120L-AEPDK (2000)

(0008- )LHD..XLI

ILLUST NO. 1 OF 2(0008- )LHD

ILLUST NO. 2 OF 2(0008- )LHD

ILLUST NO. 1 OF 2(0008- )CE120,NZE120,ZZE12#..ARL,GCC,GEN ; (0202- )CE120,NZE120..PKN

Part Price Details
