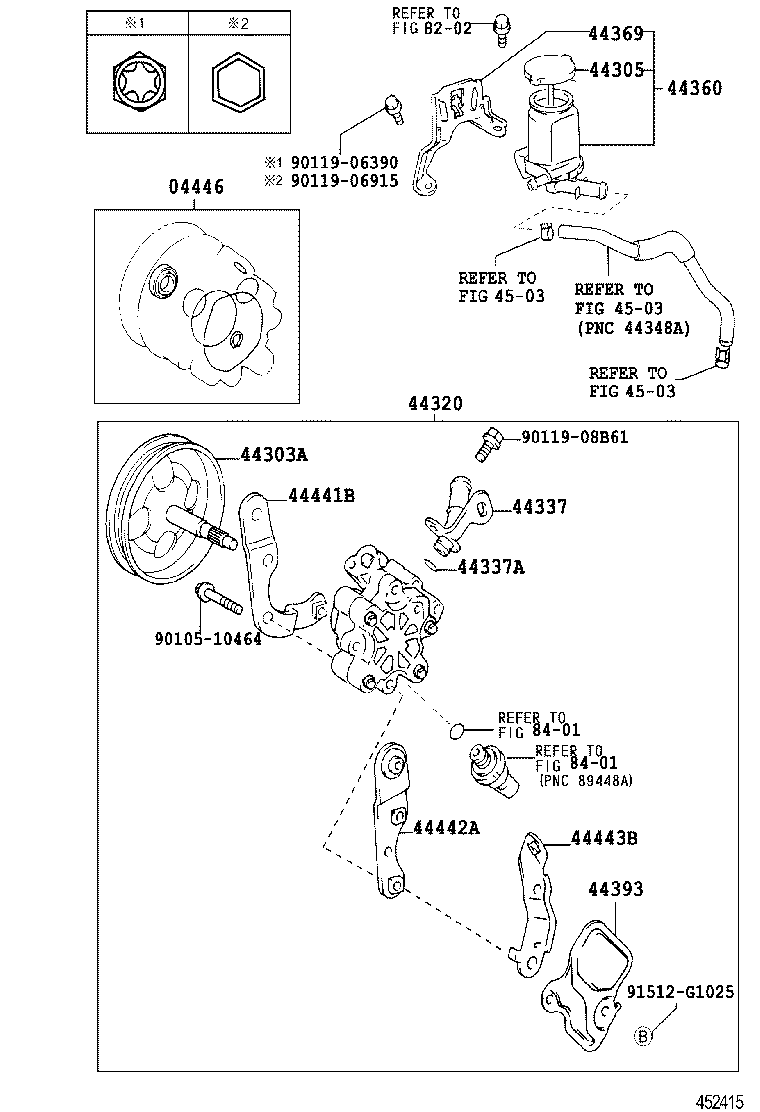

Toyota Corolla/altis sed/wg NZE120 VANE PUMP & RESERVOIR (POWER STEERING)

Part #	Description	Period	Qty
04446 - GASKET KIT, POWER STEERING PUMP
04446-32050	CE120,NZE120,ZZE12#..20D,20DSA,CONQ,GLI,LX,ULT,XLI	08/2000 - 07/2005	1
04446-32050	CE120,NZE120,ZZE12#..ARL,GCC,GEN	04/2004 - 10/2005	1
04446-32050	CE120,NZE120,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
04446-20170	CE120,NZE120,ZZE12#..ARL,GCC,GEN	10/2005 - 08/2007	1
44303A - SHAFT SUB-ASSY, W/PULLEY
44303-52020	NZE120..GCC,GEN	09/2002 - 04/2004	1
44303-52020	NZE120..LHD..GEN	08/2000 - 04/2004	1
44303-52020	NZE120..GCC,GEN	04/2004 - 12/2999	1
44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44305-28030	ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN	10/2001 - 04/2004	1
44305-28030	CE120,NZE120,ZZE12#..ARL,GCC,GEN	04/2004 - 08/2007	1
44305-28030	CE120,NZE120,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
44320 - PUMP ASSY, VANE
44310-12530	NZE120..GCC,GEN	09/2002 - 04/2004	1
44310-12530	NZE120..GCC,GEN	04/2004 - 12/2999	1
44310-12530	NZE120..LHD..GEN	08/2000 - 04/2004	1
44337 - UNION, POWER STEERING SUCTION PORT
44337-12120	NZE120..LHD..GEN	08/2000 - 04/2004	1
44337-12120	NZE120..GCC,GEN	09/2002 - 04/2004	1
44337-12120	NZE120..GCC,GEN	04/2004 - 12/2999	1
44337A - RING, O(FOR POWER STEERING SUCTION PORT)
90301-11020	ZZE122..WG..ARL;CE120,NZE120,ZZE12#..GCC,GEN	04/2004 - 12/2999	1
90301-11020	CE120,NZE120,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
90301-11020	ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN	08/2000 - 04/2004	1
44360 - RESERVOIR ASSY, VANE PUMP OIL
44360-12100	ZZE122..ARL;NZE120,ZZE122..LHD..GEN	08/2000 - 04/2004	1
44360-12100	NZE120,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
44360-12100	ZZE122..WG..ARL;NZE120,ZZE12#..GCC,GEN	04/2004 - 12/2999	1
44369 - BRACKET, OIL RESERVOIR, NO.1
44369-12060	ZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN	10/2001 - 04/2004	1
44369-12060	ZZE122..WG..ARL;CE120,NZE120,ZZE12#..GCC,GEN	04/2004 - 12/2999	1
44369-12060	CE120,NZE120,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
44393 - INSULATOR, POWER STEERING PUMP HEAT
44393-52010	NZE120..GCC,GEN	09/2002 - 04/2004	1
44393-52010	NZE120..GCC,GEN	04/2004 - 12/2999	1
44393-52010	NZE120..LHD..GEN	08/2000 - 04/2004	1
44441B - BRACKET, PUMP, FRONT
44441-52010	NZE120..LHD..GEN	08/2000 - 04/2004	1
44441-52010	NZE120..GCC,GEN	04/2004 - 12/2999	1
44441-52010	NZE120..GCC,GEN	09/2002 - 04/2004	1
44442A - BRACKET, VANE PUMP, REAR
44442-52020	NZE120..LHD..GEN	08/2000 - 04/2004	1
44442-52020	NZE120..GCC,GEN	09/2002 - 04/2004	1
44442-52020	NZE120..GCC,GEN	04/2004 - 12/2999	1
44443B - BRACKET, VANE PUMP
44442-12030	NZE120..GCC,GEN	04/2004 - 12/2999	1
44442-12030	NZE120..GCC,GEN	09/2002 - 04/2004	1
44442-12030	NZE120..LHD..GEN	08/2000 - 04/2004	1
Common parts
90105-10464
90119-06390
90119-06915
90119-08B61
91512-G1025
Linked diagrams
4503
8202
8401

NZE120L-AEPDK (2000)

(0008- )NZE120
