NZE120L-AEPDK (2000)
Toyota Corolla/Altis Sed/Wg
(0008-0404)NZE12# ; (0404-0507)NZE120..PKN

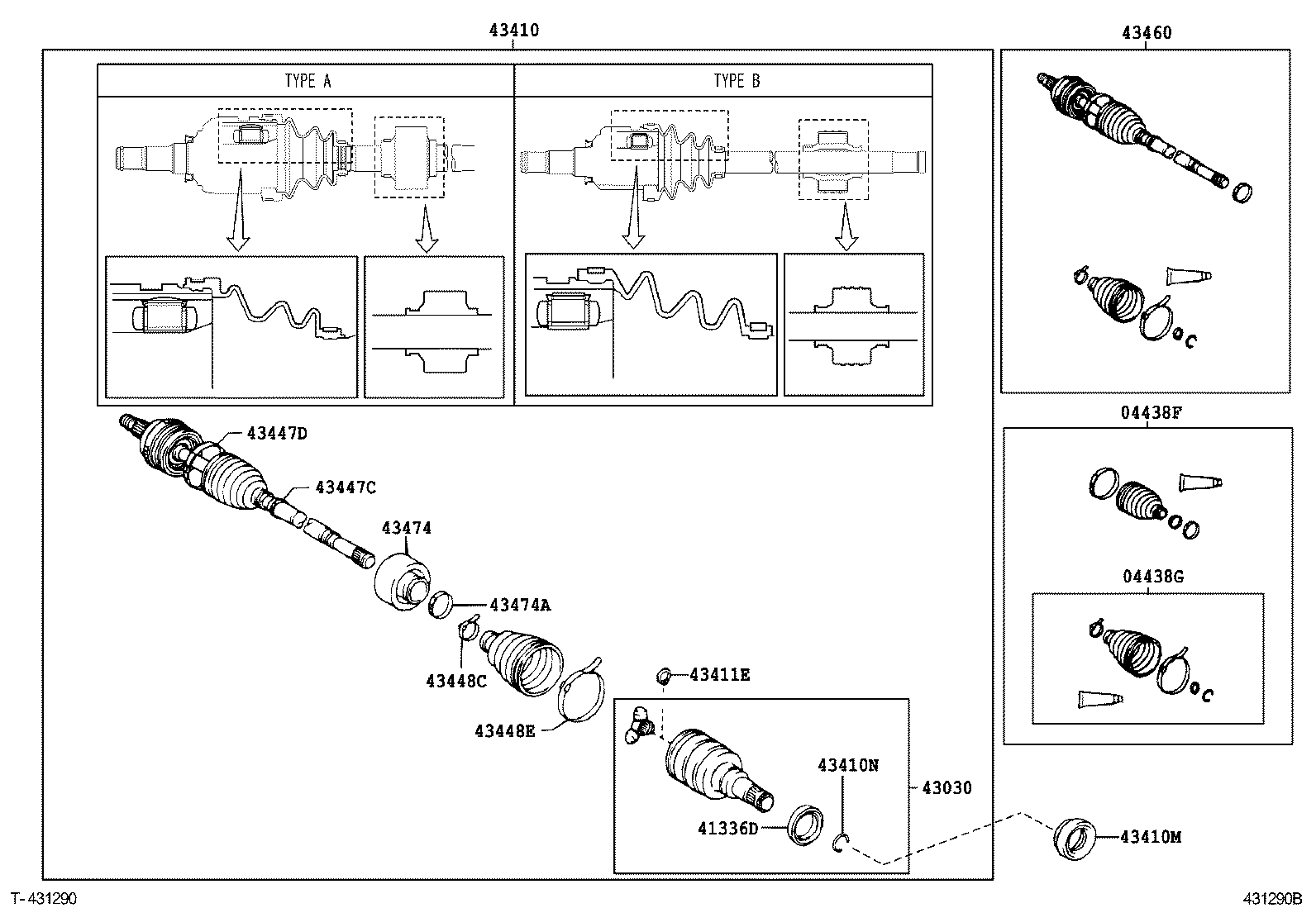

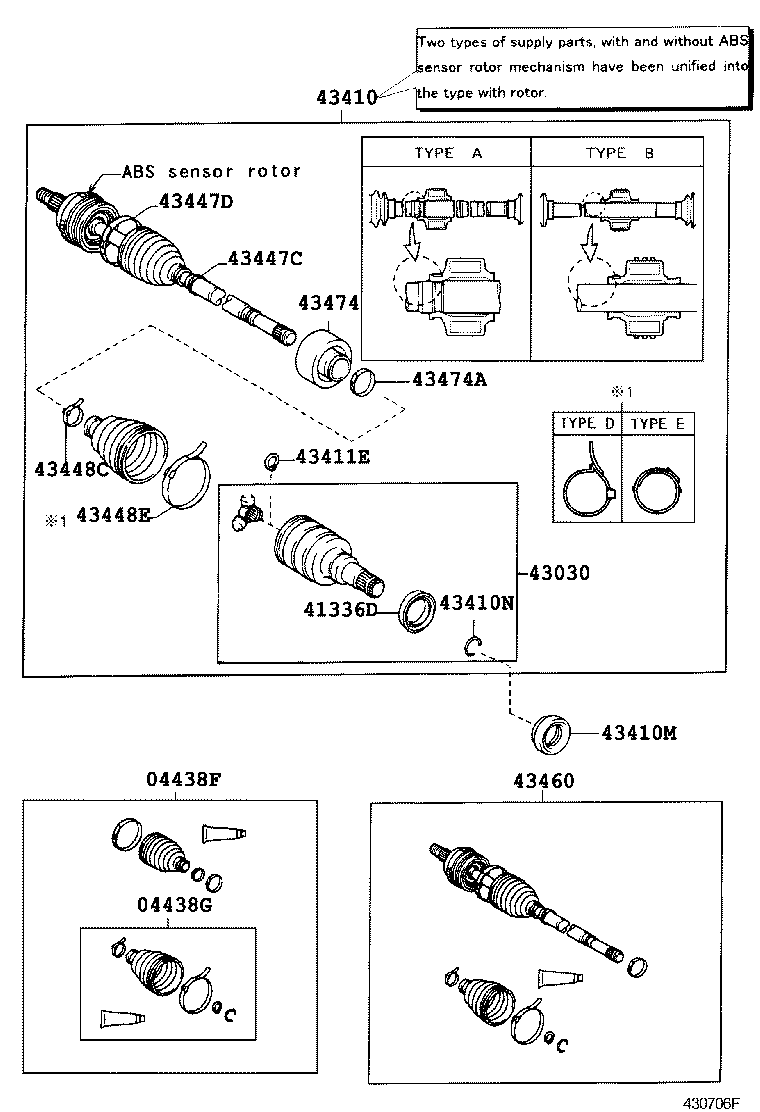

RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH | ||||
| 04438-12501 |
NZE12# PNC 43410=TYPE A |
1 | ||
| 04438-12502 |
NZE12#..GCC,GEN TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 04438-12610 |
NZE12# PNC 43410=TYPE B |
1 | ||
| 04438-12502 |
NZE12# PNC 43410=TYPE A |
1 | ||
| 04438-12502 |
NZE120..PKN;NZE120..LHD..GEN TYPE A:REFER ILLUST. |
1 | ||
| 04427-52260 |
NZE12#..GCC,GEN PNC 43410=TYPE A |
1 | ||
| 04427-52580 |
NZE12#..GCC,GEN PNC 43410=TYPE A |
1 | ||
| 04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH | ||||
| 04438-32231 |
NZE12# PNC 43410=TYPE B |
1 | ||
| 04438-52030 |
NZE120..PKN;NZE120..LHD..GEN TYPE A:REFER ILLUST. |
1 | ||
| 04438-12490 |
NZE12# PNC 43410=TYPE A |
1 | ||
| 04438-12450 |
NZE12# PNC 43410=TYPE B |
1 | ||
| 04438-52230 |
NZE120..PKN;NZE120..LHD..GEN TYPE B:REFER ILLUST. |
1 | ||
| 04437-52190 |
NZE12#..GCC,GEN PNC 43410=TYPE A |
1 | ||
| 04438-52230 |
NZE12#..GCC,GEN TYPE B:REFER ILLUST. |
1 | ||
| 04437-52190 |
NZE12#..GCC,GEN TYPE A:REFER ILLUST. |
1 | ||
| 04438-52230 |
NZE12#..GCC,GEN PNC 43410=TYPE B |
1 | ||
| 41336D - COVER, FRONT DRIVE SHAFT DUST, RH | ||||
| 41336-12010 |
NZE12# |
1 | ||
| 41336-12010 |
NZE12#,ZZE12#..GCC,GEN W(ABS) |
1 | ||
| 41336-12010 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH | ||||
| 43403-10011 |
NZE120 PNC 43410=TYPE A |
1 | ||
| 43403-02040 |
NZE120 PNC 43410=TYPE B |
1 | ||
| 43403-12040 |
NZE120 PNC 43410=TYPE B |
1 | ||
| 43403-12040 |
NZE12#..GCC,GEN PNC 43410=TYPE B |
1 | ||
| 43403-10011 |
NZE12#..GCC,GEN PNC 43410=TYPE A |
1 | ||
| 43403-10011 |
NZE12#..GCC,GEN PNC 43410=TYPE A |
1 | ||
| 43403-12040 |
NZE12#..GCC,GEN PNC 43410=TYPE B |
1 | ||
| 43410 - SHAFT ASSY, FRONT DRIVE, RH | ||||
| 43410-12490 |
NZE12#..GCC,GEN TYPE A:REFER ILLUST. |
1 | ||
| 43410-12660 |
ZZE122..ATM;NZE12#,ZZE121;ZZE122..MTM..(GCC,GEN) TYPE B:REFER ILLUST. |
1 | ||
| 43410-12490 |
NZE12# TYPE A:REFER ILLUST. |
1 | ||
| 43410-12660 |
NZE12#,ZZE12#..GCC,GEN TYPE B:REFER ILLUST. |
1 | ||
| 43410-12660 |
NZE12#..GCC,GEN TYPE B:REFER ILLUST. |
1 | ||
| 43410-12490 |
NZE12#..GCC,GEN TYPE A:REFER ILLUST. |
1 | ||
| 43410M - OIL SEAL, FRONT DRIVE SHAFT, RH | ||||
| 90311-34023 |
NZE121..MTM;NZE120,ZZE12#..GCC,GEN |
1 | ||
| 90311-34023 |
NZE120..ATM;ZZE122..WG..ATM..GCC;ZZE121..RHD..ATM..GEN;ZZE122..ATM..GLI..GCC;ZZE122..LHD..SED..ATM..XLI |
1 | ||
| 90311-34023 |
NZE120..WG;NZE120..SED..ATM;NZE121..MTM..GLI;ZZE122..WG..MTM..XLI |
1 | ||
| 43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH) | ||||
| 90521-26004 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 90521-26004 |
NZE121;NZE120..XLI..(GCC,GEN) |
1 | ||
| 90521-26004 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH) | ||||
| 90520-22001 |
NZE120 PNC 43410=TYPE A |
1 | ||
| 90520-22005 |
NZE12#..GCC,GEN PNC 43410=TYPE B |
1 | ||
| 90520-22005 |
NZE120 PNC 43410=TYPE B |
1 | ||
| 90520-22001 |
NZE12#..GCC,GEN PNC 43410=TYPE A |
1 | ||
| 90520-22001 |
NZE12#..GCC,GEN PNC 43410=TYPE A |
1 | ||
| 90520-22005 |
NZE12#..GCC,GEN PNC 43410=TYPE B |
1 | ||
| 43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-12150 |
NZE120 PNC 43410=TYPE B |
1 | ||
| 42345-52110 |
NZE120 PNC 43410=TYPE A |
1 | ||
| 42345-12150 |
NZE12#..GCC,GEN PNC 43410=TYPE B |
1 | ||
| 42345-52110 |
NZE12#..GCC,GEN PNC 43410=TYPE A |
1 | ||
| 42345-12150 |
NZE12#..GCC,GEN PNC 43410=TYPE B |
1 | ||
| 42345-52110 |
NZE12#..GCC,GEN PNC 43410=TYPE A |
1 | ||
| 43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-12140 |
NZE120 PNC 43410=TYPE B |
1 | ||
| 42345-52100 |
NZE120 PNC 43410=TYPE A |
1 | ||
| 42345-52100 |
NZE12#..GCC,GEN PNC 43410=TYPE A |
1 | ||
| 42345-12140 |
NZE12#..GCC,GEN PNC 43410=TYPE B |
1 | ||
| 42345-52100 |
NZE12#..GCC,GEN PNC 43410=TYPE A |
1 | ||
| 42345-12140 |
NZE12#..GCC,GEN PNC 43410=TYPE B |
1 | ||
| 43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 90949-01078 |
NZE120 |
2 | ||
| 90949-01078 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 90949-01078 |
NZE12#..GCC,GEN |
2 | ||
| 90949-01078 |
NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 90949-01078 |
NZE120..XLI |
1 | ||
| 43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 90949-01146 |
NZE12#..GCC,GEN TYPE D:REFER TO ILLUSTRATION,YELLOWISH GREEN MARK |
1 | ||
| 90949-01146 |
NZE12# PNC 43410=TYPE A |
1 | ||
| 42345-12160 |
NZE120 PNC 43410=TYPE B |
1 | ||
| 42345-12160 |
NZE12#..GCC,GEN PNC 43410=TYPE B |
1 | ||
| 90949-01146 |
NZE12#..GCC,GEN PNC 43410=TYPE A |
1 | ||
| 42345-12160 |
NZE12#..GCC,GEN PNC 43410=TYPE B |
1 | ||
| 90949-01146 |
NZE12#..GCC,GEN PNC 43410=TYPE A |
1 | ||
| 43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH | ||||
| 43460-09440 |
NZE12# W(ABS),PNC 43410=TYPE B |
1 | ||
| 43460-19795 |
NZE12# PNC 43410=TYPE A |
1 | ||
| 43460-80001 |
ZZE122..ATM;NZE12#,ZZE121..GCC,GEN;ZZE122..MTM..(GCC,GEN) W(ABS),PNC 43410=TYPE B |
1 | ||
| 43460-12170 |
NZE120..PKN;NZE120..LHD..GEN |
1 | ||
| 43460-19895 |
ZZE121..LHD..LX;ZZE122..MTM..(GCC,GEN);ZZE122..ATM..(CONQ,GLI,XLI);NZE120,ZZE121..GLI,SESAL,XLI PNC 43410=TYPE B |
1 | ||
| 43460-80001 |
NZE12#,ZZE12#..GCC,GEN W(ABS),PNC 43410=TYPE B |
1 | ||
| 43460-19895 |
NZE121..LX;ZZE121..LHD;NZE120,ZZE122..GCC,GEN PNC 43410=TYPE B |
1 | ||
| 43460-19795 |
NZE12#..GCC,GEN PNC 43410=TYPE A |
1 | ||
| 43460-80045 |
NZE12#..GCC,GEN W(ABS),PNC 43410=TYPE B |
1 | ||
| 43460-80046 |
NZE12#..GCC,GEN PNC 43410=TYPE A |
1 | ||
| 43460-80050 |
NZE121..LX;NZE120..GCC,GEN PNC 43410=TYPE B |
1 | ||
| 43474 - DAMPER, DRIVE SHAFT | ||||
| 43474-12120 |
NZE12#,ZZE12# PNC 43410=TYPE B |
1 | ||
| 43474-52030 |
NZE120 PNC 43410=TYPE A |
1 | ||
| 43474-12120 |
NZE12#,ZZE12#..GCC,GEN PNC 43410=TYPE B |
1 | ||
| 43474-52030 |
NZE12#..GCC,GEN PNC 43410=TYPE A |
1 | ||
| 43474-12040 |
NZE12# PNC 43410=TYPE B |
1 | ||
| 43474-52030 |
NZE12#..GCC,GEN PNC 43410=TYPE A |
1 | ||
| 43474-12120 |
NZE12#,ZZE12#..ARL,GCC,GEN PNC 43410=TYPE B |
1 | ||
| 43474A - CLAMP (FOR DRIVE SHAFT DAMPER SETTING) | ||||
| 42345-14010 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 42345-14010 |
NZE12# |
1 | ||
| 42345-14010 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
(0008-0404)NZE12# ; (0404-0507)NZE120..PKN

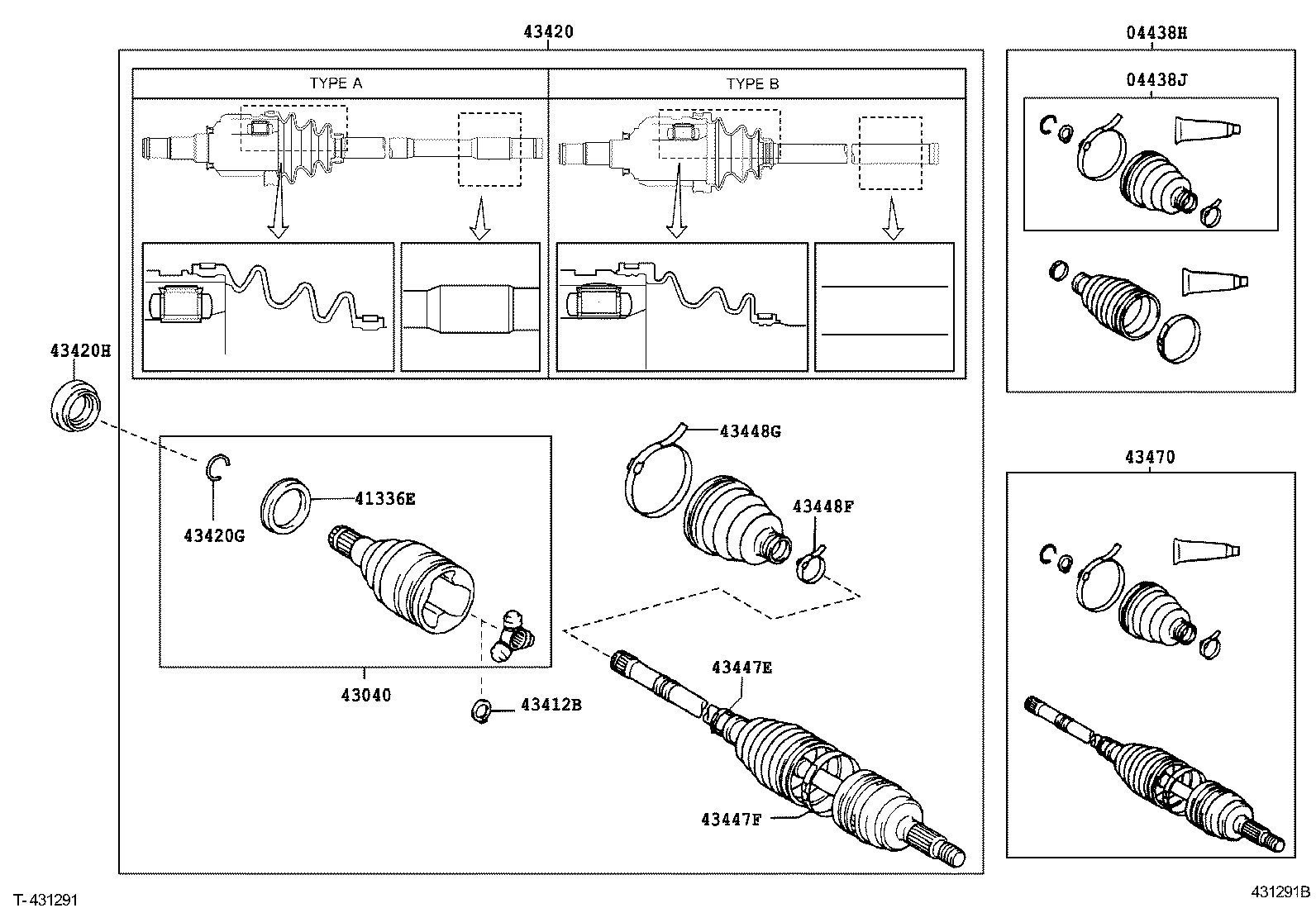

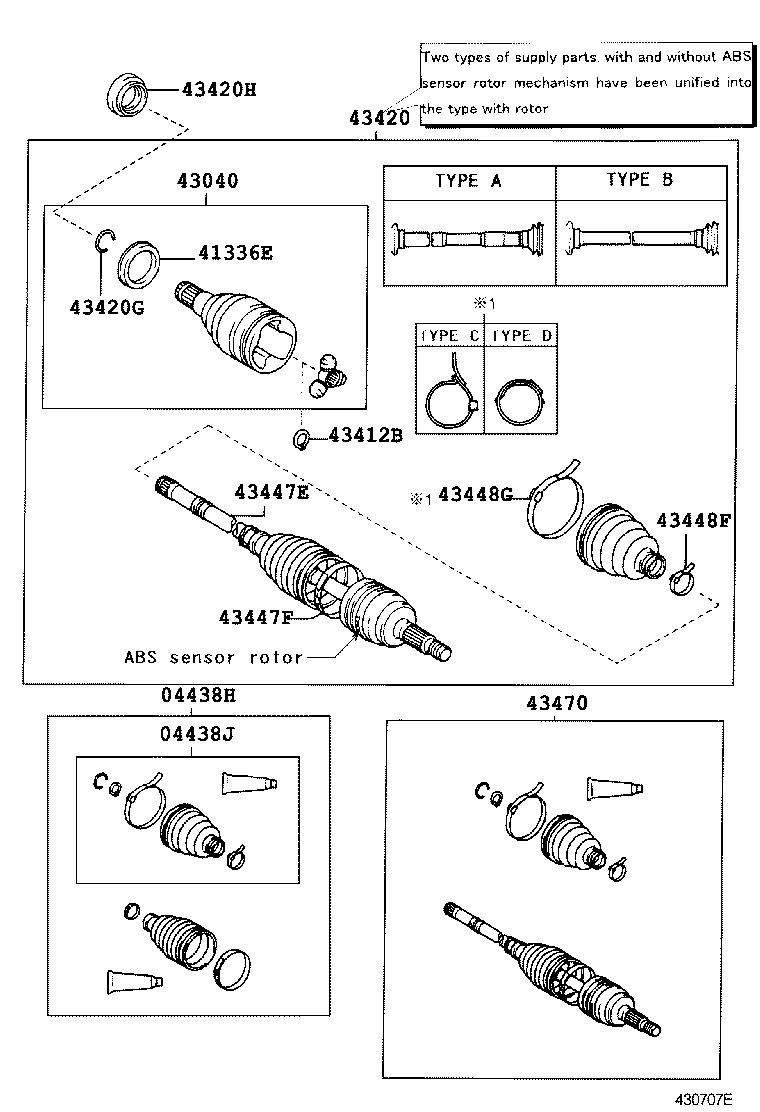

LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH | ||||
| 04438-12501 |
NZE12# TYPE A:REFER ILLUST. |
1 | ||
| 04438-12610 |
NZE120 PNC 43420=TYPE B |
1 | ||
| 04438-12501 |
NZE120 PNC 43420=TYPE A |
1 | ||
| 04438-12502 |
NZE12#..GCC,GEN TYPE A:REFER ILLUST. |
1 | ||
| 04438-12502 |
NZE120;NZE121..LX PNC 43420=TYPE A |
1 | ||
| 04438-12502 |
NZE12#..GCC,GEN TYPE A:REFER ILLUST. |
1 | ||
| 04438-12610 |
NZE12#..GCC,GEN TYPE B:REFER ILLUST. |
1 | ||
| 04438-12610 |
NZE12#..GCC,GEN TYPE B:REFER ILLUST. |
1 | ||
| 04427-52260 |
NZE12#,ZZE12#..GCC,GEN TYPE A:REFER ILLUST. |
1 | ||
| 04427-52260 |
NZE12#..GCC,GEN TYPE A:REFER ILLUST. |
1 | ||
| 04428-12310 |
NZE121..ATM;NZE120..GCC,GEN;NZE121..MTM..LX TYPE B:REFER ILLUST. |
1 | ||
| 04427-52580 |
NZE12#..GCC,GEN TYPE A:REFER ILLUST. |
1 | ||
| 04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH | ||||
| 04438-12450 |
NZE12#,ZZE12# PNC 43420=TYPE B |
1 | ||
| 04438-12490 |
NZE120 PNC 43420=TYPE A |
1 | ||
| 04438-32231 |
NZE120..LHD..GEN TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 04438-12490 |
NZE12#..GCC,GEN TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 04438-32231 |
NZE120 PNC 43420=TYPE B |
1 | ||
| 04438-52230 |
NZE120..PKN;NZE120..LHD..GEN TYPE B:REFER ILLUST. |
1 | ||
| 04438-52030 |
NZE120..PKN;NZE120..LHD..GEN TYPE A:REFER ILLUST. |
1 | ||
| 04438-52230 |
NZE12#,ZZE12#..GCC,GEN TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 04438-52030 |
NZE12#..GCC,GEN TYPE A:REFER ILLUST. |
1 | ||
| 04437-52190 |
NZE12#,ZZE12#..GCC,GEN TYPE A:REFER ILLUST. |
1 | ||
| 04437-52190 |
NZE12#..GCC,GEN TYPE A:REFER ILLUST. |
1 | ||
| 04438-52230 |
NZE12#..GCC,GEN TYPE B:REFER ILLUST. |
1 | ||
| 04438-52230 |
NZE12#..GCC,GEN TYPE B:REFER ILLUST. |
1 | ||
| 41336E - COVER, FRONT DRIVE SHAFT DUST, LH | ||||
| 41336-12010 |
ZZE122..ATM;NZE12#,ZZE121;ZZE122..MTM..(GCC,GEN) W(ABS) |
1 | ||
| 41336-12010 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 41336-12010 |
NZE12#,ZZE12#..GCC,GEN W(ABS) |
1 | ||
| 43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH | ||||
| 43403-02040 |
NZE12# TYPE B:REFER ILLUST. |
1 | ||
| 43403-02040 |
NZE120 TYPE B:REFER TO ILLUSTRATION,(L) |
1 | ||
| 43403-10011 |
NZE12#..GCC,GEN TYPE A:REFER ILLUST. |
1 | ||
| 43403-12040 |
NZE120 PNC 43420=TYPE B |
1 | ||
| 43403-10011 |
NZE12# TYPE A:REFER ILLUST. |
2 | ||
| 43403-12040 |
NZE12#..GCC,GEN TYPE B:REFER ILLUST. |
1 | ||
| 43403-10011 |
NZE120 PNC 43420=TYPE A |
1 | ||
| 43403-10011 |
NZE12#..GCC,GEN TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 43403-12040 |
NZE12#..GCC,GEN PNC 43420=TYPE B |
1 | ||
| 43403-12040 |
NZE12#,ZZE12#..GCC,GEN TYPE A OR TYPE B:REFER TO ILLUSTRATION,(J) |
1 | ||
| 43403-10011 |
NZE12#..GCC,GEN PNC 43420=TYPE A |
1 | ||
| 43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH) | ||||
| 90520-22001 |
NZE120 PNC 43420=TYPE A |
1 | ||
| 90520-22001 |
NZE12# TYPE A:REFER ILLUST. |
2 | ||
| 90520-22005 |
NZE12# TYPE B:REFER ILLUST. |
2 | ||
| 90520-22005 |
NZE120 PNC 43420=TYPE B |
1 | ||
| 90520-22005 |
NZE12#..GCC,GEN TYPE B:REFER ILLUST. |
1 | ||
| 90520-22001 |
NZE12#..GCC,GEN TYPE A:REFER ILLUST. |
1 | ||
| 90520-22005 |
NZE12#,ZZE12#..GCC,GEN TYPE B OR TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90520-22005 |
NZE12#..GCC,GEN PNC 43420=TYPE B |
1 | ||
| 90520-22001 |
NZE12#..GCC,GEN PNC 43420=TYPE A |
1 | ||
| 90520-22001 |
NZE12#..GCC,GEN TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 43420 - SHAFT ASSY, FRONT DRIVE, LH | ||||
| 43420-02200 |
NZE120 TYPE B:REFER TO ILLUSTRATION,(L),W(ABS) |
1 | ||
| 43420-12570 |
ZZE121..LHD;ZZE122..WG..ATM..ARL;NZE120,ZZE122..GCC,GEN TYPE A:REFER TO ILLUSTRATION,(J) |
1 | ||
| 43420-12580 |
NZE12#..GCC,GEN TYPE B:REFER ILLUST. |
1 | ||
| 43420-12580 |
ZZE121..GEN;ZZE122..ATM;ZZE122..MTM..(GCC,GEN);NZE12#..(GLI,XLI)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION,(J) & W(ABS) |
1 | ||
| 43420-12580 |
NZE12#..GCC,GEN TYPE B:REFER ILLUST. |
1 | ||
| 43420-12570 |
NZE121..LX;ZZE121..LHD;NZE120,ZZE122..GCC,GEN TYPE B:REFER TO ILLUSTRATION,(J) |
1 | ||
| 43420-12420 |
NZE12# TYPE A:REFER ILLUST. |
1 | ||
| 43420-12420 |
NZE12#..GCC,GEN TYPE A:REFER ILLUST. |
1 | ||
| 43420-12580 |
NZE12#,ZZE12#..GCC,GEN TYPE B:REFER TO ILLUSTRATION,(J),W(ABS) |
1 | ||
| 43420-12420 |
NZE12#..GCC,GEN TYPE A:REFER ILLUST. |
1 | ||
| 43420-12570 |
NZE121..LX;NZE120..GCC,GEN TYPE B:REFER ILLUST. |
1 | ||
| 43420-12580 |
NZE12#..GCC,GEN W(ABS),TYPE B:REFER ILLUST. |
1 | ||
| 43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH) | ||||
| 90521-26004 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 90521-26004 |
ZZE122..ATM;NZE12#,ZZE121;ZZE122..MTM..(GCC,GEN) |
1 | ||
| 90521-26004 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 43420H - OIL SEAL, FRONT DRIVE SHAFT, LH | ||||
| 90311-34026 |
NZE120,ZZE12#..ATM |
1 | ||
| 90311-34026 |
NZE120,ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 90311-34026 |
NZE120,ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 42345-52110 |
NZE12#..(GLI,XLI)..(GCC,GEN) |
1 | ||
| 42345-52110 |
NZE12#..GCC,GEN ID=29.2 |
1 | ||
| 42345-12150 |
NZE12#,ZZE12#..GCC,GEN ID=30.4 |
1 | ||
| 42345-12150 |
NZE12#..GCC,GEN PNC 43420=TYPE B |
1 | ||
| 42345-52110 |
NZE12#..GCC,GEN PNC 43420=TYPE A |
1 | ||
| 43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 42345-52100 |
NZE12#..(GLI,XLI)..(GCC,GEN) |
1 | ||
| 42345-12140 |
NZE12#,ZZE12#..GCC,GEN ID=92.0 |
1 | ||
| 42345-52100 |
NZE12#..GCC,GEN PNC 43420=TYPE A |
1 | ||
| 42345-52100 |
NZE12#..GCC,GEN ID=88.9 |
1 | ||
| 42345-12140 |
NZE12#..GCC,GEN PNC 43420=TYPE B |
1 | ||
| 43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 90949-01078 |
NZE12#..GCC,GEN |
2 | ||
| 90949-01078 |
NZE12# |
1 | ||
| 90949-01078 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 90949-01146 |
NZE12#..GCC,GEN TYPE C:REFER TO ILLUSTRATION,YELLOWISH GREEN MARK |
1 | ||
| 90949-01146 |
NZE12#..(GLI,XLI)..(GCC,GEN) TYPE C:REFER TO ILLUSTRATION,YELLOWISH GREEN MARK |
1 | ||
| 42345-12160 |
NZE12#..GCC,GEN PNC 43420=TYPE B |
1 | ||
| 42345-12160 |
NZE12#,ZZE12#..GCC,GEN TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 42345-12160 |
NZE12#..GLI,XLI TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 90949-01146 |
NZE12#..GCC,GEN PNC 43420=TYPE A |
1 | ||
| 43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH | ||||
| 43470-09670 |
NZE12# W(ABS),(L),PNC 43420=TYPE B |
1 | ||
| 43470-09670 |
NZE120 (L),PNC 43420=TYPE B |
1 | ||
| 43470-80018 |
NZE12#..GCC,GEN W(ABS),(J),PNC 43420=TYPE B |
1 | ||
| 43470-80018 |
NZE120..LHD..GEN W(ABS),(J),PNC 43420=TYPE B |
1 | ||
| 43470-12400 |
NZE121..LX;NZE120..GCC,GEN |
1 | ||
| 43470-80018 |
NZE12#..GCC,GEN PNC 43420=TYPE B |
1 | ||
| 43470-80003 |
NZE12#..GCC,GEN PNC 43420=TYPE A |
1 | ||
| 43470-09670 |
NZE12#,ZZE12#..GCC,GEN (L),PNC 43420=TYPE B |
1 | ||
| 43470-80017 |
NZE121..LX;ZZE121..LHD;NZE120,ZZE122..GCC,GEN (J),PNC 43420=TYPE B |
1 | ||
| 43470-80018 |
NZE12#,ZZE12#..GCC,GEN W(ABS),(J),PNC 43420=TYPE B |
1 | ||
| 43470-80097 |
NZE12#..GCC,GEN W(ABS),PNC 43420=TYPE B |
1 | ||
| 43470-80017 |
NZE121..LX;NZE120..GCC,GEN;ZZE122..ATM..CONQ |
1 | ||
| 43470-80125 |
NZE121..LX;NZE120..GCC,GEN PNC 43420=TYPE B |
1 | ||
| 43470-80165 |
NZE12#..GCC,GEN PNC 43420=TYPE A |
1 | ||
(0404- )NZE12#..GCC,GEN ; (0507- )NZE120..PKN
RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH | ||||
| 04438-12501 |
NZE12# PNC 43410=TYPE A |
1 | ||
| 04438-12502 |
NZE12#..GCC,GEN TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 04438-12610 |
NZE12# PNC 43410=TYPE B |
1 | ||
| 04438-12502 |
NZE12# PNC 43410=TYPE A |
1 | ||
| 04438-12502 |
NZE120..PKN;NZE120..LHD..GEN TYPE A:REFER ILLUST. |
1 | ||
| 04427-52260 |
NZE12#..GCC,GEN PNC 43410=TYPE A |
1 | ||
| 04427-52580 |
NZE12#..GCC,GEN PNC 43410=TYPE A |
1 | ||
| 04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH | ||||
| 04438-32231 |
NZE12# PNC 43410=TYPE B |
1 | ||
| 04438-52030 |
NZE120..PKN;NZE120..LHD..GEN TYPE A:REFER ILLUST. |
1 | ||
| 04438-12490 |
NZE12# PNC 43410=TYPE A |
1 | ||
| 04438-12450 |
NZE12# PNC 43410=TYPE B |
1 | ||
| 04438-52230 |
NZE120..PKN;NZE120..LHD..GEN TYPE B:REFER ILLUST. |
1 | ||
| 04437-52190 |
NZE12#..GCC,GEN PNC 43410=TYPE A |
1 | ||
| 04438-52230 |
NZE12#..GCC,GEN TYPE B:REFER ILLUST. |
1 | ||
| 04437-52190 |
NZE12#..GCC,GEN TYPE A:REFER ILLUST. |
1 | ||
| 04438-52230 |
NZE12#..GCC,GEN PNC 43410=TYPE B |
1 | ||
| 41336D - COVER, FRONT DRIVE SHAFT DUST, RH | ||||
| 41336-12010 |
NZE12# |
1 | ||
| 41336-12010 |
NZE12#,ZZE12#..GCC,GEN W(ABS) |
1 | ||
| 41336-12010 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH | ||||
| 43403-10011 |
NZE120 PNC 43410=TYPE A |
1 | ||
| 43403-02040 |
NZE120 PNC 43410=TYPE B |
1 | ||
| 43403-12040 |
NZE120 PNC 43410=TYPE B |
1 | ||
| 43403-12040 |
NZE12#..GCC,GEN PNC 43410=TYPE B |
1 | ||
| 43403-10011 |
NZE12#..GCC,GEN PNC 43410=TYPE A |
1 | ||
| 43403-10011 |
NZE12#..GCC,GEN PNC 43410=TYPE A |
1 | ||
| 43403-12040 |
NZE12#..GCC,GEN PNC 43410=TYPE B |
1 | ||
| 43410 - SHAFT ASSY, FRONT DRIVE, RH | ||||
| 43410-12490 |
NZE12#..GCC,GEN TYPE A:REFER ILLUST. |
1 | ||
| 43410-12660 |
ZZE122..ATM;NZE12#,ZZE121;ZZE122..MTM..(GCC,GEN) TYPE B:REFER ILLUST. |
1 | ||
| 43410-12490 |
NZE12# TYPE A:REFER ILLUST. |
1 | ||
| 43410-12660 |
NZE12#,ZZE12#..GCC,GEN TYPE B:REFER ILLUST. |
1 | ||
| 43410-12660 |
NZE12#..GCC,GEN TYPE B:REFER ILLUST. |
1 | ||
| 43410-12490 |
NZE12#..GCC,GEN TYPE A:REFER ILLUST. |
1 | ||
| 43410M - OIL SEAL, FRONT DRIVE SHAFT, RH | ||||
| 90311-34023 |
NZE121..MTM;NZE120,ZZE12#..GCC,GEN |
1 | ||
| 90311-34023 |
NZE120..ATM;ZZE122..WG..ATM..GCC;ZZE121..RHD..ATM..GEN;ZZE122..ATM..GLI..GCC;ZZE122..LHD..SED..ATM..XLI |
1 | ||
| 90311-34023 |
NZE120..WG;NZE120..SED..ATM;NZE121..MTM..GLI;ZZE122..WG..MTM..XLI |
1 | ||
| 43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH) | ||||
| 90521-26004 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 90521-26004 |
NZE121;NZE120..XLI..(GCC,GEN) |
1 | ||
| 90521-26004 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH) | ||||
| 90520-22001 |
NZE120 PNC 43410=TYPE A |
1 | ||
| 90520-22005 |
NZE12#..GCC,GEN PNC 43410=TYPE B |
1 | ||
| 90520-22005 |
NZE120 PNC 43410=TYPE B |
1 | ||
| 90520-22001 |
NZE12#..GCC,GEN PNC 43410=TYPE A |
1 | ||
| 90520-22001 |
NZE12#..GCC,GEN PNC 43410=TYPE A |
1 | ||
| 90520-22005 |
NZE12#..GCC,GEN PNC 43410=TYPE B |
1 | ||
| 43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-12150 |
NZE120 PNC 43410=TYPE B |
1 | ||
| 42345-52110 |
NZE120 PNC 43410=TYPE A |
1 | ||
| 42345-12150 |
NZE12#..GCC,GEN PNC 43410=TYPE B |
1 | ||
| 42345-52110 |
NZE12#..GCC,GEN PNC 43410=TYPE A |
1 | ||
| 42345-12150 |
NZE12#..GCC,GEN PNC 43410=TYPE B |
1 | ||
| 42345-52110 |
NZE12#..GCC,GEN PNC 43410=TYPE A |
1 | ||
| 43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-12140 |
NZE120 PNC 43410=TYPE B |
1 | ||
| 42345-52100 |
NZE120 PNC 43410=TYPE A |
1 | ||
| 42345-52100 |
NZE12#..GCC,GEN PNC 43410=TYPE A |
1 | ||
| 42345-12140 |
NZE12#..GCC,GEN PNC 43410=TYPE B |
1 | ||
| 42345-52100 |
NZE12#..GCC,GEN PNC 43410=TYPE A |
1 | ||
| 42345-12140 |
NZE12#..GCC,GEN PNC 43410=TYPE B |
1 | ||
| 43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 90949-01078 |
NZE120 |
2 | ||
| 90949-01078 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 90949-01078 |
NZE12#..GCC,GEN |
2 | ||
| 90949-01078 |
NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 90949-01078 |
NZE120..XLI |
1 | ||
| 43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 90949-01146 |
NZE12#..GCC,GEN TYPE D:REFER TO ILLUSTRATION,YELLOWISH GREEN MARK |
1 | ||
| 90949-01146 |
NZE12# PNC 43410=TYPE A |
1 | ||
| 42345-12160 |
NZE120 PNC 43410=TYPE B |
1 | ||
| 42345-12160 |
NZE12#..GCC,GEN PNC 43410=TYPE B |
1 | ||
| 90949-01146 |
NZE12#..GCC,GEN PNC 43410=TYPE A |
1 | ||
| 42345-12160 |
NZE12#..GCC,GEN PNC 43410=TYPE B |
1 | ||
| 90949-01146 |
NZE12#..GCC,GEN PNC 43410=TYPE A |
1 | ||
| 43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH | ||||
| 43460-09440 |
NZE12# W(ABS),PNC 43410=TYPE B |
1 | ||
| 43460-19795 |
NZE12# PNC 43410=TYPE A |
1 | ||
| 43460-80001 |
ZZE122..ATM;NZE12#,ZZE121..GCC,GEN;ZZE122..MTM..(GCC,GEN) W(ABS),PNC 43410=TYPE B |
1 | ||
| 43460-12170 |
NZE120..PKN;NZE120..LHD..GEN |
1 | ||
| 43460-19895 |
ZZE121..LHD..LX;ZZE122..MTM..(GCC,GEN);ZZE122..ATM..(CONQ,GLI,XLI);NZE120,ZZE121..GLI,SESAL,XLI PNC 43410=TYPE B |
1 | ||
| 43460-80001 |
NZE12#,ZZE12#..GCC,GEN W(ABS),PNC 43410=TYPE B |
1 | ||
| 43460-19895 |
NZE121..LX;ZZE121..LHD;NZE120,ZZE122..GCC,GEN PNC 43410=TYPE B |
1 | ||
| 43460-19795 |
NZE12#..GCC,GEN PNC 43410=TYPE A |
1 | ||
| 43460-80045 |
NZE12#..GCC,GEN W(ABS),PNC 43410=TYPE B |
1 | ||
| 43460-80046 |
NZE12#..GCC,GEN PNC 43410=TYPE A |
1 | ||
| 43460-80050 |
NZE121..LX;NZE120..GCC,GEN PNC 43410=TYPE B |
1 | ||
| 43474 - DAMPER, DRIVE SHAFT | ||||
| 43474-12120 |
NZE12#,ZZE12# PNC 43410=TYPE B |
1 | ||
| 43474-52030 |
NZE120 PNC 43410=TYPE A |
1 | ||
| 43474-12120 |
NZE12#,ZZE12#..GCC,GEN PNC 43410=TYPE B |
1 | ||
| 43474-52030 |
NZE12#..GCC,GEN PNC 43410=TYPE A |
1 | ||
| 43474-12040 |
NZE12# PNC 43410=TYPE B |
1 | ||
| 43474-52030 |
NZE12#..GCC,GEN PNC 43410=TYPE A |
1 | ||
| 43474-12120 |
NZE12#,ZZE12#..ARL,GCC,GEN PNC 43410=TYPE B |
1 | ||
| 43474A - CLAMP (FOR DRIVE SHAFT DAMPER SETTING) | ||||
| 42345-14010 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 42345-14010 |
NZE12# |
1 | ||
| 42345-14010 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
(0404- )NZE12#..GCC,GEN ; (0507- )NZE120..PKN
LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH | ||||
| 04438-12501 |
NZE12# TYPE A:REFER ILLUST. |
1 | ||
| 04438-12610 |
NZE120 PNC 43420=TYPE B |
1 | ||
| 04438-12501 |
NZE120 PNC 43420=TYPE A |
1 | ||
| 04438-12502 |
NZE12#..GCC,GEN TYPE A:REFER ILLUST. |
1 | ||
| 04438-12502 |
NZE120;NZE121..LX PNC 43420=TYPE A |
1 | ||
| 04438-12502 |
NZE12#..GCC,GEN TYPE A:REFER ILLUST. |
1 | ||
| 04438-12610 |
NZE12#..GCC,GEN TYPE B:REFER ILLUST. |
1 | ||
| 04438-12610 |
NZE12#..GCC,GEN TYPE B:REFER ILLUST. |
1 | ||
| 04427-52260 |
NZE12#,ZZE12#..GCC,GEN TYPE A:REFER ILLUST. |
1 | ||
| 04427-52260 |
NZE12#..GCC,GEN TYPE A:REFER ILLUST. |
1 | ||
| 04428-12310 |
NZE121..ATM;NZE120..GCC,GEN;NZE121..MTM..LX TYPE B:REFER ILLUST. |
1 | ||
| 04427-52580 |
NZE12#..GCC,GEN TYPE A:REFER ILLUST. |
1 | ||
| 04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH | ||||
| 04438-12450 |
NZE12#,ZZE12# PNC 43420=TYPE B |
1 | ||
| 04438-12490 |
NZE120 PNC 43420=TYPE A |
1 | ||
| 04438-32231 |
NZE120..LHD..GEN TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 04438-12490 |
NZE12#..GCC,GEN TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 04438-32231 |
NZE120 PNC 43420=TYPE B |
1 | ||
| 04438-52230 |
NZE120..PKN;NZE120..LHD..GEN TYPE B:REFER ILLUST. |
1 | ||
| 04438-52030 |
NZE120..PKN;NZE120..LHD..GEN TYPE A:REFER ILLUST. |
1 | ||
| 04438-52230 |
NZE12#,ZZE12#..GCC,GEN TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 04438-52030 |
NZE12#..GCC,GEN TYPE A:REFER ILLUST. |
1 | ||
| 04437-52190 |
NZE12#,ZZE12#..GCC,GEN TYPE A:REFER ILLUST. |
1 | ||
| 04437-52190 |
NZE12#..GCC,GEN TYPE A:REFER ILLUST. |
1 | ||
| 04438-52230 |
NZE12#..GCC,GEN TYPE B:REFER ILLUST. |
1 | ||
| 04438-52230 |
NZE12#..GCC,GEN TYPE B:REFER ILLUST. |
1 | ||
| 41336E - COVER, FRONT DRIVE SHAFT DUST, LH | ||||
| 41336-12010 |
ZZE122..ATM;NZE12#,ZZE121;ZZE122..MTM..(GCC,GEN) W(ABS) |
1 | ||
| 41336-12010 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 41336-12010 |
NZE12#,ZZE12#..GCC,GEN W(ABS) |
1 | ||
| 43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH | ||||
| 43403-02040 |
NZE12# TYPE B:REFER ILLUST. |
1 | ||
| 43403-02040 |
NZE120 TYPE B:REFER TO ILLUSTRATION,(L) |
1 | ||
| 43403-10011 |
NZE12#..GCC,GEN TYPE A:REFER ILLUST. |
1 | ||
| 43403-12040 |
NZE120 PNC 43420=TYPE B |
1 | ||
| 43403-10011 |
NZE12# TYPE A:REFER ILLUST. |
2 | ||
| 43403-12040 |
NZE12#..GCC,GEN TYPE B:REFER ILLUST. |
1 | ||
| 43403-10011 |
NZE120 PNC 43420=TYPE A |
1 | ||
| 43403-10011 |
NZE12#..GCC,GEN TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 43403-12040 |
NZE12#..GCC,GEN PNC 43420=TYPE B |
1 | ||
| 43403-12040 |
NZE12#,ZZE12#..GCC,GEN TYPE A OR TYPE B:REFER TO ILLUSTRATION,(J) |
1 | ||
| 43403-10011 |
NZE12#..GCC,GEN PNC 43420=TYPE A |
1 | ||
| 43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH) | ||||
| 90520-22001 |
NZE120 PNC 43420=TYPE A |
1 | ||
| 90520-22001 |
NZE12# TYPE A:REFER ILLUST. |
2 | ||
| 90520-22005 |
NZE12# TYPE B:REFER ILLUST. |
2 | ||
| 90520-22005 |
NZE120 PNC 43420=TYPE B |
1 | ||
| 90520-22005 |
NZE12#..GCC,GEN TYPE B:REFER ILLUST. |
1 | ||
| 90520-22001 |
NZE12#..GCC,GEN TYPE A:REFER ILLUST. |
1 | ||
| 90520-22005 |
NZE12#,ZZE12#..GCC,GEN TYPE B OR TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90520-22005 |
NZE12#..GCC,GEN PNC 43420=TYPE B |
1 | ||
| 90520-22001 |
NZE12#..GCC,GEN PNC 43420=TYPE A |
1 | ||
| 90520-22001 |
NZE12#..GCC,GEN TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 43420 - SHAFT ASSY, FRONT DRIVE, LH | ||||
| 43420-02200 |
NZE120 TYPE B:REFER TO ILLUSTRATION,(L),W(ABS) |
1 | ||
| 43420-12570 |
ZZE121..LHD;ZZE122..WG..ATM..ARL;NZE120,ZZE122..GCC,GEN TYPE A:REFER TO ILLUSTRATION,(J) |
1 | ||
| 43420-12580 |
NZE12#..GCC,GEN TYPE B:REFER ILLUST. |
1 | ||
| 43420-12580 |
ZZE121..GEN;ZZE122..ATM;ZZE122..MTM..(GCC,GEN);NZE12#..(GLI,XLI)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION,(J) & W(ABS) |
1 | ||
| 43420-12580 |
NZE12#..GCC,GEN TYPE B:REFER ILLUST. |
1 | ||
| 43420-12570 |
NZE121..LX;ZZE121..LHD;NZE120,ZZE122..GCC,GEN TYPE B:REFER TO ILLUSTRATION,(J) |
1 | ||
| 43420-12420 |
NZE12# TYPE A:REFER ILLUST. |
1 | ||
| 43420-12420 |
NZE12#..GCC,GEN TYPE A:REFER ILLUST. |
1 | ||
| 43420-12580 |
NZE12#,ZZE12#..GCC,GEN TYPE B:REFER TO ILLUSTRATION,(J),W(ABS) |
1 | ||
| 43420-12420 |
NZE12#..GCC,GEN TYPE A:REFER ILLUST. |
1 | ||
| 43420-12570 |
NZE121..LX;NZE120..GCC,GEN TYPE B:REFER ILLUST. |
1 | ||
| 43420-12580 |
NZE12#..GCC,GEN W(ABS),TYPE B:REFER ILLUST. |
1 | ||
| 43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH) | ||||
| 90521-26004 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 90521-26004 |
ZZE122..ATM;NZE12#,ZZE121;ZZE122..MTM..(GCC,GEN) |
1 | ||
| 90521-26004 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 43420H - OIL SEAL, FRONT DRIVE SHAFT, LH | ||||
| 90311-34026 |
NZE120,ZZE12#..ATM |
1 | ||
| 90311-34026 |
NZE120,ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 90311-34026 |
NZE120,ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 42345-52110 |
NZE12#..(GLI,XLI)..(GCC,GEN) |
1 | ||
| 42345-52110 |
NZE12#..GCC,GEN ID=29.2 |
1 | ||
| 42345-12150 |
NZE12#,ZZE12#..GCC,GEN ID=30.4 |
1 | ||
| 42345-12150 |
NZE12#..GCC,GEN PNC 43420=TYPE B |
1 | ||
| 42345-52110 |
NZE12#..GCC,GEN PNC 43420=TYPE A |
1 | ||
| 43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 42345-52100 |
NZE12#..(GLI,XLI)..(GCC,GEN) |
1 | ||
| 42345-12140 |
NZE12#,ZZE12#..GCC,GEN ID=92.0 |
1 | ||
| 42345-52100 |
NZE12#..GCC,GEN PNC 43420=TYPE A |
1 | ||
| 42345-52100 |
NZE12#..GCC,GEN ID=88.9 |
1 | ||
| 42345-12140 |
NZE12#..GCC,GEN PNC 43420=TYPE B |
1 | ||
| 43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 90949-01078 |
NZE12#..GCC,GEN |
2 | ||
| 90949-01078 |
NZE12# |
1 | ||
| 90949-01078 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 90949-01146 |
NZE12#..GCC,GEN TYPE C:REFER TO ILLUSTRATION,YELLOWISH GREEN MARK |
1 | ||
| 90949-01146 |
NZE12#..(GLI,XLI)..(GCC,GEN) TYPE C:REFER TO ILLUSTRATION,YELLOWISH GREEN MARK |
1 | ||
| 42345-12160 |
NZE12#..GCC,GEN PNC 43420=TYPE B |
1 | ||
| 42345-12160 |
NZE12#,ZZE12#..GCC,GEN TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 42345-12160 |
NZE12#..GLI,XLI TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 90949-01146 |
NZE12#..GCC,GEN PNC 43420=TYPE A |
1 | ||
| 43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH | ||||
| 43470-09670 |
NZE12# W(ABS),(L),PNC 43420=TYPE B |
1 | ||
| 43470-09670 |
NZE120 (L),PNC 43420=TYPE B |
1 | ||
| 43470-80018 |
NZE12#..GCC,GEN W(ABS),(J),PNC 43420=TYPE B |
1 | ||
| 43470-80018 |
NZE120..LHD..GEN W(ABS),(J),PNC 43420=TYPE B |
1 | ||
| 43470-12400 |
NZE121..LX;NZE120..GCC,GEN |
1 | ||
| 43470-80018 |
NZE12#..GCC,GEN PNC 43420=TYPE B |
1 | ||
| 43470-80003 |
NZE12#..GCC,GEN PNC 43420=TYPE A |
1 | ||
| 43470-09670 |
NZE12#,ZZE12#..GCC,GEN (L),PNC 43420=TYPE B |
1 | ||
| 43470-80017 |
NZE121..LX;ZZE121..LHD;NZE120,ZZE122..GCC,GEN (J),PNC 43420=TYPE B |
1 | ||
| 43470-80018 |
NZE12#,ZZE12#..GCC,GEN W(ABS),(J),PNC 43420=TYPE B |
1 | ||
| 43470-80097 |
NZE12#..GCC,GEN W(ABS),PNC 43420=TYPE B |
1 | ||
| 43470-80017 |
NZE121..LX;NZE120..GCC,GEN;ZZE122..ATM..CONQ |
1 | ||
| 43470-80125 |
NZE121..LX;NZE120..GCC,GEN PNC 43420=TYPE B |
1 | ||
| 43470-80165 |
NZE12#..GCC,GEN PNC 43420=TYPE A |
1 | ||
(0008- )
| Part # | Description | Qty | Price |
|---|
Part Price Details
Loading price information...
Part Number:
Price:
