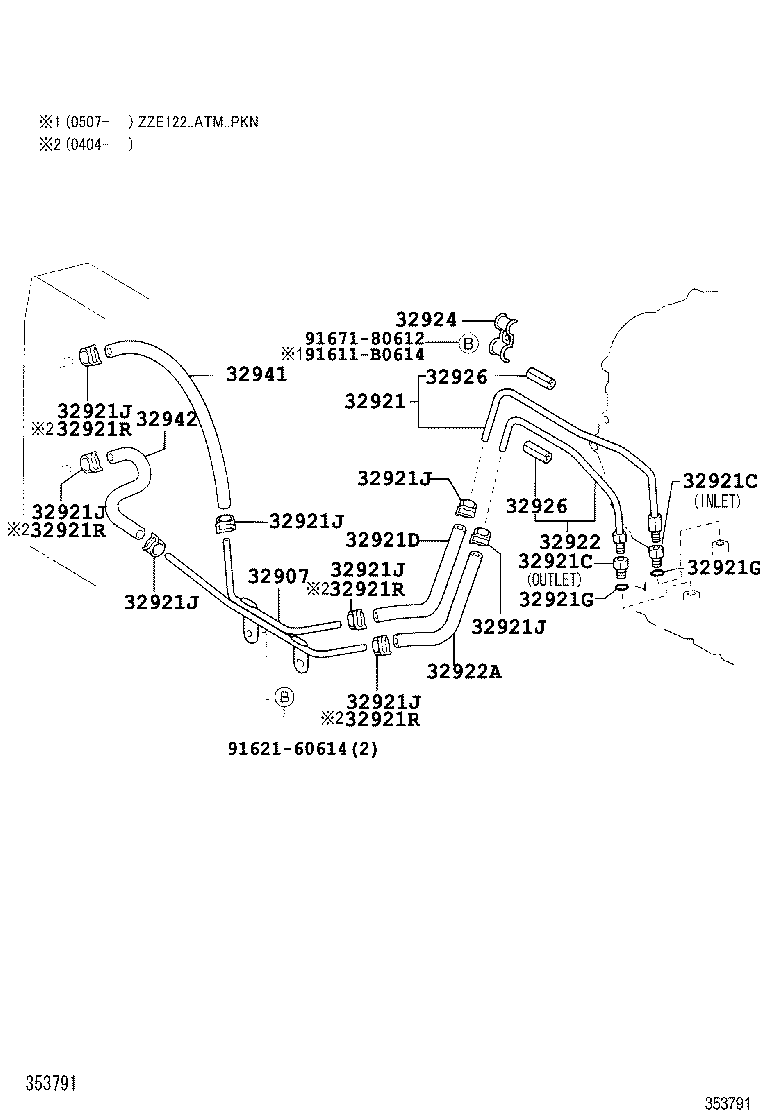

NZE120L-AEPDK (2000)
Toyota Corolla/Altis Sed/Wg
(0008- )ATM
A245E,A246E,U340E,U341E,U441E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32907 - TUBE SUB-ASSY, OIL COOLER OUTLET, NO.2 | ||||
| 32907-12020 |
NZE12#,ZZE12#..ATM |
1 | ||
| 32907-12020 |
ZZE122..WG..ATM..ARL;NZE12#,ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 32921 - TUBE, OIL COOLER INLET, NO.1 | ||||
| 32921-12470 |
NZE120..ATM |
1 | ||
| 32921-12470 |
NZE120..ATM |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90404-14007 |
NZE120..ATM |
2 | ||
| 90404-14007 |
NZE120..ATM |
2 | ||
| 90404-14007 |
NZE120..ATM |
2 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90404-14007 |
NZE120..ATM |
2 | ||
| 90404-14007 |
NZE120..ATM |
2 | ||
| 90404-14007 |
NZE120..ATM |
2 | ||
| 32921D - HOSE(FOR OIL COOLER INLET) | ||||
| 32943-12010 |
NZE120..ATM;ZZE122..ATM..GCC |
1 | ||
| 90445-15042 |
NZE120..ATM;ZZE122..ATM..GCC |
1 | ||
| 32943-12010 |
NZE120..ATM;ZZE122..ATM..GCC |
1 | ||
| 90445-15020 |
NZE120..ATM |
1 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
NZE12#..ATM |
2 | ||
| 90301-10189 |
NZE120..ATM |
2 | ||
| 90301-10189 |
NZE12#..ATM |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
NZE12#..ATM |
2 | ||
| 90301-10189 |
NZE120..ATM |
2 | ||
| 90301-10189 |
NZE12#..ATM |
2 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 96135-51300 |
ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN;NZE12#,ZZE121..ATM..(GCC,GEN) |
8 | ||
| 96135-51300 |
NZE12#,ZZE12#..ATM..(GCC,GEN) |
8 | ||
| 96135-51300 |
ZZE122..WG..ATM..ARL;NZE12#,ZZE12#..ATM..(GCC,GEN) |
4 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 96135-51300 |
ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN;NZE12#,ZZE121..ATM..(GCC,GEN) |
8 | ||
| 96135-51300 |
NZE12#,ZZE12#..ATM..(GCC,GEN) |
8 | ||
| 96135-51300 |
ZZE122..WG..ATM..ARL;NZE12#,ZZE12#..ATM..(GCC,GEN) |
4 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 96135-51300 |
ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN;NZE12#,ZZE121..ATM..(GCC,GEN) |
8 | ||
| 96135-51300 |
NZE12#,ZZE12#..ATM..(GCC,GEN) |
8 | ||
| 96135-51300 |
ZZE122..WG..ATM..ARL;NZE12#,ZZE12#..ATM..(GCC,GEN) |
4 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 96135-51300 |
ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN;NZE12#,ZZE121..ATM..(GCC,GEN) |
8 | ||
| 96135-51300 |
NZE12#,ZZE12#..ATM..(GCC,GEN) |
8 | ||
| 96135-51300 |
ZZE122..WG..ATM..ARL;NZE12#,ZZE12#..ATM..(GCC,GEN) |
4 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 96135-51300 |
ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN;NZE12#,ZZE121..ATM..(GCC,GEN) |
8 | ||
| 96135-51300 |
NZE12#,ZZE12#..ATM..(GCC,GEN) |
8 | ||
| 96135-51300 |
ZZE122..WG..ATM..ARL;NZE12#,ZZE12#..ATM..(GCC,GEN) |
4 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 96135-51300 |
ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN;NZE12#,ZZE121..ATM..(GCC,GEN) |
8 | ||
| 96135-51300 |
NZE12#,ZZE12#..ATM..(GCC,GEN) |
8 | ||
| 96135-51300 |
ZZE122..WG..ATM..ARL;NZE12#,ZZE12#..ATM..(GCC,GEN) |
4 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 96135-51300 |
ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN;NZE12#,ZZE121..ATM..(GCC,GEN) |
8 | ||
| 96135-51300 |
NZE12#,ZZE12#..ATM..(GCC,GEN) |
8 | ||
| 96135-51300 |
ZZE122..WG..ATM..ARL;NZE12#,ZZE12#..ATM..(GCC,GEN) |
4 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 96135-51300 |
ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN;NZE12#,ZZE121..ATM..(GCC,GEN) |
8 | ||
| 96135-51300 |
NZE12#,ZZE12#..ATM..(GCC,GEN) |
8 | ||
| 96135-51300 |
ZZE122..WG..ATM..ARL;NZE12#,ZZE12#..ATM..(GCC,GEN) |
4 | ||
| 32921R - CLIP, NO.2(FOR OIL COOLER HOSE) | ||||
| 96135-51300 |
NZE12#,ZZE12#..ATM..(ARL,GCC,GEN) |
4 | ||
| 96137-41501 |
NZE12#,ZZE12#..ATM..(GCC,GEN) |
4 | ||
| 32921R - CLIP, NO.2(FOR OIL COOLER HOSE) | ||||
| 96135-51300 |
NZE12#,ZZE12#..ATM..(ARL,GCC,GEN) |
4 | ||
| 96137-41501 |
NZE12#,ZZE12#..ATM..(GCC,GEN) |
4 | ||
| 32921R - CLIP, NO.2(FOR OIL COOLER HOSE) | ||||
| 96135-51300 |
NZE12#,ZZE12#..ATM..(ARL,GCC,GEN) |
4 | ||
| 96137-41501 |
NZE12#,ZZE12#..ATM..(GCC,GEN) |
4 | ||
| 32921R - CLIP, NO.2(FOR OIL COOLER HOSE) | ||||
| 96135-51300 |
NZE12#,ZZE12#..ATM..(ARL,GCC,GEN) |
4 | ||
| 96137-41501 |
NZE12#,ZZE12#..ATM..(GCC,GEN) |
4 | ||
| 32922 - TUBE, OIL COOLER OUTLET, NO.1 | ||||
| 32922-12390 |
NZE120..ATM |
1 | ||
| 32922-12390 |
NZE120..ATM |
1 | ||
| 32922A - HOSE(FOR OIL COOLER OUTLET) | ||||
| 90445-15020 |
NZE120..ATM;ZZE122..ATM..GCC L=240 |
1 | ||
| 90445-15020 |
NZE120..ATM |
1 | ||
| 32924 - CLAMP, OIL COOLER TUBE, NO.2 | ||||
| 90462-10127 |
NZE12#,ZZE12#..ATM |
1 | ||
| 90462-10127 |
ZZE122..WG..ATM..ARL;NZE12#,ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-10010 |
NZE12#,ZZE12#..ATM L=30,ID=8 |
2 | ||
| 32926-10010 |
ZZE122..WG..ATM..ARL;NZE12#,ZZE12#..ATM..(GCC,GEN) L=30,ID=8 |
2 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-10010 |
NZE12#,ZZE12#..ATM L=30,ID=8 |
2 | ||
| 32926-10010 |
ZZE122..WG..ATM..ARL;NZE12#,ZZE12#..ATM..(GCC,GEN) L=30,ID=8 |
2 | ||
| 32941 - HOSE, OIL COOLER INLET, NO.1 | ||||
| 90445-15039 |
NZE12#,ZZE12#..ATM |
1 | ||
| 90445-15039 |
ZZE122..WG..ATM..ARL;NZE12#,ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 32942 - HOSE, OIL COOLER OUTLET, NO.1 | ||||
| 90445-15050 |
ZZE122..WG..ATM..ARL;NZE12#,ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 90445-15050 |
NZE12#,ZZE12#..ATM |
1 | ||
| Common parts | ||||
| 91611-B0614 | ||||
| 91621-60614 | ||||
| 91671-80612 | ||||
