NZE120L-AEPDK (2000)

Toyota Corolla/Altis Sed/Wg

Production Aug 2000 - Aug 2007
Engine 2NZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0008- )NZE12#..ATM ; (0108- )ZZE122..ATM..GCC ; (0507- )ATM..PKN ; (0510-

Click highlighted areas on diagram

U340E,U341E,U441E

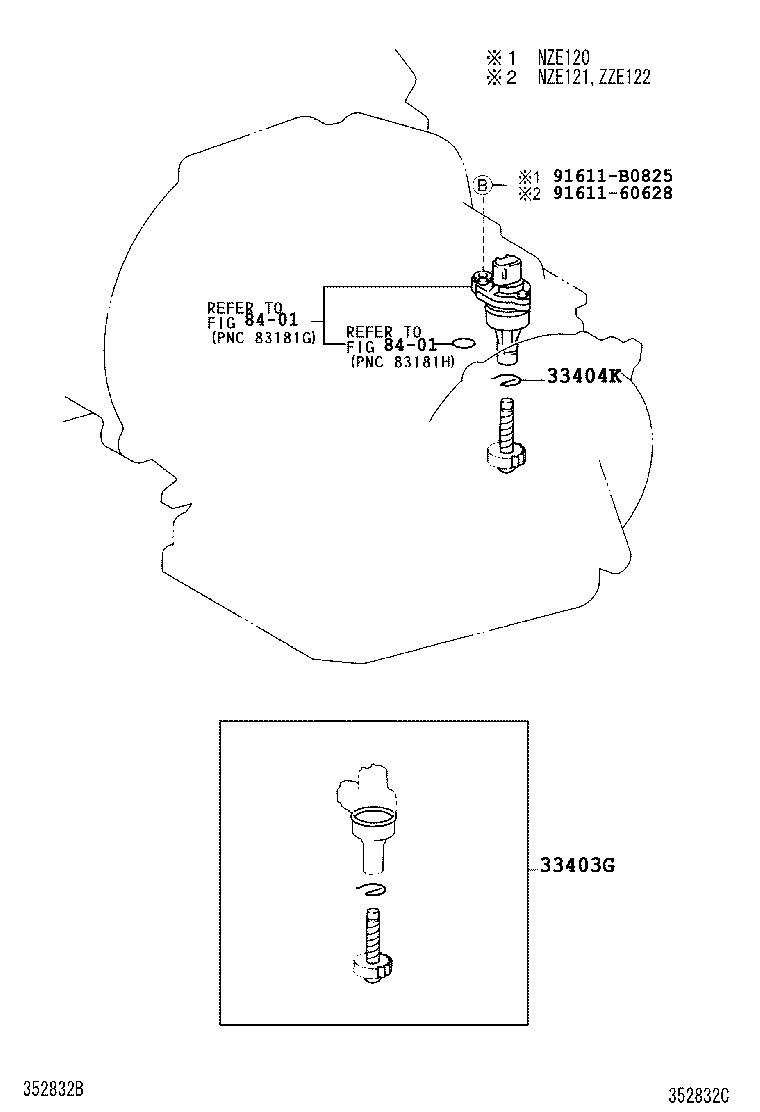

diagram 33403G 33404K 8401 8401 9161160628 91611B0825
Part # Description Qty Price
33403G - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)
33403-19455

ZZE122..ATM..ARL;NZE120,ZZE122..LHD..ATM..GEN

N=30,MARK 30:35

 1
33403-19455

NZE120,ZZE12#..ATM..(GCC,GEN)

N=30,MARK 30:35

 1
33404K - CLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)
90468-12005

ZZE122..ATM..ARL;NZE120,ZZE122..LHD..ATM..GEN

 1
90468-12005

ZZE122..WG..ATM..ARL;NZE12#,ZZE12#..ATM..(GCC,GEN)

 1
Common parts
91611-60628
91611-B0825
Linked diagrams
8401
