NZE120L-AEPDK (2000)
Toyota Corolla/Altis Sed/Wg
(0008- )NZE120..ATM
U441E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

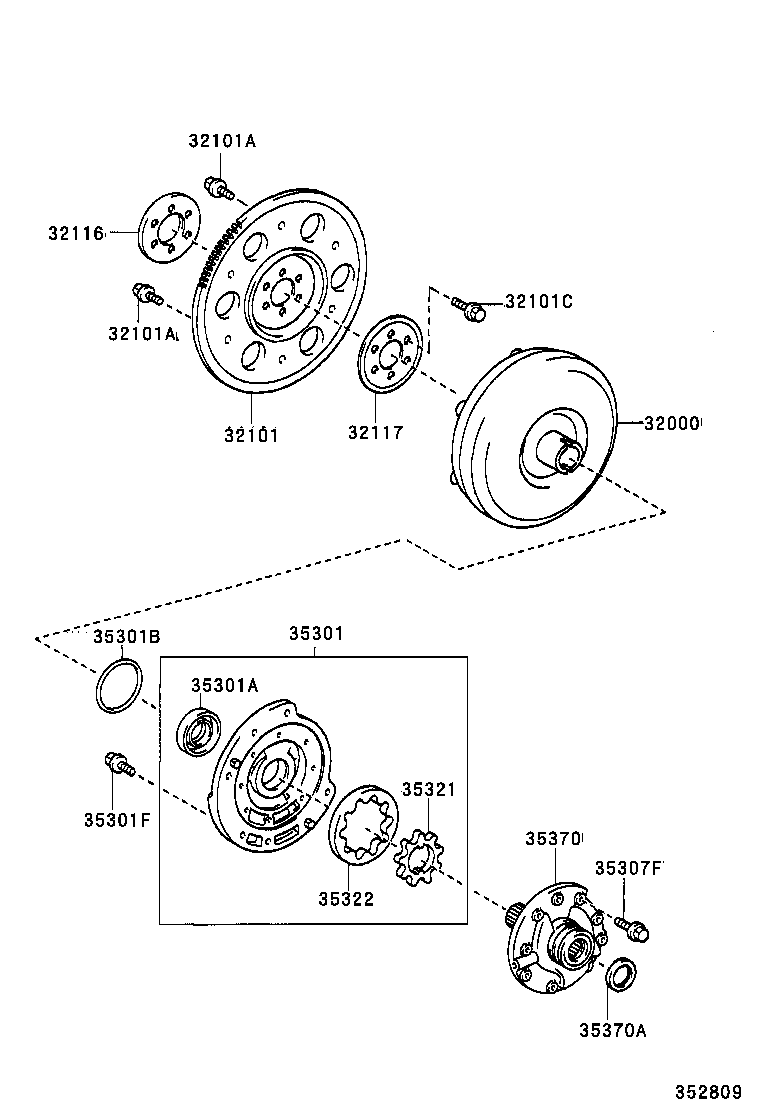

| 32000 - CONVERTER ASSY, TORQUE | ||||
| 32000-52030 |
NZE120..ATM |
1 | ||
| 32000-52030 |
NZE120..ATM |
1 | ||
| 32000-52120 |
NZE120..ATM |
1 | ||
| 32000-52030 |
NZE120..ATM |
1 | ||
| 32101 - GEAR SUB-ASSY, DRIVE PLATE & RING | ||||
| 32101-52020 |
NZE120..ATM |
1 | ||
| 32101-52021 |
NZE12#..ATM |
1 | ||
| 32101-52021 |
NZE120..ATM..GEN |
1 | ||
| 32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) | ||||
| 90119-08269 |
NZE120..ATM..GEN;ZZE122..ATM..ARL;ZZE122..LHD..WG..ATM..GEN;ZZE122..LHD..ATM..GLI..GEN *8-1.25PX12-8,BLACK |
5 | ||
| 90119-08498 |
NZE120..ATM..GEN *8-1.25PX12-8,YELLOW GREEN |
5 | ||
| 90109-08113 |
ZZE122..ATM..ARL;NZE120,ZZE122..LHD..ATM..GEN *8-1.25PX12-8.4,GREEN |
1 | ||
| 90119-08269 |
NZE12#,ZZE12#..ATM..(GCC,GEN) *8-1.25PX12-8,BLACK |
5 | ||
| 90109-08107 |
NZE12#,ZZE12#..ATM..(GCC,GEN) *8-1.25PX12-8.4,GREEN |
1 | ||
| 90109-08107 |
NZE120..ATM..GEN;ZZE122..ATM..ARL;ZZE122..LHD..WG..ATM..GEN;ZZE122..LHD..ATM..GLI..GEN *8-1.25PX12-8.4,GREEN |
1 | ||
| 90109-08107 |
ZZE122..WG..ATM..ARL;NZE12#,ZZE12#..ATM..(GCC,GEN) *8-1.25PX12-8.4,GREEN |
1 | ||
| 90109-08113 |
ZZE122..WG..ATM..ARL;NZE12#,ZZE12#..ATM..(GCC,GEN) *8-1.25PX12-8.4,GREEN |
1 | ||
| 90119-08269 |
ZZE122..WG..ATM..ARL;NZE12#,ZZE12#..ATM..(GCC,GEN) *8-1.25PX12-8,BLACK |
5 | ||
| 90119-08498 |
NZE12#..ATM *8-1.25PX12-8,SILVER |
5 | ||
| 32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) | ||||
| 90119-08269 |
NZE120..ATM..GEN;ZZE122..ATM..ARL;ZZE122..LHD..WG..ATM..GEN;ZZE122..LHD..ATM..GLI..GEN *8-1.25PX12-8,BLACK |
5 | ||
| 90119-08498 |
NZE120..ATM..GEN *8-1.25PX12-8,YELLOW GREEN |
5 | ||
| 90109-08113 |
ZZE122..ATM..ARL;NZE120,ZZE122..LHD..ATM..GEN *8-1.25PX12-8.4,GREEN |
1 | ||
| 90119-08269 |
NZE12#,ZZE12#..ATM..(GCC,GEN) *8-1.25PX12-8,BLACK |
5 | ||
| 90109-08107 |
NZE12#,ZZE12#..ATM..(GCC,GEN) *8-1.25PX12-8.4,GREEN |
1 | ||
| 90109-08107 |
NZE120..ATM..GEN;ZZE122..ATM..ARL;ZZE122..LHD..WG..ATM..GEN;ZZE122..LHD..ATM..GLI..GEN *8-1.25PX12-8.4,GREEN |
1 | ||
| 90109-08107 |
ZZE122..WG..ATM..ARL;NZE12#,ZZE12#..ATM..(GCC,GEN) *8-1.25PX12-8.4,GREEN |
1 | ||
| 90109-08113 |
ZZE122..WG..ATM..ARL;NZE12#,ZZE12#..ATM..(GCC,GEN) *8-1.25PX12-8.4,GREEN |
1 | ||
| 90119-08269 |
ZZE122..WG..ATM..ARL;NZE12#,ZZE12#..ATM..(GCC,GEN) *8-1.25PX12-8,BLACK |
5 | ||
| 90119-08498 |
NZE12#..ATM *8-1.25PX12-8,SILVER |
5 | ||
| 32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING) | ||||
| 90105-10048 |
ZZE122..ATM..ARL;NZE120,ZZE122..LHD..ATM..GEN *10-1.25PX18-13 |
8 | ||
| 90105-10048 |
NZE12#..ATM *10-1.25PX18-13 |
6 | ||
| 32116 - SPACER, DRIVE PLATE, FRONT | ||||
| 32116-52030 |
NZE120..ATM..GEN |
1 | ||
| 32116-52030 |
NZE12#..ATM |
1 | ||
| 32117 - SPACER, DRIVE PLATE, REAR | ||||
| 32117-52030 |
NZE12#..ATM |
1 | ||
| 32117-52030 |
NZE120..ATM..GEN |
1 | ||
| 35301 - BODY SUB-ASSY, FRONT OIL PUMP | ||||
| 35035-52030 |
NZE120..ATM |
1 | ||
| 35035-52030 |
NZE120..ATM |
1 | ||
| 35035-52030 |
NZE120..ATM |
1 | ||
| 35301A - SEAL, OIL (FOR FRONT OIL PUMP) | ||||
| 90311-38075 |
NZE120..ATM |
1 | ||
| 90311-38075 |
NZE120..ATM |
1 | ||
| 90311-38075 |
NZE120..ATM |
1 | ||
| 35301B - RING, O (FOR FRONT OIL PUMP BODY) | ||||
| 90301-99123 |
NZE120..ATM |
1 | ||
| 90301-99123 |
NZE120..ATM |
1 | ||
| 90301-99123 |
NZE120..ATM |
1 | ||
| 35301F - BOLT (FOR FRONT OIL PUMP SETTING) | ||||
| 90105-08376 |
NZE120..ATM *8-1.25PX20-20 |
6 | ||
| 90105-08376 |
NZE120..ATM *8-1.25PX20-20 |
6 | ||
| 90105-08376 |
NZE120..ATM *8-1.25PX20-20 |
6 | ||
| 35307F - BOLT (FOR STATOR SHAFT) | ||||
| 90119-06559 |
NZE120..ATM |
8 | ||
| 90119-06559 |
NZE120..ATM |
8 | ||
| 90119-06559 |
NZE120..ATM |
8 | ||
| 35321 - GEAR, FRONT OIL PUMP DRIVE | ||||
| 35321-52010 |
NZE120..ATM T=8.44-8.45,MARK 1 |
1 | ||
| 35321-52050 |
NZE120..ATM T=8.48-8.49,MARK 5 |
1 | ||
| 35321-52040 |
NZE120..ATM T=8.47-8.48,MARK 4 |
1 | ||
| 35321-52030 |
NZE120..ATM T=8.46-8.47,MARK 3 |
1 | ||
| 35321-52030 |
NZE120..ATM T=8.46-8.47,MARK 3 |
1 | ||
| 35321-52020 |
NZE120..ATM T=8.45-8.46,MARK 2 |
1 | ||
| 35321-52010 |
NZE120..ATM T=8.44-8.45,MARK 1 |
1 | ||
| 35321-52040 |
NZE120..ATM T=8.47-8.48,MARK 4 |
1 | ||
| 35321-52050 |
NZE120..ATM T=8.48-8.49,MARK 5 |
1 | ||
| 35321-52020 |
NZE120..ATM T=8.45-8.46,MARK 2 |
1 | ||
| 35321-52040 |
NZE120..ATM T=8.47-8.48,MARK 4 |
1 | ||
| 35321-52030 |
NZE120..ATM T=8.46-8.47,MARK 3 |
1 | ||
| 35321-52050 |
NZE120..ATM T=8.48-8.49,MARK 5 |
1 | ||
| 35321-52010 |
NZE120..ATM T=8.44-8.45,MARK 1 |
1 | ||
| 35321-52020 |
NZE120..ATM T=8.45-8.46,MARK 2 |
1 | ||
| 35322 - GEAR, FRONT OIL PUMP DRIVEN | ||||
| 35322-52020 |
NZE120..ATM T=8.45-8.46,MARK 2 |
1 | ||
| 35322-52030 |
NZE120..ATM T=8.46-8.47,MARK 3 |
1 | ||
| 35322-52050 |
NZE120..ATM T=8.48-8.49,MARK 5 |
1 | ||
| 35322-52040 |
NZE120..ATM T=8.47-8.48,MARK 4 |
1 | ||
| 35322-52010 |
NZE120..ATM T=8.44-8.45,MARK 1 |
1 | ||
| 35322-52020 |
NZE120..ATM T=8.45-8.46,MARK 2 |
1 | ||
| 35322-52010 |
NZE120..ATM T=8.44-8.45,MARK 1 |
1 | ||
| 35322-52040 |
NZE120..ATM T=8.47-8.48,MARK 4 |
1 | ||
| 35322-52030 |
NZE120..ATM T=8.46-8.47,MARK 3 |
1 | ||
| 35322-52050 |
NZE120..ATM T=8.48-8.49,MARK 5 |
1 | ||
| 35322-52050 |
NZE120..ATM T=8.48-8.49,MARK 5 |
1 | ||
| 35322-52040 |
NZE120..ATM T=8.47-8.48,MARK 4 |
1 | ||
| 35322-52010 |
NZE120..ATM T=8.44-8.45,MARK 1 |
1 | ||
| 35322-52020 |
NZE120..ATM T=8.45-8.46,MARK 2 |
1 | ||
| 35322-52030 |
NZE120..ATM T=8.46-8.47,MARK 3 |
1 | ||
| 35370 - SHAFT ASSY, STATOR | ||||
| 35370-52010 |
NZE120..ATM |
1 | ||
| 35370-52010 |
NZE120..ATM |
1 | ||
| 35370-52010 |
NZE120..ATM |
1 | ||
| 35370A - BEARING, THRUST NEEDLE ROLLER(FOR STATOR SHAFT) | ||||
| 90374-32007 |
NZE120..ATM T=4.21 |
1 | ||
| 90374-32007 |
NZE120..ATM T=4.21 |
1 | ||
| 90374-32008 |
NZE120..ATM T=3.62 |
1 | ||
| 90374-32008 |
NZE120..ATM T=3.62 |
1 | ||
| 90374-32007 |
NZE120..ATM T=4.21 |
1 | ||
| 90374-32008 |
NZE120..ATM T=3.62 |
1 | ||
