NZE120L-AEPDK (2000)
Toyota Corolla/Altis Sed/Wg

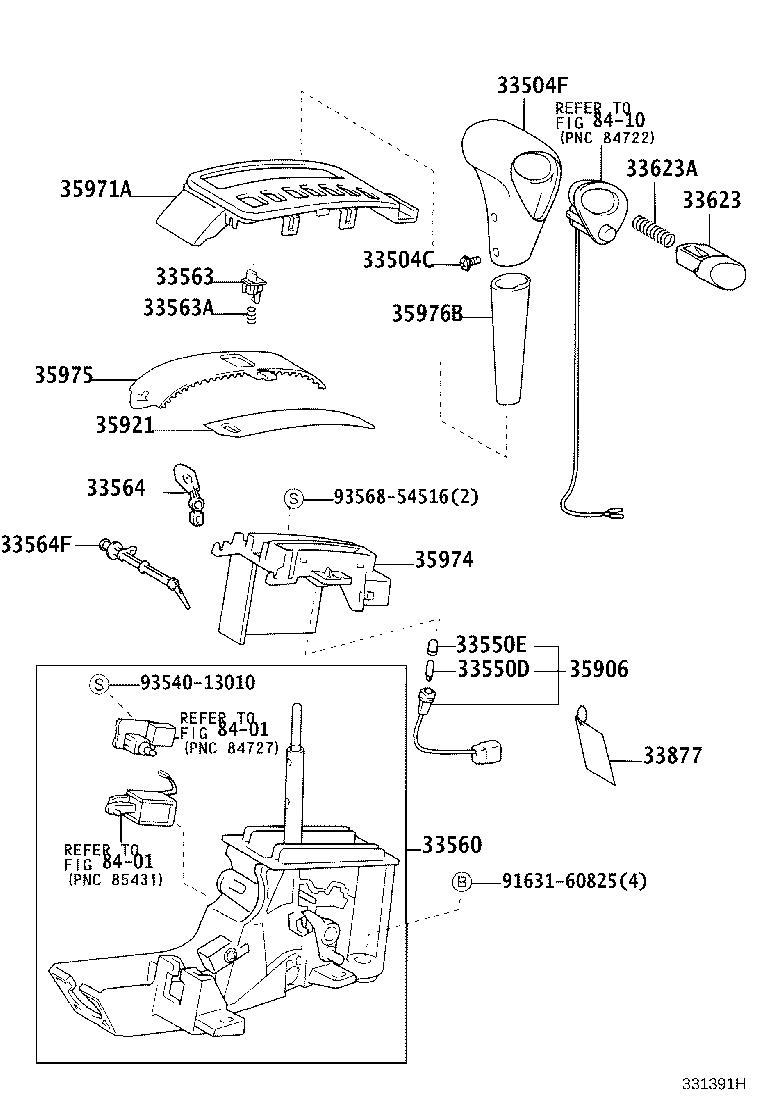

ILLUST NO. 1 OF 2(0008- )NZE120,ZZE121..ATM ; (0008- )ZZE122..ATM..ARL,GCC,GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33504C - SCREW (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90159-40221 |
NZE12#,ZZE12#..ATM..(GCC,GEN) |
2 | ||
| 90159-40221 |
ZZE122..ATM..ARL;NZE120,ZZE122..LHD..ATM..GEN |
2 | ||
| 90159-40221 |
ZZE122..WG..ATM..ARL;NZE12#,ZZE12#..ATM..(GCC,GEN) |
2 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-12320B0 |
NZE120,ZZE12#..LHD..SED..ATM..GEN DK.GRAY,TRIM15,17 |
1 | ||
| 33542-12320E0 |
NZE120,ZZE12#..LHD..ATM SANDAL WOOD,TRIM0# |
1 | ||
| 33542-12320B0 |
NZE120,ZZE122..LHD..SED..ATM..GEN DK.GRAY,TRIM1# |
1 | ||
| 33542-12320E0 |
ZZE122..LHD..ATM..GLI..GEN;NZE120,ZZE12#..LHD..ATM..(LX,XLI) SANDAL WOOD,TRIM0# |
1 | ||
| 33542-12320B0 |
ZZE122..LHD..ATM..GLI..GEN;NZE120,ZZE12#..LHD..SED..ATM..(LX,XLI) DK.GRAY,TRIM1# |
1 | ||
| 33542-12320B0 |
ZZE122..LHD..ATM..XLI;ZZE122..LHD..ATM..GLI..GEN;NZE120,ZZE121..LHD..SED..ATM DK.GRAY,TRIM1# |
1 | ||
| 33542-12320E0 |
ZZE122..LHD..ATM..GLI..GEN;NZE120,ZZE12#..LHD..ATM..(LX,XLI) SANDAL WOOD,TRIM0# |
1 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 35955-74010 |
NZE12#,ZZE12#..ATM..(ARL,GCC,GEN) 12V 1.4W |
1 | ||
| 35955-74010 |
ZZE121..LHD..ATM..LX;NZE120,ZZE12#..ATM..(CONQ,GLI,SESAL,ULT,XLI) 12V 1.4W |
1 | ||
| 35955-74010 |
NZE12#,ZZE12#..ATM..(GCC,GEN) 12V 1.4W |
1 | ||
| 33550E - CAP, POSITION INDICATOR LAMP | ||||
| 35956-52030 |
ZZE121..LHD..ATM..LX;NZE120,ZZE12#..ATM..(CONQ,GLI,SESAL,ULT,XLI) |
1 | ||
| 35956-52030 |
NZE12#,ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35956-52030 |
NZE12#,ZZE12#..ATM..(ARL,GCC,GEN) |
1 | ||
| 33560 - UNIT ASSY, SHIFT LOCK CONTROL | ||||
| 33560-12061 |
NZE120,ZZE122..LHD..ATM..GEN |
1 | ||
| 33560-12060 |
NZE120,ZZE12#..LHD..ATM |
1 | ||
| 33560-12061 |
NZE120,ZZE12#..LHD..ATM |
1 | ||
| 33560-12061 |
NZE120,ZZE12#..LHD..ATM |
1 | ||
| 33560-12060 |
NZE120,ZZE122..LHD..ATM..GEN |
1 | ||
| 33563 - BUTTON, SHIFT LOCK RELEASE | ||||
| 33563-12210 |
NZE120,ZZE122..LHD..ATM..GEN |
1 | ||
| 33563-12210 |
NZE120,ZZE12#..LHD..ATM |
1 | ||
| 33563-12210 |
NZE120,ZZE12#..LHD..ATM |
1 | ||
| 33563A - SPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON) | ||||
| 90501-05055 |
ZZE122..ATM..ARL;NZE120,ZZE122..LHD..ATM..GEN |
1 | ||
| 90501-05055 |
NZE12#,ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 90501-05055 |
ZZE122..WG..ATM..ARL;NZE12#,ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 33564 - LINK, SHIFT LOCK RELEASE, NO.1 | ||||
| 33564-12140 |
NZE120,ZZE122..LHD..ATM..GEN |
1 | ||
| 33564-12140 |
NZE120,ZZE12#..LHD..ATM |
1 | ||
| 33564-12140 |
NZE120,ZZE12#..LHD..ATM |
1 | ||
| 33623 - BUTTON, SHIFT LEVER KNOB | ||||
| 33623-12180E0 |
NZE120,ZZE12#..LHD..ATM SANDAL WOOD,TRIM0# |
1 | ||
| 33623-12180B0 |
NZE120,ZZE12#..LHD..SED..ATM..GEN DK.GRAY,TRIM15,17 |
1 | ||
| 33623-12180E0 |
NZE120,ZZE12#..LHD..ATM..GEN SANDAL WOOD,TRIM0# |
1 | ||
| 33623-12180B0 |
NZE120,ZZE12#..LHD..SED..ATM..GEN DK.GRAY,TRIM1# |
1 | ||
| 33623-12180B0 |
NZE120,ZZE122..LHD..SED..ATM..GEN DK.GRAY,TRIM1# |
1 | ||
| 33623-12180B0 |
NZE120,ZZE12#..LHD..ATM..GEN DK.GRAY,TRIM1# |
1 | ||
| 33623-12180E0 |
NZE120,ZZE12#..LHD..ATM..GEN SANDAL WOOD,TRIM0# |
1 | ||
| 33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON) | ||||
| 90501-06082 |
NZE12#,ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 90501-06082 |
ZZE122..ATM..ARL;NZE120,ZZE122..LHD..ATM..GEN |
1 | ||
| 90501-06082 |
ZZE122..WG..ATM..ARL;NZE12#,ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 33877 - LABEL, SHIFT LOCK INFORMATION, NO.1 | ||||
| 33877-50030 |
ZZE122..ATM..ARL;NZE120,ZZE122..LHD..ATM..GEN |
1 | ||
| 33877-50030 |
ZZE122..WG..ATM..ARL;NZE12#,ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-12210 |
NZE120,ZZE12#..LHD..ATM |
1 | ||
| 35906-12210 |
NZE120,ZZE12#..LHD..ATM |
1 | ||
| 35906-12210 |
NZE120,ZZE122..LHD..ATM..GEN |
1 | ||
| 35921 - PLATE, CONTROL POSITION INDICATOR | ||||
| 35921-12550 |
NZE120,ZZE12#..LHD..ATM |
1 | ||
| 35921-12550 |
NZE120,ZZE12#..LHD..ATM |
1 | ||
| 35921-12550 |
NZE120,ZZE122..LHD..ATM..GEN |
1 | ||
| 35971A - HOUSING, POSITION INDICATOR, UPPER | ||||
| 35971-12490 |
NZE120,ZZE122..LHD..ATM..GEN |
1 | ||
| 35971-12490 |
NZE120,ZZE12#..LHD..ATM |
1 | ||
| 35971-12490 |
NZE120,ZZE12#..LHD..ATM |
1 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-12250 |
NZE120,ZZE122..LHD..ATM..GEN |
1 | ||
| 35974-12250 |
NZE120,ZZE12#..LHD..ATM |
1 | ||
| 35974-12250 |
NZE120,ZZE12#..LHD..ATM |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-12300 |
NZE120,ZZE122..LHD..ATM..GEN |
1 | ||
| 35975-12300 |
NZE120,ZZE12#..LHD..ATM |
1 | ||
| 35975-12300 |
NZE120,ZZE12#..LHD..ATM |
1 | ||
| 35976B - COVER, SHIFT LEVER KNOB (FOR FLOOR SHIFT) | ||||
| 35976-12130E0 |
NZE120,ZZE12#..LHD..ATM SANDAL WOOD,TRIM0# |
1 | ||
| 35976-12130B0 |
NZE120,ZZE12#..LHD..SED..ATM..GEN DK.GRAY,TRIM15,17 |
1 | ||
| 35976-12130B0 |
NZE120,ZZE12#..LHD..SED..ATM DK.GRAY,TRIM1# |
1 | ||
| 35976-12130E0 |
NZE120,ZZE12#..LHD..ATM SANDAL WOOD,TRIM0# |
1 | ||
| 35976-12130B0 |
NZE120,ZZE122..LHD..SED..ATM..GEN DK.GRAY,TRIM1# |
1 | ||
| 35976-12130B0 |
ZZE122..LHD..ATM;NZE120,ZZE121..LHD..SED..ATM DK.GRAY,TRIM1# |
1 | ||
| 35976-12130E0 |
NZE120,ZZE12#..LHD..ATM SANDAL WOOD,TRIM0# |
1 | ||
| Common parts | ||||
| 91631-60825 | ||||
| 93540-13010 | ||||
| 93568-54516 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8410 | ||||

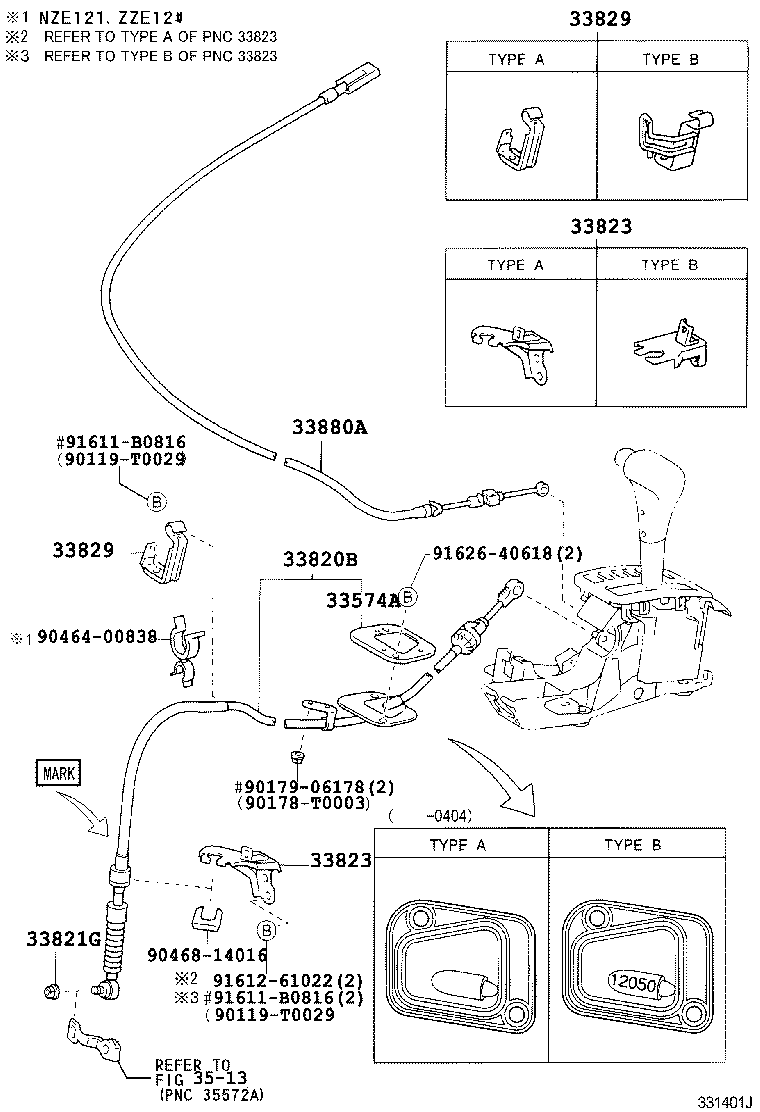

ILLUST NO. 2 OF 2(0008- )ATM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33574A - RETAINER, SHIFT CABLE GROMMET, NO.1 | ||||
| 33574-12100 |
ZZE122..ATM..ARL;NZE120,ZZE122..LHD..ATM..GEN |
1 | ||
| 33574-12100 |
NZE120..GCC,GEN;NZE121,ZZE12#..ATM..(GCC,GEN) CHUO HATSUJO |
1 | ||
| 33574-12100 |
NZE120..GCC,GEN;ZZE122..WG..ATM..ARL;NZE121,ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-12870 |
NZE120..ATM..GEN |
1 | ||
| 33820-12870 |
NZE120..ATM |
1 | ||
| 33820-12870 |
NZE120..ATM |
1 | ||
| 33821G - NUT (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90179-08061 |
ZZE122..ATM..ARL;NZE120,ZZE122..LHD..ATM..GEN |
1 | ||
| 90179-08061 |
ZZE122..WG..ATM..ARL;NZE12#,ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 90179-08061 |
NZE12#,ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-12260 |
NZE120..ATM..GEN |
1 | ||
| 33823-12260 |
NZE120..ATM |
1 | ||
| 33823-12260 |
NZE120..ATM |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-12260 |
NZE120..ATM..GEN |
1 | ||
| 33823-12260 |
NZE120..ATM |
1 | ||
| 33823-12260 |
NZE120..ATM |
1 | ||
| 33829 - SUPPORT, TRANSMISSION CONTROL CABLE | ||||
| 33829-12030 |
NZE120..ATM..GEN |
1 | ||
| 33829-12030 |
NZE120..ATM |
1 | ||
| 33829-12030 |
NZE120..ATM |
1 | ||
| 33829 - SUPPORT, TRANSMISSION CONTROL CABLE | ||||
| 33829-12030 |
NZE120..ATM..GEN |
1 | ||
| 33829-12030 |
NZE120..ATM |
1 | ||
| 33829-12030 |
NZE120..ATM |
1 | ||
| 33880A - CABLE ASSY, PARKING LOCK (FOR FLOOR SHIFT) | ||||
| 33880-12040 |
NZE120,ZZE12#..LHD..ATM |
1 | ||
| 33880-12040 |
NZE120,ZZE122..LHD..ATM..GEN |
1 | ||
| 33880-12040 |
NZE120,ZZE12#..LHD..ATM |
1 | ||
| Common parts | ||||
| 90119-T0029 | ||||
| 90178-T0003 | ||||
| 90179-06178 | ||||
| 90464-00838 | ||||
| 90468-14016 | ||||
| 91611-B0816 | ||||
| 91612-61022 | ||||
| 91626-40618 | ||||
| Linked diagrams | ||||
| 3513 | ||||

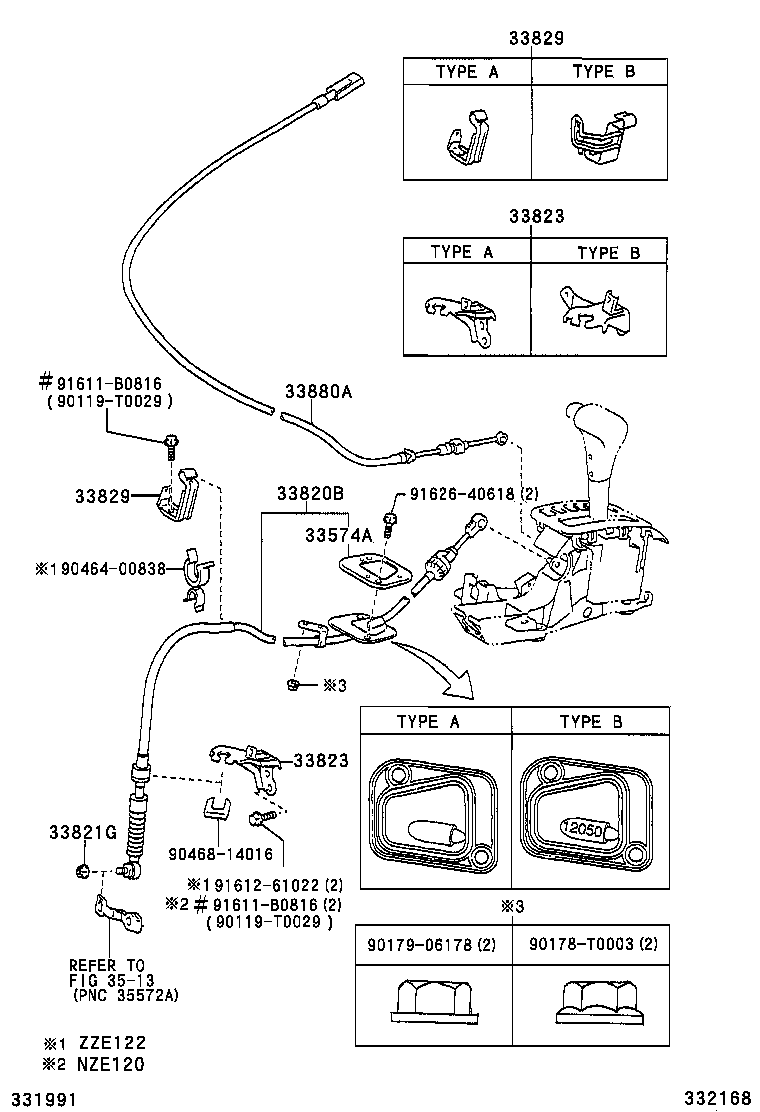

ILLUST NO. 2 OF 2(0209- )NZE120,ZZE122..LHD..ATM..GEN
MIDDLE SOUTH AMERICA SPEC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33574A - RETAINER, SHIFT CABLE GROMMET, NO.1 | ||||
| 33574-12100 |
ZZE122..ATM..ARL;NZE120,ZZE122..LHD..ATM..GEN |
1 | ||
| 33574-12100 |
NZE120..GCC,GEN;NZE121,ZZE12#..ATM..(GCC,GEN) CHUO HATSUJO |
1 | ||
| 33574-12100 |
NZE120..GCC,GEN;ZZE122..WG..ATM..ARL;NZE121,ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-12870 |
NZE120..ATM..GEN |
1 | ||
| 33820-12870 |
NZE120..ATM |
1 | ||
| 33820-12870 |
NZE120..ATM |
1 | ||
| 33821G - NUT (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90179-08061 |
ZZE122..ATM..ARL;NZE120,ZZE122..LHD..ATM..GEN |
1 | ||
| 90179-08061 |
ZZE122..WG..ATM..ARL;NZE12#,ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 90179-08061 |
NZE12#,ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-12260 |
NZE120..ATM..GEN |
1 | ||
| 33823-12260 |
NZE120..ATM |
1 | ||
| 33823-12260 |
NZE120..ATM |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-12260 |
NZE120..ATM..GEN |
1 | ||
| 33823-12260 |
NZE120..ATM |
1 | ||
| 33823-12260 |
NZE120..ATM |
1 | ||
| 33829 - SUPPORT, TRANSMISSION CONTROL CABLE | ||||
| 33829-12030 |
NZE120..ATM..GEN |
1 | ||
| 33829-12030 |
NZE120..ATM |
1 | ||
| 33829-12030 |
NZE120..ATM |
1 | ||
| 33829 - SUPPORT, TRANSMISSION CONTROL CABLE | ||||
| 33829-12030 |
NZE120..ATM..GEN |
1 | ||
| 33829-12030 |
NZE120..ATM |
1 | ||
| 33829-12030 |
NZE120..ATM |
1 | ||
| 33880A - CABLE ASSY, PARKING LOCK (FOR FLOOR SHIFT) | ||||
| 33880-12040 |
NZE120,ZZE12#..LHD..ATM |
1 | ||
| 33880-12040 |
NZE120,ZZE122..LHD..ATM..GEN |
1 | ||
| 33880-12040 |
NZE120,ZZE12#..LHD..ATM |
1 | ||
| Common parts | ||||
| 90119-T0029 | ||||
| 90178-T0003 | ||||
| 90179-06178 | ||||
| 90464-00838 | ||||
| 90468-14016 | ||||
| 91611-B0816 | ||||
| 91612-61022 | ||||
| 91626-40618 | ||||
| Linked diagrams | ||||
| 3513 | ||||
