Toyota Corolla/altis sed/wg NZE120 FUEL INJECTION SYSTEM

NZE120L-AEPDK (2000)

Toyota Corolla/Altis Sed/Wg

Production Aug 2000 - Aug 2007

Engine 2NZFE

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0008- )1NZFE,2NZFE

Click highlighted areas on diagram

Part #	Description	Period	Qty

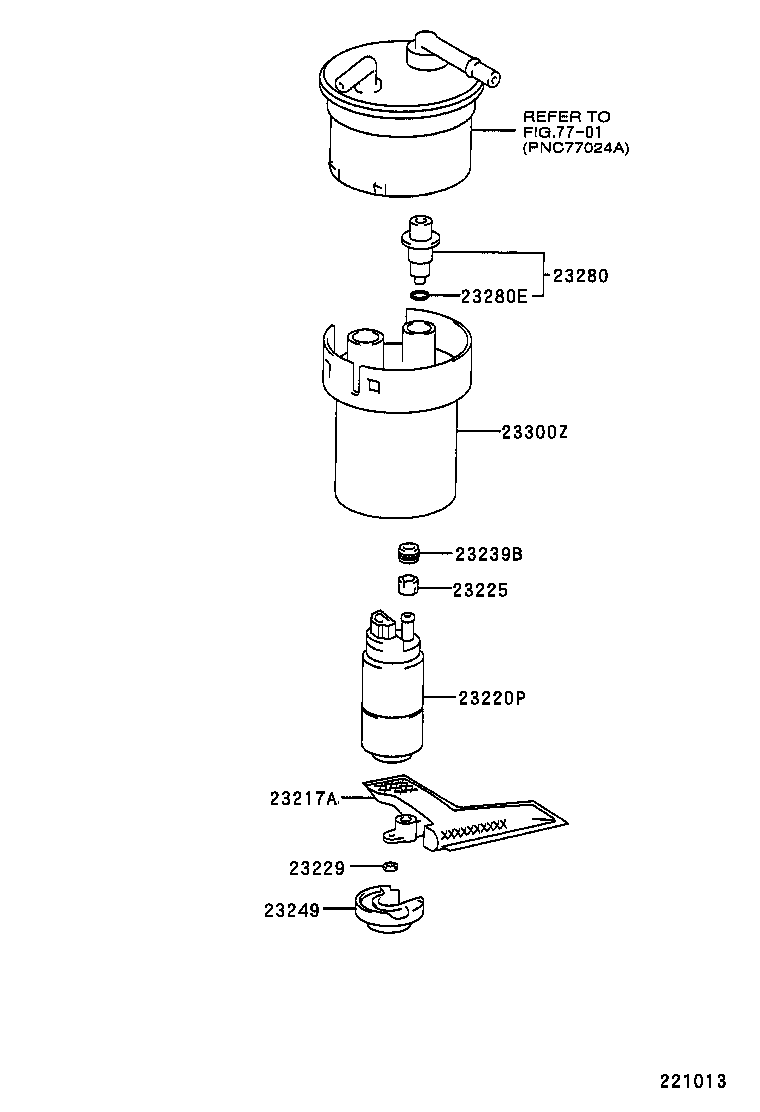

23217A - FILTER, FUEL PUMP
23217-23010	2NZFE..NZE120..LHD..GEN	08/2000 - 04/2004	1
23217-23010	1NZFE,2NZFE..NZE12#..GCC,GEN	09/2002 - 04/2004	1
23217-23010	1NZFE,2NZFE..NZE12#..GCC,GEN	04/2004 - 12/2004	1
23217-0D090	1NZFE,2NZFE..NZE12#..GCC,GEN	12/2004 - 08/2007	1
23220P - PUMP ASSY, FUEL
23221-22030	1NZFE,2NZFE..NZE12#..GCC,GEN	09/2002 - 04/2004	1
23221-22030	1NZFE,2NZFE..NZE12#..GCC,GEN	04/2004 - 12/2999	1
23221-22030	2NZFE..NZE120..LHD..GEN	08/2000 - 04/2004	1
23221-22030	1NZFE,2NZFE..NZE12#..GCC,GEN	04/2004 - 12/2006	1
23221-22140	1NZFE,2NZFE..NZE12#..GCC,GEN	12/2006 - 08/2007	1
23225 - SPACER, FUEL PUMP
23225-21010	1NZFE,2NZFE..NZE12#..GCC,GEN	04/2004 - 08/2007	1
23225-21010	1NZFE,2NZFE..NZE12#..GCC,GEN	09/2002 - 04/2004	1
23225-21010	2NZFE..NZE120..LHD..GEN	08/2000 - 04/2004	1
23229 - CLIP(FOR FUEL PUMP FILTER)
23229-16010	2NZFE..NZE120..LHD..GEN	08/2000 - 04/2004	1
23229-16010	1NZFE,2NZFE..NZE12#..GCC,GEN	04/2004 - 08/2007	1
23229-16010	1NZFE,2NZFE..NZE12#..GCC,GEN	09/2002 - 04/2004	1
23239B - SEAL, FUEL PUMP FILTER
23239-21010	1NZFE,2NZFE..NZE12#..GCC,GEN	09/2002 - 04/2004	1
23239-21010	1NZFE,2NZFE..NZE12#..GCC,GEN	04/2004 - 08/2007	1
23239-21010	2NZFE..NZE120..LHD..GEN	08/2000 - 04/2004	1
23249 - RUBBER, CUSHION(FOR FUEL PUMP)
23249-46180	1NZFE,2NZFE..NZE12#..GCC,GEN	09/2002 - 04/2004	1
23249-46180	2NZFE..NZE120..LHD..GEN	08/2000 - 04/2004	1
23249-46180	1NZFE,2NZFE..NZE12#..GCC,GEN	04/2004 - 08/2007	1
23280 - REGULATOR ASSY, FUEL PRESSURE
23280-22010	2NZFE..NZE120..LHD..GEN	08/2000 - 04/2004	1
23280-22010	1NZFE,2NZFE..NZE12#..GCC,GEN	09/2002 - 04/2004	1
23280-22010	1NZFE,2NZFE..NZE12#..GCC,GEN	04/2004 - 08/2007	1
23280E - RING, O(FOR FUEL PRESSURE REGULATOR)
90301-07020	1NZFE,2NZFE..NZE12#..GCC,GEN	04/2004 - 12/2999	1
90301-07020	2NZFE..NZE120..LHD..GEN	08/2000 - 04/2004	1
90301-07020	1NZFE,2NZFE..NZE12#..GCC,GEN	09/2002 - 04/2004	1
23300Z - FILTER, FUEL(FOR FUEL TANK)
23300-21010	2NZFE..NZE120..LHD..GEN	08/2000 - 04/2004	1
23300-21010	1NZFE,2NZFE..NZE12#..GCC,GEN	09/2002 - 04/2004	1
23300-21010	1NZFE,2NZFE..NZE12#..GCC,GEN	04/2004 - 08/2007	1
Linked diagrams
7701

ILLUST NO. 1 OF 2(0008-0512)1NZFE..ATM..GLI ; (0008- )2NZFE ;(0008- )1NZFE..LX ; (0008- )1

Click highlighted areas on diagram

Part #	Description	Period	Qty

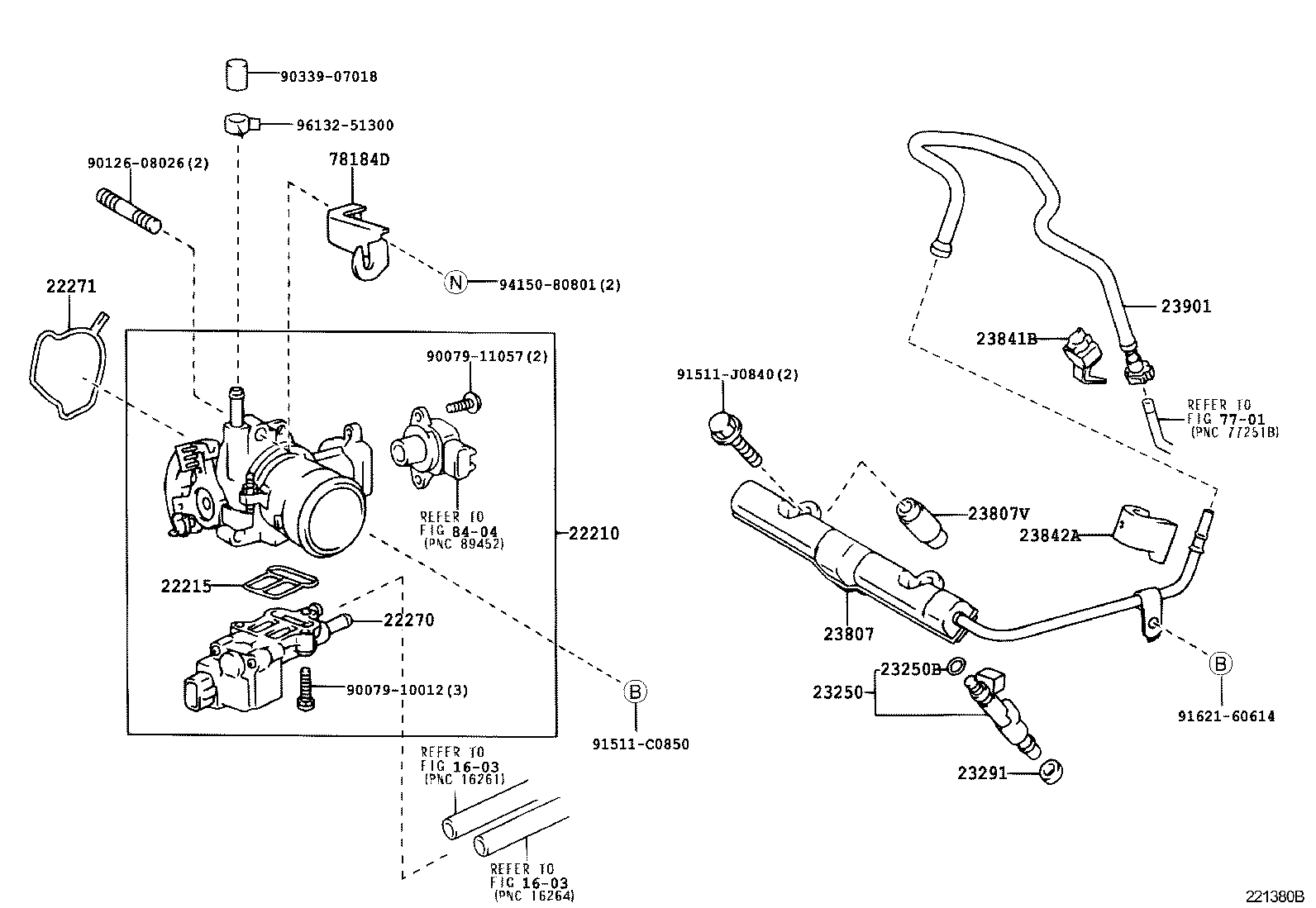

22210 - BODY ASSY, THROTTLE
22210-21020	1NZFE,2NZFE..NZE12#	08/2000 - 07/2005	1
22210-21020	1NZFE,2NZFE..NZE12#..GCC,GEN	09/2002 - 04/2004	1
22210-21020	1NZFE..NZE121..LX;2NZFE..NZE120..GCC,GEN;1NZFE..NZE121..MTM..GLI	04/2004 - 12/2999	1
22215 - GASKET, THROTTLE BODY COVER
22215-7A680	1NZFE..NZE121..LX;2NZFE..NZE120..GCC,GEN;1NZFE..NZE121..MTM..GLI	04/2004 - 12/2999	1
22215-7A680	1NZFE,2NZFE..NZE12#	08/2000 - 07/2005	1
22215-7A680	1NZFE,2NZFE..NZE12#..GCC,GEN	09/2002 - 04/2004	1
22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
22270-21010	1NZFE,2NZFE..NZE12#	08/2000 - 03/2003	1
22270-21011	2NZFE..NZE120..PKN;2NZFE..NZE120..LHD..GEN	03/2003 - 07/2005	1
22270-21010	1NZFE,2NZFE..NZE12#..GCC,GEN	09/2002 - 03/2003	1
22270-21011	1NZFE,2NZFE..NZE12#..GCC,GEN	03/2003 - 04/2004	1
22270-21011	1NZFE..NZE121..LX;2NZFE..NZE120..GCC,GEN;1NZFE..NZE121..MTM..GLI	04/2004 - 12/2999	1
22271 - GASKET, THROTTLE BODY
22271-21020	2NZFE..NZE120..LHD..GEN	08/2000 - 04/2004	1
22271-21020	1NZFE,2NZFE..NZE12#..GCC,GEN	09/2002 - 04/2004	1
22271-21020	1NZFE..NZE121..LX;2NZFE..NZE120..GCC,GEN;1NZFE..NZE121..MTM..GLI	04/2004 - 12/2999	1
23250 - INJECTOR ASSY, FUEL
23209-21020	2NZFE..NZE120..LHD..GEN	08/2000 - 04/2004	4
23209-21020	1NZFE,2NZFE..NZE12#..GCC,GEN	09/2002 - 04/2004	4
23209-21020	1NZFE..NZE121..LX;2NZFE..NZE120..GCC,GEN;1NZFE..NZE121..MTM..GLI	04/2004 - 12/2999	4
23250B - RING, O(FOR FUEL INJECTOR)
90301-07024	2NZFE..NZE120..LHD..GEN	08/2000 - 04/2004	4
90301-07024	1NZFE,2NZFE..NZE12#..GCC,GEN	09/2002 - 04/2004	4
90301-07024	1NZFE,2NZFE..NZE12#..GCC,GEN	04/2004 - 07/2006	4
90301-07037	1NZFE,2NZFE..NZE12#..GCC,GEN	07/2006 - 12/2999	4
23291 - INSULATOR, INJECTOR VIBRATION
23291-41010	2NZFE..NZE120..LHD..GEN	08/2000 - 04/2004	4
23291-41010	1NZFE,2NZFE..NZE12#..GCC,GEN	09/2002 - 04/2004	4
23291-41010	1NZFE,2NZFE..NZE12#..GCC,GEN	04/2004 - 12/2999	4
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23807-21010	1NZFE,2NZFE..NZE12#..GCC,GEN	09/2002 - 04/2004	1
23807-21010	1NZFE..NZE121..LX;2NZFE..NZE120..GCC,GEN;1NZFE..NZE121..MTM..GLI	04/2004 - 12/2006	1
23807-21010	2NZFE..NZE120..LHD..GEN	08/2000 - 04/2004	1
23807-21021	1NZFE..NZE121..LX;2NZFE..NZE120..GCC,GEN	12/2006 - 12/2999	1
23807V - SPACER, NO.1(FOR DELIVERY PIPE)
23891-21010	2NZFE..NZE120..LHD..GEN	08/2000 - 04/2004	2
23891-21010	1NZFE,2NZFE..NZE12#..GCC,GEN	04/2004 - 12/2999	2
23891-21010	1NZFE,2NZFE..NZE12#..GCC,GEN	09/2002 - 04/2004	2
23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI)
23841-28010	2NZFE..NZE120..LHD..GEN	08/2000 - 04/2004	1
23841-28010	1NZFE,2NZFE..NZE12#..GCC,GEN	09/2002 - 04/2004	1
23841-28010	1NZFE,2NZFE..NZE12#..GCC,GEN	04/2004 - 04/2007	1
23841-21050	1NZFE..NZE121..LX;2NZFE..NZE120..GCC,GEN	05/2007 - 12/2999	1
23842A - CLAMP, FUEL PIPE, NO.2(FOR EFI)
23842-22020	2NZFE..NZE120..LHD..GEN	08/2000 - 04/2004	1
23842-22020	1NZFE..NZE121..LX;2NZFE..NZE120..GCC,GEN;1NZFE..NZE121..MTM..GLI	04/2004 - 12/2999	1
23842-22020	1NZFE,2NZFE..NZE12#..GCC,GEN	09/2003 - 04/2004	1
23901 - TUBE SUB-ASSY, FUEL
23901-21030	2NZFE..NZE120..LHD..GEN	08/2000 - 04/2004	1
23901-21030	1NZFE,2NZFE..NZE12#..GCC,GEN	09/2002 - 04/2004	1
23901-21100	1NZFE..NZE121..LX;2NZFE..NZE120..GCC,GEN;1NZFE..NZE121..MTM..GLI	04/2004 - 12/2999	1
78184D - BRACKET, ACCELERATOR CONTROL CABLE
78184-12380	NZE12#..GCC,GEN	09/2002 - 04/2004	1
78184-12380	NZE121..LX;NZE120..GCC,GEN;NZE121..MTM..GLI	04/2004 - 12/2999	1
78184-12380	NZE120..LHD..GEN	08/2000 - 04/2004	1
Common parts
90079-10012
90079-11057
90126-08026
90339-07018
91511-C0850
91511-J0840
91621-60614
94150-80801
96132-51300
