NZE120L-AEPDK (2000)

Toyota Corolla/Altis Sed/Wg

Production Aug 2000 - Aug 2007
Engine 2NZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0008-0512)1NZFE ; (0008- )2NZFE..XLI..GCC,GEN ; (0512- )1NZFE..LX

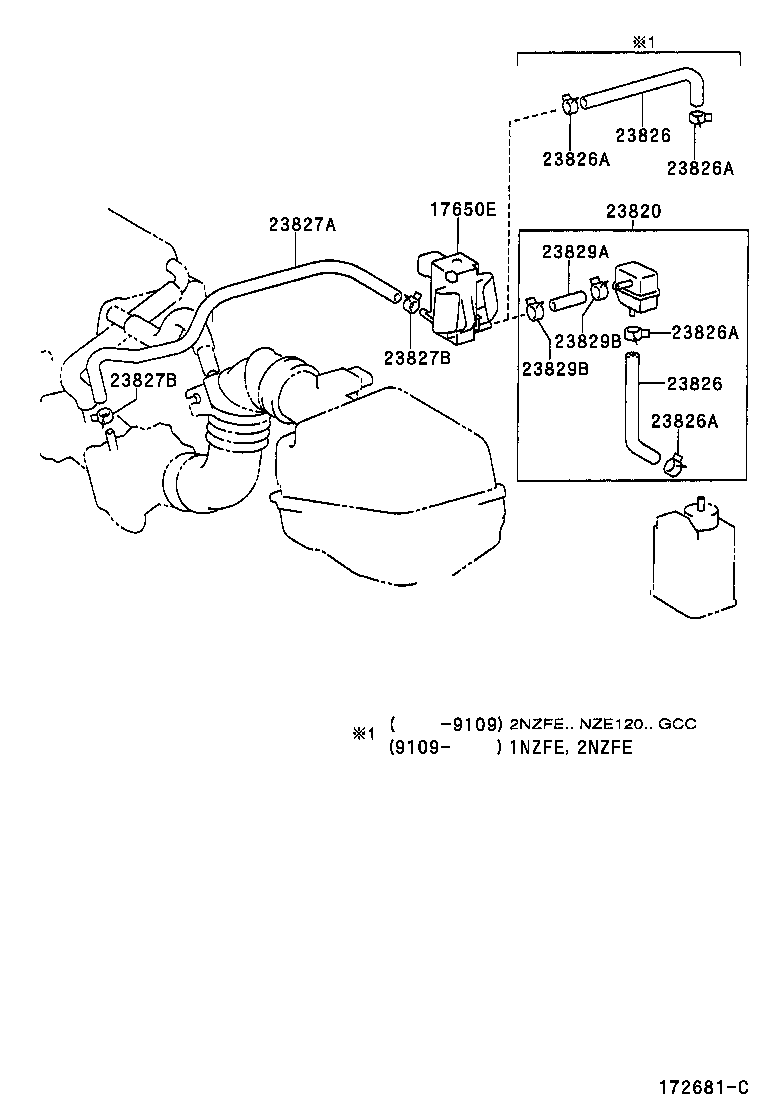

Click highlighted areas on diagram

diagram 17650E 23820 23826 23826 23826A 23826A 23826A 23826A 23827A 23827B 23827B 23829A 23829B 23829B
Part # Description Qty Price
17650E - VALVE, VACUUM SWITCHING
90910-12236

1NZFE..NZE121;2NZFE..NZE120..LHD

 1
90910-12257

1NZFE..NZE121;2NZFE..NZE120..LHD..XLI

 1
90910-12257

1NZFE..NZE121..LX;2NZFE..NZE120..LHD..XLI;1NZFE..NZE121..MTM..GLI

 1
90910-12257

1NZFE..NZE121;2NZFE..NZE120..LHD..XLI

 1
23820 - HOSE ASSY, FUEL VAPOR FEED
23820-21040

1NZFE..NZE121;2NZFE..NZE120..GCC;2NZFE..NZE120..ATM..GEN

 1
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-21030

2NZFE..NZE120..LHD..XLI..GEN

 1
23826-21030

1NZFE..NZE121..LX;2NZFE..NZE120..LHD..XLI;1NZFE..NZE121..MTM..GLI

 1
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-21030

2NZFE..NZE120..LHD..XLI..GEN

 1
23826-21030

1NZFE..NZE121..LX;2NZFE..NZE120..LHD..XLI;1NZFE..NZE121..MTM..GLI

 1
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
96132-51100

1NZFE..NZE121;2NZFE..NZE120..LHD..XLI

 2
96132-51100

1NZFE..NZE121;2NZFE..NZE120..LHD..XLI

 2
96132-51100

2NZFE..NZE120..LHD..XLI..GEN

 2
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
96132-51100

1NZFE..NZE121;2NZFE..NZE120..LHD..XLI

 2
96132-51100

1NZFE..NZE121;2NZFE..NZE120..LHD..XLI

 2
96132-51100

2NZFE..NZE120..LHD..XLI..GEN

 2
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
96132-51100

1NZFE..NZE121;2NZFE..NZE120..LHD..XLI

 2
96132-51100

1NZFE..NZE121;2NZFE..NZE120..LHD..XLI

 2
96132-51100

2NZFE..NZE120..LHD..XLI..GEN

 2
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
96132-51100

1NZFE..NZE121;2NZFE..NZE120..LHD..XLI

 2
96132-51100

1NZFE..NZE121;2NZFE..NZE120..LHD..XLI

 2
96132-51100

2NZFE..NZE120..LHD..XLI..GEN

 2
23827A - HOSE, FUEL VAPOR FEED, NO.2
23827-21030

1NZFE..NZE121;2NZFE..NZE120..LHD..XLI

 1
23827-21030

1NZFE..NZE121..LX;2NZFE..NZE120..LHD..XLI;1NZFE..NZE121..MTM..GLI

 1
23827-21030

2NZFE..NZE120..LHD..XLI..GEN

 1
23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
96132-51300

2NZFE..NZE120..LHD..XLI..GEN

 2
96132-51300

1NZFE..NZE121;2NZFE..NZE120..LHD..XLI

 2
96132-51300

1NZFE..NZE121;2NZFE..NZE120..LHD..XLI

 2
23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
96132-51300

2NZFE..NZE120..LHD..XLI..GEN

 2
96132-51300

1NZFE..NZE121;2NZFE..NZE120..LHD..XLI

 2
96132-51300

1NZFE..NZE121;2NZFE..NZE120..LHD..XLI

 2
