NZE120L-AEPDK (2000)
Toyota Corolla/Altis Sed/Wg

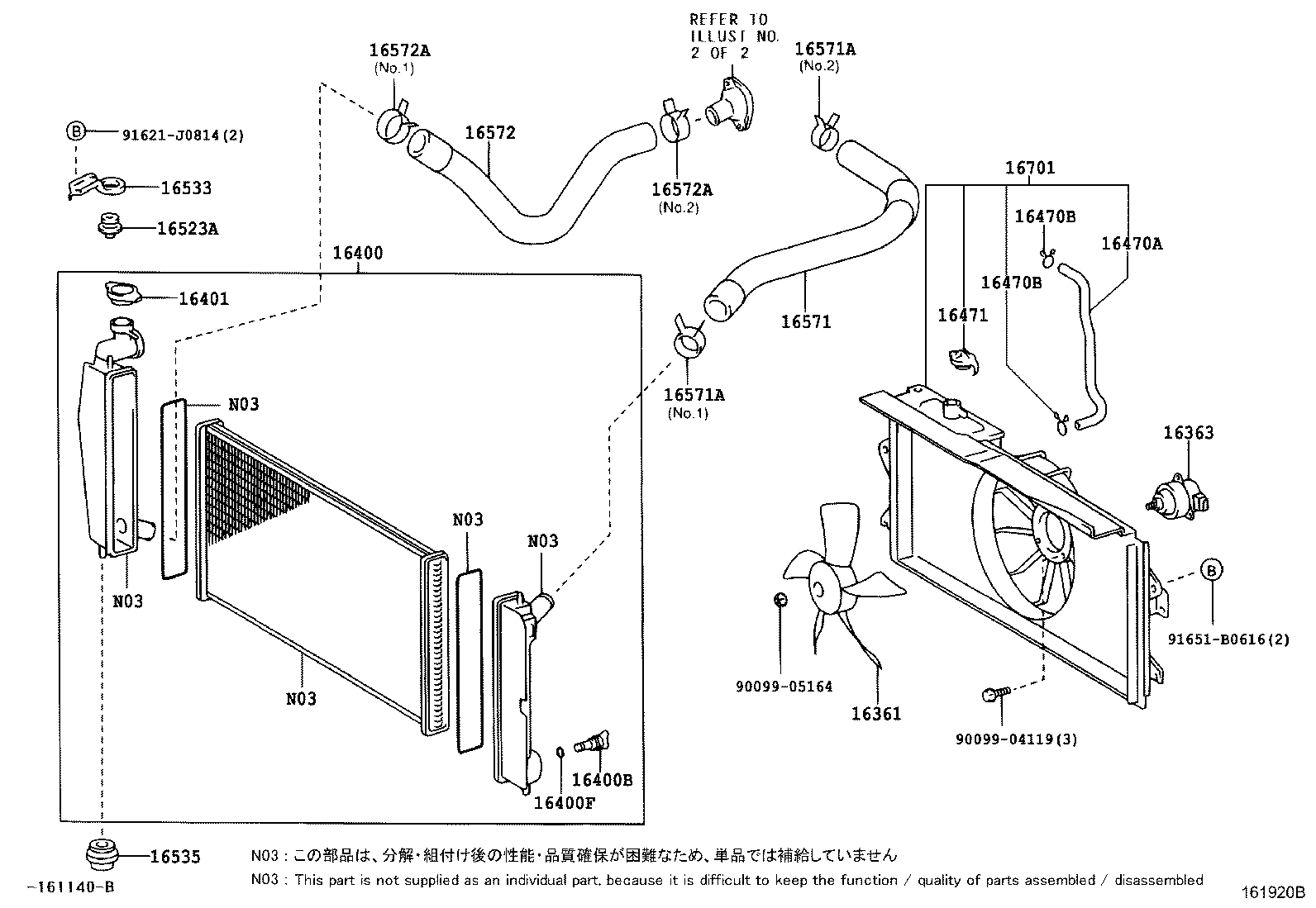

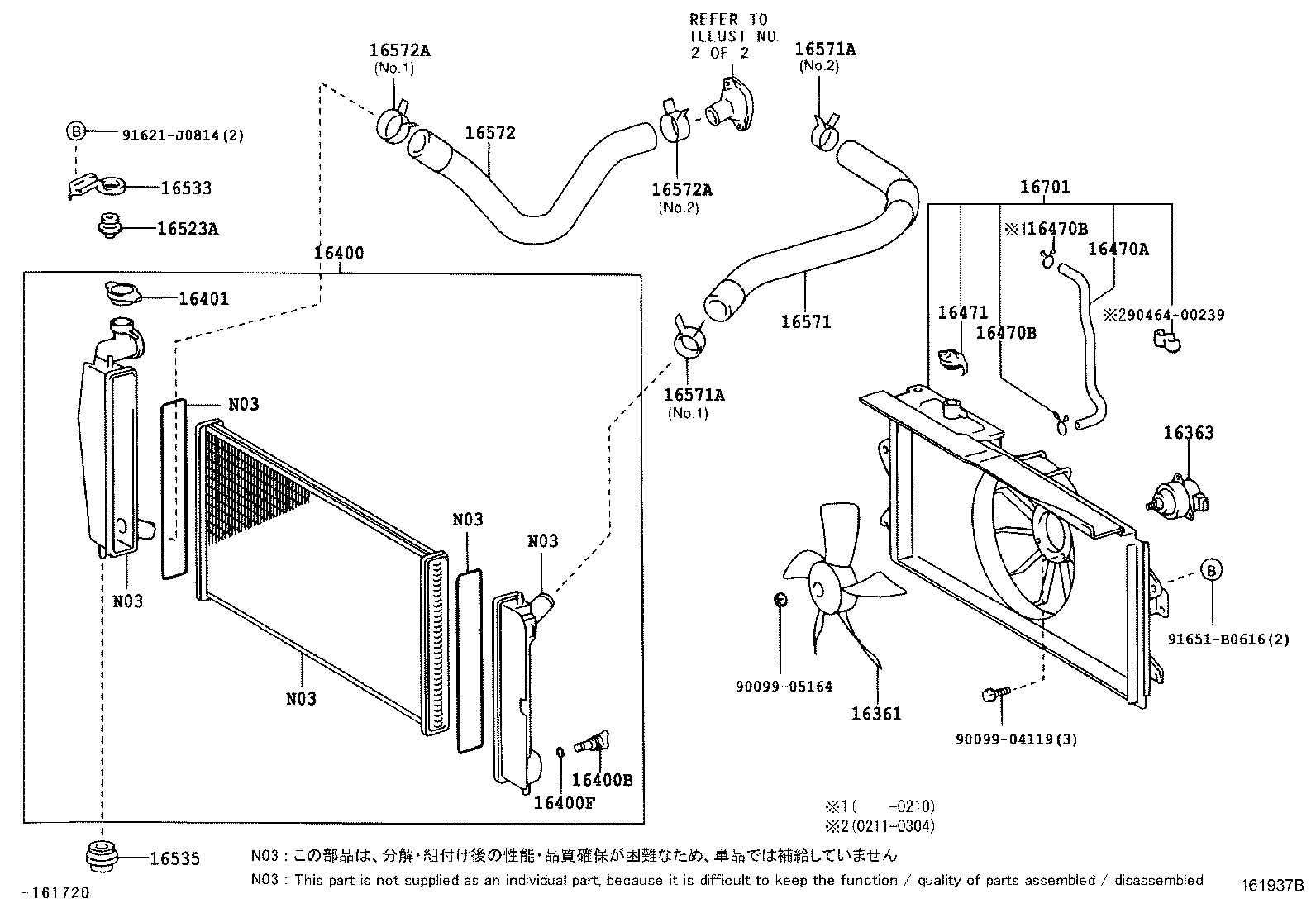

ILLUST NO. 1 OF 2(0008-0209)1NZFE,2NZFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361 - FAN | ||||
| 16361-21060 |
1NZFE,2NZFE..NZE12#..GEN |
1 | ||
| 16361-21060 |
1NZFE,2NZFE..NZE12#..GEN |
1 | ||
| 16361-21070 |
2NZFE..NZE120..LHD..GEN W/O(HEATER) |
1 | ||
| 16361-21070 |
2NZFE..NZE120..LHD..GEN W/O(HEATER) |
1 | ||
| 16361-21070 |
2NZFE..NZE120..LHD..GEN W/O(HEATER) |
1 | ||
| 16361-21060 |
1NZFE,2NZFE..NZE12#..GEN |
1 | ||
| 16361-21070 |
2NZFE..NZE120..LHD W/O(HEATER) |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-23020 |
1NZFE,2NZFE..NZE12#..GEN |
1 | ||
| 16363-23030 |
2NZFE..NZE120..LHD..GEN W/O(HEATER) |
1 | ||
| 16363-23030 |
2NZFE..NZE120..LHD..GEN W/O(HEATER) |
1 | ||
| 16363-21050 |
2NZFE..NZE120..LHD..GEN W/O(HEATER) |
1 | ||
| 16363-23020 |
1NZFE,2NZFE..NZE12#..GEN |
1 | ||
| 16363-28150 |
2NZFE..NZE120..LHD..GEN |
1 | ||
| 16363-21050 |
2NZFE..NZE120..LHD..GEN W/O(HEATER) |
1 | ||
| 16363-28150 |
1NZFE,2NZFE..NZE12#..GEN |
1 | ||
| 16363-28150 |
1NZFE,2NZFE..NZE12#..GEN |
1 | ||
| 16363-21050 |
2NZFE..NZE120..LHD W/O(HEATER) |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-21180 |
2NZFE..NZE120..ATM..GEN |
1 | ||
| 16400-21240 |
2NZFE..NZE120..ATM..GEN W/O(HEATER) |
1 | ||
| 16400-21240 |
2NZFE..NZE120..ATM..GEN W/O(HEATER) |
1 | ||
| 16400-21180 |
2NZFE..NZE120..ATM..GEN |
1 | ||
| 16400-21180 |
2NZFE..NZE120..ATM..GEN |
1 | ||
| 16400-21240 |
2NZFE..NZE120..ATM W/O(HEATER) |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
2NZFE..NZE120..LHD..GEN |
1 | ||
| 23322-54010 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
1 | ||
| 23322-54010 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
2NZFE..NZE120..LHD..GEN |
1 | ||
| 16492-21050 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
1 | ||
| 16492-21050 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-72090 |
1NZFE,2NZFE..NZE12# |
1 | ||
| 16401-72090 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
1 | ||
| 16401-72090 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16377-21040 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
1 | ||
| 16377-21040 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
1 | ||
| 16377-21040 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
2 | ||
| 90467-11085 |
2NZFE..NZE120..LHD..GEN |
1 | ||
| 90467-11085 |
2NZFE..NZE120..LHD..GEN |
2 | ||
| 90467-11085 |
2NZFE..NZE120..LHD..GEN MIDDLE SOUTH AMERICA SPEC |
2 | ||
| 90467-11085 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
1 | ||
| 90467-11085 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
2 | ||
| 90467-11085 |
2NZFE..NZE120..LHD..GEN |
1 | ||
| 90467-11085 |
2NZFE..NZE120..LHD..GEN |
2 | ||
| 90467-11085 |
2NZFE..NZE120..LHD..GEN MIDDLE SOUTH AMERICA SPEC |
2 | ||
| 90467-11085 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
1 | ||
| 90467-11085 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16471-23010 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
1 | ||
| 16471-23010 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
1 | ||
| 16405-21030 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
1 | ||
| 16405-21030 |
2NZFE..NZE120..LHD..GEN |
1 | ||
| 16405-21030 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
1 | ||
| 16405-21030 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-21020 |
2NZFE..NZE120..LHD..GEN |
2 | ||
| 16523-21020 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
2 | ||
| 16523-21020 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
2 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16533-21020 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
2 | ||
| 16533-21020 |
2NZFE..NZE120..LHD..GEN |
2 | ||
| 16533-21020 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-21050 |
2NZFE..NZE120..ATM..GEN |
2 | ||
| 16504-21020 |
1NZFE,2NZFE..NZE12#..ATM |
2 | ||
| 16535-21050 |
1NZFE,2NZFE..NZE12#..ATM |
2 | ||
| 16535-21050 |
1NZFE,2NZFE..NZE12#..ATM |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-21030 |
2NZFE..NZE120..LHD..GEN |
1 | ||
| 16571-21030 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
1 | ||
| 16571-21030 |
1NZFE..NZE121..LX;2NZFE..NZE120..GCC,GEN;1NZFE..NZE121..MTM..GLI |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34004 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.2 |
1 | ||
| 90466-37002 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.1 |
1 | ||
| 90467-34004 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.2 |
1 | ||
| 90466-37002 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.1 |
1 | ||
| 90467-34004 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.2 |
1 | ||
| 90466-37002 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.1 |
1 | ||
| 96136-44301 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.1 |
1 | ||
| 96136-43901 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.2 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34004 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.2 |
1 | ||
| 90466-37002 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.1 |
1 | ||
| 90467-34004 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.2 |
1 | ||
| 90466-37002 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.1 |
1 | ||
| 90467-34004 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.2 |
1 | ||
| 90466-37002 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.1 |
1 | ||
| 96136-44301 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.1 |
1 | ||
| 96136-43901 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.2 |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-21030 |
2NZFE..NZE120..LHD..GEN |
1 | ||
| 16572-21030 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
1 | ||
| 16572-21030 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-34004 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.2 |
1 | ||
| 90466-35001 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.1 |
1 | ||
| 90466-35001 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.1 |
1 | ||
| 90467-34004 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.2 |
1 | ||
| 90466-35001 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.1 |
1 | ||
| 96136-43901 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.2 |
1 | ||
| 96136-44301 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.1 |
1 | ||
| 90467-34004 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.2 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-34004 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.2 |
1 | ||
| 90466-35001 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.1 |
1 | ||
| 90466-35001 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.1 |
1 | ||
| 90467-34004 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.2 |
1 | ||
| 90466-35001 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.1 |
1 | ||
| 96136-43901 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.2 |
1 | ||
| 96136-44301 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.1 |
1 | ||
| 90467-34004 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.2 |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-21060 |
2NZFE..NZE120..LHD..GEN W/O(HEATER) |
1 | ||
| 16711-21080 |
1NZFE,2NZFE..NZE12#..GEN |
1 | ||
| 16711-21080 |
1NZFE,2NZFE..NZE12#..GEN |
1 | ||
| 16711-21060 |
2NZFE..NZE120..LHD..GEN W/O(HEATER) |
1 | ||
| 16711-21090 |
2NZFE..NZE120..LHD..GEN W/O(HEATER) |
1 | ||
| 16711-21090 |
2NZFE..NZE120..LHD..GEN W/O(HEATER) |
1 | ||
| 16711-21080 |
1NZFE,2NZFE..NZE12#..GEN |
1 | ||
| 16711-21090 |
2NZFE..NZE120..LHD W/O(HEATER) |
1 | ||
| Common parts | ||||
| 90099-04119 | ||||
| 90099-05164 | ||||
| 91621-J0814 | ||||
| 91651-B0616 | ||||

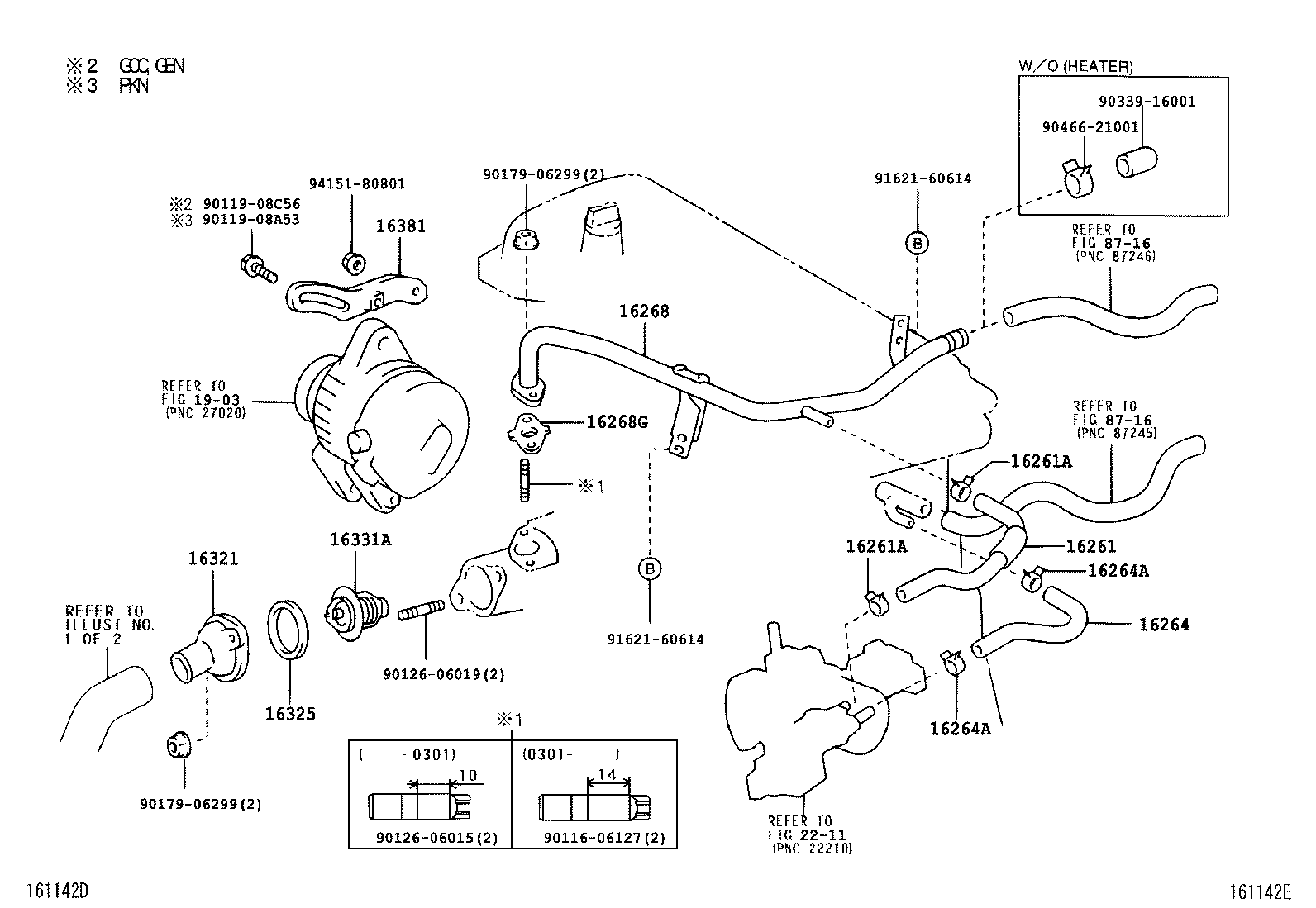

ILLUST NO. 2 OF 2(0008-0512)1NZFE..ATM..GLI ; (0008- )2NZFE ;(0008- )1NZFE..LX ; (0008- )1
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-21020 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
1 | ||
| 16261-21020 |
2NZFE..NZE120..LHD..GEN |
1 | ||
| 16261-21020 |
1NZFE..NZE121..LX;2NZFE..NZE120..GCC,GEN;1NZFE..NZE121..MTM..GLI |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-13054 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
2 | ||
| 90467-13054 |
2NZFE..NZE120..LHD..GEN |
2 | ||
| 90467-13054 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-13054 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
2 | ||
| 90467-13054 |
2NZFE..NZE120..LHD..GEN |
2 | ||
| 90467-13054 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-21020 |
2NZFE..NZE120..LHD..GEN |
1 | ||
| 16264-21020 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
1 | ||
| 16264-21020 |
1NZFE..NZE121..LX;2NZFE..NZE120..GCC,GEN;1NZFE..NZE121..MTM..GLI |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13054 |
2NZFE..NZE120..LHD..GEN |
2 | ||
| 90467-13054 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
2 | ||
| 90467-13054 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13054 |
2NZFE..NZE120..LHD..GEN |
2 | ||
| 90467-13054 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
2 | ||
| 90467-13054 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-21021 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
1 | ||
| 16268-21021 |
2NZFE..NZE120..LHD..GEN |
1 | ||
| 16268-21020 |
2NZFE..NZE120..PKN;2NZFE..NZE120..LHD..GEN |
1 | ||
| 16268-21021 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
1 | ||
| 16268-21022 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
1 | ||
| 16268-21020 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
1 | ||
| 16268G - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 16258-21020 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
1 | ||
| 16258-21020 |
2NZFE..NZE120..LHD..GEN |
1 | ||
| 16258-21020 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-21020 |
2NZFE..NZE120..LHD..GEN |
1 | ||
| 16321-21020 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
1 | ||
| 16321-21020 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-62010 |
2NZFE..NZE120..LHD..GEN |
1 | ||
| 16325-62010 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
1 | ||
| 16325-62010 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03093 |
2NZFE..NZE120..LHD..GEN *WAX 82-95 |
1 | ||
| 90916-03093 |
1NZFE,2NZFE..NZE12#..GCC,GEN *WAX 82-95 |
1 | ||
| 90916-03093 |
1NZFE,2NZFE..NZE12#..GCC,GEN *WAX 82-95 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-21020 |
2NZFE..NZE120..GCC,GEN |
1 | ||
| 16381-21020 |
2NZFE..NZE120..LHD..GEN |
1 | ||
| 16381-21020 |
2NZFE..NZE120..GCC,GEN |
1 | ||
| Common parts | ||||
| 90116-06127 | ||||
| 90119-08A53 | ||||
| 90119-08C56 | ||||
| 90126-06015 | ||||
| 90126-06019 | ||||
| 90179-06299 | ||||
| 90339-16001 | ||||
| 90466-21001 | ||||
| 91621-60614 | ||||
| 94151-80801 | ||||
| Linked diagrams | ||||
| 1903 | ||||
| 2211 | ||||
| 8716 | ||||
ILLUST NO. 1 OF 2(0209-0404)2NZFE..LHD..GEN
MIDDLE SOUTH AMERICA SPEC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361 - FAN | ||||
| 16361-21060 |
1NZFE,2NZFE..NZE12#..GEN |
1 | ||
| 16361-21060 |
1NZFE,2NZFE..NZE12#..GEN |
1 | ||
| 16361-21070 |
2NZFE..NZE120..LHD..GEN W/O(HEATER) |
1 | ||
| 16361-21070 |
2NZFE..NZE120..LHD..GEN W/O(HEATER) |
1 | ||
| 16361-21070 |
2NZFE..NZE120..LHD..GEN W/O(HEATER) |
1 | ||
| 16361-21060 |
1NZFE,2NZFE..NZE12#..GEN |
1 | ||
| 16361-21070 |
2NZFE..NZE120..LHD W/O(HEATER) |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-23020 |
1NZFE,2NZFE..NZE12#..GEN |
1 | ||
| 16363-23030 |
2NZFE..NZE120..LHD..GEN W/O(HEATER) |
1 | ||
| 16363-23030 |
2NZFE..NZE120..LHD..GEN W/O(HEATER) |
1 | ||
| 16363-21050 |
2NZFE..NZE120..LHD..GEN W/O(HEATER) |
1 | ||
| 16363-23020 |
1NZFE,2NZFE..NZE12#..GEN |
1 | ||
| 16363-28150 |
2NZFE..NZE120..LHD..GEN |
1 | ||
| 16363-21050 |
2NZFE..NZE120..LHD..GEN W/O(HEATER) |
1 | ||
| 16363-28150 |
1NZFE,2NZFE..NZE12#..GEN |
1 | ||
| 16363-28150 |
1NZFE,2NZFE..NZE12#..GEN |
1 | ||
| 16363-21050 |
2NZFE..NZE120..LHD W/O(HEATER) |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-21180 |
2NZFE..NZE120..ATM..GEN |
1 | ||
| 16400-21240 |
2NZFE..NZE120..ATM..GEN W/O(HEATER) |
1 | ||
| 16400-21240 |
2NZFE..NZE120..ATM..GEN W/O(HEATER) |
1 | ||
| 16400-21180 |
2NZFE..NZE120..ATM..GEN |
1 | ||
| 16400-21180 |
2NZFE..NZE120..ATM..GEN |
1 | ||
| 16400-21240 |
2NZFE..NZE120..ATM W/O(HEATER) |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
2NZFE..NZE120..LHD..GEN |
1 | ||
| 23322-54010 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
1 | ||
| 23322-54010 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
2NZFE..NZE120..LHD..GEN |
1 | ||
| 16492-21050 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
1 | ||
| 16492-21050 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-72090 |
1NZFE,2NZFE..NZE12# |
1 | ||
| 16401-72090 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
1 | ||
| 16401-72090 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16377-21040 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
1 | ||
| 16377-21040 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
1 | ||
| 16377-21040 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2NZFE..NZE120..LHD..GEN |
2 | ||
| 90467-11085 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
2 | ||
| 90467-11085 |
2NZFE..NZE120..LHD..GEN |
1 | ||
| 90467-11085 |
2NZFE..NZE120..LHD..GEN MIDDLE SOUTH AMERICA SPEC |
2 | ||
| 90467-11085 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
1 | ||
| 90467-11085 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2NZFE..NZE120..LHD..GEN |
2 | ||
| 90467-11085 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
2 | ||
| 90467-11085 |
2NZFE..NZE120..LHD..GEN |
1 | ||
| 90467-11085 |
2NZFE..NZE120..LHD..GEN MIDDLE SOUTH AMERICA SPEC |
2 | ||
| 90467-11085 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
1 | ||
| 90467-11085 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16471-23010 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
1 | ||
| 16471-23010 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
1 | ||
| 16405-21030 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
1 | ||
| 16405-21030 |
2NZFE..NZE120..LHD..GEN |
1 | ||
| 16405-21030 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
1 | ||
| 16405-21030 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-21020 |
2NZFE..NZE120..LHD..GEN |
2 | ||
| 16523-21020 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
2 | ||
| 16523-21020 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
2 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16533-21020 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
2 | ||
| 16533-21020 |
2NZFE..NZE120..LHD..GEN |
2 | ||
| 16533-21020 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-21050 |
2NZFE..NZE120..ATM..GEN |
2 | ||
| 16504-21020 |
1NZFE,2NZFE..NZE12#..ATM |
2 | ||
| 16535-21050 |
1NZFE,2NZFE..NZE12#..ATM |
2 | ||
| 16535-21050 |
1NZFE,2NZFE..NZE12#..ATM |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-21030 |
2NZFE..NZE120..LHD..GEN |
1 | ||
| 16571-21030 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
1 | ||
| 16571-21030 |
1NZFE..NZE121..LX;2NZFE..NZE120..GCC,GEN;1NZFE..NZE121..MTM..GLI |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34004 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.2 |
1 | ||
| 90466-37002 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.1 |
1 | ||
| 90467-34004 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.2 |
1 | ||
| 90466-37002 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.1 |
1 | ||
| 90467-34004 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.2 |
1 | ||
| 90466-37002 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.1 |
1 | ||
| 96136-44301 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.1 |
1 | ||
| 96136-43901 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.2 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34004 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.2 |
1 | ||
| 90466-37002 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.1 |
1 | ||
| 90467-34004 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.2 |
1 | ||
| 90466-37002 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.1 |
1 | ||
| 90467-34004 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.2 |
1 | ||
| 90466-37002 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.1 |
1 | ||
| 96136-44301 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.1 |
1 | ||
| 96136-43901 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.2 |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-21030 |
2NZFE..NZE120..LHD..GEN |
1 | ||
| 16572-21030 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
1 | ||
| 16572-21030 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-34004 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.2 |
1 | ||
| 90466-35001 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.1 |
1 | ||
| 90466-35001 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.1 |
1 | ||
| 90467-34004 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.2 |
1 | ||
| 90466-35001 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.1 |
1 | ||
| 96136-43901 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.2 |
1 | ||
| 96136-44301 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.1 |
1 | ||
| 90467-34004 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.2 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-34004 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.2 |
1 | ||
| 90466-35001 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.1 |
1 | ||
| 90466-35001 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.1 |
1 | ||
| 90467-34004 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.2 |
1 | ||
| 90466-35001 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.1 |
1 | ||
| 96136-43901 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.2 |
1 | ||
| 96136-44301 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.1 |
1 | ||
| 90467-34004 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.2 |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-21060 |
2NZFE..NZE120..LHD..GEN W/O(HEATER) |
1 | ||
| 16711-21080 |
1NZFE,2NZFE..NZE12#..GEN |
1 | ||
| 16711-21080 |
1NZFE,2NZFE..NZE12#..GEN |
1 | ||
| 16711-21060 |
2NZFE..NZE120..LHD..GEN W/O(HEATER) |
1 | ||
| 16711-21090 |
2NZFE..NZE120..LHD..GEN W/O(HEATER) |
1 | ||
| 16711-21090 |
2NZFE..NZE120..LHD..GEN W/O(HEATER) |
1 | ||
| 16711-21080 |
1NZFE,2NZFE..NZE12#..GEN |
1 | ||
| 16711-21090 |
2NZFE..NZE120..LHD W/O(HEATER) |
1 | ||
| Common parts | ||||
| 90099-04119 | ||||
| 90099-05164 | ||||
| 91621-J0814 | ||||
| 91651-B0616 | ||||
ILLUST NO. 1 OF 2(0209- )1NZFE,2NZFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361 - FAN | ||||
| 16361-21060 |
1NZFE,2NZFE..NZE12#..GEN |
1 | ||
| 16361-21060 |
1NZFE,2NZFE..NZE12#..GEN |
1 | ||
| 16361-21070 |
2NZFE..NZE120..LHD..GEN W/O(HEATER) |
1 | ||
| 16361-21070 |
2NZFE..NZE120..LHD..GEN W/O(HEATER) |
1 | ||
| 16361-21070 |
2NZFE..NZE120..LHD..GEN W/O(HEATER) |
1 | ||
| 16361-21060 |
1NZFE,2NZFE..NZE12#..GEN |
1 | ||
| 16361-21070 |
2NZFE..NZE120..LHD W/O(HEATER) |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-23020 |
1NZFE,2NZFE..NZE12#..GEN |
1 | ||
| 16363-23030 |
2NZFE..NZE120..LHD..GEN W/O(HEATER) |
1 | ||
| 16363-23030 |
2NZFE..NZE120..LHD..GEN W/O(HEATER) |
1 | ||
| 16363-21050 |
2NZFE..NZE120..LHD..GEN W/O(HEATER) |
1 | ||
| 16363-23020 |
1NZFE,2NZFE..NZE12#..GEN |
1 | ||
| 16363-28150 |
2NZFE..NZE120..LHD..GEN |
1 | ||
| 16363-21050 |
2NZFE..NZE120..LHD..GEN W/O(HEATER) |
1 | ||
| 16363-28150 |
1NZFE,2NZFE..NZE12#..GEN |
1 | ||
| 16363-28150 |
1NZFE,2NZFE..NZE12#..GEN |
1 | ||
| 16363-21050 |
2NZFE..NZE120..LHD W/O(HEATER) |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-21180 |
2NZFE..NZE120..ATM..GEN |
1 | ||
| 16400-21240 |
2NZFE..NZE120..ATM..GEN W/O(HEATER) |
1 | ||
| 16400-21240 |
2NZFE..NZE120..ATM..GEN W/O(HEATER) |
1 | ||
| 16400-21180 |
2NZFE..NZE120..ATM..GEN |
1 | ||
| 16400-21180 |
2NZFE..NZE120..ATM..GEN |
1 | ||
| 16400-21240 |
2NZFE..NZE120..ATM W/O(HEATER) |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
2NZFE..NZE120..LHD..GEN |
1 | ||
| 23322-54010 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
1 | ||
| 23322-54010 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
2NZFE..NZE120..LHD..GEN |
1 | ||
| 16492-21050 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
1 | ||
| 16492-21050 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-72090 |
1NZFE,2NZFE..NZE12# |
1 | ||
| 16401-72090 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
1 | ||
| 16401-72090 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16377-21040 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
1 | ||
| 16377-21040 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
1 | ||
| 16377-21040 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
2 | ||
| 90467-11085 |
2NZFE..NZE120..LHD..GEN |
1 | ||
| 90467-11085 |
2NZFE..NZE120..LHD..GEN |
2 | ||
| 90467-11085 |
2NZFE..NZE120..LHD..GEN MIDDLE SOUTH AMERICA SPEC |
2 | ||
| 90467-11085 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
1 | ||
| 90467-11085 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
2 | ||
| 90467-11085 |
2NZFE..NZE120..LHD..GEN |
1 | ||
| 90467-11085 |
2NZFE..NZE120..LHD..GEN |
2 | ||
| 90467-11085 |
2NZFE..NZE120..LHD..GEN MIDDLE SOUTH AMERICA SPEC |
2 | ||
| 90467-11085 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
1 | ||
| 90467-11085 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16471-23010 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
1 | ||
| 16471-23010 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
1 | ||
| 16405-21030 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
1 | ||
| 16405-21030 |
2NZFE..NZE120..LHD..GEN |
1 | ||
| 16405-21030 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
1 | ||
| 16405-21030 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-21020 |
2NZFE..NZE120..LHD..GEN |
2 | ||
| 16523-21020 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
2 | ||
| 16523-21020 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
2 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16533-21020 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
2 | ||
| 16533-21020 |
2NZFE..NZE120..LHD..GEN |
2 | ||
| 16533-21020 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-21050 |
2NZFE..NZE120..ATM..GEN |
2 | ||
| 16504-21020 |
1NZFE,2NZFE..NZE12#..ATM |
2 | ||
| 16535-21050 |
1NZFE,2NZFE..NZE12#..ATM |
2 | ||
| 16535-21050 |
1NZFE,2NZFE..NZE12#..ATM |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-21030 |
2NZFE..NZE120..LHD..GEN |
1 | ||
| 16571-21030 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
1 | ||
| 16571-21030 |
1NZFE..NZE121..LX;2NZFE..NZE120..GCC,GEN;1NZFE..NZE121..MTM..GLI |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34004 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.2 |
1 | ||
| 90466-37002 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.1 |
1 | ||
| 90467-34004 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.2 |
1 | ||
| 90466-37002 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.1 |
1 | ||
| 90467-34004 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.2 |
1 | ||
| 90466-37002 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.1 |
1 | ||
| 96136-44301 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.1 |
1 | ||
| 96136-43901 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.2 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34004 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.2 |
1 | ||
| 90466-37002 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.1 |
1 | ||
| 90467-34004 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.2 |
1 | ||
| 90466-37002 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.1 |
1 | ||
| 90467-34004 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.2 |
1 | ||
| 90466-37002 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.1 |
1 | ||
| 96136-44301 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.1 |
1 | ||
| 96136-43901 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.2 |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-21030 |
2NZFE..NZE120..LHD..GEN |
1 | ||
| 16572-21030 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
1 | ||
| 16572-21030 |
1NZFE,2NZFE..NZE12#..GCC,GEN |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-34004 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.2 |
1 | ||
| 90466-35001 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.1 |
1 | ||
| 90466-35001 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.1 |
1 | ||
| 90467-34004 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.2 |
1 | ||
| 90466-35001 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.1 |
1 | ||
| 96136-43901 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.2 |
1 | ||
| 96136-44301 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.1 |
1 | ||
| 90467-34004 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.2 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-34004 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.2 |
1 | ||
| 90466-35001 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.1 |
1 | ||
| 90466-35001 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.1 |
1 | ||
| 90467-34004 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.2 |
1 | ||
| 90466-35001 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.1 |
1 | ||
| 96136-43901 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.2 |
1 | ||
| 96136-44301 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.1 |
1 | ||
| 90467-34004 |
1NZFE,2NZFE..NZE12#..GCC,GEN NO.2 |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-21060 |
2NZFE..NZE120..LHD..GEN W/O(HEATER) |
1 | ||
| 16711-21080 |
1NZFE,2NZFE..NZE12#..GEN |
1 | ||
| 16711-21080 |
1NZFE,2NZFE..NZE12#..GEN |
1 | ||
| 16711-21060 |
2NZFE..NZE120..LHD..GEN W/O(HEATER) |
1 | ||
| 16711-21090 |
2NZFE..NZE120..LHD..GEN W/O(HEATER) |
1 | ||
| 16711-21090 |
2NZFE..NZE120..LHD..GEN W/O(HEATER) |
1 | ||
| 16711-21080 |
1NZFE,2NZFE..NZE12#..GEN |
1 | ||
| 16711-21090 |
2NZFE..NZE120..LHD W/O(HEATER) |
1 | ||
| Common parts | ||||
| 90099-04119 | ||||
| 90099-05164 | ||||
| 90464-00239 | ||||
| 91621-J0814 | ||||
| 91651-B0616 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
