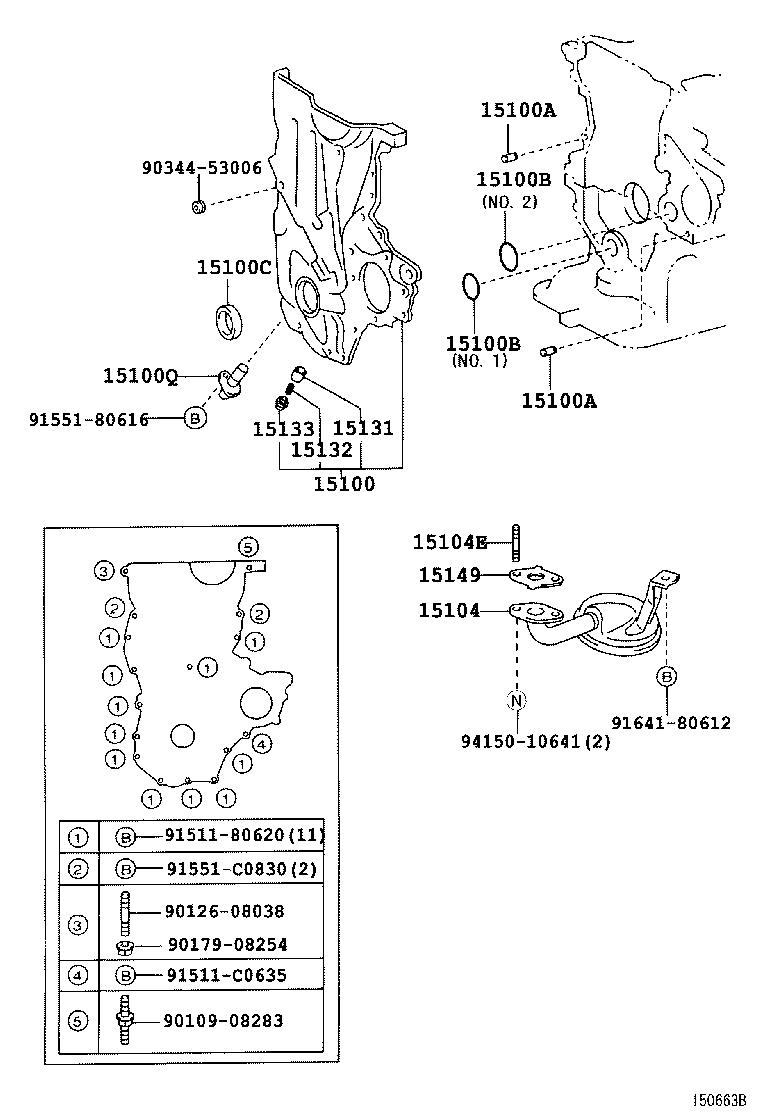

Toyota Corolla/altis sed/wg NZE120 ENGINE OIL PUMP

Part #	Description	Period	Qty
15100 - PUMP ASSY, OIL
15100-21030	2NZFE..NZE120..GCC,GEN	09/2002 - 04/2004	1
15100-21030	2NZFE..NZE120..LHD..GEN	08/2000 - 04/2004	1
15100-21030	2NZFE..NZE120..GCC,GEN	04/2004 - 12/2999	1
15100A - PIN, RING(FOR OIL PUMP SET)
90253-08003	1NZFE,2NZFE..NZE12#..GCC,GEN	09/2002 - 04/2004	2
90253-08003	2NZFE..NZE120..LHD..GEN	08/2000 - 04/2004	2
90253-08003	1NZFE,2NZFE..NZE12#..GCC,GEN	04/2004 - 12/2999	2
15100A - PIN, RING(FOR OIL PUMP SET)
90253-08003	1NZFE,2NZFE..NZE12#..GCC,GEN	09/2002 - 04/2004	2
90253-08003	2NZFE..NZE120..LHD..GEN	08/2000 - 04/2004	2
90253-08003	1NZFE,2NZFE..NZE12#..GCC,GEN	04/2004 - 12/2999	2
15100B - RING, O(FOR OIL PUMP)
90301-42006	1NZFE,2NZFE..NZE12#..GCC,GEN NO.2	09/2002 - 04/2004	1
90301-42006	2NZFE..NZE120..LHD..GEN NO.2	08/2000 - 04/2004	1
90301-31012	1NZFE,2NZFE..NZE12#..GCC,GEN NO.1	09/2002 - 04/2004	1
90301-42006	1NZFE..NZE121..LX;2NZFE..NZE120..GCC,GEN;1NZFE..NZE121..MTM..GLI NO.2	04/2004 - 12/2999	1
90301-31012	2NZFE..NZE120..LHD..GEN NO.1	08/2000 - 04/2004	1
90301-31012	1NZFE,2NZFE..NZE12#..GCC,GEN NO.1	04/2004 - 12/2999	1
15100B - RING, O(FOR OIL PUMP)
90301-42006	1NZFE,2NZFE..NZE12#..GCC,GEN NO.2	09/2002 - 04/2004	1
90301-42006	2NZFE..NZE120..LHD..GEN NO.2	08/2000 - 04/2004	1
90301-31012	1NZFE,2NZFE..NZE12#..GCC,GEN NO.1	09/2002 - 04/2004	1
90301-42006	1NZFE..NZE121..LX;2NZFE..NZE120..GCC,GEN;1NZFE..NZE121..MTM..GLI NO.2	04/2004 - 12/2999	1
90301-31012	2NZFE..NZE120..LHD..GEN NO.1	08/2000 - 04/2004	1
90301-31012	1NZFE,2NZFE..NZE12#..GCC,GEN NO.1	04/2004 - 12/2999	1
15100C - SEAL(FOR OIL PUMP)
90311-25021	1NZFE,2NZFE..NZE12#..GCC,GEN	04/2004 - 12/2999	1
90311-25021	2NZFE..NZE120..LHD..GEN MIDDLE SOUTH AMERICA SPEC	10/2002 - 04/2004	1
90311-25021	2NZFE..NZE120..LHD..GEN MIDDLE SOUTH AMERICA SPEC	09/2002 - 04/2004	1
15100Q - SENSOR, CRANK POSITION
90919-05045	1NZFE,2NZFE..NZE12#..GCC,GEN	09/2002 - 04/2004	1
90919-05045	2NZFE..NZE120..LHD..GEN	08/2000 - 04/2004	1
90919-05045	1NZFE,2NZFE..NZE12#..GCC,GEN	04/2004 - 12/2999	1
15104 - STRAINER SUB-ASSY, OIL
15104-21021	2NZFE..NZE120..LHD..GEN	08/2000 - 04/2004	1
15104-21021	1NZFE,2NZFE..NZE12#..GCC,GEN	09/2002 - 04/2004	1
15104-21021	1NZFE,2NZFE..NZE12#..GCC,GEN	04/2004 - 12/2006	1
15104-21022	1NZFE,2NZFE..NZE12#..GCC,GEN	12/2006 - 12/2999	1
15104E - BOLT, STUD(FOR OIL STRAINER)
90126-06021	2NZFE..NZE120..LHD..GEN	08/2000 - 04/2004	2
90126-06021	1NZFE,2NZFE..NZE12#..GCC,GEN	09/2002 - 04/2004	2
90126-06021	1NZFE,2NZFE..NZE12#..GCC,GEN	04/2004 - 12/2999	2
15131 - VALVE, OIL PUMP RELIEF
15131-21020	2NZFE..NZE120..LHD..GEN	08/2000 - 04/2004	1
15131-21020	1NZFE,2NZFE..NZE12#..GCC,GEN	09/2002 - 04/2004	1
15131-21020	1NZFE,2NZFE..NZE12#..GCC,GEN	04/2004 - 12/2999	1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-21020	2NZFE..NZE120..LHD..GEN	08/2000 - 04/2004	1
15132-21020	1NZFE,2NZFE..NZE12#..GCC,GEN	09/2002 - 04/2004	1
15132-21020	1NZFE,2NZFE..NZE12#..GCC,GEN	04/2004 - 12/2999	1
15133 - PLUG, OIL PUMP RELIEF VALVE
15133-21020	1NZFE,2NZFE..NZE12#..GCC,GEN	09/2002 - 04/2004	1
15133-21020	2NZFE..NZE120..LHD..GEN	08/2000 - 04/2004	1
15133-21020	1NZFE,2NZFE..NZE12#..GCC,GEN	04/2004 - 05/2004	1
15133-21030	1NZFE,2NZFE..NZE12#..GCC,GEN	05/2004 - 12/2999	1
15149 - GASKET, OIL STRAINER FLANGE
16258-21010	1NZFE,2NZFE..NZE12#..GCC,GEN	09/2002 - 02/2003	1
16258-21010	2NZFE..NZE120..PKN;2NZFE..NZE120..LHD..GEN	08/2000 - 02/2003	1
16258-21030	2NZFE..NZE120..LHD..GEN	02/2003 - 04/2004	1
16258-21030	1NZFE,2NZFE..NZE12#..GCC,GEN	02/2003 - 04/2004	1
16258-21030	1NZFE,2NZFE..NZE12#..GCC,GEN	04/2004 - 12/2999	1
Common parts
90109-08283
90126-08038
90179-08254
90344-53006
91511-80620
91511-C0635
91551-80616
91551-C0830
91641-80612
94150-10641

NZE120L-AEPDK (2000)

(0008- )1NZFE,2NZFE
