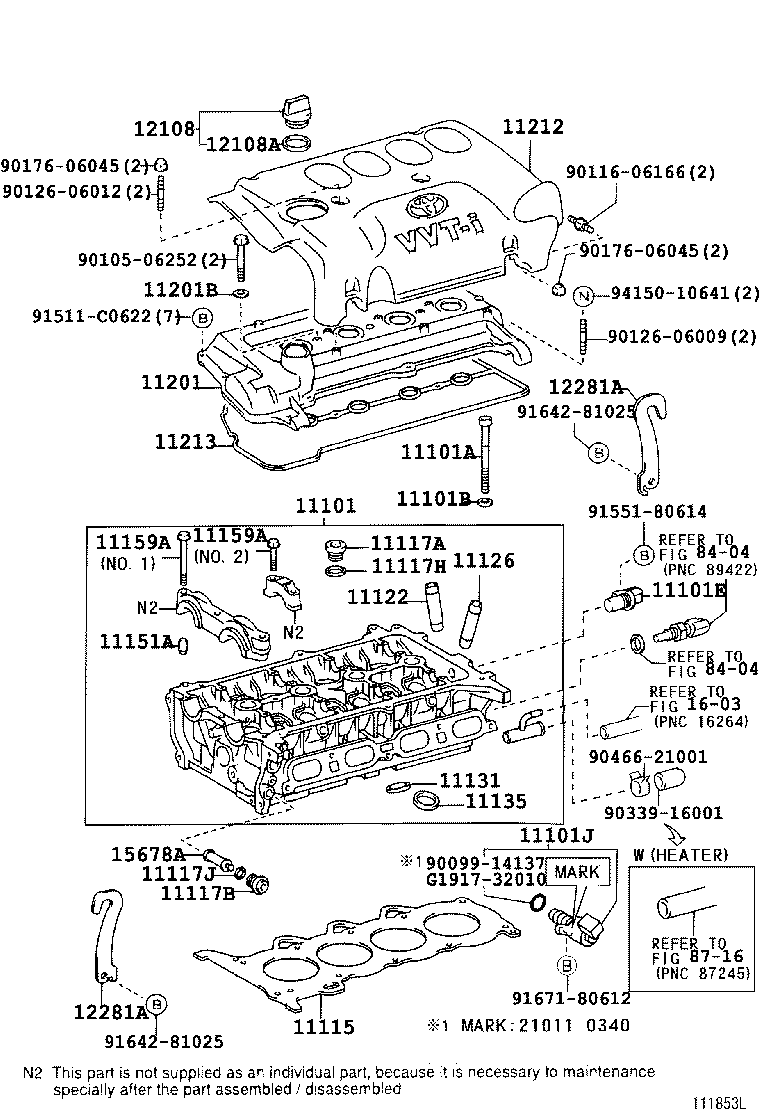

Toyota Corolla/altis sed/wg NZE120 CYLINDER HEAD

Part #	Description	Period	Qty
11101 - HEAD SUB-ASSY, CYLINDER
11101-21031	2NZFE..NZE120..LHD..XLI..GEN EGYPT SPEC	10/2001 - 04/2003	1
11101-21041	2NZFE..NZE120..LHD..GEN MIDDLE SOUTH AMERICA SPEC	09/2002 - 04/2003	1
11101-21041	2NZFE..NZE120..LHD..GEN	04/2003 - 04/2004	1
11101-21031	2NZFE..NZE120..LHD..XLI..GEN EGYPT SPEC	09/2002 - 04/2003	1
11101-21040	2NZFE..NZE120..GCC,GEN	09/2002 - 04/2003	1
11101-21040	2NZFE..NZE120	08/2000 - 04/2003	1
11101-21033	2NZFE..NZE120..LHD..XLI..GEN EGYPT SPEC	04/2003 - 04/2004	1
11101-21041	2NZFE..NZE120..LHD..GEN MIDDLE SOUTH AMERICA SPEC	04/2003 - 04/2004	1
11101-21033	2NZFE..NZE120..LHD..XLI..GEN EGYPT SPEC	04/2003 - 04/2004	1
11101-21041	2NZFE..NZE120..GCC,GEN	04/2004 - 12/2999	1
11101-21033	2NZFE..NZE120..LHD..XLI..GEN EGYPT SPEC	04/2004 - 12/2999	1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02126	2NZFE..NZE120..LHD..GEN	08/2000 - 04/2004	10
90910-02126	1NZFE,2NZFE..NZE12#..GCC,GEN	09/2002 - 04/2004	10
90910-02170	1NZFE,2NZFE..NZE12#..GCC,GEN	01/2007 - 08/2007	10
90910-02126	1NZFE,2NZFE..NZE12#..GCC,GEN	04/2004 - 01/2007	10
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-09024	2NZFE..NZE120..LHD..GEN	08/2000 - 04/2004	10
90201-09024	1NZFE,2NZFE..NZE12#..GCC,GEN	09/2002 - 04/2004	10
90201-09024	1NZFE,2NZFE..NZE12#..GCC,GEN	04/2004 - 12/2999	10
11101E - SENSOR, CAM POSITION
90919-05024	1NZFE,2NZFE..NZE12#..GCC,GEN	09/2002 - 04/2004	1
90919-05024	2NZFE..NZE120..LHD..GEN	08/2000 - 04/2004	1
90919-05024	1NZFE,2NZFE..NZE12#..GCC,GEN	04/2004 - 12/2999	1
11101J - VALVE ASSY, CAMSHAFT TIMING OIL CONTROL
15330-21010	1NZFE..NZE121;2NZFE..NZE120..LHD..XLI	08/2001 - 12/2001	1
15330-21011	1NZFE..NZE121;2NZFE..NZE120..LHD..XLI	12/2001 - 04/2004	1
15330-21010	1NZFE..NZE121;2NZFE..NZE120..LHD..GEN	01/2001 - 08/2001	1
15330-21011	1NZFE..NZE121;2NZFE..NZE120..LHD..XLI	09/2002 - 04/2004	1
15330-21011	1NZFE..NZE121;2NZFE..NZE120..LHD..XLI	04/2004 - 12/2999	1
11115 - GASKET, CYLINDER HEAD
11115-21030	1NZFE,2NZFE..NZE12#	08/2000 - 02/2003	1
11115-21040	2NZFE..NZE120..PKN;2NZFE..NZE120..LHD..GEN	02/2003 - 08/2003	1
11115-21030	1NZFE,2NZFE..NZE12#..GCC,GEN	09/2002 - 02/2003	1
11115-21050	2NZFE..NZE120..PKN;2NZFE..NZE120..LHD..GEN	08/2003 - 07/2005	1
11115-21050	2NZFE..NZE120..LHD..GEN MIDDLE SOUTH AMERICA SPEC	08/2003 - 04/2004	1
11115-21050	1NZFE,2NZFE..NZE12#..GCC,GEN	04/2004 - 12/2999	1
11117A - PLUG, W/HEAD TAPER SCREW, NO.1
90341-20002	1NZFE,2NZFE..NZE12#..GCC,GEN	08/2000 - 04/2004	1
90341-20002	1NZFE..NZE121;2NZFE..NZE120..LHD..XLI	09/2002 - 04/2004	1
90341-20002	1NZFE,2NZFE..NZE12#..GCC,GEN	04/2004 - 12/2999	1
11117B - PLUG, W/HEAD TAPER SCREW, NO.2
90341-14013	1NZFE,2NZFE..NZE12#..GCC,GEN	09/2002 - 04/2004	1
90341-14013	2NZFE..NZE120..LHD..GEN	08/2000 - 04/2004	1
90341-14013	1NZFE,2NZFE..NZE12#..GCC,GEN	04/2004 - 12/2999	1
11117H - GASKET(FOR WATER HOLE)
90430-20004	1NZFE..NZE121;2NZFE..NZE120..LHD..XLI	09/2002 - 04/2004	1
90430-20004	1NZFE,2NZFE..NZE12#..GCC,GEN	08/2000 - 04/2004	1
90430-20004	1NZFE,2NZFE..NZE12#..GCC,GEN	04/2004 - 12/2999	1
11117J - GASKET(FOR CYLINDER HEAD SCREW PLUG)
90430-14009	2NZFE..NZE120..LHD..GEN	08/2000 - 04/2004	1
90430-14009	1NZFE,2NZFE..NZE12#..GCC,GEN	04/2004 - 12/2999	1
90430-14009	1NZFE,2NZFE..NZE12#..GCC,GEN	09/2002 - 04/2004	1
11122 - BUSH, INTAKE VALVE GUIDE
11122-21010	1NZFE,2NZFE..NZE12#..GCC,GEN STD	09/2002 - 04/2004	8
11122-21010	1NZFE,2NZFE..NZE12# STD	08/2000 - 07/2005	8
11123-21010	1NZFE,2NZFE..NZE12# O/S 0.05	08/2000 - 07/2005	8
11123-21010	1NZFE,2NZFE..NZE12#..GCC,GEN O/S 0.05	09/2002 - 04/2004	8
11123-21010	1NZFE,2NZFE..NZE12#..GCC,GEN O/S 0.05	04/2004 - 08/2007	8
11122-21010	1NZFE,2NZFE..NZE12#..GCC,GEN STD	04/2004 - 08/2007	8
11126 - BUSH, EXHAUST VALVE GUIDE
11123-21010	1NZFE,2NZFE..NZE12# O/S 0.05	08/2000 - 07/2005	8
11122-21010	1NZFE,2NZFE..NZE12#..GCC,GEN STD	09/2002 - 04/2004	8
11123-21010	1NZFE,2NZFE..NZE12#..GCC,GEN O/S 0.05	09/2002 - 04/2004	8
11122-21010	1NZFE,2NZFE..NZE12#..GCC,GEN STD	04/2004 - 08/2007	8
11122-21010	1NZFE,2NZFE..NZE12# STD	08/2000 - 07/2005	8
11123-21010	1NZFE,2NZFE..NZE12#..GCC,GEN O/S 0.05	04/2004 - 08/2007	8
11131 - SEAT, INTAKE VALVE
11132-21020	2NZFE..NZE120..LHD..XLI..GEN O/S 0.03,EGYPT SPEC	10/2001 - 04/2004	8
11132-21020	2NZFE..NZE120..LHD..XLI..GEN O/S 0.03,EGYPT SPEC	09/2002 - 04/2004	8
11131-21030	2NZFE..NZE120..GCC,GEN STD	08/2000 - 04/2004	8
11132-21030	2NZFE..NZE120 O/S 0.03	08/2000 - 07/2005	8
11131-21030	2NZFE..NZE120..GCC,GEN STD	09/2002 - 04/2004	8
11131-21020	2NZFE..NZE120..LHD..XLI..GEN STD,EGYPT SPEC	10/2001 - 04/2004	8
11132-21030	2NZFE..NZE120..GCC,GEN O/S 0.03	09/2002 - 04/2004	8
11131-21020	2NZFE..NZE120..LHD..XLI..GEN STD,EGYPT SPEC	04/2004 - 08/2007	8
11132-21020	2NZFE..NZE120..LHD..XLI..GEN O/S 0.03,EGYPT SPEC	04/2004 - 08/2007	8
11131-21020	2NZFE..NZE120..LHD..XLI..GEN STD,EGYPT SPEC	09/2002 - 04/2004	8
11131-21030	2NZFE..NZE120..GCC,GEN STD	04/2004 - 08/2007	8
11132-21030	2NZFE..NZE120..GCC,GEN O/S 0.03	04/2004 - 08/2007	8
11135 - SEAT, EXHAUST VALVE
11136-21020	2NZFE..NZE120..LHD..XLI..GEN O/S 0.03,EGYPT SPEC	10/2001 - 08/2002	8
11136-21040	2NZFE..NZE120..LHD..XLI..GEN O/S 0.03,EGYPT SPEC	08/2002 - 04/2004	8
11135-21030	2NZFE..NZE120 STD	08/2000 - 11/2002	8
11135-21020	2NZFE..NZE120..LHD..XLI..GEN STD,EGYPT SPEC	10/2001 - 08/2002	8
11136-21040	2NZFE..NZE120..LHD..XLI..GEN O/S 0.03,EGYPT SPEC	09/2002 - 04/2004	8
11135-21040	2NZFE..NZE120..LHD..XLI..GEN STD,EGYPT SPEC	08/2002 - 04/2004	8
11136-21030	2NZFE..NZE120..GCC,GEN O/S 0.03	09/2002 - 11/2003	8
11135-21040	2NZFE..NZE120..LHD..GEN STD	11/2002 - 04/2004	8
11136-21030	2NZFE..NZE120 O/S 0.03	08/2000 - 07/2005	8
11135-21040	1NZFE,2NZFE..NZE12#..GCC,GEN STD	04/2004 - 08/2007	8
11136-21040	1NZFE,2NZFE..NZE12#..GCC,GEN O/S 0.03	04/2004 - 08/2007	8
11135-21030	2NZFE..NZE120..GCC,GEN STD	09/2002 - 11/2002	8
11135-21040	1NZFE,2NZFE..NZE12#..GEN STD	11/2002 - 04/2004	8
11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
90250-06001	1NZFE,2NZFE..NZE12#..GCC,GEN L=14,OD=6	08/2000 - 04/2004	2
90250-06001	1NZFE..NZE121;2NZFE..NZE120..LHD..XLI L=14,OD=6	09/2002 - 04/2004	2
90250-06001	1NZFE,2NZFE..NZE12#..GCC,GEN L=14,OD=6	04/2004 - 12/2999	2
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
90119-08A29	1NZFE,2NZFE..NZE12#..GCC,GEN NO.1	08/2000 - 04/2004	3
90109-06080	1NZFE,2NZFE..NZE12#..GCC,GEN NO.2	08/2000 - 04/2004	16
90119-08A29	1NZFE..NZE121;2NZFE..NZE120..LHD..XLI NO.1	09/2002 - 04/2004	3
90109-06080	1NZFE..NZE121;2NZFE..NZE120..LHD..XLI NO.2	09/2002 - 04/2004	16
90109-06080	1NZFE,2NZFE..NZE12#..GCC,GEN NO.2	04/2004 - 12/2999	16
90119-08A29	1NZFE,2NZFE..NZE12#..GCC,GEN NO.1	04/2004 - 12/2999	3
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
90119-08A29	1NZFE,2NZFE..NZE12#..GCC,GEN NO.1	08/2000 - 04/2004	3
90109-06080	1NZFE,2NZFE..NZE12#..GCC,GEN NO.2	08/2000 - 04/2004	16
90119-08A29	1NZFE..NZE121;2NZFE..NZE120..LHD..XLI NO.1	09/2002 - 04/2004	3
90109-06080	1NZFE..NZE121;2NZFE..NZE120..LHD..XLI NO.2	09/2002 - 04/2004	16
90109-06080	1NZFE,2NZFE..NZE12#..GCC,GEN NO.2	04/2004 - 12/2999	16
90119-08A29	1NZFE,2NZFE..NZE12#..GCC,GEN NO.1	04/2004 - 12/2999	3
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-21050	2NZFE..NZE120..LHD..GEN	08/2000 - 04/2004	1
11201-21050	1NZFE,2NZFE..NZE12#..GCC,GEN	04/2004 - 12/2999	1
11201-21050	1NZFE,2NZFE..NZE12#..GCC,GEN	09/2002 - 04/2004	1
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-06013	1NZFE,2NZFE..NZE12#..GCC,GEN	09/2002 - 04/2004	2
90210-06013	2NZFE..NZE120..LHD..GEN	08/2000 - 04/2004	2
90210-06013	1NZFE,2NZFE..NZE12#..GCC,GEN	04/2004 - 12/2999	2
11212 - COVER, CYLINDER HEAD, NO.2
11212-21010	1NZFE..NZE121;2NZFE..NZE120..LHD..XLI	09/2002 - 04/2004	1
11212-21010	1NZFE..NZE121;2NZFE..NZE120..LHD..XLI	04/2004 - 10/2004	1
11212-21010	1NZFE..NZE121;2NZFE..NZE120..LHD..XLI	10/2001 - 04/2004	1
11212-21012	1NZFE..NZE121;2NZFE..NZE120..LHD..XLI	10/2005 - 12/2999	1
11212-21011	1NZFE..NZE121;2NZFE..NZE120..LHD..XLI	10/2004 - 09/2005	1
11213 - GASKET, CYLINDER HEAD COVER
11213-21011	2NZFE..NZE120..LHD..GEN	08/2000 - 04/2004	1
11213-21011	1NZFE,2NZFE..NZE12#..GCC,GEN	09/2002 - 04/2004	1
11213-21011	1NZFE,2NZFE..NZE12#..GCC,GEN	04/2004 - 12/2999	1
12108 - CAP SUB-ASSY, OIL FILLER
12180-21010	2NZFE..NZE120..LHD..GEN	08/2000 - 04/2004	1
12180-21010	1NZFE,2NZFE..NZE12#..GCC,GEN	04/2004 - 12/2999	1
12180-21010	1NZFE,2NZFE..NZE12#..GCC,GEN	09/2002 - 04/2004	1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140	2NZFE..NZE120..LHD..GEN	08/2000 - 04/2004	1
90430-37140	1NZFE,2NZFE..NZE12#..GCC,GEN	09/2002 - 04/2004	1
90430-37140	1NZFE,2NZFE..NZE12#..GCC,GEN	04/2004 - 12/2999	1
12281A - HANGER, ENGINE, NO.1
12281-21010	2NZFE..NZE120..LHD..GEN	08/2000 - 04/2004	1
12281-21010	1NZFE,2NZFE..NZE12#..GCC,GEN	09/2002 - 04/2004	1
12281-21010	1NZFE,2NZFE..NZE12#..GCC,GEN	04/2004 - 12/2999	2
12281A - HANGER, ENGINE, NO.1
12281-21010	2NZFE..NZE120..LHD..GEN	08/2000 - 04/2004	1
12281-21010	1NZFE,2NZFE..NZE12#..GCC,GEN	09/2002 - 04/2004	1
12281-21010	1NZFE,2NZFE..NZE12#..GCC,GEN	04/2004 - 12/2999	2
15678A - FILTER, OIL CONTROL VALVE
15678-21010	1NZFE..NZE121;2NZFE..NZE120..LHD..XLI	10/2001 - 04/2004	1
15678-21010	1NZFE..NZE121;2NZFE..NZE120..LHD..XLI	09/2002 - 04/2004	1
15678-21010	1NZFE..NZE121;2NZFE..NZE120..LHD..XLI	04/2004 - 12/2999	1
Common parts
90099-14137
90105-06252
90116-06166
90126-06009
90126-06012
90176-06045
90339-16001
90466-21001
91511-C0622
91551-80614
91642-81025
91671-80612
94150-10641
G1917-32010
Linked diagrams
1603
8404
8716

NZE120L-AEPDK (2000)

(0008- )1NZFE,2NZFE
