Toyota Corolla/altis sed/wg NZE120 ENGINE OVERHAUL GASKET KIT

NZE120L-AEPDK (2000)

Toyota Corolla/Altis Sed/Wg

Production Aug 2000 - Aug 2007

Engine 2NZFE

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

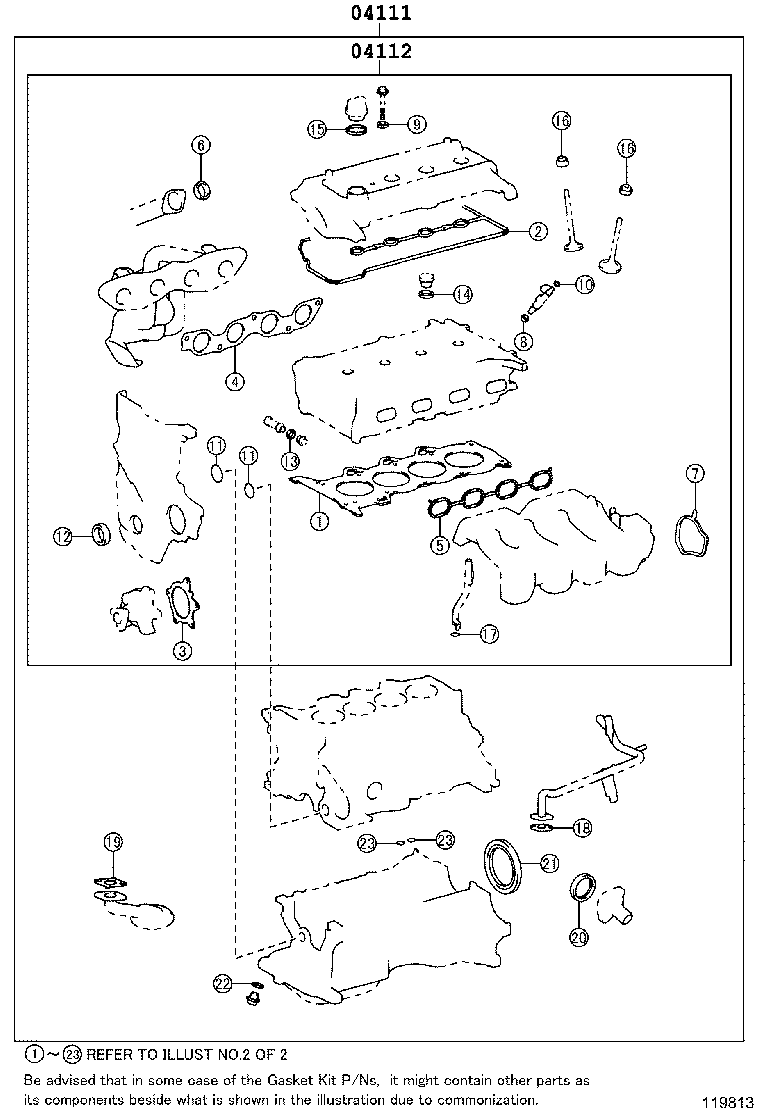

Click highlighted areas on diagram

Part #	Description	Period	Qty
04111 - GASKET KIT, ENGINE OVERHAUL
04111-21042	2NZFE..NZE120..LHD..GEN	08/2003 - 04/2004	1
04111-21060	2NZFE..NZE120..GEN	09/2002 - 11/2003	1
04111-21041	2NZFE..NZE120..PKN;2NZFE..NZE120..LHD..GEN	02/2003 - 08/2003	1
04111-21040	1NZFE,2NZFE..NZE12#	08/2000 - 02/2003	1
04111-21042	1NZFE..NZE121..LX;2NZFE..NZE120..GCC,GEN;1NZFE..NZE121..MTM..GLI	04/2004 - 12/2006	1
04111-21043	1NZFE..NZE121..LX;2NZFE..NZE120..GCC,GEN	12/2006 - 08/2007	1
04111-21042	2NZFE..NZE120..GEN	11/2003 - 04/2004	1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-21041	2NZFE..NZE120..PKN;2NZFE..NZE120..LHD..GEN	02/2003 - 08/2003	1
04112-21040	1NZFE,2NZFE..NZE12#	08/2000 - 02/2003	1
04112-21042	2NZFE..NZE120..LHD..GEN	08/2003 - 04/2004	1
04112-21060	2NZFE..NZE120..GEN	09/2002 - 11/2003	1
04112-21042	2NZFE..NZE120..GEN	11/2003 - 04/2004	1
04112-21042	1NZFE..NZE121..LX;2NZFE..NZE120..GCC,GEN;1NZFE..NZE121..MTM..GLI	04/2004 - 12/2006	1
04112-21043	1NZFE..NZE121..LX;2NZFE..NZE120..GCC,GEN	12/2006 - 08/2007	1

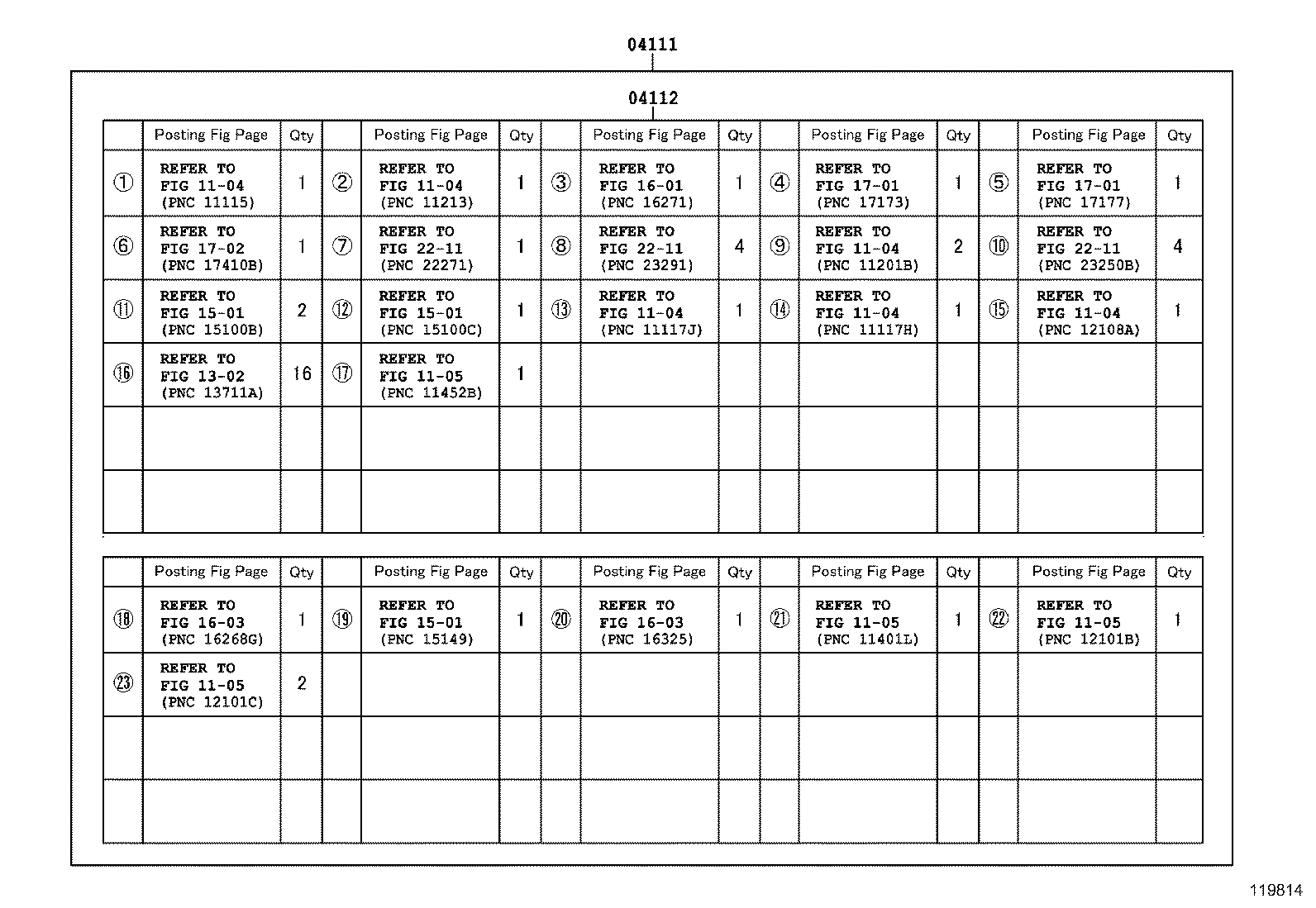

Click highlighted areas on diagram

Part #	Description	Period	Qty
04111 - GASKET KIT, ENGINE OVERHAUL
04111-21042	2NZFE..NZE120..LHD..GEN	08/2003 - 04/2004	1
04111-21060	2NZFE..NZE120..GEN	09/2002 - 11/2003	1
04111-21041	2NZFE..NZE120..PKN;2NZFE..NZE120..LHD..GEN	02/2003 - 08/2003	1
04111-21040	1NZFE,2NZFE..NZE12#	08/2000 - 02/2003	1
04111-21042	1NZFE..NZE121..LX;2NZFE..NZE120..GCC,GEN;1NZFE..NZE121..MTM..GLI	04/2004 - 12/2006	1
04111-21043	1NZFE..NZE121..LX;2NZFE..NZE120..GCC,GEN	12/2006 - 08/2007	1
04111-21042	2NZFE..NZE120..GEN	11/2003 - 04/2004	1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-21041	2NZFE..NZE120..PKN;2NZFE..NZE120..LHD..GEN	02/2003 - 08/2003	1
04112-21040	1NZFE,2NZFE..NZE12#	08/2000 - 02/2003	1
04112-21042	2NZFE..NZE120..LHD..GEN	08/2003 - 04/2004	1
04112-21060	2NZFE..NZE120..GEN	09/2002 - 11/2003	1
04112-21042	2NZFE..NZE120..GEN	11/2003 - 04/2004	1
04112-21042	1NZFE..NZE121..LX;2NZFE..NZE120..GCC,GEN;1NZFE..NZE121..MTM..GLI	04/2004 - 12/2006	1
04112-21043	1NZFE..NZE121..LX;2NZFE..NZE120..GCC,GEN	12/2006 - 08/2007	1
Linked diagrams
1104
1105
1302
1501
1601
1603
1701
1702
2211
