CE120R-GEMDSP (2002)
Toyota Corolla/Altis Sed/Wg

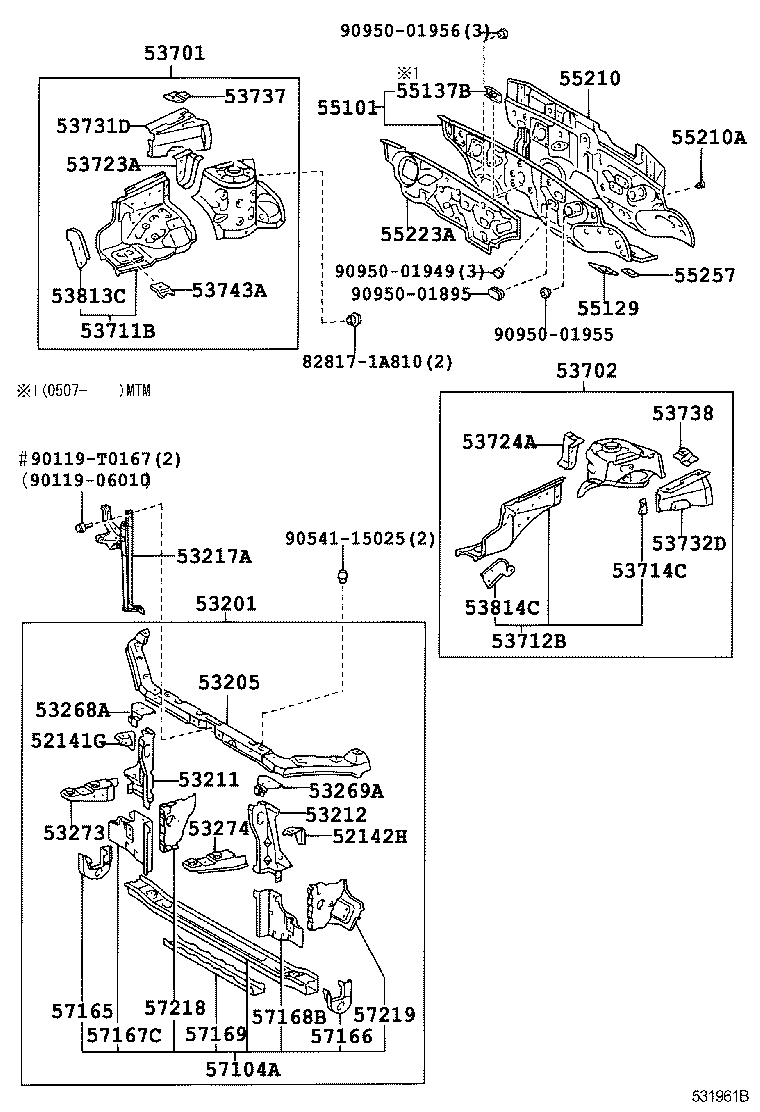

(0202-0603)PKN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52141G - STAY, FRONT BUMPER, RH | ||||
| 52141-12510 |
CE120,NZE120,ZZE122..PKN |
1 | ||
| 52141-12510 |
CE120,NZE120,ZZE121..PKN |
1 | ||
| 52142H - STAY, FRONT BUMPER, LH | ||||
| 52142-12440 |
CE120,NZE120,ZZE122..PKN |
1 | ||
| 52142-12440 |
CE120,NZE120,ZZE121..PKN |
1 | ||
| 53201 - SUPPORT SUB-ASSY, RADIATOR | ||||
| 53201-1A240 |
CE120,NZE120,ZZE121..PKN |
1 | ||
| 53201-1A240 |
CE120,NZE120,ZZE122..PKN |
1 | ||
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53216-02904 |
CE120,NZE120,ZZE121..PKN |
1 | ||
| 53216-02904 |
CE120,NZE120,ZZE122..PKN |
1 | ||
| 53211 - SUPPORT, RADIATOR, RH | ||||
| 53211-12420 |
CE120,NZE120,ZZE121..PKN |
1 | ||
| 53211-12420 |
CE120,NZE120,ZZE122..PKN |
1 | ||
| 53212 - SUPPORT, RADIATOR, LH | ||||
| 53212-12360 |
CE120,NZE120,ZZE121..PKN |
1 | ||
| 53212-12360 |
CE120,NZE120,ZZE122..PKN |
1 | ||
| 53217A - BRACE, HOOD LOCK SUPPORT | ||||
| 53208-12500 |
CE120,NZE120,ZZE121..PKN |
1 | ||
| 53208-12500 |
CE120,NZE120,ZZE122..PKN |
1 | ||
| 53268A - REINFORCEMENT, RADIATOR MOUNTING, RH | ||||
| 53268-12130 |
CE120,NZE120,ZZE121..PKN |
1 | ||
| 53268-12130 |
CE120,NZE120,ZZE122..PKN |
1 | ||
| 53269A - REINFORCEMENT, RADIATOR MOUNTING, LH | ||||
| 53269-12110 |
CE120,NZE120,ZZE122..PKN |
1 | ||
| 53269-12110 |
CE120,NZE120,ZZE121..PKN |
1 | ||
| 53273 - BRACKET, FRONT BUMPER ARM MOUNTING, RH | ||||
| 53273-12060 |
CE120,NZE120,ZZE122..PKN |
1 | ||
| 53273-12060 |
CE120,NZE120,ZZE121..PKN |
1 | ||
| 53274 - BRACKET, FRONT BUMPER ARM MOUNTING, LH | ||||
| 53274-12060 |
CE120,NZE120,ZZE121..PKN |
1 | ||
| 53274-12060 |
CE120,NZE120,ZZE122..PKN |
1 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-02901 |
CE120,NZE120,ZZE121..PKN |
1 | ||
| 53701-1A120 |
CE120,NZE120..(20D,GLI,XLI)..PKN |
1 | ||
| 53701-02901 |
CE120,NZE120,ZZE121..PKN |
1 | ||
| 53701-02200 |
CE120,NZE120..(20D,GLI,XLI)..PKN |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-02160 |
CE120,NZE120,ZZE122..PKN |
1 | ||
| 53702-1A080 |
CE120,NZE120,ZZE121..PKN |
1 | ||
| 53702-1A080 |
CE120,NZE120,ZZE121..PKN |
1 | ||
| 53702-1A080 |
CE120,NZE120,ZZE122..PKN |
1 | ||
| 53711B - APRON, FRONT FENDER, FRONT RH | ||||
| 53711-02901 |
CE120,NZE120,ZZE121..PKN |
1 | ||
| 53711-02901 |
CE120,NZE120,ZZE121..PKN |
1 | ||
| 53711-12230 |
CE120,NZE120,ZZE122..PKN |
1 | ||
| 53711-02901 |
CE120,NZE120,ZZE121..PKN |
1 | ||
| 53711-12909 |
CE120,NZE120,ZZE122..PKN |
1 | ||
| 53712B - APRON, FRONT FENDER, FRONT LH | ||||
| 53712-02901 |
CE120,NZE120,ZZE121..PKN |
1 | ||
| 53712-12190 |
CE120,NZE120,ZZE122..PKN |
1 | ||
| 53712-02901 |
CE120,NZE120,ZZE121..PKN |
1 | ||
| 53712-12907 |
CE120,NZE120,ZZE122..PKN |
1 | ||
| 53712-02901 |
CE120,NZE120,ZZE121..PKN |
1 | ||
| 53714C - EXTENSION, FRONT FENDER APRON, FRONT LH | ||||
| 53714-13020 |
CE120,NZE120,ZZE121..PKN |
1 | ||
| 53714-12150 |
CE120,NZE120,ZZE122..PKN |
1 | ||
| 53723A - REINFORCEMENT, FRONT SPRING SUPPORT, RH | ||||
| 53723-12080 |
CE120,NZE120,ZZE122..PKN |
1 | ||
| 53723-12080 |
CE120,NZE120,ZZE121..PKN |
1 | ||
| 53723-02090 |
CE120,NZE120,ZZE122..PKN |
1 | ||
| 53724A - REINFORCEMENT, FRONT SPRING SUPPORT, LH | ||||
| 53724-12070 |
CE120,NZE120,ZZE121..PKN |
1 | ||
| 53724-12070 |
CE120,NZE120,ZZE121..PKN |
1 | ||
| 53724-12070 |
CE120,NZE120,ZZE122..PKN |
1 | ||
| 53724-02060 |
CE120,NZE120,ZZE122..PKN |
1 | ||
| 53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH | ||||
| 53731-12160 |
CE120,NZE120,ZZE121..PKN |
1 | ||
| 53731-02080 |
CE120,NZE120,ZZE122..PKN |
1 | ||
| 53731-12160 |
CE120,NZE120,ZZE122..PKN |
1 | ||
| 53731-12160 |
CE120,NZE120,ZZE121..PKN |
1 | ||
| 53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH | ||||
| 53732-12140 |
CE120,NZE120,ZZE121..PKN |
1 | ||
| 53732-12140 |
CE120,NZE120,ZZE122..PKN |
1 | ||
| 53732-02090 |
CE120,NZE120,ZZE122..PKN |
1 | ||
| 53732-12140 |
CE120,NZE120,ZZE121..PKN |
1 | ||
| 53737 - PLATE, FRONT APRON TO COWL SIDE MEMBER, RH | ||||
| 53737-12060 |
CE120,NZE120,ZZE121..PKN |
1 | ||
| 53737-12060 |
CE120,NZE120,ZZE121..PKN |
1 | ||
| 53737-12060 |
CE120,NZE120,ZZE122..PKN |
1 | ||
| 53738 - PLATE, FRONT APRON TO COWL SIDE MEMBER, LH | ||||
| 53738-12030 |
CE120,NZE120,ZZE122..PKN |
1 | ||
| 53738-12030 |
CE120,NZE120,ZZE121..PKN |
1 | ||
| 53738-12030 |
CE120,NZE120,ZZE121..PKN |
1 | ||
| 53813C - EXTENSION, FRONT FENDER, RH | ||||
| 53813-12070 |
CE120,NZE120,ZZE121..PKN |
1 | ||
| 53813-12070 |
CE120,NZE120,ZZE122..PKN |
1 | ||
| 53814C - EXTENSION, FRONT FENDER, LH | ||||
| 53814-12030 |
CE120,NZE120,ZZE121..PKN |
1 | ||
| 53814-12030 |
CE120,NZE120,ZZE121..PKN |
1 | ||
| 53814-12030 |
CE120,NZE120,ZZE122..PKN |
1 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-19035 |
CE120,NZE12#,ZZE12#..RHD..SED..MTM EXCEPT SOUTH AFRICA |
1 | ||
| 55101-19035 |
CE120,NZE12#,ZZE12#..RHD..SED..MTM EXCEPT SOUTH AFRICA |
1 | ||
| 55101-1E906 |
CE120,NZE120,ZZE121..MTM..PKN |
1 | ||
| 55101-19035 |
CE120,NZE120,ZZE12#..SED..MTM..(ARL,PKN) EXCEPT SOUTH AFRICA |
1 | ||
| 55101-19035 |
CE120,NZE120,ZZE122..MTM..PKN |
1 | ||
| 55101-1E907 |
CE120,NZE120,ZZE121..MTM..PKN |
1 | ||
| 55129 - COVER, DASH PANEL HOLE | ||||
| 55139-32010 |
CE120,NZE120,ZZE122..PKN LH |
1 | ||
| 55129-32030 |
CE120,NZE12#,ZZE12# RH |
1 | ||
| 55139-32010 |
CE120,NZE12#,ZZE12# LH |
1 | ||
| 55139-02040 |
CE120,NZE120,ZZE122..PKN LH |
1 | ||
| 55129-32030 |
CE120,NZE120,ZZE122..PKN RH |
1 | ||
| 55129-02050 |
CE120,NZE120,ZZE122..PKN RH |
1 | ||
| 55137B - REINFORCEMENT, FRONT PANEL MEMBER, RH | ||||
| 55137-12010 |
CE120,NZE120,ZZE122..MTM..PKN |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-02050 |
CE120,NZE120,ZZE122..PKN |
1 | ||
| 55210-02050 |
CE120,NZE120,ZZE121..PKN |
1 | ||
| 55210A - CLIP | ||||
| 90467-10005C0 |
CE120,NZE120,ZZE122..PKN BLACK |
4 | ||
| 55223A - INSULATOR, DASH PANEL, OUTER | ||||
| 55223-02110 |
CE120,ZZE122..PKN |
1 | ||
| 55223-02110 |
CE120,ZZE121..PKN |
1 | ||
| 55257 - COVER, DASH PANEL OPENING | ||||
| 55257-32010 |
CE120,NZE12#,ZZE12# |
2 | ||
| 55257-32010 |
CE120,NZE120,ZZE122..PKN |
2 | ||
| 57104A - MEMBER SUB-ASSY, FRONT CROSS | ||||
| 57104-12190 |
CE120,NZE120,ZZE121..PKN |
1 | ||
| 57104-12190 |
CE120,NZE120,ZZE122..PKN |
1 | ||
| 57165 - REINFORCEMENT, FRONT CROSSMEMBER, LOWER RH | ||||
| 57165-12070 |
CE120,NZE12#,ZZE12# |
1 | ||
| 57165-12070 |
CE120,NZE120,ZZE122..PKN |
1 | ||
| 57166 - REINFORCEMENT, FRONT CROSSMEMBER, LOWER LH | ||||
| 57166-12020 |
CE120,NZE12#,ZZE12# |
1 | ||
| 57166-12020 |
CE120,NZE120,ZZE122..PKN |
1 | ||
| 57167C - GUSSET, FRONT CROSSMEMBER SIDE, RH | ||||
| 57167-12110 |
CE120,NZE120,ZZE122..PKN |
1 | ||
| 57167-12110 |
CE120,NZE12#,ZZE12# |
1 | ||
| 57168B - GUSSET, FRONT CROSSMEMBER SIDE, LH | ||||
| 57168-12110 |
CE120,NZE120,ZZE122..PKN |
1 | ||
| 57168-12110 |
CE120,NZE12#,ZZE12# |
1 | ||
| 57169 - MEMBER, FRONT FLOOR, FRONT RH | ||||
| 57169-12020 |
CE120,NZE120,ZZE122..PKN |
1 | ||
| 57218 - GUSSET, FRONT SIDE MEMBER, NO.1 | ||||
| 57218-12010 |
CE120,NZE120,ZZE121..PKN |
1 | ||
| 57218-12010 |
CE120,NZE120,ZZE122..PKN |
1 | ||
| 57219 - GUSSET, FRONT SIDE MEMBER, NO.2 | ||||
| 57219-12010 |
CE120,NZE120,ZZE121..PKN |
1 | ||
| 57219-12010 |
CE120,NZE120,ZZE122..PKN |
1 | ||
| Common parts | ||||
| 82817-1A810 | ||||
| 90119-06010 | ||||
| 90119-T0167 | ||||
| 90541-15025 | ||||
| 90950-01895 | ||||
| 90950-01949 | ||||
| 90950-01955 | ||||
| 90950-01956 | ||||

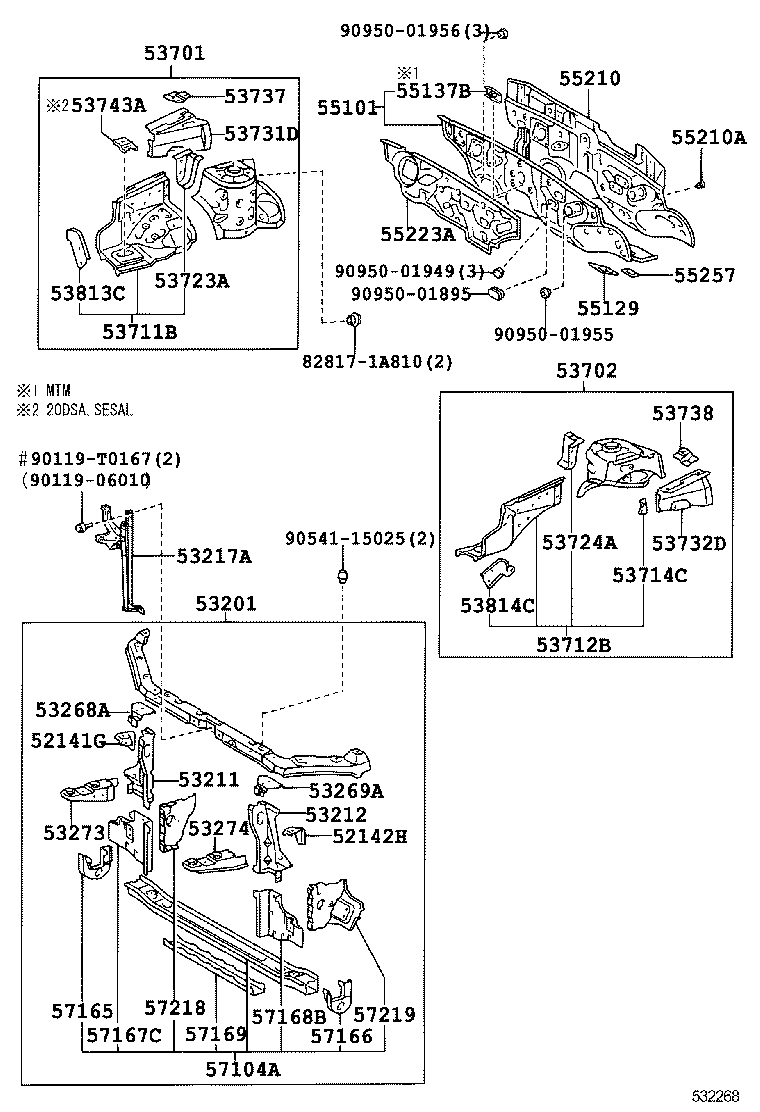

(0603- )PKN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52141G - STAY, FRONT BUMPER, RH | ||||
| 52141-12510 |
CE120,NZE120,ZZE122..PKN |
1 | ||
| 52141-12510 |
CE120,NZE120,ZZE121..PKN |
1 | ||
| 52142H - STAY, FRONT BUMPER, LH | ||||
| 52142-12440 |
CE120,NZE120,ZZE122..PKN |
1 | ||
| 52142-12440 |
CE120,NZE120,ZZE121..PKN |
1 | ||
| 53201 - SUPPORT SUB-ASSY, RADIATOR | ||||
| 53201-1A240 |
CE120,NZE120,ZZE121..PKN |
1 | ||
| 53201-1A240 |
CE120,NZE120,ZZE122..PKN |
1 | ||
| 53211 - SUPPORT, RADIATOR, RH | ||||
| 53211-12420 |
CE120,NZE120,ZZE121..PKN |
1 | ||
| 53211-12420 |
CE120,NZE120,ZZE122..PKN |
1 | ||
| 53212 - SUPPORT, RADIATOR, LH | ||||
| 53212-12360 |
CE120,NZE120,ZZE121..PKN |
1 | ||
| 53212-12360 |
CE120,NZE120,ZZE122..PKN |
1 | ||
| 53217A - BRACE, HOOD LOCK SUPPORT | ||||
| 53208-12500 |
CE120,NZE120,ZZE121..PKN |
1 | ||
| 53208-12500 |
CE120,NZE120,ZZE122..PKN |
1 | ||
| 53268A - REINFORCEMENT, RADIATOR MOUNTING, RH | ||||
| 53268-12130 |
CE120,NZE120,ZZE121..PKN |
1 | ||
| 53268-12130 |
CE120,NZE120,ZZE122..PKN |
1 | ||
| 53269A - REINFORCEMENT, RADIATOR MOUNTING, LH | ||||
| 53269-12110 |
CE120,NZE120,ZZE122..PKN |
1 | ||
| 53269-12110 |
CE120,NZE120,ZZE121..PKN |
1 | ||
| 53273 - BRACKET, FRONT BUMPER ARM MOUNTING, RH | ||||
| 53273-12060 |
CE120,NZE120,ZZE122..PKN |
1 | ||
| 53273-12060 |
CE120,NZE120,ZZE121..PKN |
1 | ||
| 53274 - BRACKET, FRONT BUMPER ARM MOUNTING, LH | ||||
| 53274-12060 |
CE120,NZE120,ZZE121..PKN |
1 | ||
| 53274-12060 |
CE120,NZE120,ZZE122..PKN |
1 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-02901 |
CE120,NZE120,ZZE121..PKN |
1 | ||
| 53701-1A120 |
CE120,NZE120..(20D,GLI,XLI)..PKN |
1 | ||
| 53701-02901 |
CE120,NZE120,ZZE121..PKN |
1 | ||
| 53701-02200 |
CE120,NZE120..(20D,GLI,XLI)..PKN |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-02160 |
CE120,NZE120,ZZE122..PKN |
1 | ||
| 53702-1A080 |
CE120,NZE120,ZZE121..PKN |
1 | ||
| 53702-1A080 |
CE120,NZE120,ZZE121..PKN |
1 | ||
| 53702-1A080 |
CE120,NZE120,ZZE122..PKN |
1 | ||
| 53711B - APRON, FRONT FENDER, FRONT RH | ||||
| 53711-02901 |
CE120,NZE120,ZZE121..PKN |
1 | ||
| 53711-02901 |
CE120,NZE120,ZZE121..PKN |
1 | ||
| 53711-12230 |
CE120,NZE120,ZZE122..PKN |
1 | ||
| 53711-02901 |
CE120,NZE120,ZZE121..PKN |
1 | ||
| 53711-12909 |
CE120,NZE120,ZZE122..PKN |
1 | ||
| 53712B - APRON, FRONT FENDER, FRONT LH | ||||
| 53712-02901 |
CE120,NZE120,ZZE121..PKN |
1 | ||
| 53712-12190 |
CE120,NZE120,ZZE122..PKN |
1 | ||
| 53712-02901 |
CE120,NZE120,ZZE121..PKN |
1 | ||
| 53712-12907 |
CE120,NZE120,ZZE122..PKN |
1 | ||
| 53712-02901 |
CE120,NZE120,ZZE121..PKN |
1 | ||
| 53714C - EXTENSION, FRONT FENDER APRON, FRONT LH | ||||
| 53714-13020 |
CE120,NZE120,ZZE121..PKN |
1 | ||
| 53714-12150 |
CE120,NZE120,ZZE122..PKN |
1 | ||
| 53723A - REINFORCEMENT, FRONT SPRING SUPPORT, RH | ||||
| 53723-12080 |
CE120,NZE120,ZZE122..PKN |
1 | ||
| 53723-12080 |
CE120,NZE120,ZZE121..PKN |
1 | ||
| 53723-02090 |
CE120,NZE120,ZZE122..PKN |
1 | ||
| 53724A - REINFORCEMENT, FRONT SPRING SUPPORT, LH | ||||
| 53724-12070 |
CE120,NZE120,ZZE121..PKN |
1 | ||
| 53724-12070 |
CE120,NZE120,ZZE121..PKN |
1 | ||
| 53724-12070 |
CE120,NZE120,ZZE122..PKN |
1 | ||
| 53724-02060 |
CE120,NZE120,ZZE122..PKN |
1 | ||
| 53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH | ||||
| 53731-12160 |
CE120,NZE120,ZZE121..PKN |
1 | ||
| 53731-02080 |
CE120,NZE120,ZZE122..PKN |
1 | ||
| 53731-12160 |
CE120,NZE120,ZZE122..PKN |
1 | ||
| 53731-12160 |
CE120,NZE120,ZZE121..PKN |
1 | ||
| 53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH | ||||
| 53732-12140 |
CE120,NZE120,ZZE121..PKN |
1 | ||
| 53732-12140 |
CE120,NZE120,ZZE122..PKN |
1 | ||
| 53732-02090 |
CE120,NZE120,ZZE122..PKN |
1 | ||
| 53732-12140 |
CE120,NZE120,ZZE121..PKN |
1 | ||
| 53737 - PLATE, FRONT APRON TO COWL SIDE MEMBER, RH | ||||
| 53737-12060 |
CE120,NZE120,ZZE121..PKN |
1 | ||
| 53737-12060 |
CE120,NZE120,ZZE121..PKN |
1 | ||
| 53737-12060 |
CE120,NZE120,ZZE122..PKN |
1 | ||
| 53738 - PLATE, FRONT APRON TO COWL SIDE MEMBER, LH | ||||
| 53738-12030 |
CE120,NZE120,ZZE122..PKN |
1 | ||
| 53738-12030 |
CE120,NZE120,ZZE121..PKN |
1 | ||
| 53738-12030 |
CE120,NZE120,ZZE121..PKN |
1 | ||
| 53813C - EXTENSION, FRONT FENDER, RH | ||||
| 53813-12070 |
CE120,NZE120,ZZE121..PKN |
1 | ||
| 53813-12070 |
CE120,NZE120,ZZE122..PKN |
1 | ||
| 53814C - EXTENSION, FRONT FENDER, LH | ||||
| 53814-12030 |
CE120,NZE120,ZZE121..PKN |
1 | ||
| 53814-12030 |
CE120,NZE120,ZZE121..PKN |
1 | ||
| 53814-12030 |
CE120,NZE120,ZZE122..PKN |
1 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-19035 |
CE120,NZE12#,ZZE12#..RHD..SED..MTM EXCEPT SOUTH AFRICA |
1 | ||
| 55101-19035 |
CE120,NZE12#,ZZE12#..RHD..SED..MTM EXCEPT SOUTH AFRICA |
1 | ||
| 55101-1E906 |
CE120,NZE120,ZZE121..MTM..PKN |
1 | ||
| 55101-19035 |
CE120,NZE120,ZZE12#..SED..MTM..(ARL,PKN) EXCEPT SOUTH AFRICA |
1 | ||
| 55101-19035 |
CE120,NZE120,ZZE122..MTM..PKN |
1 | ||
| 55101-1E907 |
CE120,NZE120,ZZE121..MTM..PKN |
1 | ||
| 55129 - COVER, DASH PANEL HOLE | ||||
| 55139-32010 |
CE120,NZE120,ZZE122..PKN LH |
1 | ||
| 55129-32030 |
CE120,NZE12#,ZZE12# RH |
1 | ||
| 55139-32010 |
CE120,NZE12#,ZZE12# LH |
1 | ||
| 55139-02040 |
CE120,NZE120,ZZE122..PKN LH |
1 | ||
| 55129-32030 |
CE120,NZE120,ZZE122..PKN RH |
1 | ||
| 55129-02050 |
CE120,NZE120,ZZE122..PKN RH |
1 | ||
| 55137B - REINFORCEMENT, FRONT PANEL MEMBER, RH | ||||
| 55137-12010 |
CE120,NZE120,ZZE122..MTM..PKN |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-02050 |
CE120,NZE120,ZZE122..PKN |
1 | ||
| 55210-02050 |
CE120,NZE120,ZZE121..PKN |
1 | ||
| 55210A - CLIP | ||||
| 90467-10005C0 |
CE120,NZE120,ZZE122..PKN BLACK |
4 | ||
| 55223A - INSULATOR, DASH PANEL, OUTER | ||||
| 55223-02110 |
CE120,ZZE122..PKN |
1 | ||
| 55223-02110 |
CE120,ZZE121..PKN |
1 | ||
| 55257 - COVER, DASH PANEL OPENING | ||||
| 55257-32010 |
CE120,NZE12#,ZZE12# |
2 | ||
| 55257-32010 |
CE120,NZE120,ZZE122..PKN |
2 | ||
| 57104A - MEMBER SUB-ASSY, FRONT CROSS | ||||
| 57104-12190 |
CE120,NZE120,ZZE121..PKN |
1 | ||
| 57104-12190 |
CE120,NZE120,ZZE122..PKN |
1 | ||
| 57165 - REINFORCEMENT, FRONT CROSSMEMBER, LOWER RH | ||||
| 57165-12070 |
CE120,NZE12#,ZZE12# |
1 | ||
| 57165-12070 |
CE120,NZE120,ZZE122..PKN |
1 | ||
| 57166 - REINFORCEMENT, FRONT CROSSMEMBER, LOWER LH | ||||
| 57166-12020 |
CE120,NZE12#,ZZE12# |
1 | ||
| 57166-12020 |
CE120,NZE120,ZZE122..PKN |
1 | ||
| 57167C - GUSSET, FRONT CROSSMEMBER SIDE, RH | ||||
| 57167-12110 |
CE120,NZE120,ZZE122..PKN |
1 | ||
| 57167-12110 |
CE120,NZE12#,ZZE12# |
1 | ||
| 57168B - GUSSET, FRONT CROSSMEMBER SIDE, LH | ||||
| 57168-12110 |
CE120,NZE120,ZZE122..PKN |
1 | ||
| 57168-12110 |
CE120,NZE12#,ZZE12# |
1 | ||
| 57169 - MEMBER, FRONT FLOOR, FRONT RH | ||||
| 57169-12020 |
CE120,NZE120,ZZE122..PKN |
1 | ||
| 57218 - GUSSET, FRONT SIDE MEMBER, NO.1 | ||||
| 57218-12010 |
CE120,NZE120,ZZE121..PKN |
1 | ||
| 57218-12010 |
CE120,NZE120,ZZE122..PKN |
1 | ||
| 57219 - GUSSET, FRONT SIDE MEMBER, NO.2 | ||||
| 57219-12010 |
CE120,NZE120,ZZE121..PKN |
1 | ||
| 57219-12010 |
CE120,NZE120,ZZE122..PKN |
1 | ||
| Common parts | ||||
| 82817-1A810 | ||||
| 90119-06010 | ||||
| 90119-T0167 | ||||
| 90541-15025 | ||||
| 90950-01895 | ||||
| 90950-01949 | ||||
| 90950-01955 | ||||
| 90950-01956 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
