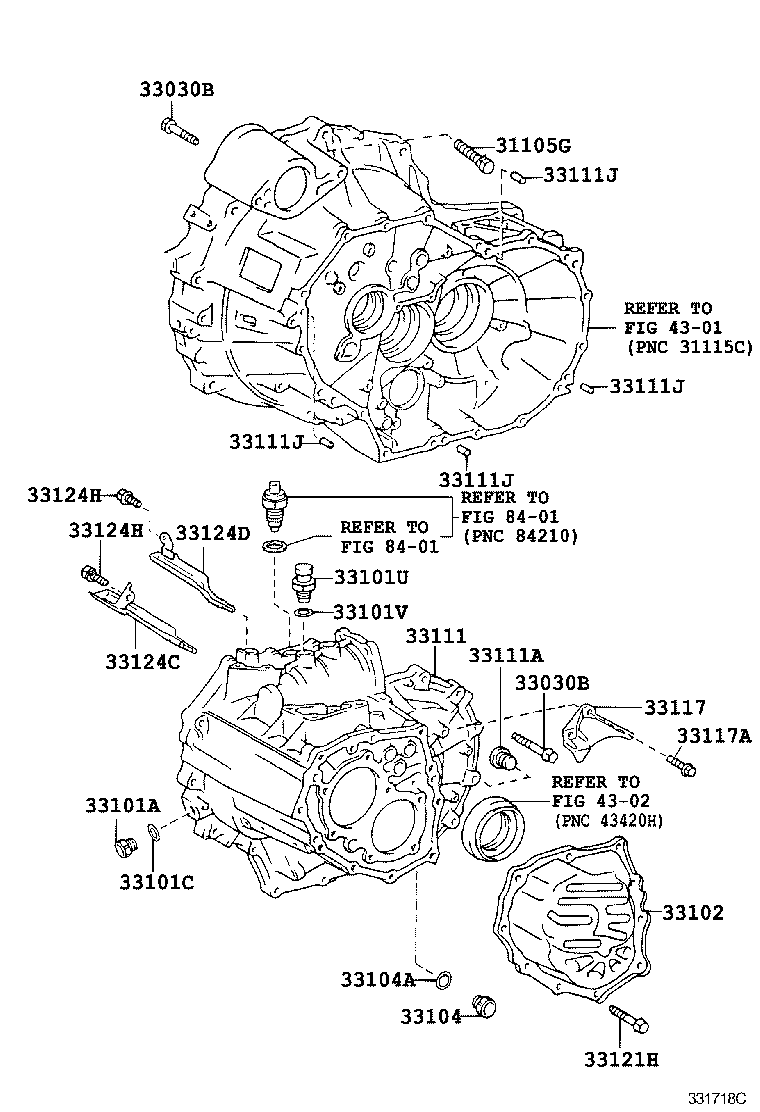

Toyota Corolla/altis sed/wg CE120 CLUTCH HOUSING & TRANSMISSION CASE (MTM)

Part #	Description	Period	Qty
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
91641-H0820	CE120..LHD *8-1.25PX20-20	10/2001 - 04/2004	1
90119-12168	CE120..LHD *12-1.25PX55-30	10/2001 - 04/2004	3
90105-10077	CE120..GEN *10-1.25PX43-26	09/2002 - 04/2004	1
90105-10077	CE120..LHD *10-1.25PX43-26	10/2001 - 04/2004	1
90119-12168	CE120..GEN *12-1.25PX55-30	04/2004 - 12/2999	3
90105-10077	CE120..GEN *10-1.25PX43-26	04/2004 - 12/2999	1
91641-H0820	CE120..GEN *8-1.25PX20-20	04/2004 - 12/2999	1
90119-12168	CE120..GEN *12-1.25PX55-30	09/2002 - 04/2004	3
91641-H0820	CE120..GEN *8-1.25PX20-20	09/2002 - 04/2004	1
33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
90105-08126	CE120..GEN *8-1.25PX45-27.5	09/2002 - 04/2004	17
90105-08126	CE120..GEN *8-1.25PX45-27.5	04/2004 - 12/2999	17
90105-08126	CE120..LHD *8-1.25PX45-27.5	10/2001 - 04/2004	17
33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
90105-08126	CE120..GEN *8-1.25PX45-27.5	09/2002 - 04/2004	17
90105-08126	CE120..GEN *8-1.25PX45-27.5	04/2004 - 12/2999	17
90105-08126	CE120..LHD *8-1.25PX45-27.5	10/2001 - 04/2004	17
33101A - PLUG(FOR MANUAL TRANSMISSION FILLER)
90341-18033	CE120	10/2001 - 07/2005	1
90341-18033	CE120..GEN	09/2002 - 04/2004	1
90341-18033	CE120..GEN	04/2004 - 12/2999	1
33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
90430-18008	ZZE122..MTM..ARL;CE120,ZZE122..LHD..MTM..GEN	08/2000 - 04/2004	1
90430-18008	CE120,NZE12#,ZZE12#..MTM..(GCC,GEN)	09/2002 - 04/2004	1
90430-18008	ZZE122..WG..MTM..ARL;CE120,NZE12#,ZZE12#..MTM..(GCC,GEN)	04/2004 - 12/2999	1
33101U - PLUG, BREATHER(FOR MANUAL TRANSMISSION)
90930-03148	CE120..LHD	10/2001 - 04/2004	1
90930-03148	CE120..GEN	09/2002 - 04/2004	1
90930-03148	CE120..GEN	04/2004 - 12/2999	1
33101V - GASKET(FOR MANUAL TRANSMISSION BREATHER PLUG)
90430-18008	CE120..GEN	04/2004 - 12/2999	1
90430-18008	CE120..LHD	10/2001 - 04/2004	1
90430-18008	CE120..GEN	09/2002 - 04/2004	1
33102 - COVER SUB-ASSY, MANUAL TRANSMISSION CASE
33102-12041	CE120..GEN	09/2002 - 06/2003	1
33102-12041	CE120	10/2001 - 06/2003	1
33102-12043	CE120	04/2004 - 07/2005	1
33102-12043	CE120..GEN	04/2004 - 12/2999	1
33102-12042	CE120	06/2003 - 04/2004	1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18006	CE120,NZE12#,ZZE12#..MTM..(GCC,GEN)	09/2002 - 04/2004	1
90341-18006	CE120..GEN	04/2004 - 12/2999	1
90341-18006	CE120,NZE12#,ZZE12#..MTM	08/2000 - 07/2005	1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18008	ZZE122..MTM..ARL;CE120,ZZE122..LHD..MTM..GEN	08/2000 - 04/2004	1
90430-18008	ZZE122..WG..MTM..ARL;CE120,NZE12#,ZZE12#..MTM..(GCC,GEN)	04/2004 - 12/2999	1
90430-18008	CE120,NZE12#,ZZE12#..MTM..(GCC,GEN)	09/2002 - 04/2004	1
33111 - CASE, MANUAL TRANSMISSION
33101-28041	CE120..GEN	09/2002 - 01/2003	1
33101-28041	CE120	10/2001 - 01/2003	1
33101-20090	CE120..GEN	01/2003 - 04/2004	1
33101-20090	CE120..GEN	03/2005 - 12/2999	1
33101-20090	CE120..GEN	04/2004 - 03/2005	1
33111A - PLUG, MANUAL TRANSMISSION CASE
90341-12004	CE120..LHD	10/2001 - 04/2004	2
90341-12004	CE120..GEN	04/2004 - 03/2005	2
90341-12004	CE120..GEN	09/2002 - 04/2004	2
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-08054	ZZE122..MTM..ARL;CE120,ZZE122..LHD..MTM..GEN L=23,OD=8	08/2000 - 04/2004	4
90250-08054	CE120,NZE12#,ZZE12#..MTM..(GCC,GEN) L=23,OD=8	09/2002 - 04/2004	4
90250-08054	ZZE122..WG..MTM..ARL;CE120,NZE12#,ZZE12#..MTM..(GCC,GEN) L=23,OD=8	04/2004 - 12/2999	4
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-08054	ZZE122..MTM..ARL;CE120,ZZE122..LHD..MTM..GEN L=23,OD=8	08/2000 - 04/2004	4
90250-08054	CE120,NZE12#,ZZE12#..MTM..(GCC,GEN) L=23,OD=8	09/2002 - 04/2004	4
90250-08054	ZZE122..WG..MTM..ARL;CE120,NZE12#,ZZE12#..MTM..(GCC,GEN) L=23,OD=8	04/2004 - 12/2999	4
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-08054	ZZE122..MTM..ARL;CE120,ZZE122..LHD..MTM..GEN L=23,OD=8	08/2000 - 04/2004	4
90250-08054	CE120,NZE12#,ZZE12#..MTM..(GCC,GEN) L=23,OD=8	09/2002 - 04/2004	4
90250-08054	ZZE122..WG..MTM..ARL;CE120,NZE12#,ZZE12#..MTM..(GCC,GEN) L=23,OD=8	04/2004 - 12/2999	4
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-08054	ZZE122..MTM..ARL;CE120,ZZE122..LHD..MTM..GEN L=23,OD=8	08/2000 - 04/2004	4
90250-08054	CE120,NZE12#,ZZE12#..MTM..(GCC,GEN) L=23,OD=8	09/2002 - 04/2004	4
90250-08054	ZZE122..WG..MTM..ARL;CE120,NZE12#,ZZE12#..MTM..(GCC,GEN) L=23,OD=8	04/2004 - 12/2999	4
33117 - PROTECTOR, MANUAL TRANSMISSION CASE
33117-20020	CE120..GEN	04/2004 - 12/2999	1
33117-20020	CE120..LHD	10/2001 - 04/2004	1
33117-20020	CE120..GEN	09/2002 - 04/2004	1
33117A - BOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR)
91641-H0820	CE120..LHD	10/2001 - 04/2004	2
91641-H0820	CE120..GEN	09/2002 - 04/2004	2
91641-H0820	CE120..GEN	04/2004 - 12/2999	2
33121H - BOLT, W/WASHER(FOR TRANSMISSION CASE COVER)
90119-08630	CE120..GEN	09/2002 - 04/2004	10
90119-08630	CE120..LHD	10/2001 - 04/2004	10
90119-08630	CE120..GEN	04/2004 - 08/2007	10
33124C - PIPE, OIL RECEIVER, NO.1(MTM)
33124-28050	CE120..LHD	10/2001 - 04/2004	1
33124-28050	CE120..GEN	04/2004 - 12/2999	1
33124-28050	CE120..GEN	09/2002 - 04/2004	1
33124D - PIPE, OIL RECEIVER, NO.2(MTM)
33124-28060	CE120..LHD	10/2001 - 04/2004	1
33124-28060	CE120..GEN	09/2002 - 04/2004	1
33124-28060	CE120..GEN	04/2004 - 12/2999	1
33124H - BOLT(FOR OIL RECEIVER PIPE)
90119-08830	CE120..LHD	02/2002 - 04/2004	2
90119-08830	CE120..GEN	09/2002 - 04/2004	2
90119-08830	CE120..GEN	04/2004 - 08/2007	2
33124H - BOLT(FOR OIL RECEIVER PIPE)
90119-08830	CE120..LHD	02/2002 - 04/2004	2
90119-08830	CE120..GEN	09/2002 - 04/2004	2
90119-08830	CE120..GEN	04/2004 - 08/2007	2
Linked diagrams
4301
4302
8401

CE120L-AEMDS (2001)

(0110- )CE120
