ZZE172L-GEPNK (2013)
Toyota Corolla/Altis
Production
Oct 2013
-
Sep 2014
Engine
1ZZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

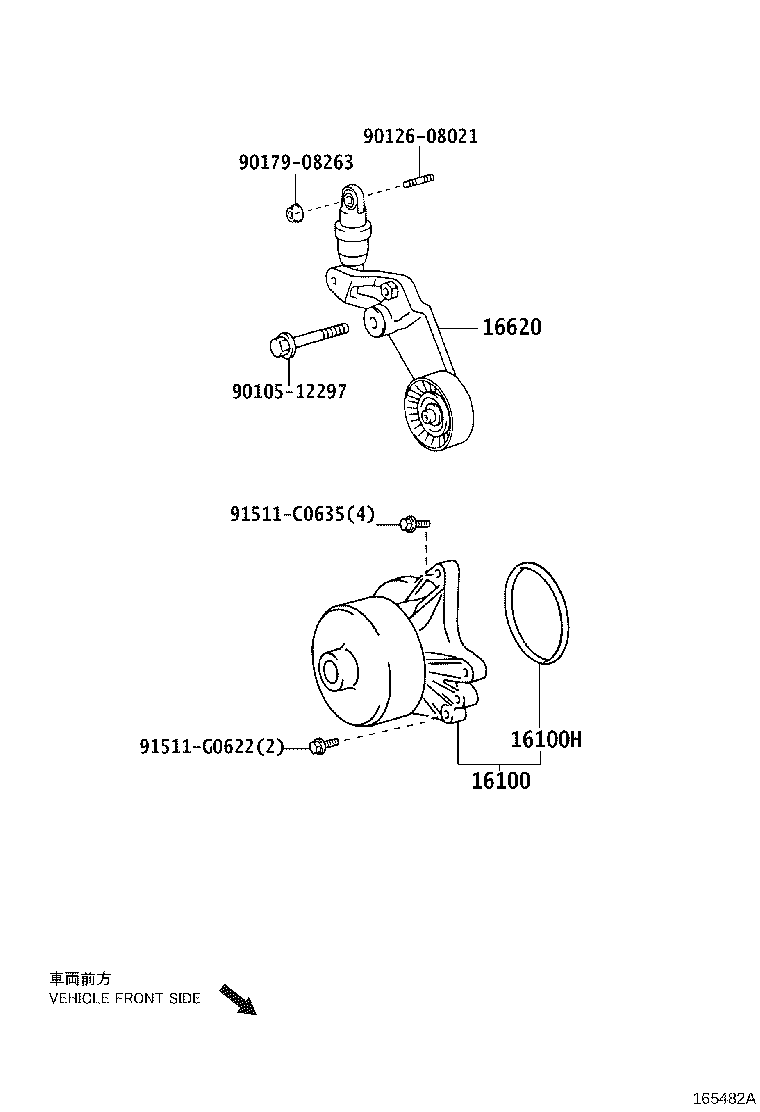

(1310-1409)1ZZFE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16100 - PUMP ASSY, ENGINE WATER | ||||
| 16100-29415 |
1ZZFE..ZZE172 |
1 | ||
| 16100H - RING, O(FOR WATER PUMP) | ||||
| 90301-69006 |
1ZZFE..ZZE172 |
1 | ||
| 16620 - TENSIONER ASSY, V-RIBBED BELT | ||||
| 16620-0W093 |
1ZZFE..ZZE172 |
1 | ||
| Common parts | ||||
| 90105-12297 | ||||
| 90126-08021 | ||||
| 90179-08263 | ||||
| 91511-C0635 | ||||
| 91511-G0622 | ||||
(1310- )2ZR#..ARL,IDN,IND,MA,PKN,TAIW,TH ; (1310- )3ZRFE..20G,20V;1ZRFAE,1ZRF
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16100 - PUMP ASSY, ENGINE WATER | ||||
| 16100-29415 |
1ZZFE..ZZE172 |
1 | ||
| 16100-29415 |
1ZZFE..ZZE172 |
1 | ||
| Common parts | ||||
| 91551-80825 | ||||
| Linked diagrams | ||||
| 1106 | ||||
(1310-1512)3ZRFE..6F ; (1310-1601)1ZR#..CNG ; (1310-1601)1ZRFE..6F..GCC ; (1310-
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16100 - PUMP ASSY, ENGINE WATER | ||||
| 16100-29415 |
1ZZFE..ZZE172 |
1 | ||
| 16100-29415 |
1ZZFE..ZZE172 |
1 | ||
| Common parts | ||||
| 91551-80825 | ||||
| Linked diagrams | ||||
| 1106 | ||||
