Toyota Corolla/altis ZZE172 VENTILATION HOSE

Part #	Description	Period	Qty
12204 - VALVE SUB-ASSY, VENTILATION
12204-22051	1ZZFE..ZZE172	10/2013 - 09/2014	1
12261 - HOSE, VENTILATION
12261-0D120	1ZZFE..ZZE172	10/2013 - 09/2014	1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-21152	1ZZFE..ZZE172	10/2013 - 09/2014	1
12262 - HOSE, VENTILATION, NO.2
12262-22130	1ZZFE..ZZE172	10/2013 - 09/2014	1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-13103	1ZZFE..ZZE172 NO.1	10/2013 - 09/2014	1
90466-18002	1ZZFE..ZZE172 NO.2	10/2013 - 09/2014	1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-13103	1ZZFE..ZZE172 NO.1	10/2013 - 09/2014	1
90466-18002	1ZZFE..ZZE172 NO.2	10/2013 - 09/2014	1

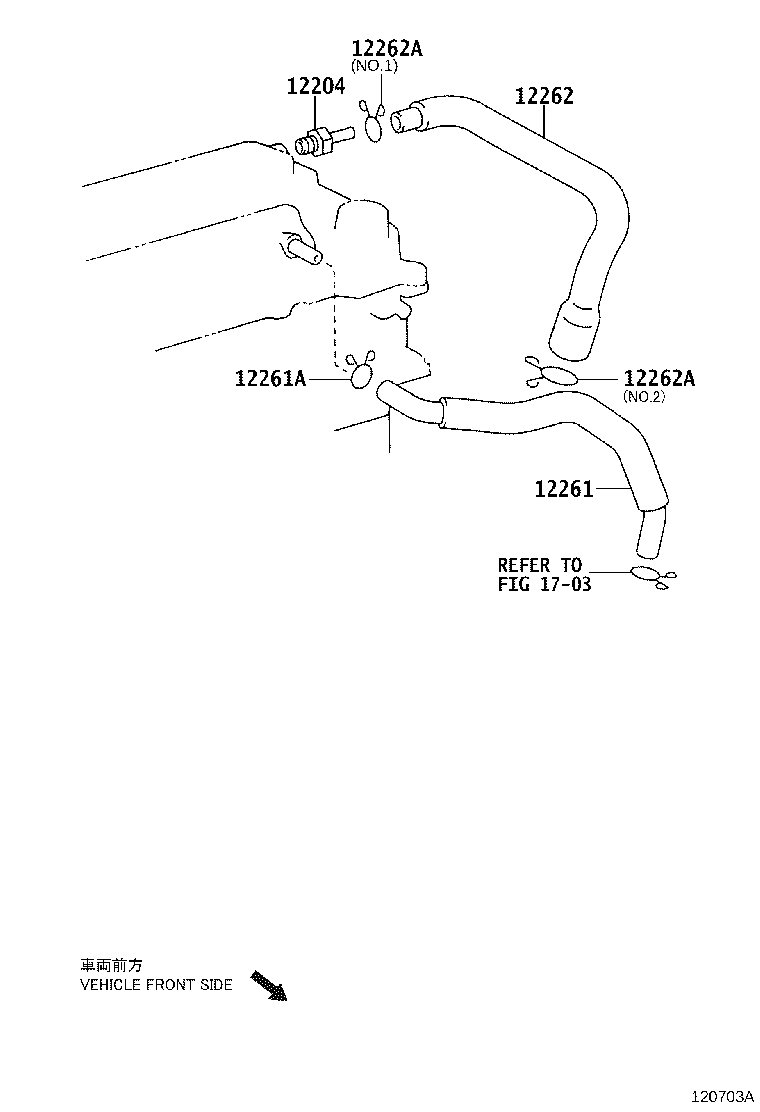

Linked diagrams
1703

ZZE172L-GEPNK (2013)
