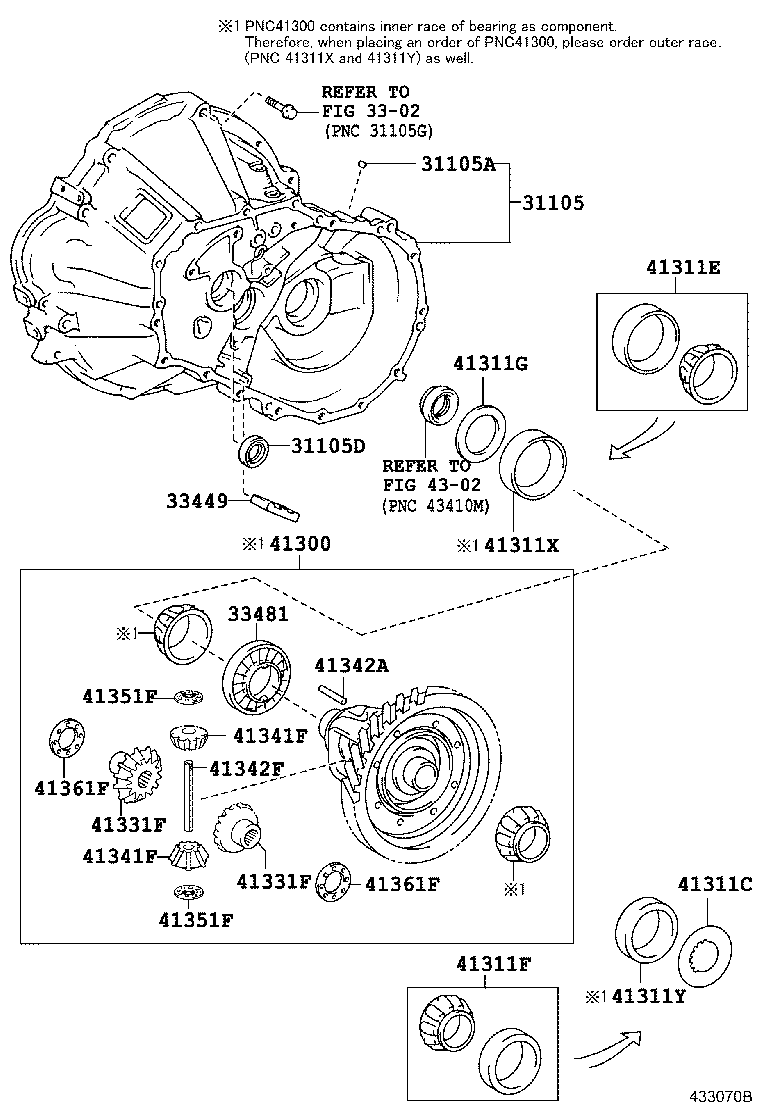

Toyota Corolla/altis ZZE172 FRONT AXLE HOUSING & DIFFERENTIAL

Part #	Description	Period	Qty
31105 - CASE SUB-ASSY, TRANSAXLE(MTM)
31105-12230	ZZE172..5F	10/2013 - 09/2014	1
31105A - PLUG, TIGHT(FOR FRONT TRANSAXLE CASE)
90331-08002	ZZE172..5F	10/2013 - 09/2014	1
31105D - SEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)
90311-25028	ZZE172..5F	10/2013 - 09/2014	1
33449 - MAGNET, TRANSMISSION
33449-12020	ZZE172..5F	10/2013 - 09/2014	1
33481 - GEAR, SPEEDOMETER DRIVE (MTM)
33481-20160	ZZE172..5F N=35	10/2013 - 09/2014	1
41300 - CASE ASSY, FRONT DIFFERENTIAL, W/RING GEAR
41300-12190	ZZE172..5F	10/2013 - 09/2014	1
41311C - SHIM (FOR FRONT DIFFERENTIAL CASE REAR)
90564-41016	ZZE172..5F T=2.20,MARK CC	10/2013 - 09/2014	1
90564-41014	ZZE172..5F T=2.10,MARK AA	10/2013 - 09/2014	1
90564-41021	ZZE172..5F T=2.45,MARK HH	10/2013 - 09/2014	1
90564-41015	ZZE172..5F T=2.15,MARK BB	10/2013 - 09/2014	1
90564-41019	ZZE172..5F T=2.35,MARK FF	10/2013 - 09/2014	1
90564-41023	ZZE172..5F T=2.55,MARK KK	10/2013 - 09/2014	1
90564-41026	ZZE172..5F T=2.70,MARK NN	10/2013 - 09/2014	1
90564-41025	ZZE172..5F T=2.65,MARK MM	10/2013 - 09/2014	1
90564-41028	ZZE172..5F T=2.80,MARK QQ	10/2013 - 09/2014	1
90564-41030	ZZE172..5F T=2.90,MARK SS	10/2013 - 09/2014	1
90564-41024	ZZE172..5F T=2.60,MARK LL	10/2013 - 09/2014	1
90564-41018	ZZE172..5F T=2.30,MARK EE	10/2013 - 09/2014	1
90564-41031	ZZE172..5F T=2.95,MARK TT	10/2013 - 09/2014	1
90564-41020	ZZE172..5F T=2.40,MARK GG	10/2013 - 09/2014	1
90564-41027	ZZE172..5F T=2.75,MARK PP	10/2013 - 09/2014	1
90564-41017	ZZE172..5F T=2.25,MARK DD	10/2013 - 09/2014	1
90564-41029	ZZE172..5F T=2.85,MARK RR	10/2013 - 09/2014	1
90564-41022	ZZE172..5F T=2.50,MARK JJ	10/2013 - 09/2014	1
90564-41032	ZZE172..5F T=3.00,MARK UU	10/2013 - 09/2014	1
41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR
90366-40129	ZZE172..5F	10/2013 - 09/2014	1
41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE
90366-40094	ZZE172..5F	10/2013 - 09/2014	1
41311G - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE FRONT)
90560-41003	ZZE172..5F T=2.1	10/2013 - 09/2014	1
41311X - OUTER RACE, TAPERED ROLLER BEARING (FOR DIFF. CASE FRON
90366-40130	ZZE172..5F	10/2013 - 09/2014	1
41311Y - OUTER RACE, TAPERED ROLLER BEARING (FOR DIFF. CASE REAR
90366-40095	ZZE172..5F	10/2013 - 09/2014	1
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-32010	ZZE172..5F	10/2013 - 09/2014	2
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-32010	ZZE172..5F	10/2013 - 09/2014	2
41341F - PINION, FRONT DIFFERENTIAL
41341-30011	ZZE172..5F	10/2013 - 09/2014	2
41341F - PINION, FRONT DIFFERENTIAL
41341-30011	ZZE172..5F	10/2013 - 09/2014	2
41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
90250-06058	ZZE172	10/2013 - 09/2014	1
41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1
41342-32020	ZZE172..5F	10/2013 - 09/2014	1
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-32010	ZZE172	10/2013 - 09/2014	2
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-32010	ZZE172	10/2013 - 09/2014	2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-22030	ZZE172..5F T=1.10,MARK 03	10/2013 - 09/2014	2
41361-22160	ZZE172..5F T=1.15,MARK 16	10/2013 - 09/2014	2
41361-22150	ZZE172..5F T=1.05,MARK 15	10/2013 - 09/2014	2
41361-22040	ZZE172..5F T=1.20,MARK 04	10/2013 - 09/2014	2
41361-22020	ZZE172..5F T=1.00,MARK 02	10/2013 - 09/2014	2
41361-22140	ZZE172..5F T=0.95,MARK 14	10/2013 - 09/2014	2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-22030	ZZE172..5F T=1.10,MARK 03	10/2013 - 09/2014	2
41361-22160	ZZE172..5F T=1.15,MARK 16	10/2013 - 09/2014	2
41361-22150	ZZE172..5F T=1.05,MARK 15	10/2013 - 09/2014	2
41361-22040	ZZE172..5F T=1.20,MARK 04	10/2013 - 09/2014	2
41361-22020	ZZE172..5F T=1.00,MARK 02	10/2013 - 09/2014	2
41361-22140	ZZE172..5F T=0.95,MARK 14	10/2013 - 09/2014	2
Linked diagrams
3302
4302

ZZE172L-GEMDK (2013)

(1310- )5F
