ZZE142R-GEPGKX (2008)

Toyota Corolla/Altis

Production Aug 2008 - May 2011
Engine 1ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0712- )RHD

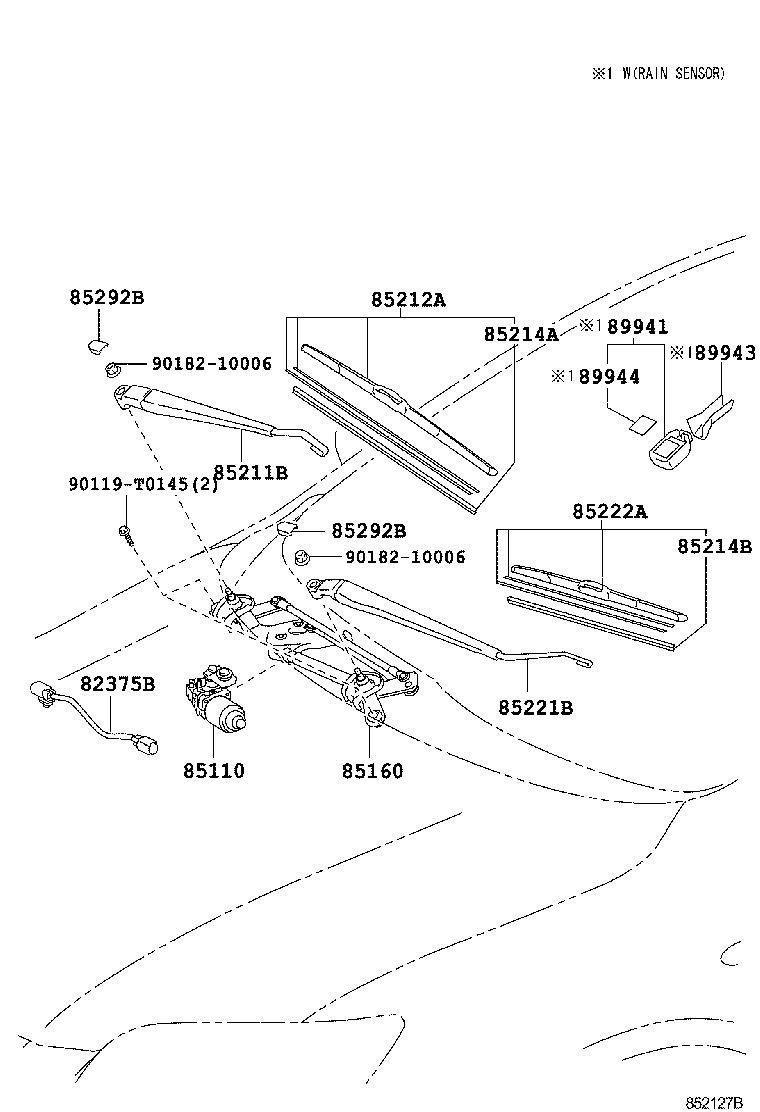

Click highlighted areas on diagram

diagram 82375B 85110 85160 85211B 85212A 85214A 85214B 85221B 85222A 85292B 85292B 89941 89943 89944 90119T0145 9018210006 9018210006
Part # Description Qty Price
82375B - WIRE, WIPER MOTOR
82375-12310

ZZE142..5F..VN;ZZE142..18V..IND;CE140,NZE140,ZRE143;ZZE14#..(16E,18E,18J)..(MA,PHL,TAIW);ZZE14#..(16G,16J,16V,18E,18G,18J,ALT,G,GLI,LIMO,XLI)..(GCC,IDN,IND,MA,PHL,PKN,TH)

 1
82375-12311

NDE140,ZZE142..IND

 1
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-02310

NDE140,ZZE142..IND

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85150-02270

NDE140,ZZE142..IND

 1
85292B - CAP, FRONT WIPER ARM HEAD
85292-13010

NDE140,ZZE142..IND

 2
85292-13010

ZRE143..LHD..CVFC..20V;CE140,NDE140,NZE140,ZRE141,142..IND,PHL,PKN,VN

 2
85292B - CAP, FRONT WIPER ARM HEAD
85292-13010

NDE140,ZZE142..IND

 2
85292-13010

ZRE143..LHD..CVFC..20V;CE140,NDE140,NZE140,ZRE141,142..IND,PHL,PKN,VN

 2
Common parts
90119-T0145
90182-10006
