ZZE142R-GEPGKX (2008)

Toyota Corolla/Altis

Production Aug 2008 - May 2011
Engine 1ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0712- )ZZE14#..IDN,IND,MA,PHL,TAIW,TH,VN

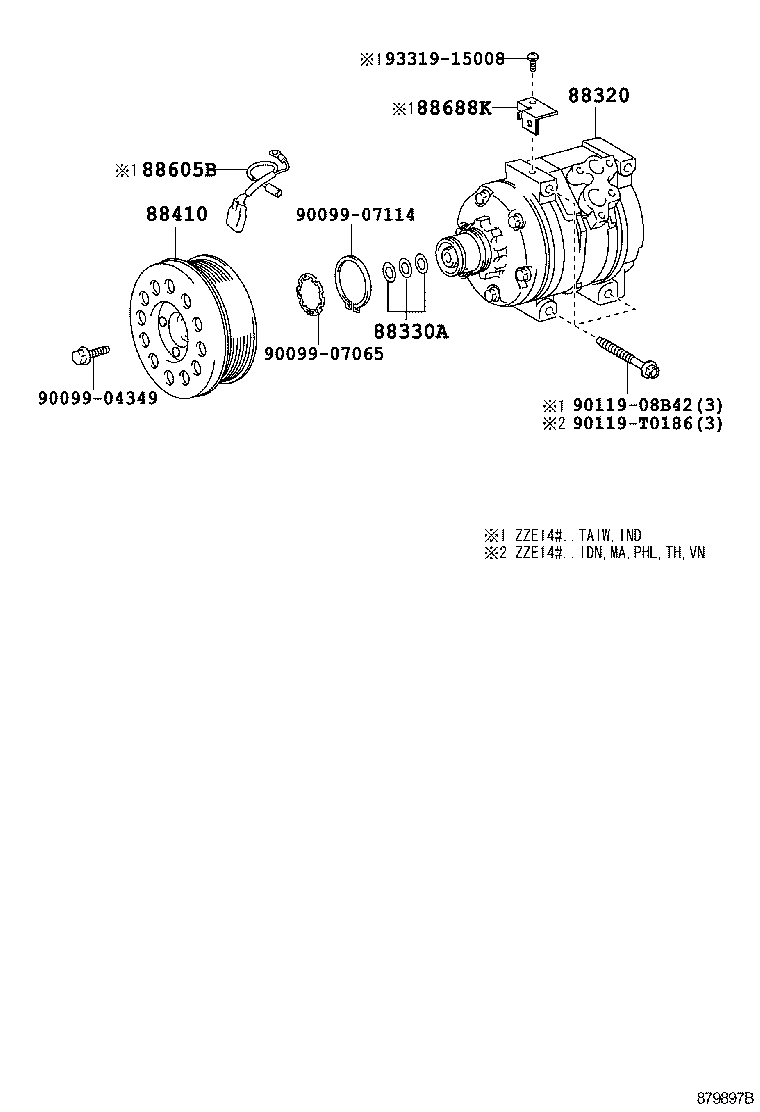

Click highlighted areas on diagram

diagram 88320 88330A 88410 88605B 88688K 9009904349 9009907065 9009907114 9011908B42 90119T0186 9331915008
Part # Description Qty Price
88320 - COMPRESSOR ASSY, COOLER
88320-02150

ZZE142..IND

 1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-14020

ZZE142..IND

 1
88410 - CLUTCH ASSY, MAGNET
88410-02150

ZZE142..IND

 1
88605B - HARNESS SUB-ASSY, AIR CONDITIONER WIRING
88605-35420

ZZE142..IND

 1
88688K - BRACKET, COOLER COMPRESSOR
88688-33260

ZZE142..IND

 1
Common parts
90099-04349
90099-07065
90099-07114
90119-08B42
90119-T0186
93319-15008
