ZZE142R-GEPGKX (2008)

Toyota Corolla/Altis

Production Aug 2008 - May 2011
Engine 1ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0712- )

Click highlighted areas on diagram

O-RING

diagram 9009914119 9009914120 9009914121
Part # Description Qty Price
Common parts
90099-14119
90099-14120
90099-14121

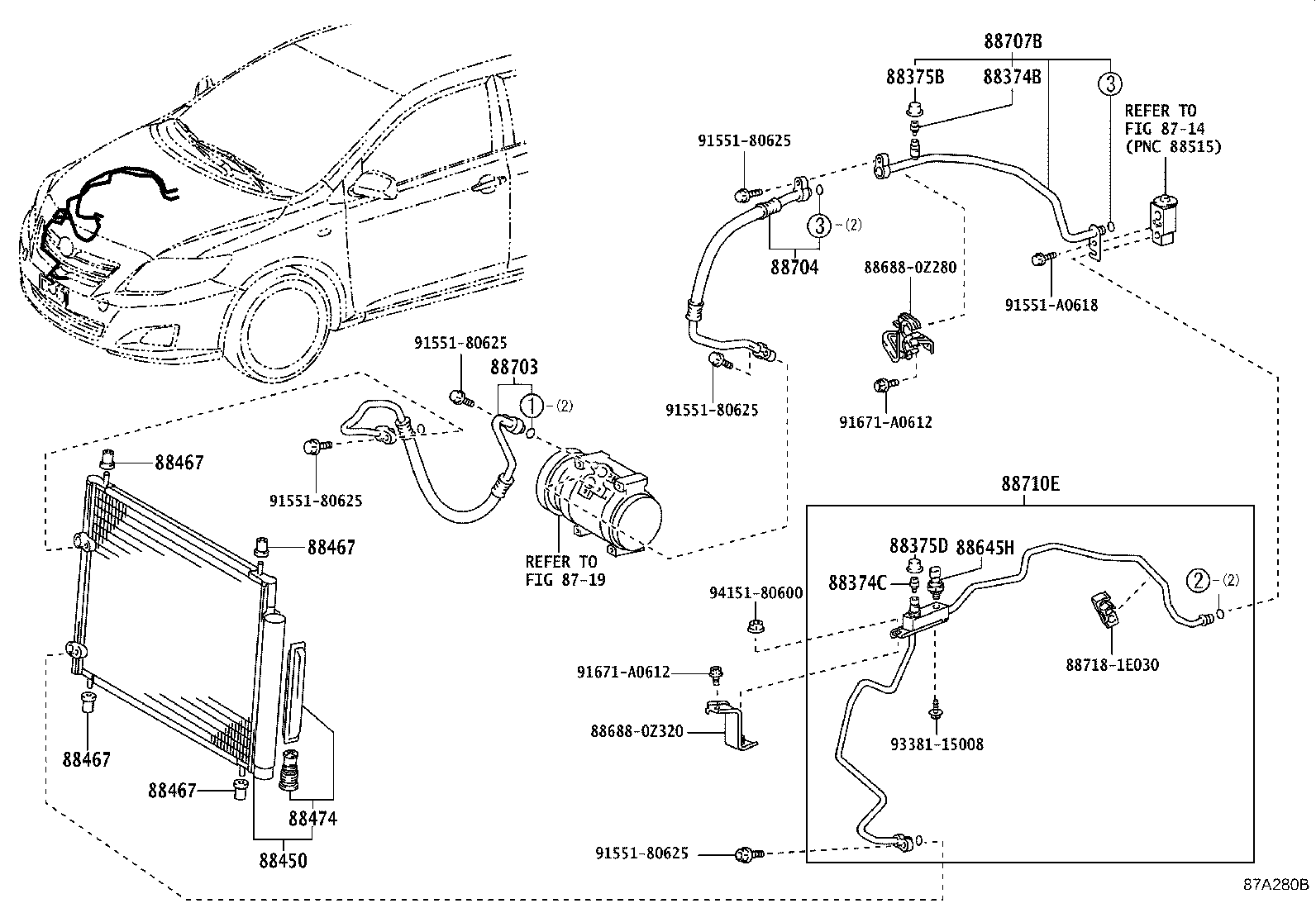

ILLUST NO. 1 OF 2(0808- )ZZE142..IND

Click highlighted areas on diagram

diagram 8714 8719 88374B 88374C 88375B 88375D 88450 88467 88467 88467 88467 88474 88645H 886880Z280 886880Z320 88703 88704 88707B 88710E 887181E030 9155180625 9155180625 9155180625 9155180625 9155180625 91551A0618 91671A0612 91671A0612 9338115008 9415180600
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

NDE140,ZZE142..IND

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

NDE140,ZZE142..IND

 1
88374-30010

ZRE143..LHD..CVFC;NDE140,ZRE141,142..GCC,IND,PHL,TAIW,VN

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

NDE140,ZZE142..IND

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280

NDE140,ZZE142..IND

 1
88450 - CONDENSER ASSY, W/RECEIVER
88450-02380

NDE140,ZZE142..IND

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
16716-28010

NDE140,ZZE142..IND

 4
88467 - CUSHION, COOLER CONDENSER, NO.1
16716-28010

NDE140,ZZE142..IND

 4
88467 - CUSHION, COOLER CONDENSER, NO.1
16716-28010

NDE140,ZZE142..IND

 4
88467 - CUSHION, COOLER CONDENSER, NO.1
16716-28010

NDE140,ZZE142..IND

 4
88474 - DRYER, COOLER
88474-17010

NDE140,ZZE142..IND

 1
88645H - SWITCH, PRESSURE NO.1
88645-60030

ZZE14#..IND,PHL,TAIW,VN

 1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-02540

ZZE142..IND

 1
88704 - HOSE SUB-ASSY, SUCTION
88704-02790

ZZE142..IND

 1
88707B - TUBE SUB-ASSY, SUCTION, B
88707-02120

ZZE142..IND

 1
88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER
88710-0Z110

ZZE142..IND

 1
Common parts
88688-0Z280
88688-0Z320
88718-1E030
91551-80625
91551-A0618
91671-A0612
93381-15008
94151-80600
