ZZE142R-GEPGKX (2008)

Toyota Corolla/Altis

Production Aug 2008 - May 2011
Engine 1ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0712- )ZRE142,ZZE14#..IDN,IND,MA,PHL,PKN,TH,VN..HTWC ; (0712- )CE140,NDE140,

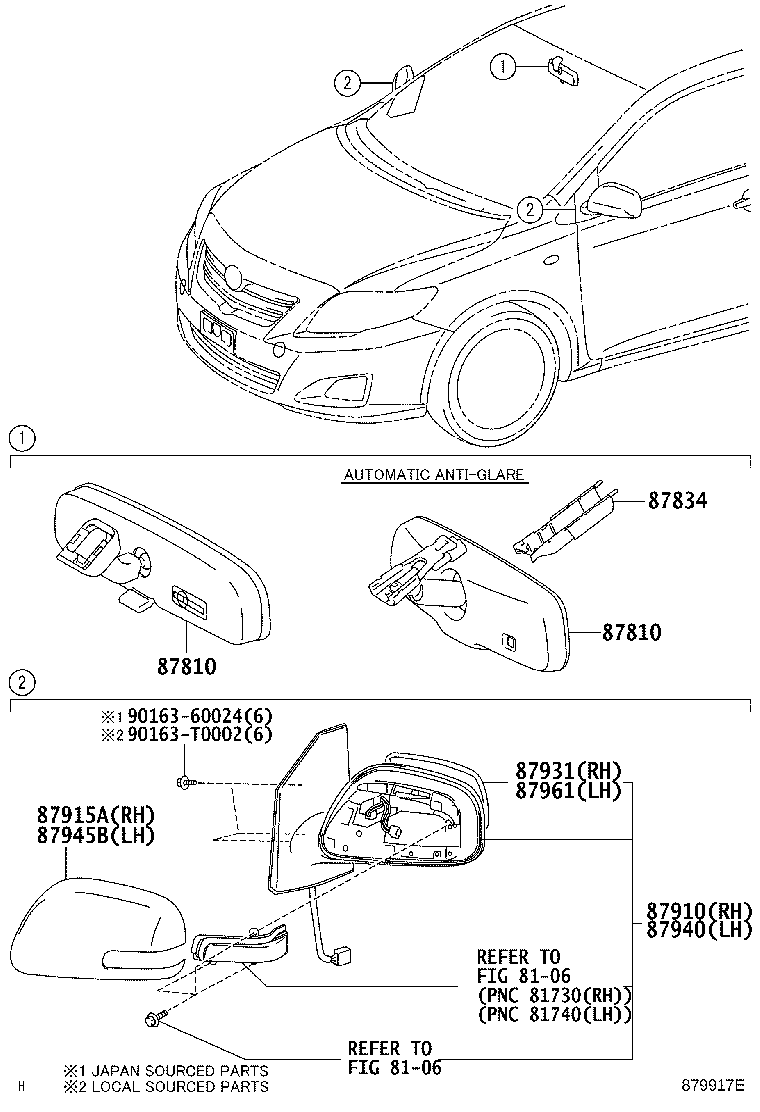

Click highlighted areas on diagram

diagram 8106 8106 87810 87810 87834 87910 87915A 87931 87940 87945B 87961 9016360024 90163T0002
Part # Description Qty Price
87810 - MIRROR ASSY, INNER REAR VIEW
87810-02090

NDE140,ZZE142..(18G,18V,G)..IND

 1
87810 - MIRROR ASSY, INNER REAR VIEW
87810-02090

NDE140,ZZE142..(18G,18V,G)..IND

 1
87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER
87818-33010

NDE140,ZZE142..(18G,18V,G)..IND

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-02A50

NDE140,ZZE142..(18G,18V,E,G)..IND

NO PAINT REQ.

 1
87931 - OUTER MIRROR, RH
87931-02A20

NDE140,ZZE142..IND

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-02A30

NDE140,ZZE142..(18G,18V,E,G)..IND

NO PAINT REQ.

 1
87961 - MIRROR OUTER, LH
87961-02A00

NDE140,ZZE142..IND

 1
Common parts
90163-60024
90163-T0002
Linked diagrams
8106
